Great for toy cars, scooters, fish finders, marines, RVs, power tools, UPS systems etc.

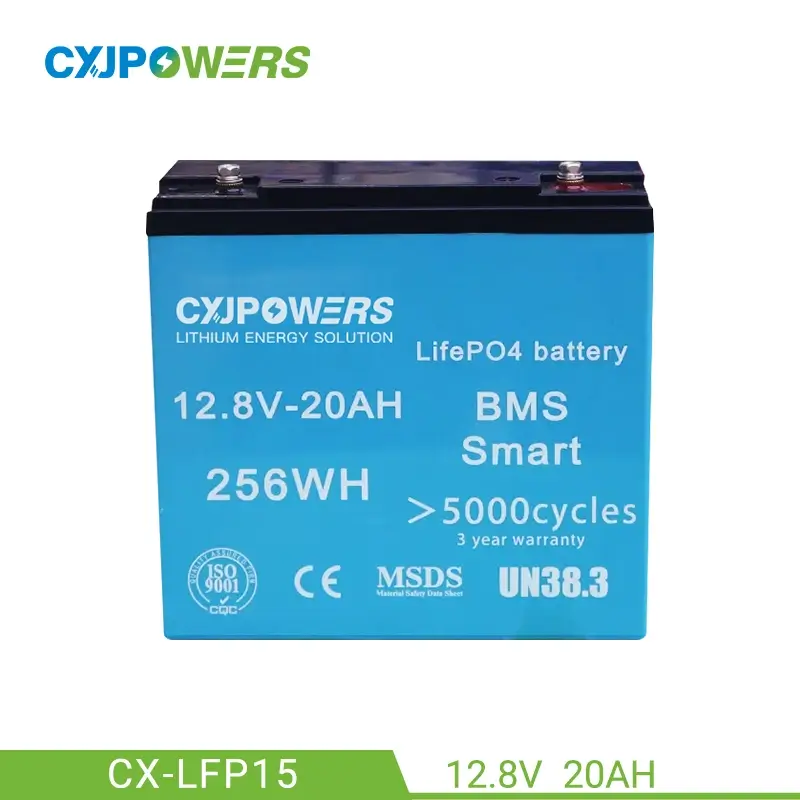

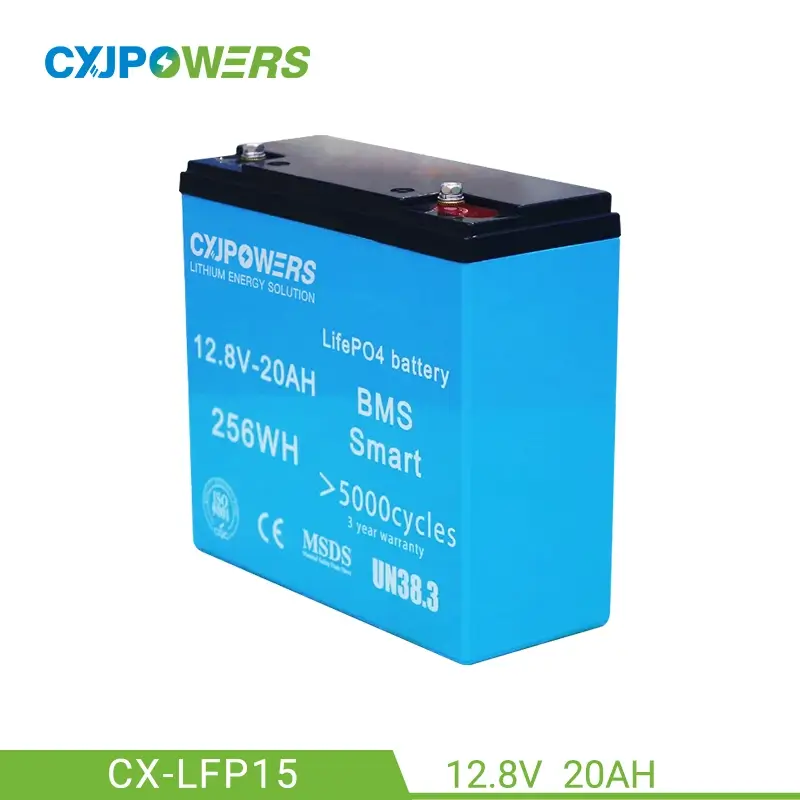

Model: CX-LFP15
Rated energy: 256Wh
Rated voltage: 12.8V
Rated capacity: 20Ah
Battery type: LiFePO4 battery
Cycle life: > 6000 times
Voltage range: 10.8V~14.6V
Max continuous charging current: 20A
Max continuous discharging current: 20A

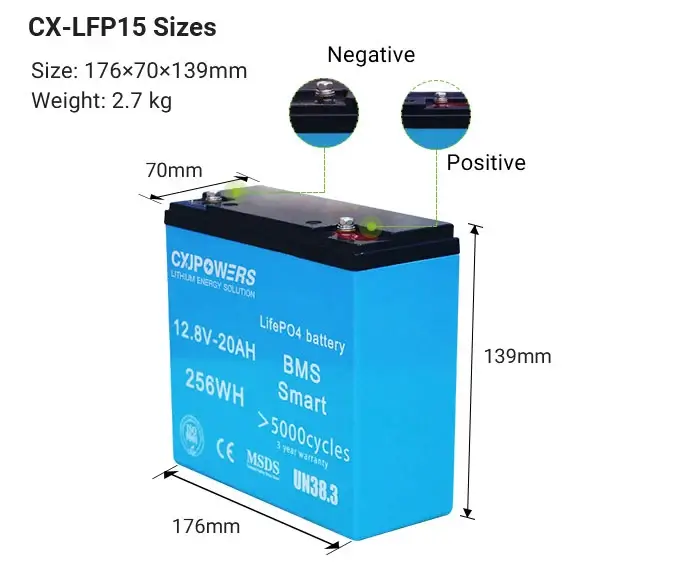

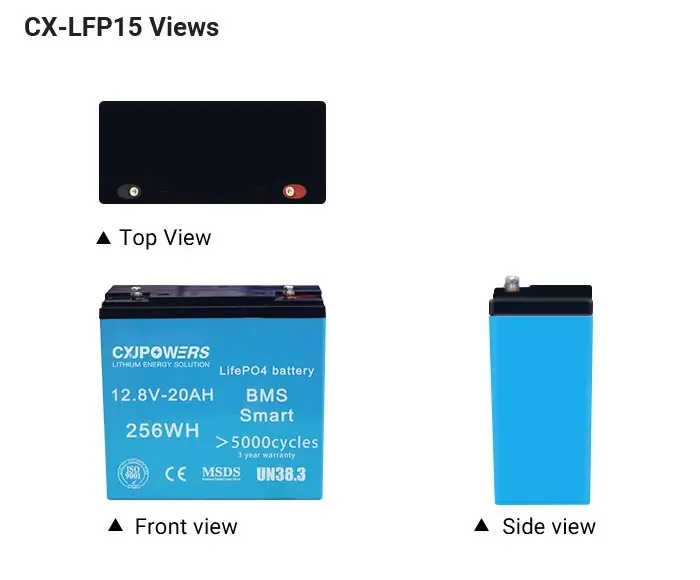

Dimension(L×W×H): 176×70×139mm
Weight: 2.2.7 kg
MOQ: ≥ 5pcs

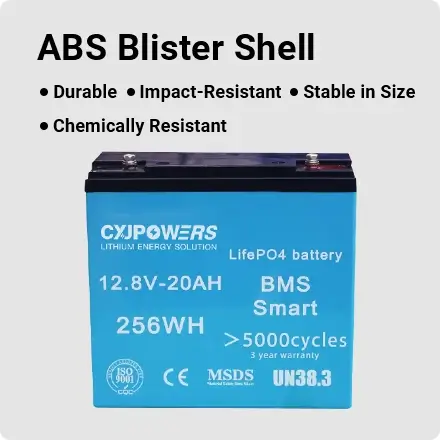

CXJPowers 12V 20Ah LiFePO4 battery is made of A-grade LiFePO4 cells, high-quality ABS casing and advanced lithium energy solution technology. CX-LFP15 is a compact and powerful 12V LiFePO4 battery, with 256Wh of high energy capacity. Built-in smart BMS, it ensures reliable performance, enhanced safety, and long-lasting durability. This battery is perfect for applications such as RVs, solar systems, electric scooters, camping, outdoor lights, and more, providing consistent power in a lightweight and easy-to-install.

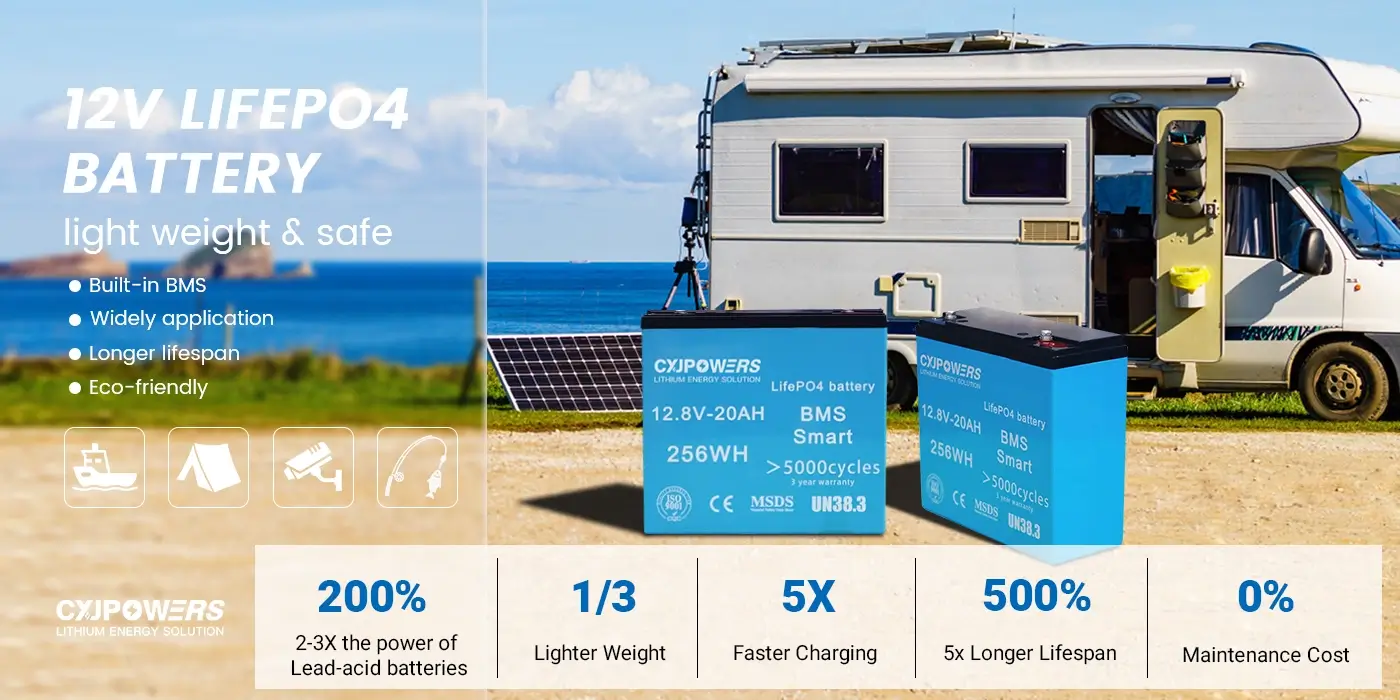

12V LiFePO4 Battery Pack
256Wh A-grade LiFePO4 battery.
Multiple protections & 100% safety.
State of charge, Depth of discharge.
5000+ long life cycle(80% DOD).
60% lighter than lead-acid batteries.
3x faster than lead-acid batteries.
No heavy metals, no pollution.
Powers 99% of all appliances.
Impact resistant, rugged insulation.
Good conductivty, reduce power loss.
Long-term storage maintains 85% capacity.

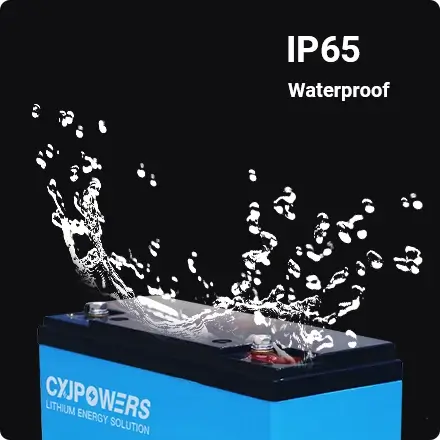

Waterproof, dustproof and weatherproof.

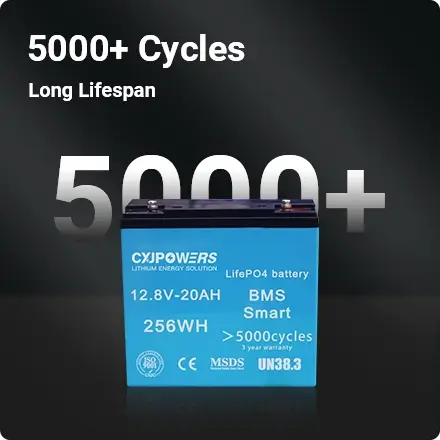

Long life ＞5000 cycles(80% DOD).

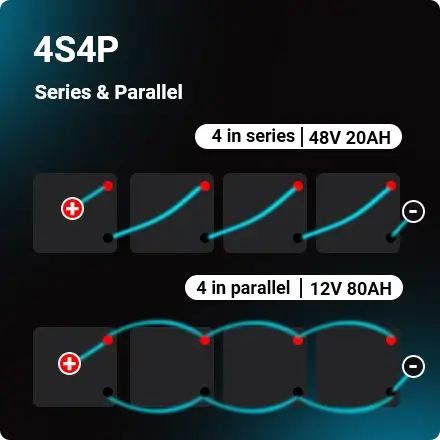

Support in series or parallel.
CXJPowers 12V LifePO4 battery has a built-in smart battery management system(BMS) to prevent batteries from overcharging, over-discharging, over-current and short circuit. And it has high sealing performance and can be used in various harsh environments.
Built-in Smart BMS, High Safety & Mutilple Protection

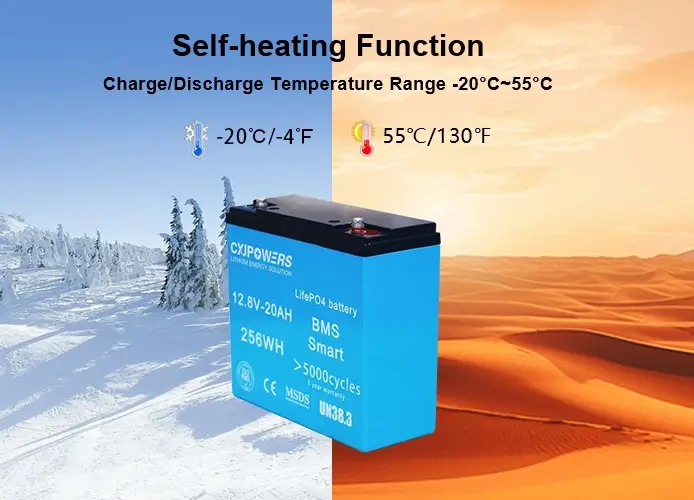

Self-Heating Function, Can Work in -20℃ Outdoor Environment
| Item Name | 12V 20Ah LiFePO4 Battery Lithium Solar Light Battery Supplier | ||||
| Model | CX-LFP15 (12V 20Ah) | Rated Energy | 256Wh | ||
| Battery Type | LiFePO4 cell | Max Continuous Charging Current | 20A | ||
| Cycle Life | >5000 times | Max Continuous Discharging Current | 20A | ||
| Voltage Range | DC 10.8~14.4V | Dimensions(LxWxH) | 176×70×139mm | ||
| Bluetooth & Display | Optional | Weight | Approx. 2.7kg | ||
Get A Free Quotation & More Details. Contact Us Now!

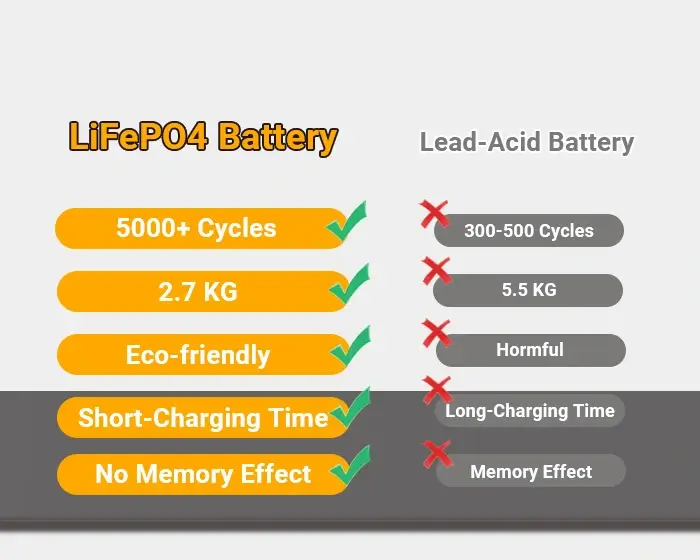

LiFePO4 batteries have a service life more than 5 times that of standard lead-acid batteries and are 60% lighter. It can directly replace lead-acid batteries.
CX-LFP15 is a compact 12V 20Ah LiFePO4 battery with high energy density, making it a versatile and reliable power source for various applications. It is perfect for 12V solar systems, electric bikes, RVs, scooters, fish finders, camping equipment, home security systems, small UPS devices, and more. With its durable construction and long-lasting performance, this battery offers both convenience and peace of mind for your everyday power needs.
Camping, outdoor power supply

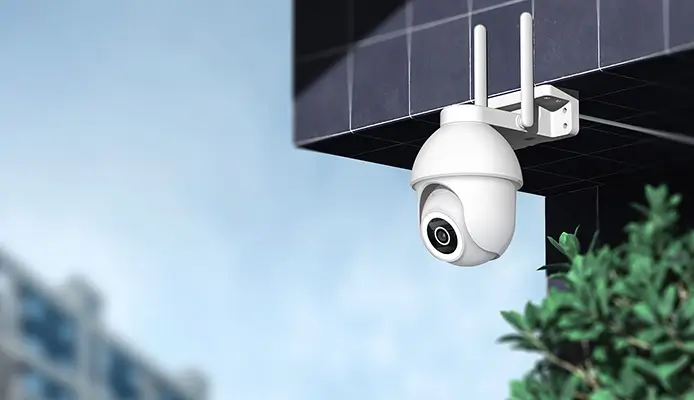

Home monitoring system
Golf cart

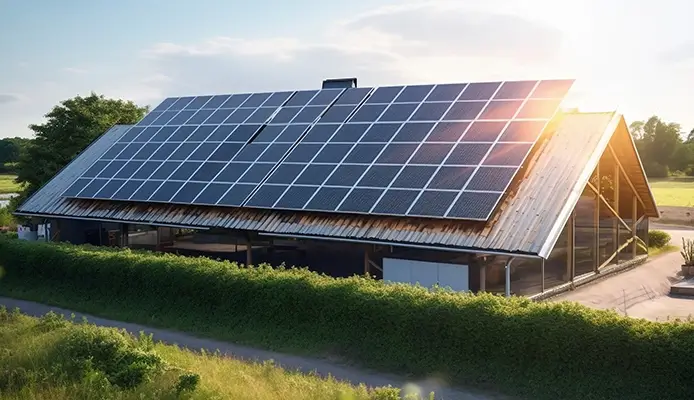

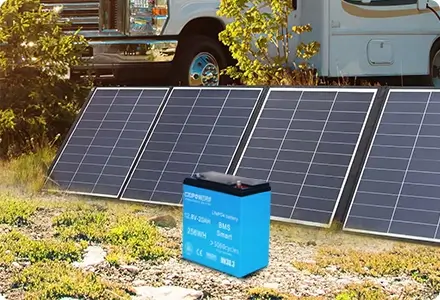

Solar energy system storage battery

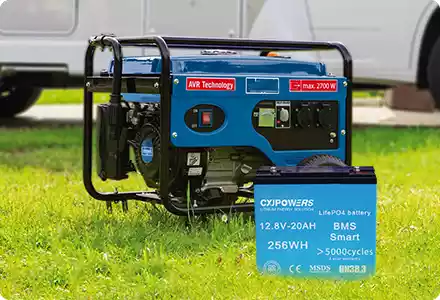

3 method to charge LiFePO4 battery: solar energy, charging with a charger connected to the grid, and charging with a generator. Lithium batteries can be charged safely and efficiently, maximizing their performance and lifespan. They are very suitable for outdoor and off-grid use.
|
12V 20Ah LiFePo4 Battery 256Wh |
|
|
Model |
CX-LFP15 |
|
Battery Parameters |
|
|
Voltage |
12.8V |
|
Capacity |
20Ah (Standard) |
|
Life Cycle |
＞5000 cycles（80%DOD，25℃） |
|
Battery Working Voltage |
DC 10.8 ~14.4V |
|
Electrical Parameters |
|
|
Rated Energy |
256Wh |
|
Minimun Discharge Voltage |
10.8V |
|
Max Continuous Charging Current |
20A |
|
Max Continuous Discharging Current |
20A |
|
Maximum Charging Voltage |
14.4V |
|
Product Parameters |
|
|
Dimension (LxWxH) |
176×70×139mm |
|
Net Weight |
2.7KG |
|
IP Grade |
IP65 |
|
Operating Temperature Range |
Charging：-20~55℃ Discharging：-20~55℃ |
|
Cooling Mode |
Natural Cooling |
|
Operating Humidity Range |
0~95% (NO Condensation) |
|
Max Working altitude |
4000m (>3000m Need to Derate) |
|
Display Screen |
Optional |
|
DC Charging Port |
Wall-Through Fence Terminal |
|
Optional Features |
|
|
Bluetooth |
Provide Mobile APP for Monitoring |
LiFePO4 batteries are less likely to overcharge compared to other types of lithium-ion batteries, thanks to their built-in Battery Management System (BMS), which prevents overcharging and protects the battery.
Sample order: 100% payment before shipment; Bulk order: 30% deposit before production, 70% balance before shipment.
Store LiFePO4 batteries in a cool, dry place, away from direct sunlight and extreme temperatures. For long-term storage, keep the battery at around 50-70% charge to maintain its health.
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
