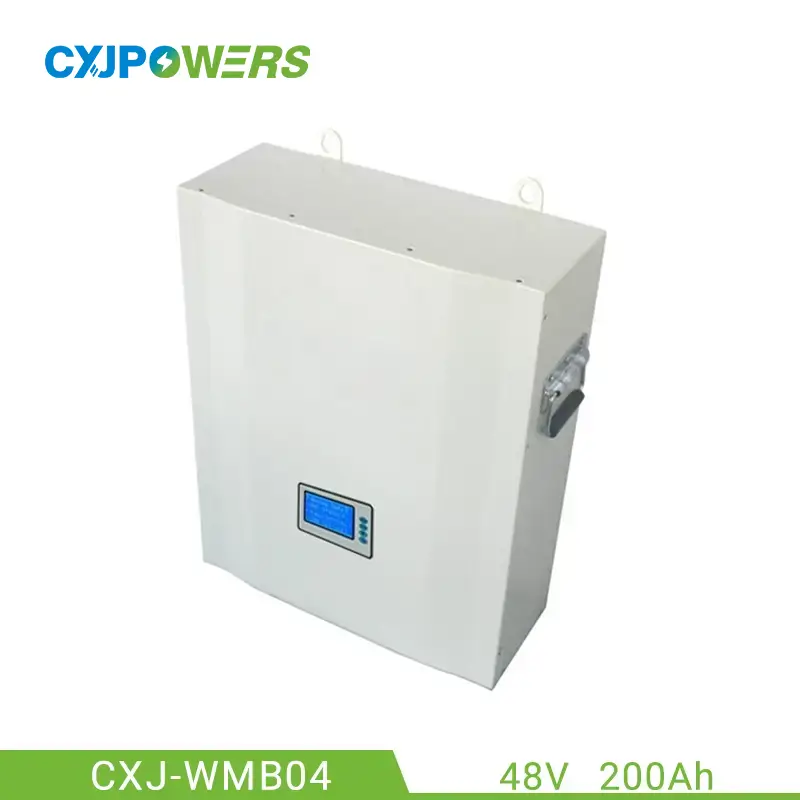

CXJPowers 48V 200Ah wall mount lithium iron phosphate household battery. Home savings backup batteries. Response time is extremely short. Welcome to customize!

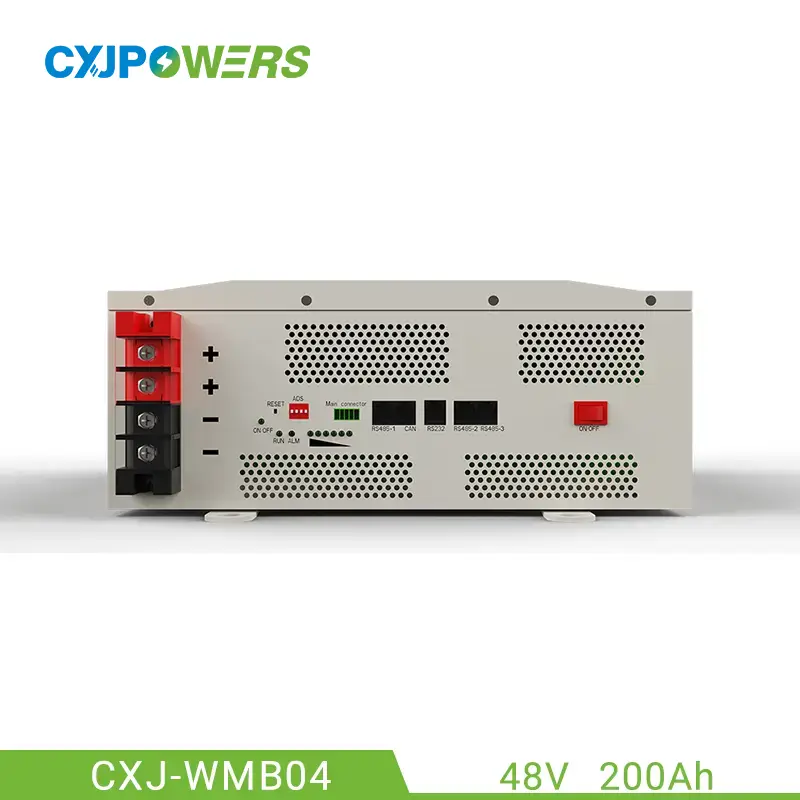

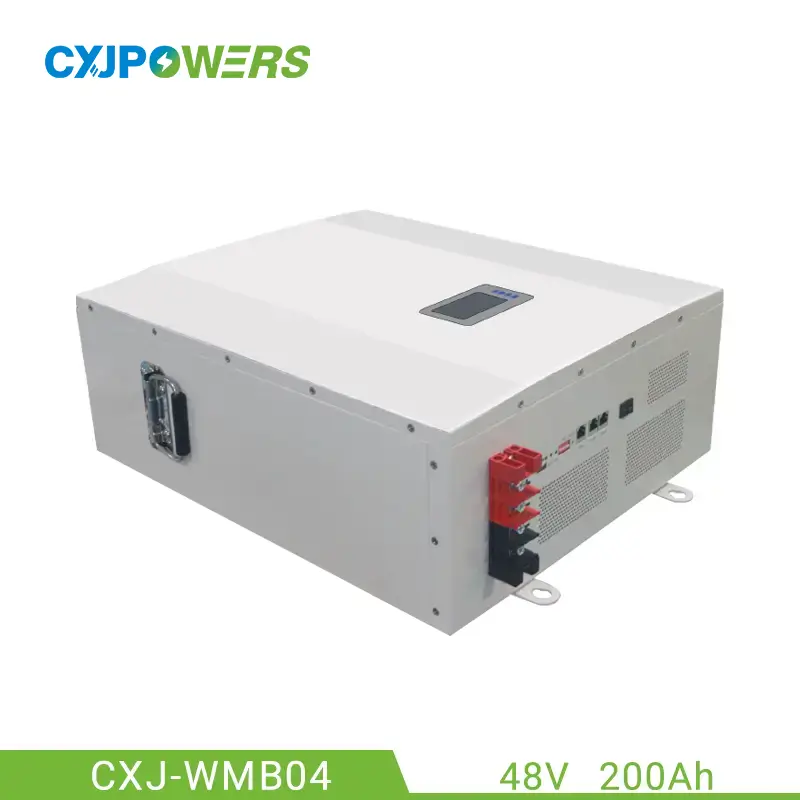

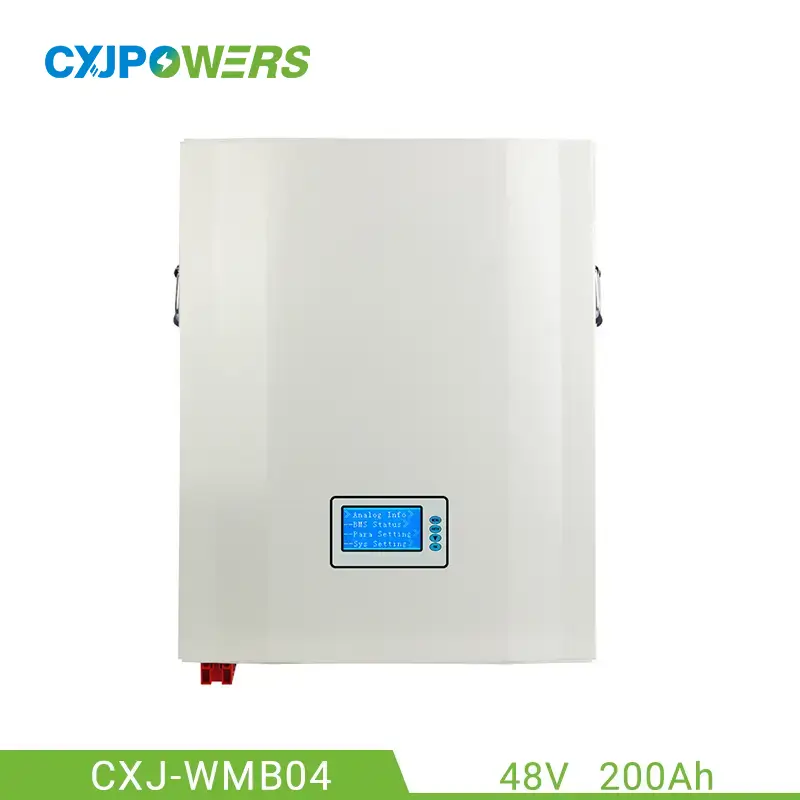

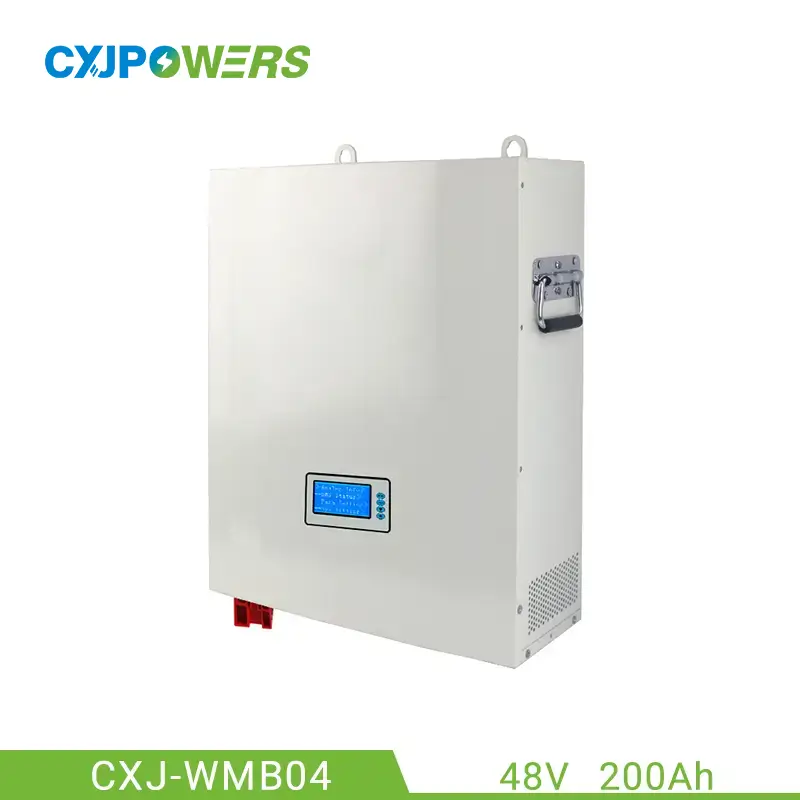

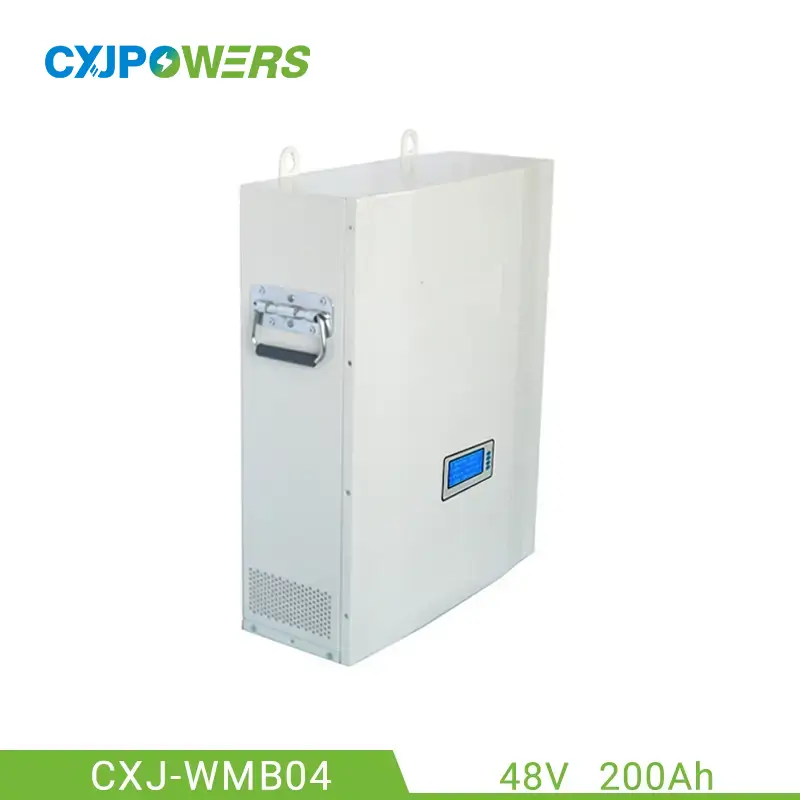

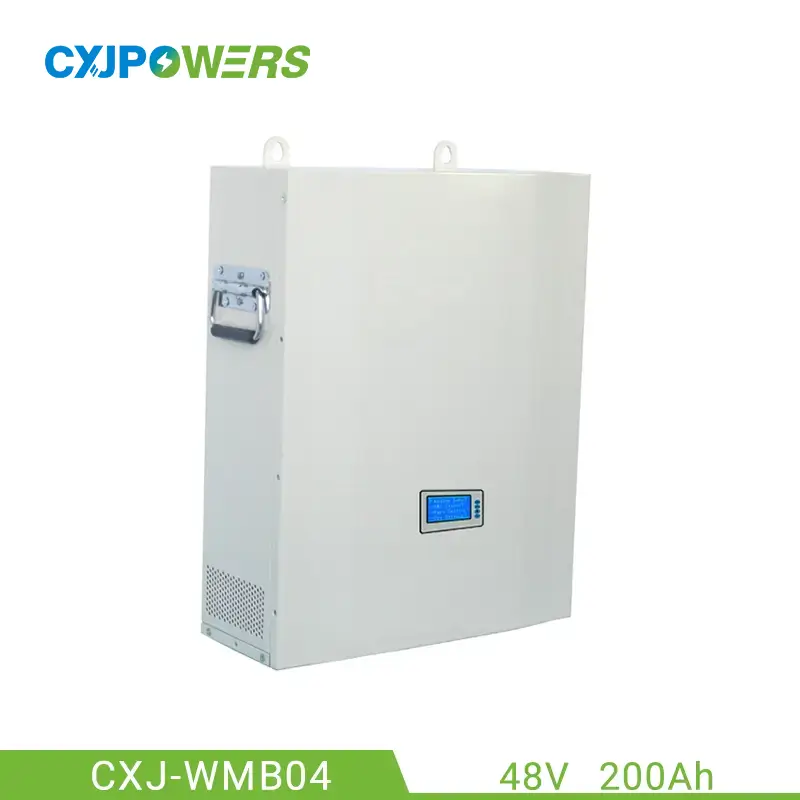

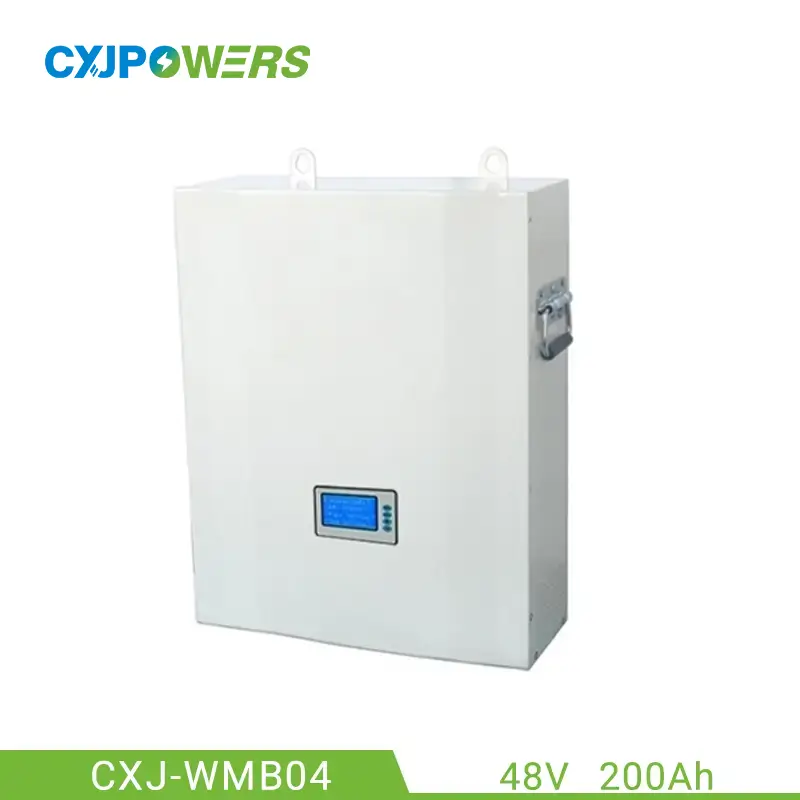

Model: CXJ-WMB04/Wall-mounted
Voltage: 48V
Capacity: 200Ah
Energy: 9600Wh
Voltage Range: DC39～54.2V
Battery Type: LiFePO4 battery
IP Grade: IP20
BMS Communication: RS485/RS232/CAN/Ethernet
Dimension(LxDxH): 530x450x195mm
Net Weight: 70kg

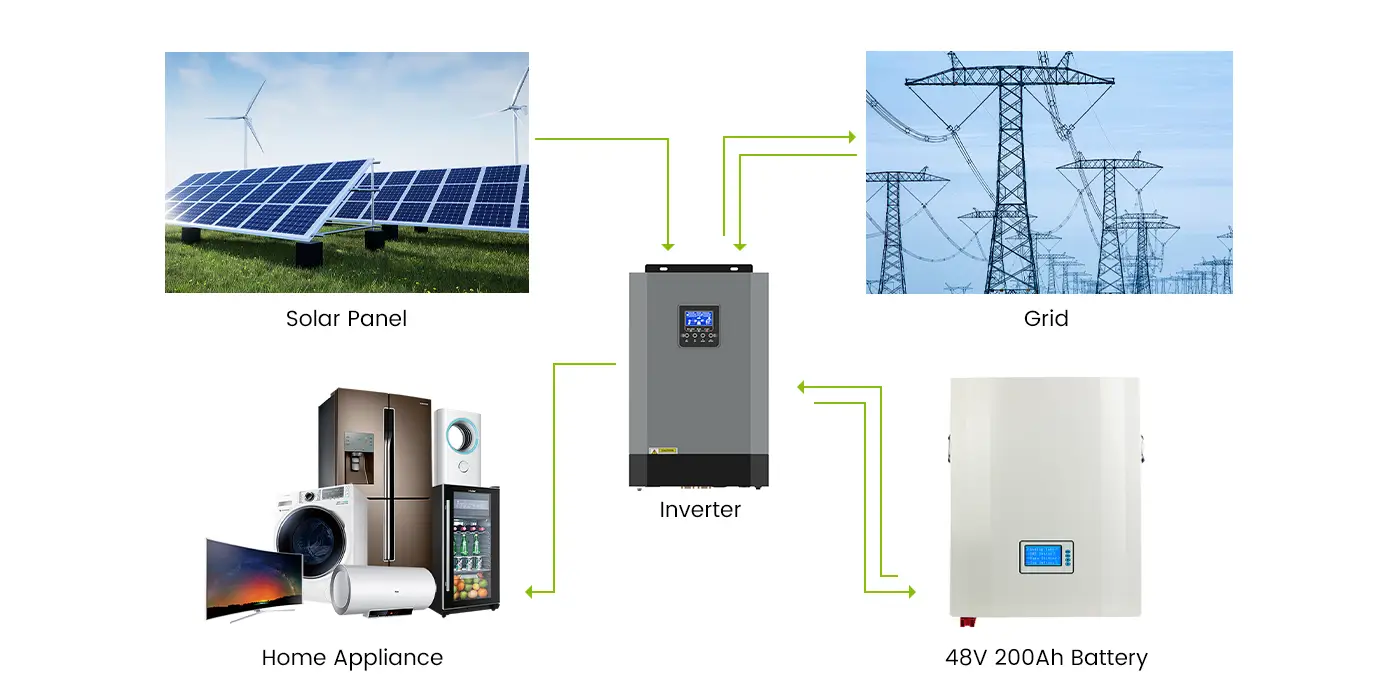

CXJPowers 48V 200Ah powerwall home battery. Home energy storage systems mainly store excess power generated by solar panels in battery packs so that families can access it at any time. daytime. When sunlight is normal, solar photovoltaic modules produce more energy, which can be stored by batteries to ensure power supply at night or on rainy days or another day. Using a home energy storage system can maintain power continuity during a power outage with extremely short response times. CXJPowers is the first choice for home batteries.
CXJPowers New Energy · Empowers Better Life
| Item Name | 48V 200Ah Powerwall Home Battery | ||
| Model | CXJ-WMB04 | Shell Material | Metal |
| Voltage | 48V | Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Capacity | 200Ah | Battery Cycle Life | ＞6000 Cycles |
| Energy | 9600Wh | Voltage Range | DC39～54.2V |
| BMS Communication | RS485, RS232, CAN, Ethernet | ||
| DC Charging Port | Wall-through fence terminal | ||
| Installation Mode | Wall-mounted | ||
| Dimension (LxWxH) | 530mm x 450mm x 195mm | Weight | 70Kg |
| IP Grade | IP20 | ||
Get A Free Quotation & More Details. Contact Us Now!
Split design, flexible and convenient installation, not limited by floors. Can be applied to a variety of scenarios, the product has a variety of patents. Efficient off-grid system, clean and environmentally friendly energy storage method. Intelligent control, anti-leakage isolation "safety wall", safe and reliable. CXJPowers wall mounted battery has become a household necessity.
CXJPowers portable power station manufacturer has rich experience in power station manufacturing and a number of international patents. We specialize in portable power station, home battery storage, industrial & commercial energy storage system (ESS) etc. battery solutions.
| Model | CXJ-WMB01 | CXJ-WMB02 | CXJ-WMB03 | CXJ-WMB04 |
| Shell Material | Metal | |||
| Battery Type | LiFePO4(Lithium iron phosphate) | |||
| Voltage | 24V | 48V | ||
|
Voltage Range
|
DC21~29.2V | DC39~54.2V | ||
| Capacity | 100Ah 2400Wh | 200Ah 4800Wh | 100Ah 4800Wh | 200Ah 9600Wh |
| Dimension (LxWxH) | 371x375x150mm | 460x440x200mm | 471x375x150mm | 530x450x195mm |
| Net Weight | 26KG | 42KG | 39KG | 70KG |
| Gross Weight | 30KG | 54KG | 42KG | 73KG |
| Battery Cycle Life | ＞6000 Cycles | |||
| Operating Temperature |
Charging: 0~45℃ Discharging: -30~55℃
|
|||
| BMS Communication | RS485, RS232, CAN, Ethernet | |||
| IP Grade | IP20 | |||
| DC Charging Port | Wall-through fence terminal | |||
| Installation Mode | Wall-mounted | |||
|
Display Screen
|
Optional
|
|||
Yes, we welcome sample order to test and check quality. samples are acceptable.
We have a large inventory and are ready to ship.
Yes, but there is a minimum order quantity required.
Our lithium battery packs can power most home appliances, electrical systems, solar storage systems and more. But this also depends on the power output of the battery pack.
