CXJPowers · Reliable Energy Storage Battery Supply Manufacturer in China

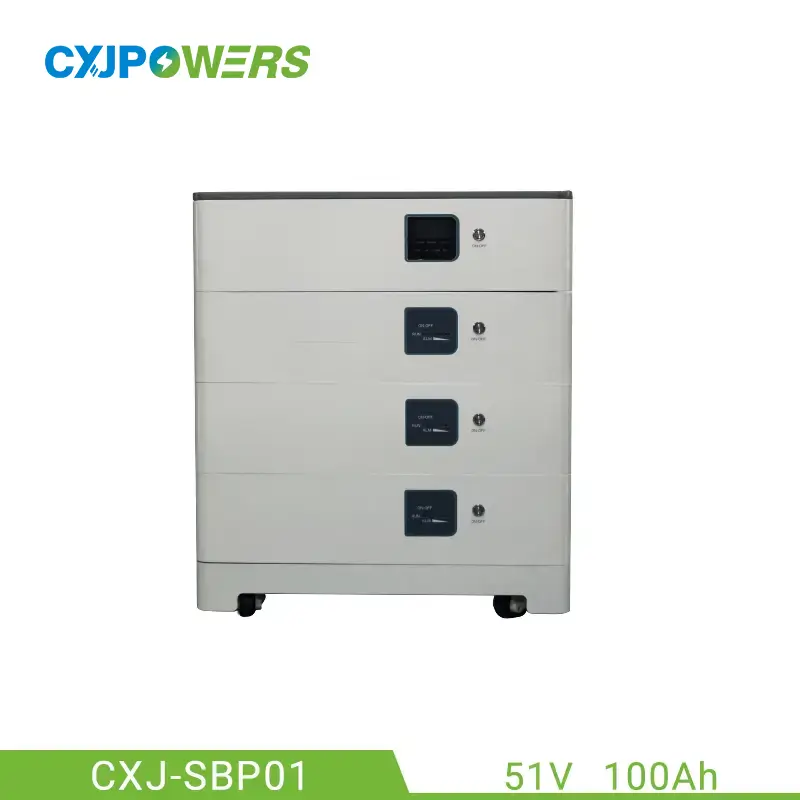

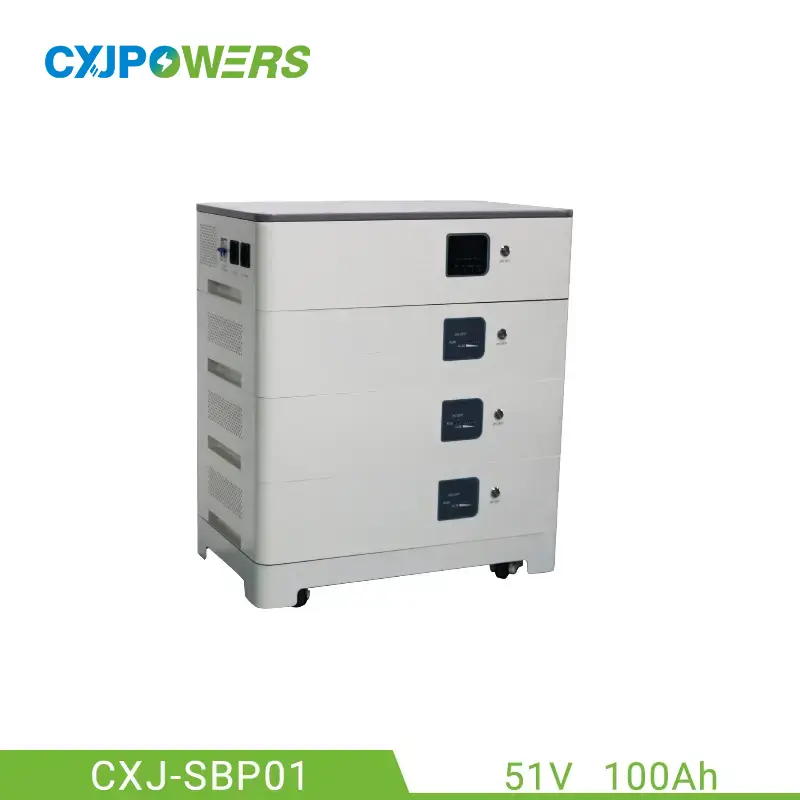

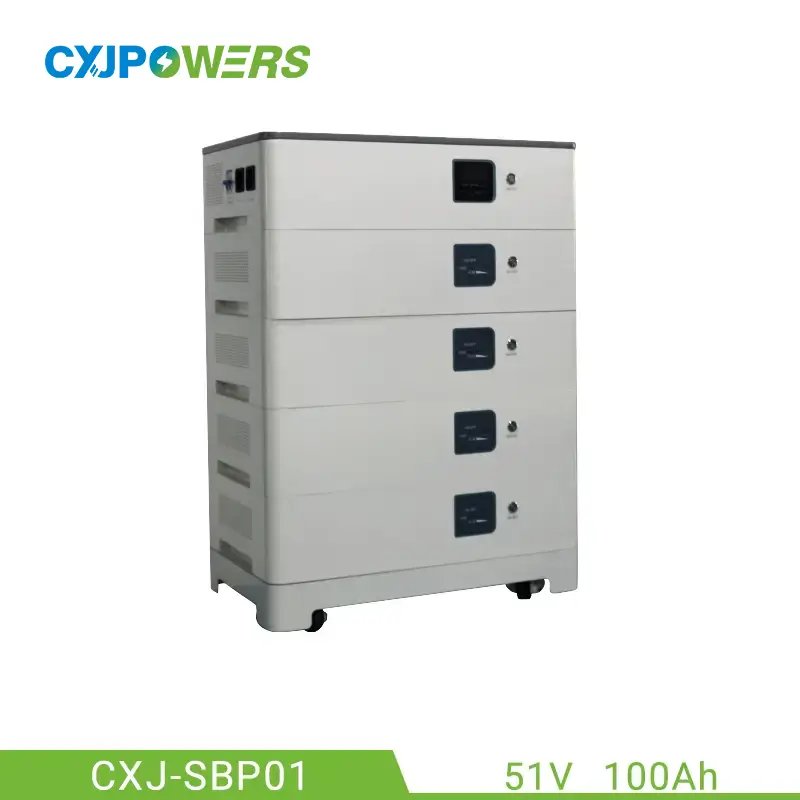

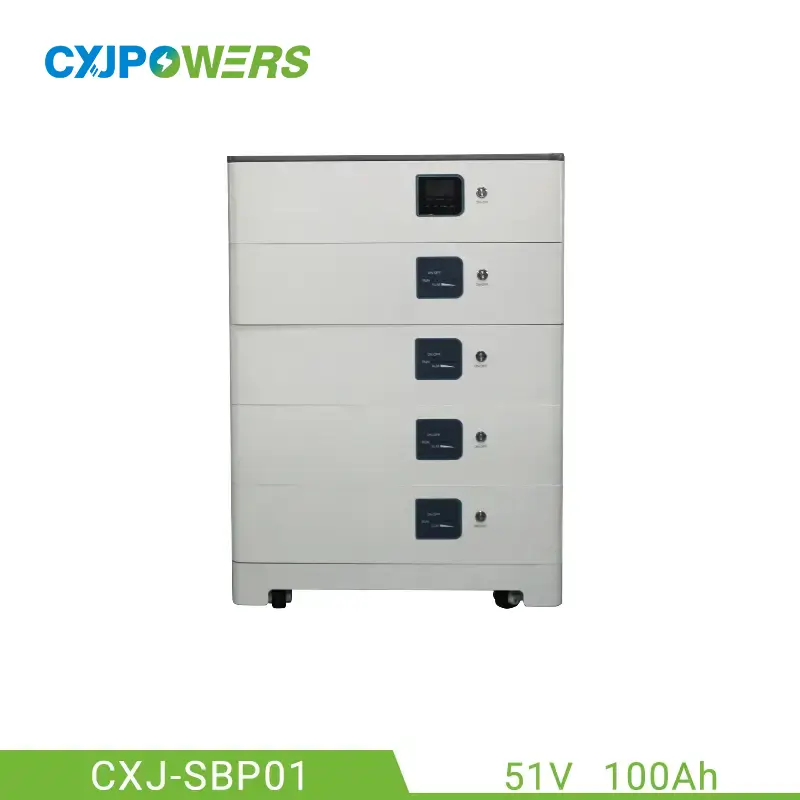

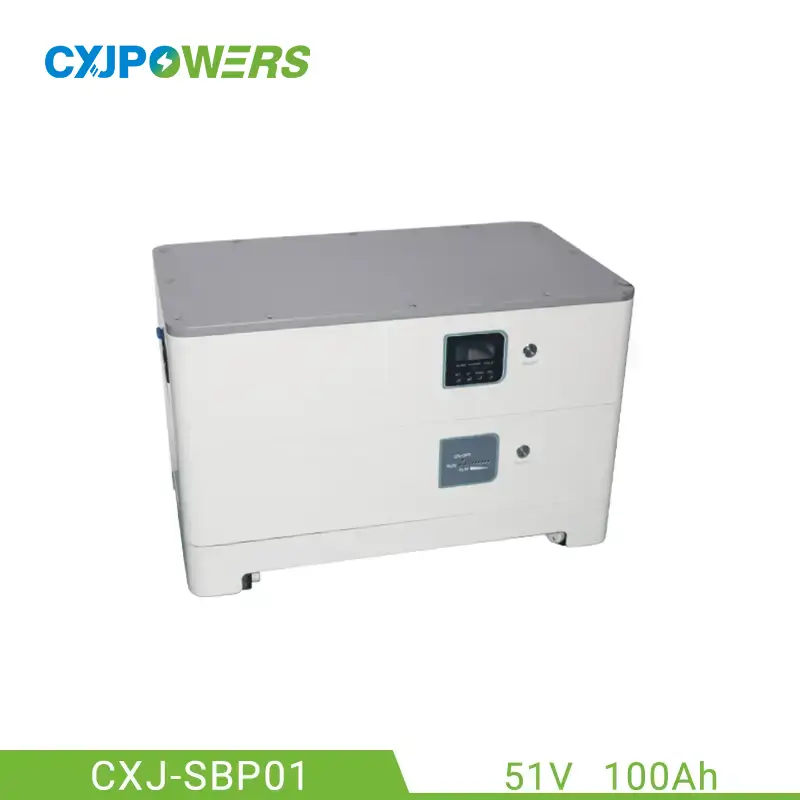

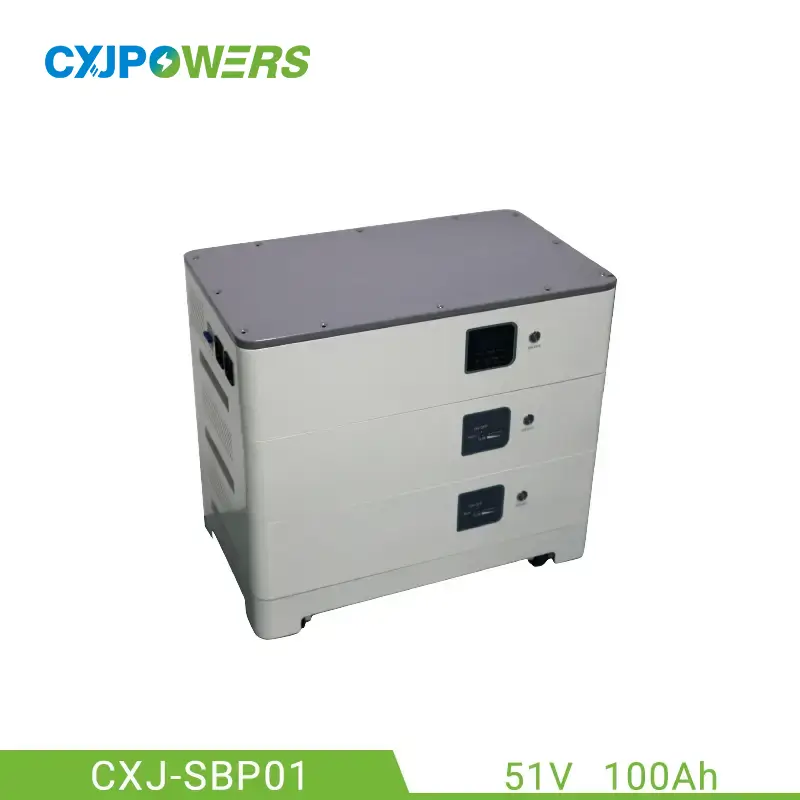

51V 5000Wh stackable battery pack. Integrated home energy storage system including hybrid inverter and lithium battery. Integrate backup functions. Welcome to order!
Model: CXJ-SBP01/Stackable
Voltage: 51.2V
Capacity: 5000Wh
Layers: 1 Layer
Battery Type: LiFePO4 battery
PV Charging Current: 100A
PV Discharging Current: 100A
PV Input: 50A 5120W
AC Input Voltage: 220V/230Vdc
AC Output: 220V 5000W
Conversion Time(inversion): 10ms
Communication Port: USB/RS485/WIFI/Bluetooth(optional)
Cycle: ＞6000 cycles(80%DOD, 25℃)
Dimension(LxDxH): 680x400x430mm
Net Weight: 63kg
IP Grade: IP21（Indoor)
Safety Certificate: CE, RCM, UN383, Test report IEC62619
Packing: Packed separately, the inverter/ base does not need a dangerous bag, the battery needs a dangerous bag, and each carton packs a battery pack

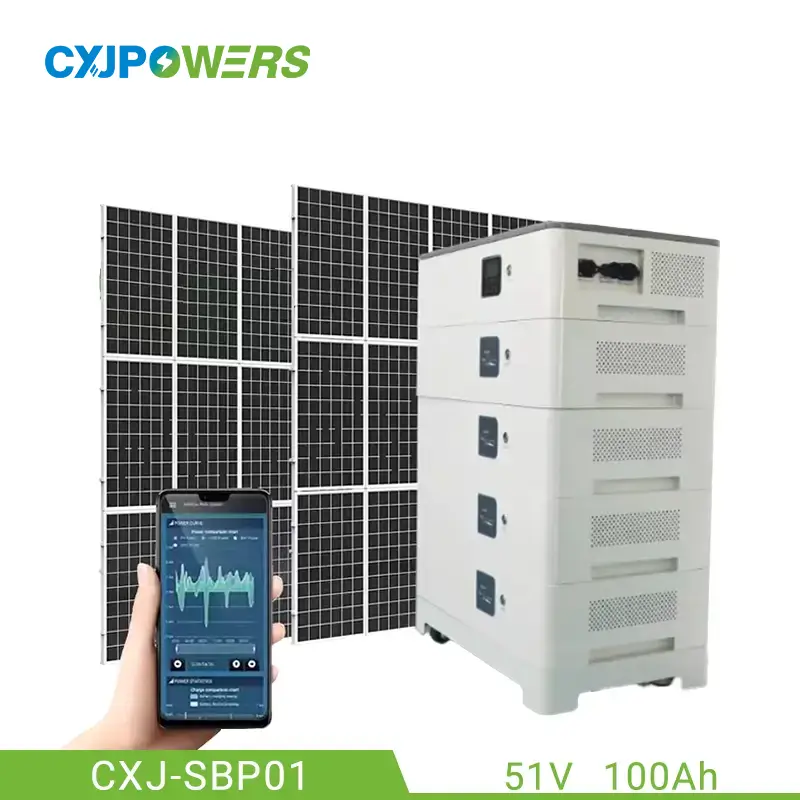

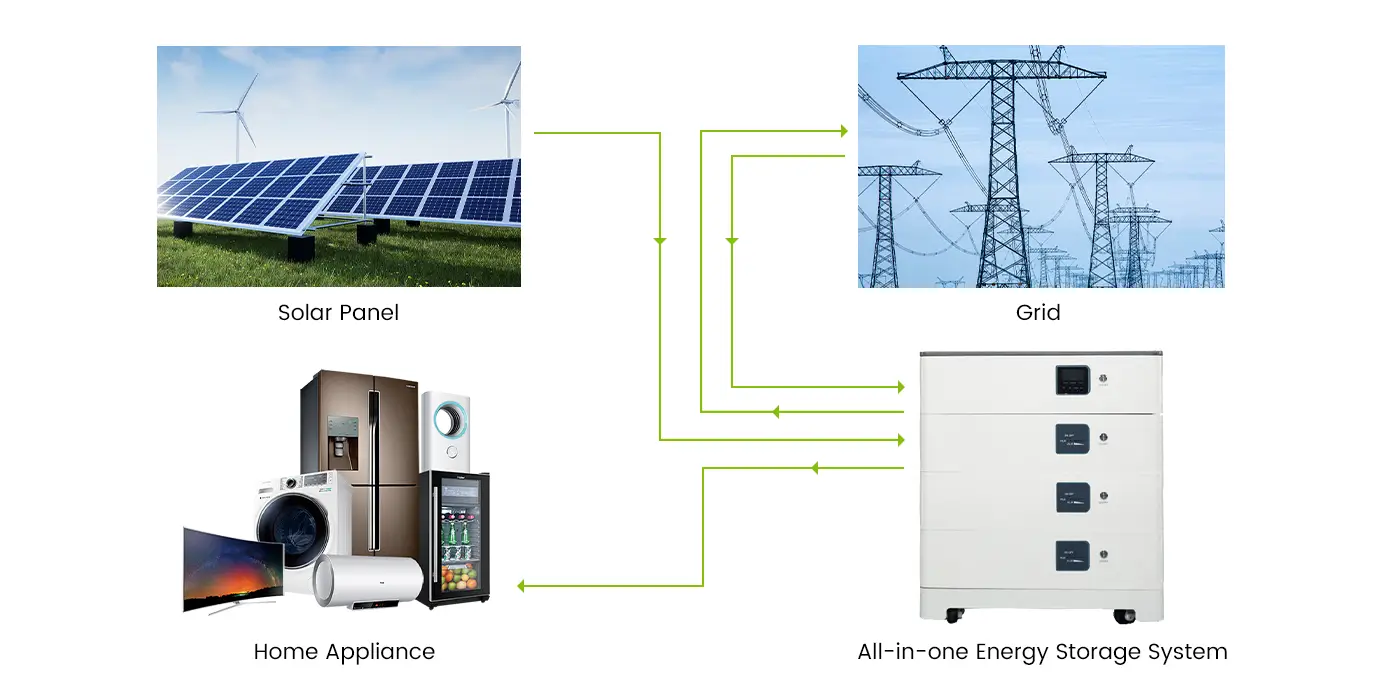

CXJPowers 51V 100Ah home energy storage. Easy to use with LCD screen display. This model is stackable and its capacity can be increased easily. Charge and discharge time and power can be programmed. This is an integrated energy storage system including a hybrid inverter and lithium batteries. Photovoltaic energy storage integrated machine is a device that integrates photovoltaic power generation system and energy storage system. Users can directly supply electricity to their homes through photovoltaic power generation, spontaneously use it for their own use, reduce the usage of electricity, and even rely solely on photovoltaic power generation to meet their own electricity needs.
CXJPowers New Energy · Empowers Better Life
| Item Name | 51.2V 100Ah Home Energy Storage | ||
| Model | CXJ-SBP01 | Shell Material | Metal |
| Voltage | 51V | Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Capacity | 100Ah | Battery Cycle Life | ＞6000 Cycles |
| Energy | 5000Wh | Layers | 1 Layer |
| Dimension (LxWxH) | 680mm x 400mm x 430mm | Weight | 63Kg |
| AC output | 220V 5000W | ||
| Conversion Time(inversion) | 10ms | ||
| Certificate | CE, RCM, UN383, Test report IEC62619 | ||
|
Communication port
|
USB / RS485 / WIFI / Bluetooth(optional)
|
||
| Installation Mode |
Floor / Removable
|
||
| Packing | Packed separately, the inverter/ base does not need a dangerous bag, the battery needs a dangerous bag, and each carton packs a battery pack | ||
Get A Free Quotation & More Details. Contact Us Now!

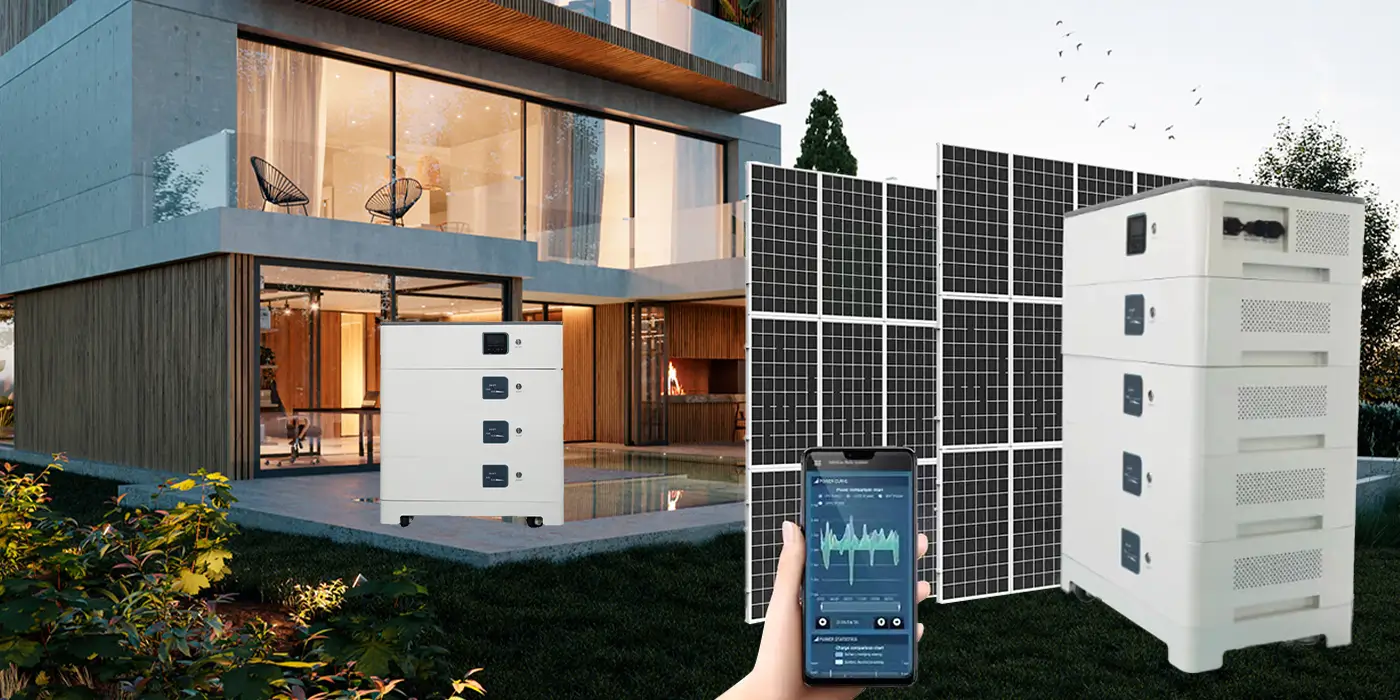

CXJPowers stackable all-in-one energy storage system is suitable for various scenarios. High power output. Smart BMS which ensures battery safety.
CXJPowers portable power station manufacturer has rich experience in power station manufacturing and a number of international patents. We specialize in portable power station, home battery storage, industrial & commercial energy storage system (ESS) etc. battery solutions.
| Model | CXJ-SBP01 | CXJ-SBP02 | CXJ-SBP03 | CXJ-SBP04 |
| Shell Material | Metal | |||
| Battery Type | LiFePO4(Lithium iron phosphate) | |||
| Voltage | 51.2V | |||
|
Capacity
|
100Ah 5000Wh | 200Ah 10000Wh | 300Ah 15000Wh | 400Ah 20000Wh |
|
Layers
|
1 Layer | 2 Layer | 3 Layer | 4 Layer |
| Dimension (LxWxH) | 680x400x430mm | 680x400x592mm | 680x400x754mm | 680x400x916mm |
| Net Weight | 63KG (inverter and base not included) | |||
| Gross Weight | 65KG (inverter and base not included) | |||
| PV Charging Current | 100A | |||
| PV Discharging Current | 100A | |||
| PV Input Current | 50A | |||
| PV Input Power | 5120W | |||
| AC Input Voltage | 220V/230Vdc | |||
| AC Output Power | 5000W | |||
| AC Output Voltage | 220Vac | |||
| Conversion Time(inversion) | 10ms | |||
| Battery Cycle Life | ＞6000 Cycles(80%DOD，25℃） | |||
| Operating Temperature |
Charging: 0~45℃ Discharging: -30~55℃
|
|||
|
Communication port
|
USB / RS485 / WIFI / Bluetooth(optional)
|
|||
| IP Grade | IP21(Indoor) | |||
| Installation Mode |
Floor/removable
|
|||
|
Packing
|
Packed separately, the inverter/ base does not need a dangerous bag, the battery needs a dangerous bag, and each carton packs a battery pack | |||
| Safety Certificate | CE, RCM, UN383, Test report IEC62619 | |||
Yes, we welcome sample order to test and check quality. samples are acceptable.
We have a large inventory and are ready to ship.
Yes, but there is a minimum order quantity required.
Our lithium battery packs can power most home appliances, electrical systems, solar storage systems and more. But this also depends on the power output of the battery pack.
