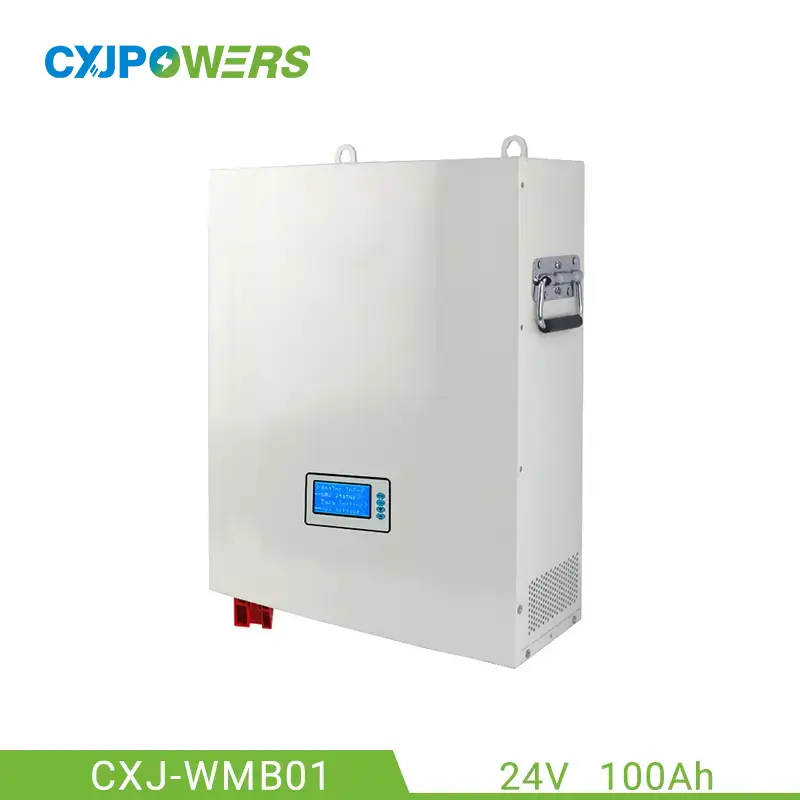

CXJPowers 24V 100Ah lifepo4 wall mounted battery. Split design, easy to install. Efficient off-grid system. Built-in lifepo4 battery. Welcome to order customization!

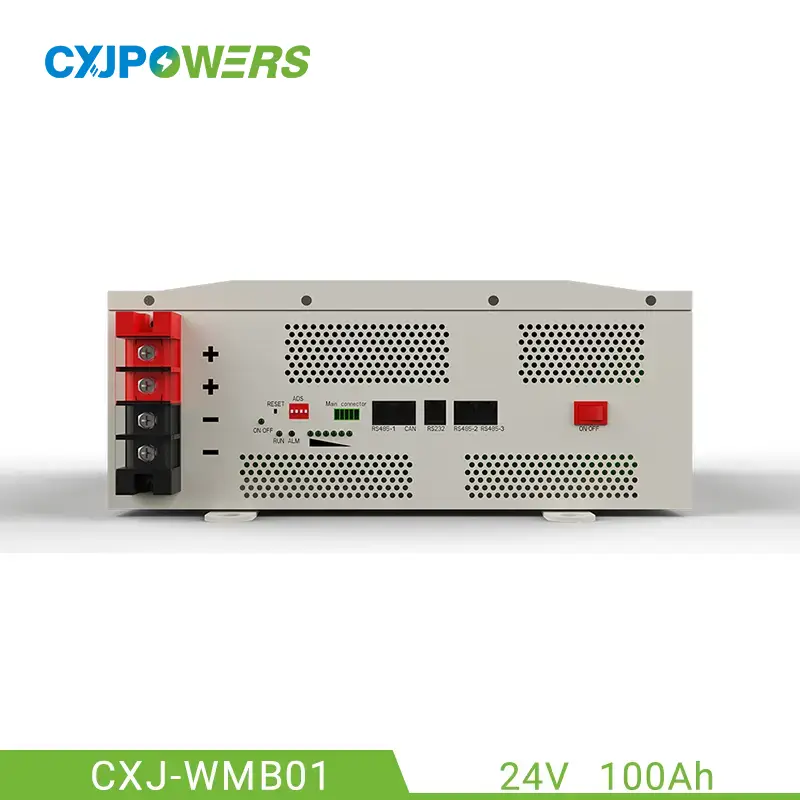

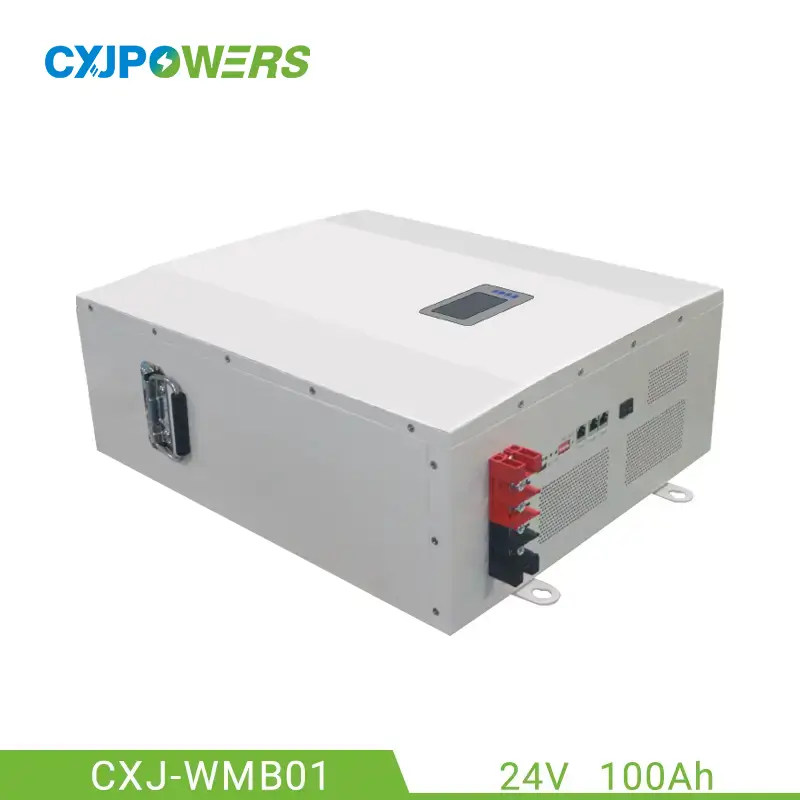

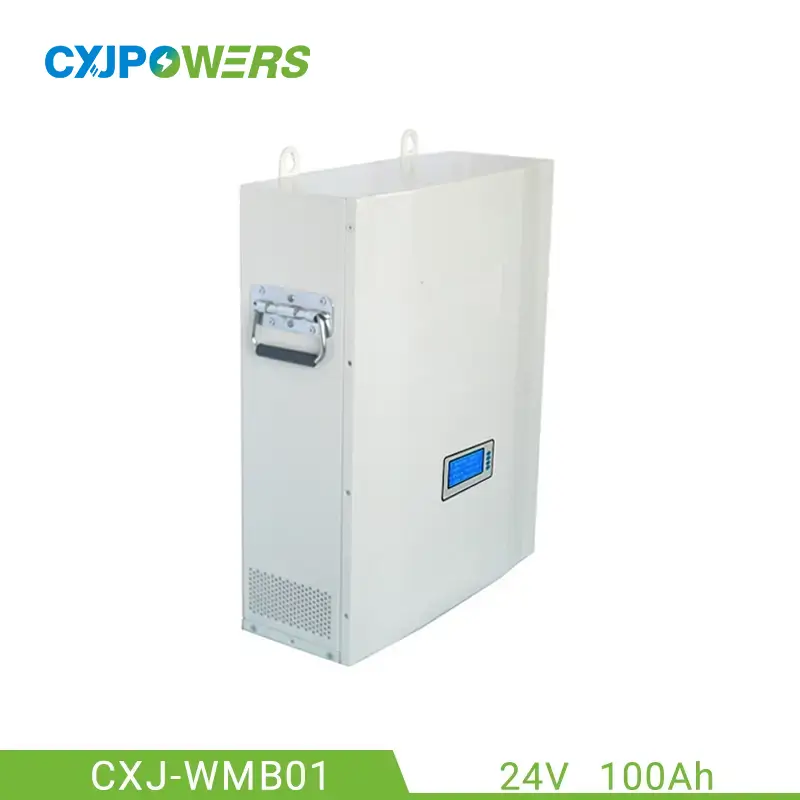

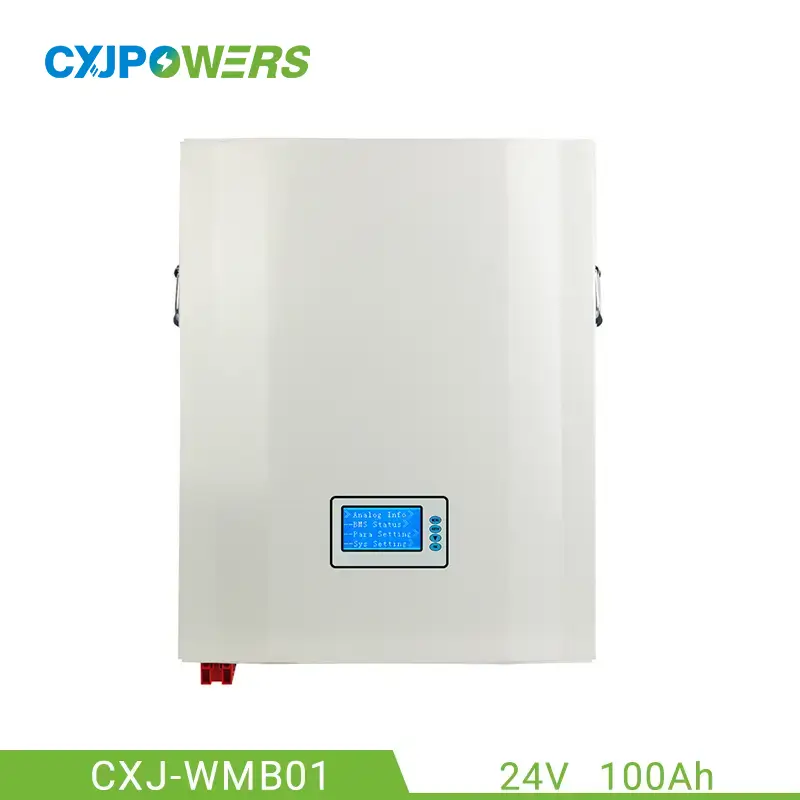

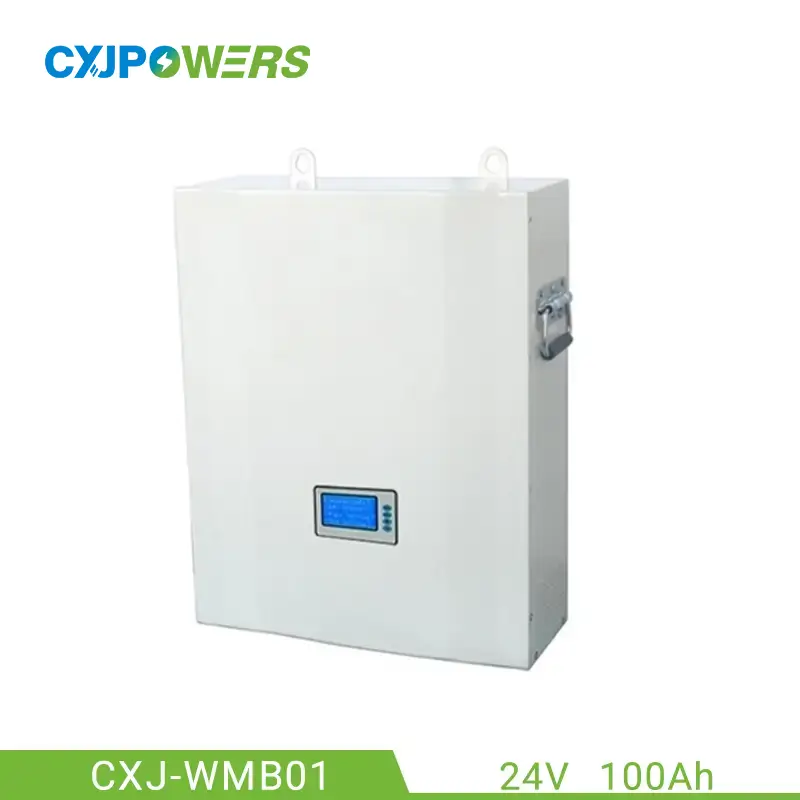

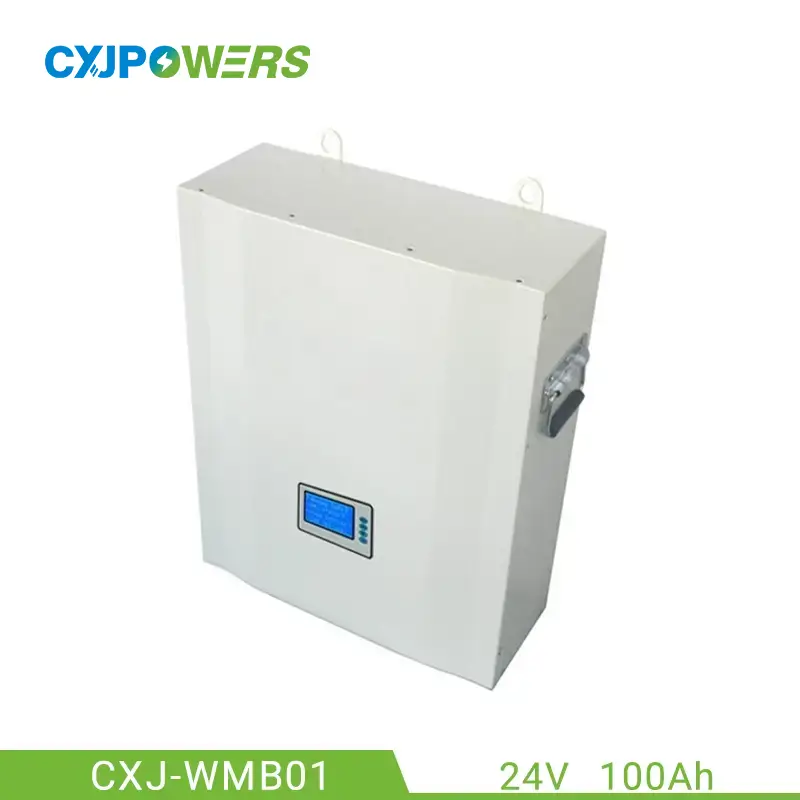

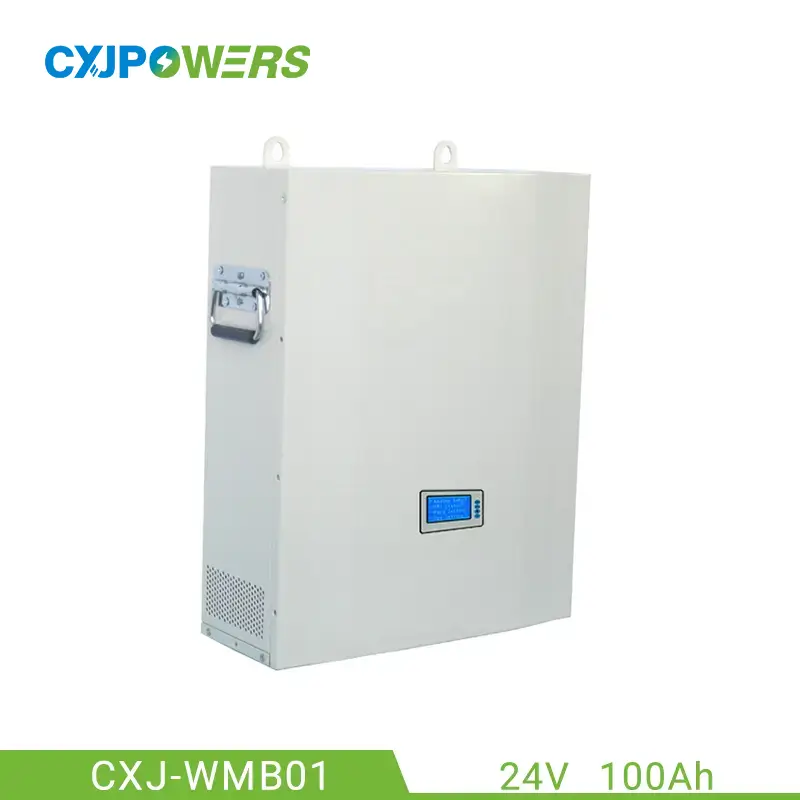

Model: CXJ-WMB01/Wall-mounted
Voltage: 24V
Capacity: 100Ah
Energy: 2400Wh
Voltage Range: DC21～29.2V
Battery Type: LiFePO4 battery
IP Grade: IP20
BMS Communication: RS485/RS232/CAN/Ethernet
Dimension(LxDxH): 371x375x150mm
Net Weight: 26kg

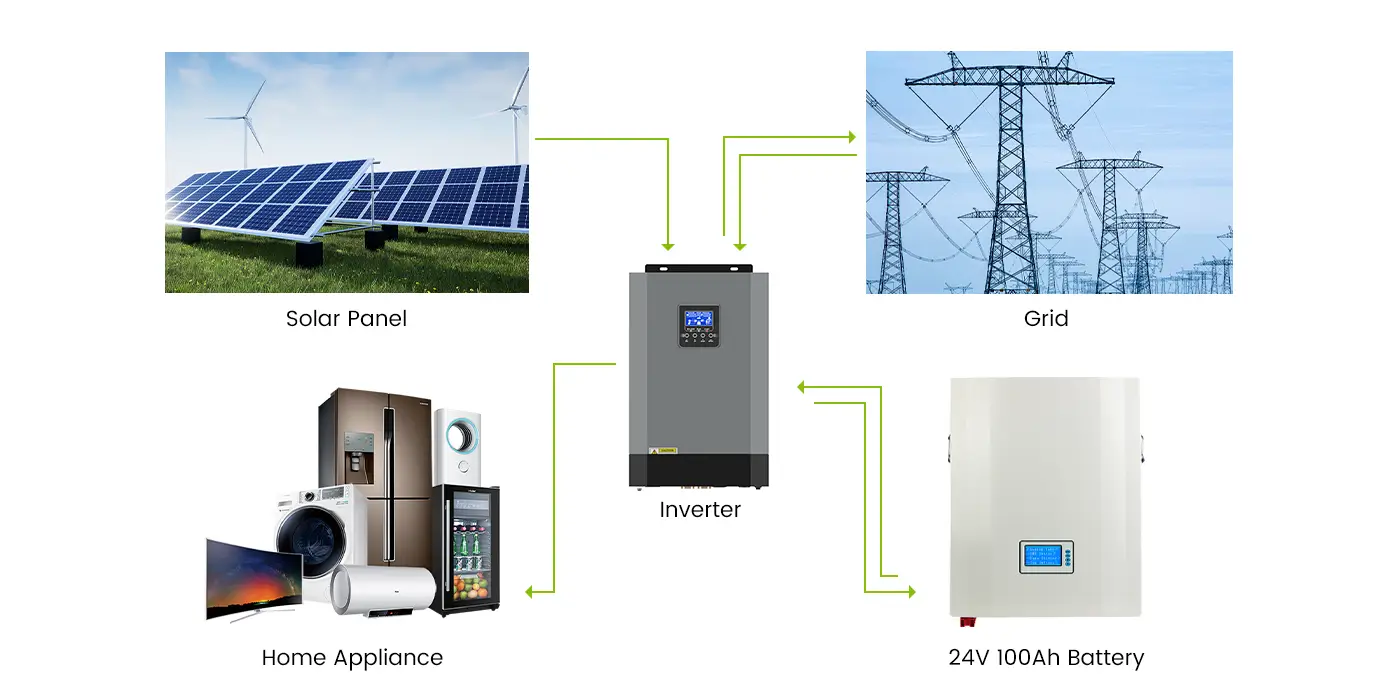

This is the 24V 100Ah wall mounted battery from CXJPowers. Home style energy storage systems mainly store excess electricity generated by solar panels in battery packs, making it easy for households to access at any time. During the day. When sunlight is normal, solar photovoltaic modules generate more energy, which can be stored by the battery to ensure electricity supply on cloudy or rainy days at night or another day.
CXJPowers New Energy · Empowers Better Life
| Item Name | 24V 100Ah Wall Mounted Battery | ||
| Model | CXJ-WMB01 | Shell Material | Metal |
| Voltage | 24V | Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Capacity | 100Ah | Battery Cycle Life | ＞6000 Cycles |
| Energy | 2400Wh | Voltage Range | DC21~29.2V |
| BMS Communication | RS485, RS232, CAN, Ethernet | ||
| DC Charging Port | Wall-through fence terminal | ||
| Installation Mode | Wall-mounted | ||
| Dimension (LxWxH) | 371mm x 375mm x 150mm | Weight | 26Kg |
| IP Grade | IP20 | ||
Get A Free Quotation & More Details. Contact Us Now!
Split design, flexible and convenient installation, not limited by floors. Can be applied to a variety of scenarios, the product has a variety of patents. Efficient off-grid system, clean and environmentally friendly energy storage method. Intelligent control, anti-leakage isolation "safety wall", safe and reliable. CXJPowers wall mounted battery has become a household necessity.
CXJPowers portable power station manufacturer has rich experience in power station manufacturing and a number of international patents. We specialize in portable power station, home battery storage, industrial & commercial energy storage system (ESS) etc. battery solutions.
| Model | CXJ-WMB01 | CXJ-WMB02 | CXJ-WMB03 | CXJ-WMB04 |
| Shell Material | Metal | |||
| Battery Type | LiFePO4(Lithium iron phosphate) | |||
| Voltage | 24V | 48V | ||
|
Voltage Range
|
DC21~29.2V | DC39~54.2V | ||
| Capacity | 100Ah 2400Wh | 200Ah 4800Wh | 100Ah 4800Wh | 200Ah 9600Wh |
| Dimension (LxWxH) | 371x375x150mm | 460x440x200mm | 471x375x150mm | 530x450x195mm |
| Net Weight | 26KG | 42KG | 39KG | 70KG |
| Gross Weight | 30KG | 54KG | 42KG | 73KG |
| Battery Cycle Life | ＞6000 Cycles | |||
| Operating Temperature |
Charging: 0~45℃ Discharging: -30~55℃
|
|||
| BMS Communication | RS485, RS232, CAN, Ethernet | |||
| IP Grade | IP20 | |||
| DC Charging Port | Wall-through fence terminal | |||
| Installation Mode | Wall-mounted | |||
|
Display Screen
|
Optional
|
|||
Yes, we welcome sample order to test and check quality. samples are acceptable.
We have a large inventory and are ready to ship.
Yes, but there is a minimum order quantity required.
Our lithium battery packs can power most home appliances, electrical systems, solar storage systems and more. But this also depends on the power output of the battery pack.
