Ideal for off-grid systems, solar energy storage systems, forklifts, RVs, trolling motors, marines etc.

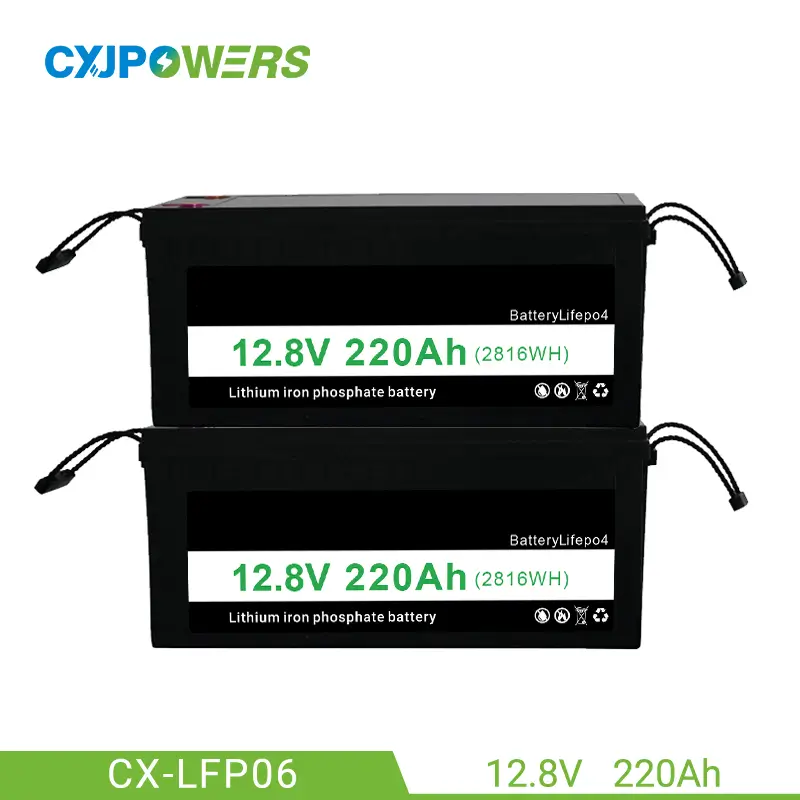

Model: CX-LFP06
Rated energy: 2816Wh
Rated voltage: 12.8V
Rated capacity: 220Ah
Battery type: LiFePO4 battery
Cycle life: > 6000 times
Voltage range: 10.8V~14.6V
Max continuous charging current: 100A
Max continuous discharging current: 100A

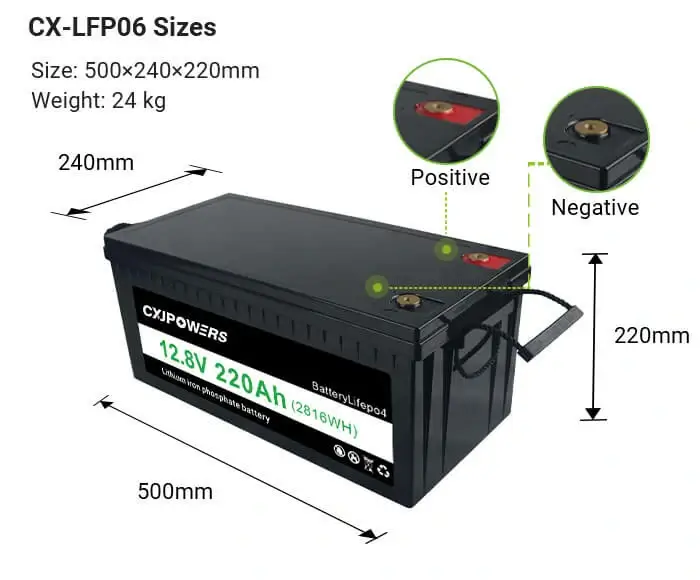

Dimension(L×W×H): 500×240×220mm
Weight: 24 kg
MOQ: ≥ 2pcs

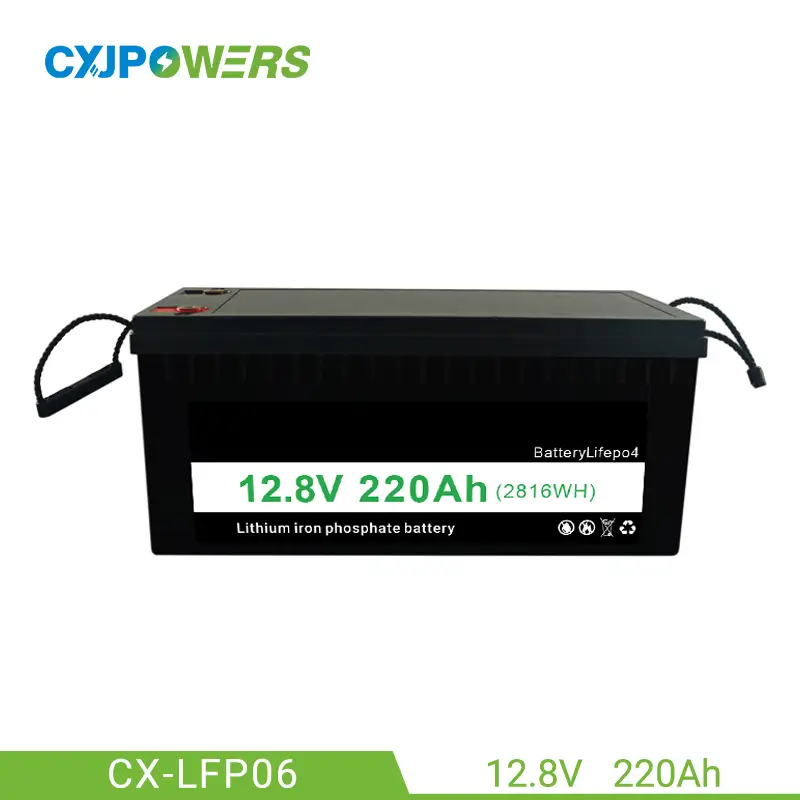

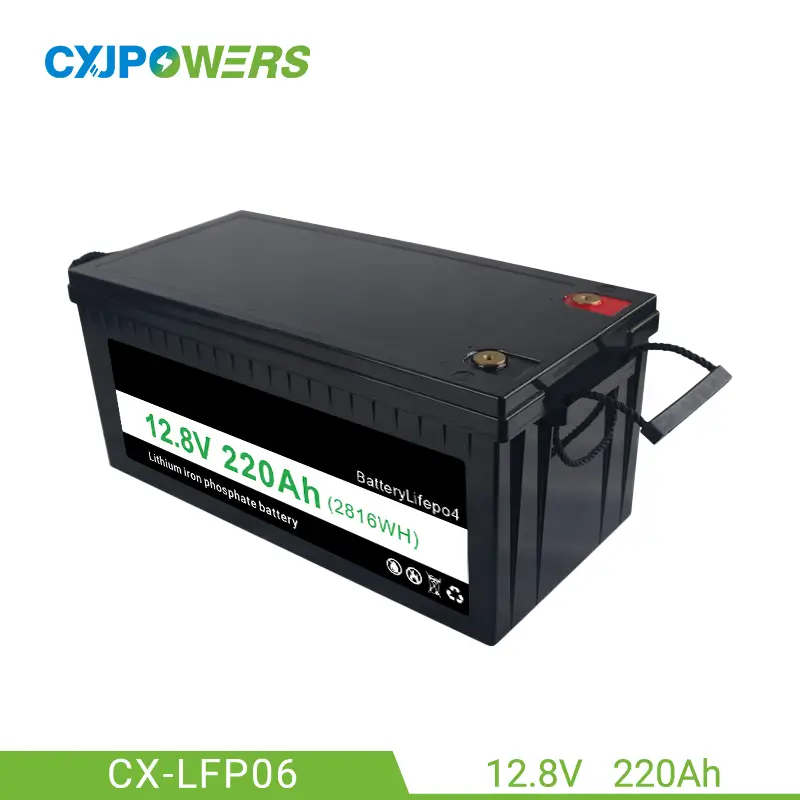

CXJPowers 12.8V 220Ah LiFePO4 Battery—a high-performance rechargeable battery with a total capacity of 2816Wh. It ensures a constant current discharge for a wide range of applications including home appliances, solar storage systems, uninterruptible power supplies (UPS), RVs and yachts. This battery combines efficiency and reliability to give you the power you need for any project or adventure.
12V LiFePO4 Battery Pack
2816Wh A-grade LiFePO4 battery.
Multiple protections & 100% safety.
State of charge, Depth of discharge.
6000+ long life cycle(80% DOD).
60% lighter than lead-acid batteries.
3x faster than lead-acid batteries.
Pollution-free, rechargeable for reuse.
Powers 99% of all appliances.
The battery features an intelligent Battery Management System (BMS) that ensures optimal performance and safety through real-time monitoring and protection. Made with high-quality A-grade LiFePO4 cells, it delivers efficient and stable output power and boasts a lifespan of over 6,000 cycles to minimize replacement costs. Additionally, the battery is easy to transport and install, and its durable, weather-resistant design makes it perfect for outdoor applications.
The CXJPowers 12V LifePO4 battery features a built-in intelligent Battery Management System (BMS) that protects against overcharging, over-discharging, over-current situations, and short circuits. Designed with high sealing performance, this battery operates reliably in harsh environments, making it ideal for demanding applications. Its robust design ensures durability and consistent performance, providing peace of mind for users in both residential and outdoor settings.
Built-in Smart BMS, High Safety & Mutilple Protection

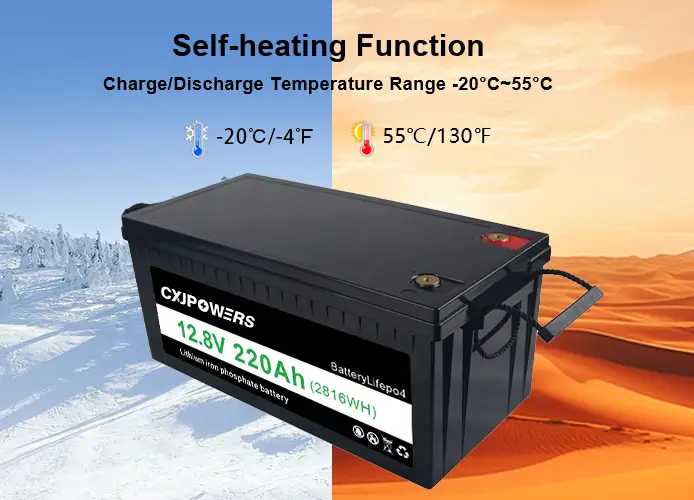

Self-Heating Function, Can Work in -20℃ Outdoor Environment
| Item Name | 12.8V 220Ah Lithium Iron LiFePO4 Deep Cycle Battery Wholesale | ||||
| Model | CX-LFP06 (12.8V 220Ah) | Rated Energy | 2816Wh | ||
| Battery Type | LiFePO4 cell | Max Continuous Charging Current | 220A | ||
| Cycle Life | >6000 times | Max Continuous Discharging Current | 220A | ||
| Voltage Range | DC 10.8~14.6V | Dimensions(LxWxH) | 500×240×220mm | ||
| Bluetooth & Display | Optional | Weight | Approx. 24kg | ||
Get A Free Quotation & More Details. Contact Us Now!

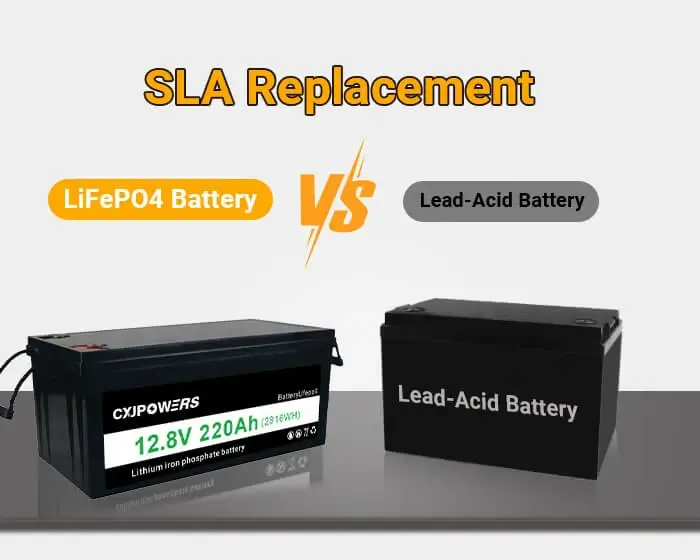

LiFePO4 batteries have a service life more than 5 times that of standard lead-acid batteries and are 60% lighter. It can directly replace lead-acid batteries.

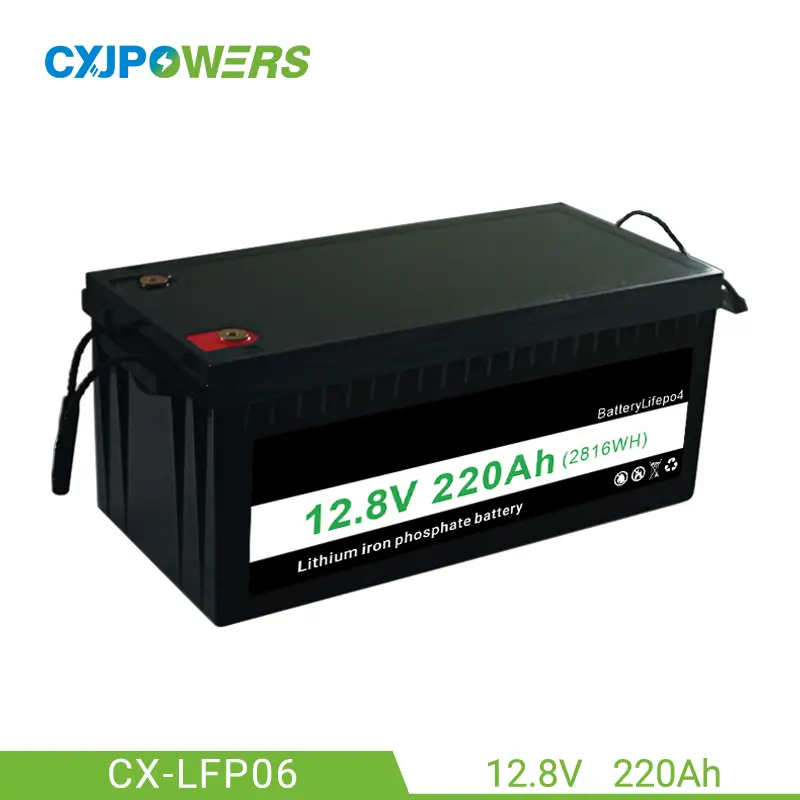

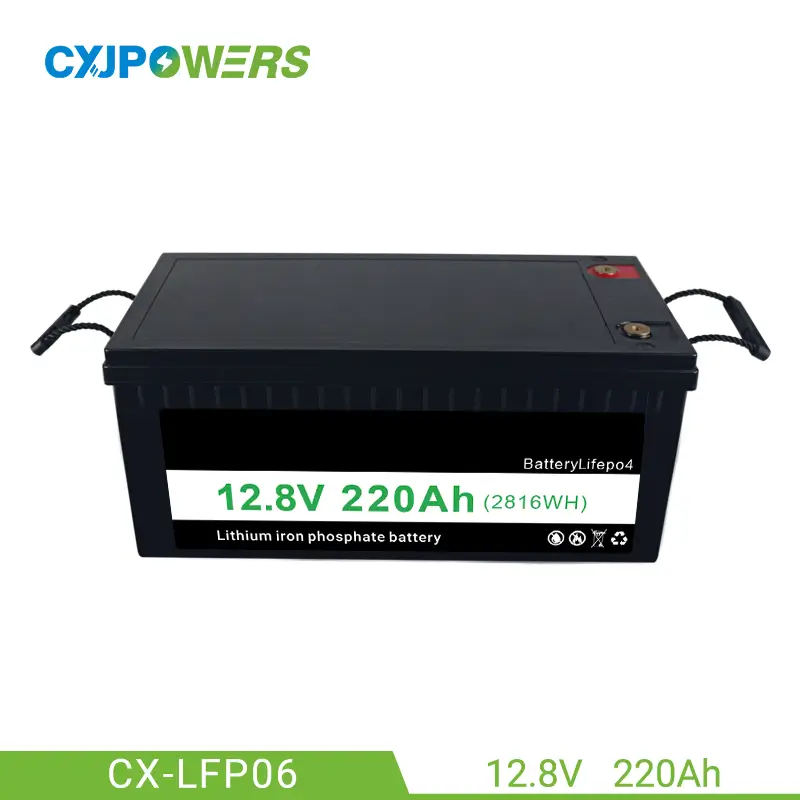

The CX-LFP06 is a compact yet powerful 12V 220Ah LiFePO4 battery pack, designed for exceptional energy efficiency and reliability. Its substantial capacity makes it an ideal power solution for various applications, including off-grid solar systems, RVs, electric vehicles, marine electronics, camping equipment, and home backup systems.
Yacht
RV battery

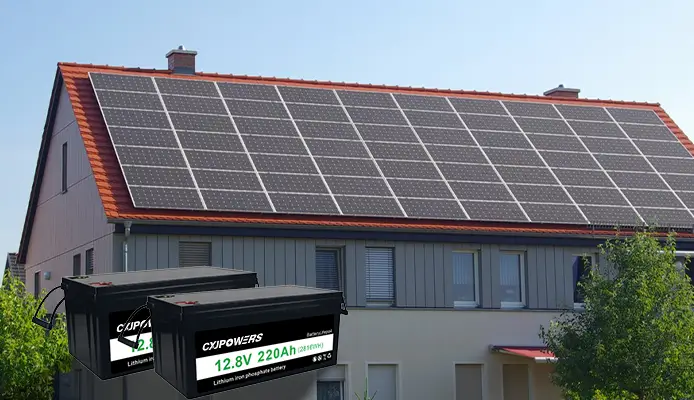

Home energy storage
Fish finder

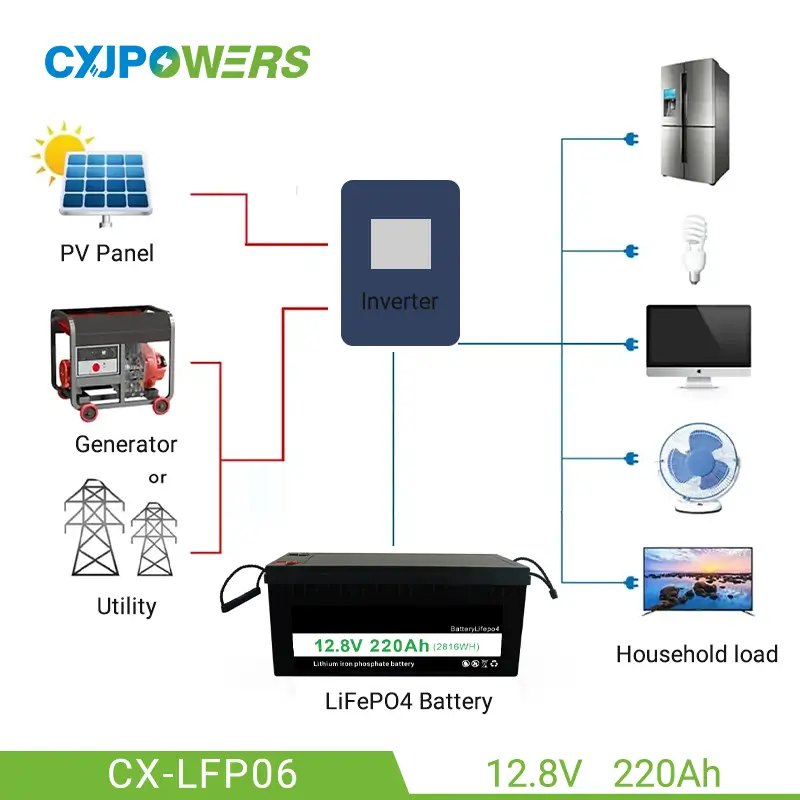

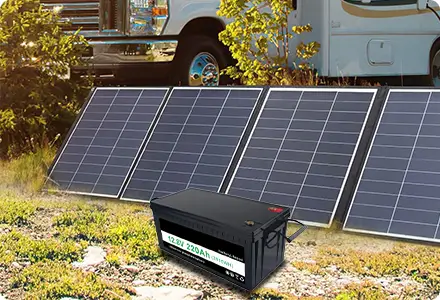

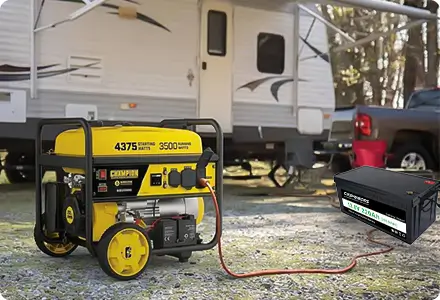

Here are 3 effective ways to charge LiFePO4 batteries: utilizing solar power, connecting a charger to the grid, and using a generator. These lithium batteries can be charged safely and efficiently, promoting optimal performance and longevity. They are especially ideal for outdoor applications and off-grid settings.
|
12.8V 220Ah LiFePO4 Deep Cycle Battery |
|
|
Model |
CX-LFP06 |
|
Battery Parameters |
|
|
Voltage |
12.8V |
|
Capacity |
220Ah (Standard) |
|
Life Cycle |
＞6000 cycles（80%DOD，25℃） |
|
Battery Working Voltage |
DC 10.8 ~14.6V |
|
Electrical Parameters |
|
|
Rated Energy |
2816Wh |
|
Minimun Discharge Voltage |
10.8V |
|
Max Continuous Charging Current |
220A |
|
Max Continuous Discharging Current |
220A |
|
Maximum Charging Voltage |
14.6V |
|
Product Parameters |
|
|
Dimension (LxWxH) |
500×240×220mm |
|
Net Weight |
24KG |
|
Operating Temperature Range |
Charging：-20~55℃ Discharging：-20~55℃ |
|
Cooling Mode |
Natural Cooling |
|
Operating Humidity Range |
0~95% (NO Condensation) |
|
Max Working altitude |
4000m (>3000m Need to Derate) |
|
Display Screen |
Optional |
Yes, LiFePO4 batteries are generally considered one of the safest types of lithium batteries. They are less prone to thermal runaway, overheating, and fires compared to other lithium-ion chemistries.
Sample order: 100% payment before shipment; Bulk order: 30% deposit before production, 70% balance before shipment.
Yes, LiFePO4 batteries are recyclable, and their materials, including iron and phosphate, can be recovered and reused. Recycling helps reduce environmental impact compared to other types of lithium-ion batteries.
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
