Large capacity for home storage systems. Compatible with with most inverters & chargers. Accept OEM/ODM.

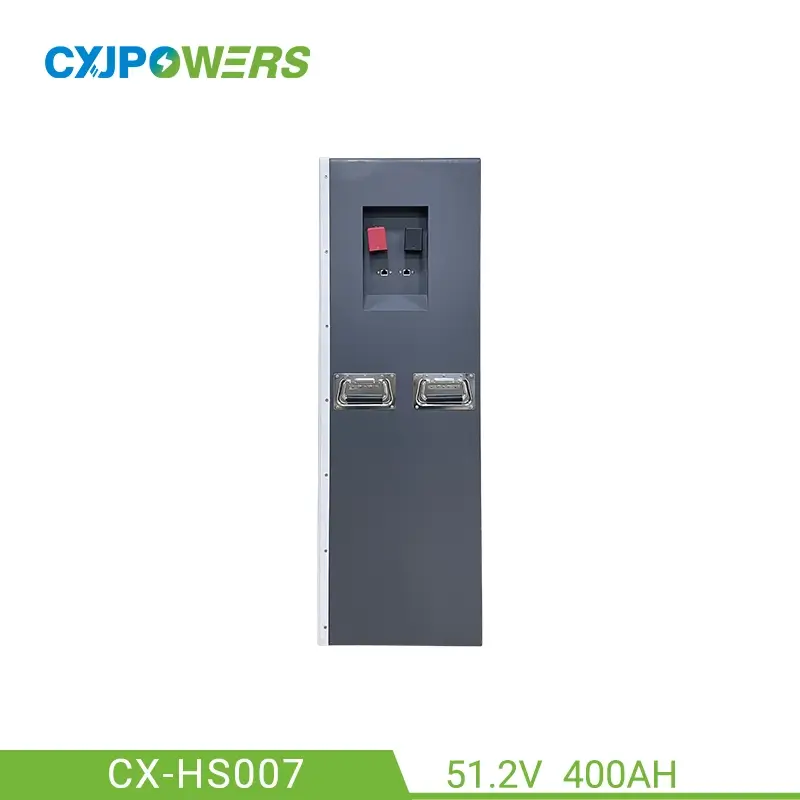

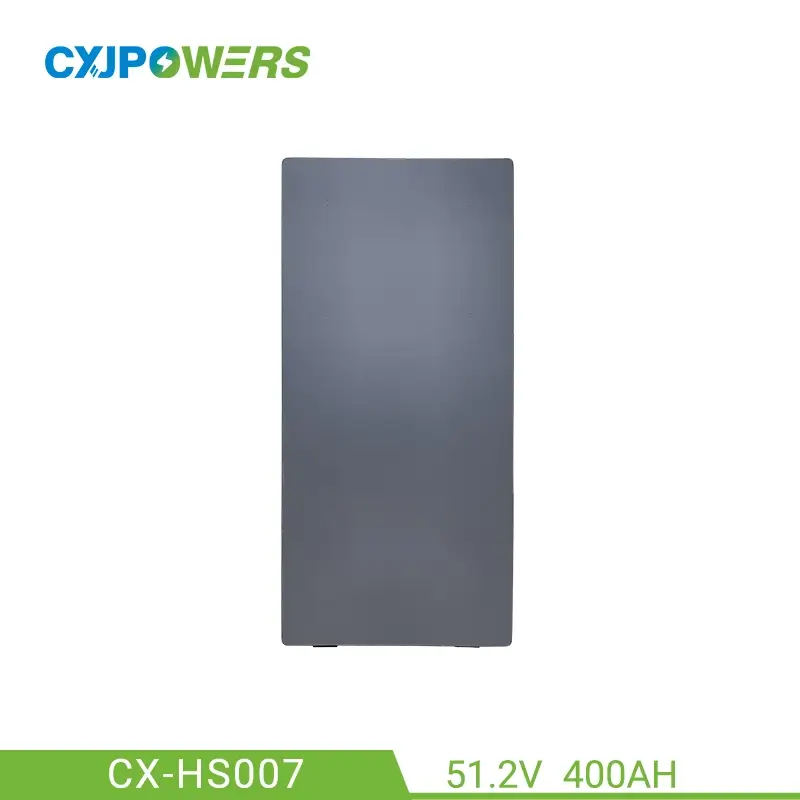

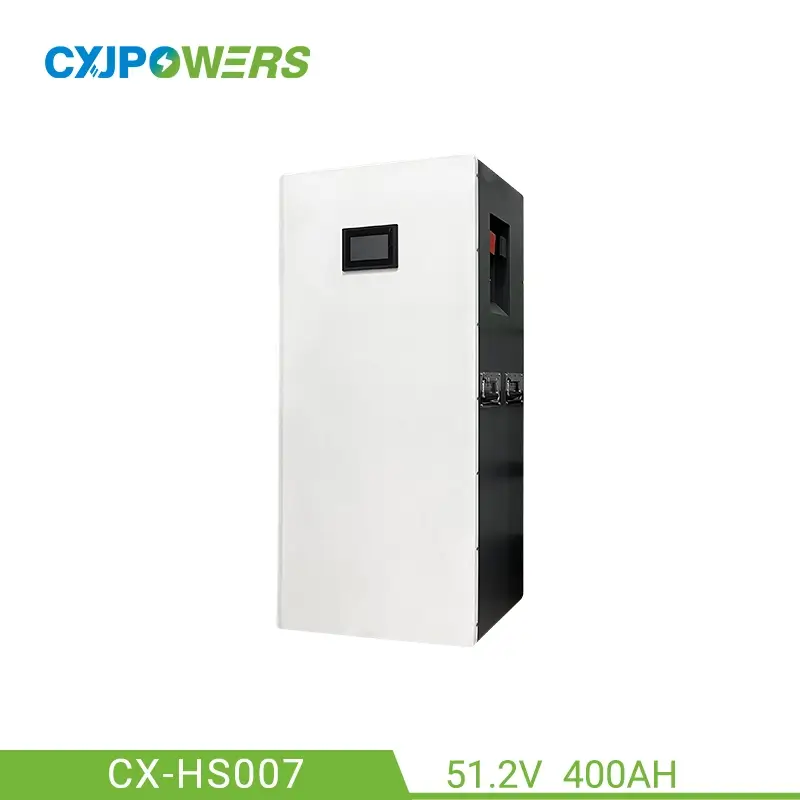

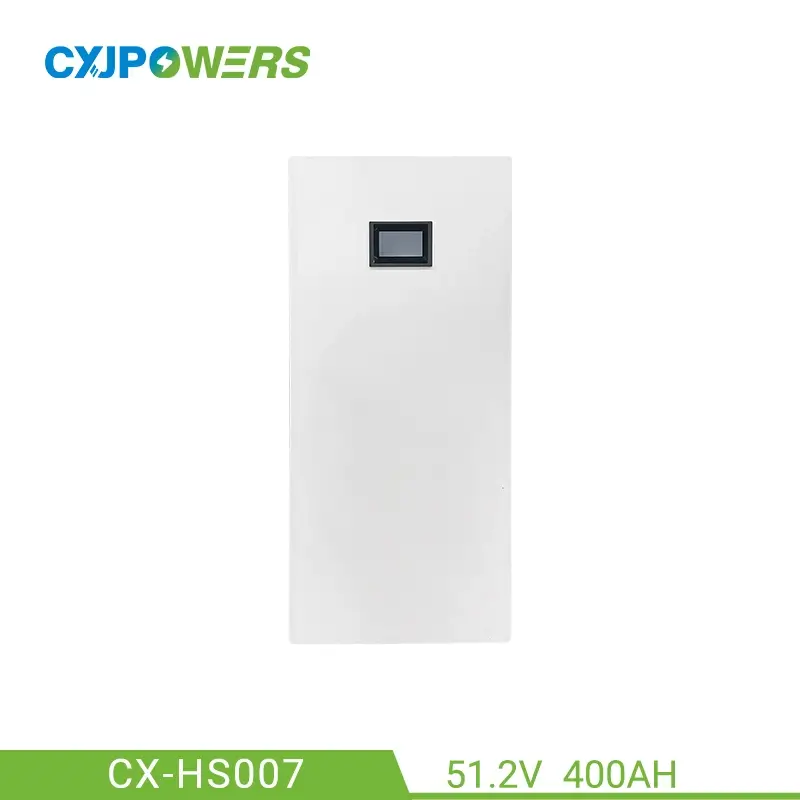

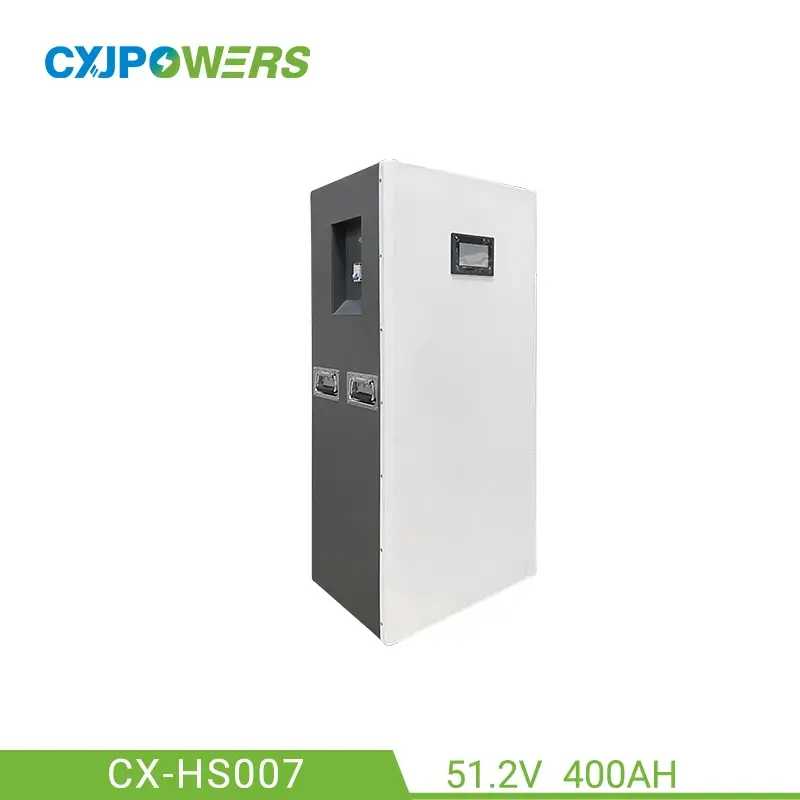

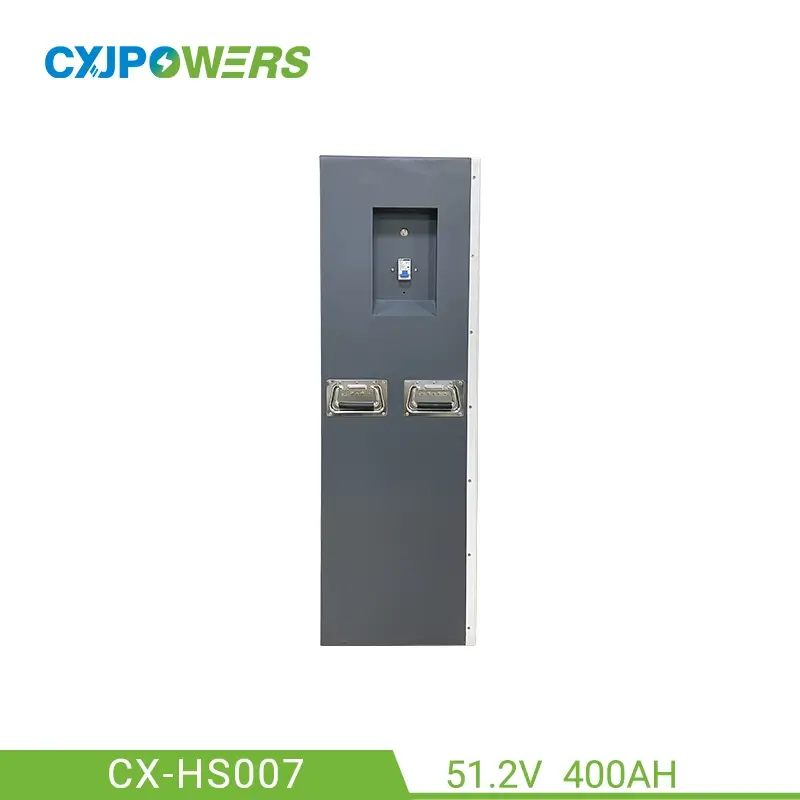

Model: CX-HS007
Rated energy: 20480 Wh
Rated voltage: 51.2V
Rated capacity: 400Ah
Battery type: LiFePO4 battery
Cycle life: > 6000 times
Voltage range: 40V~58.4V
BMS communication: CAN/RS485/RS232

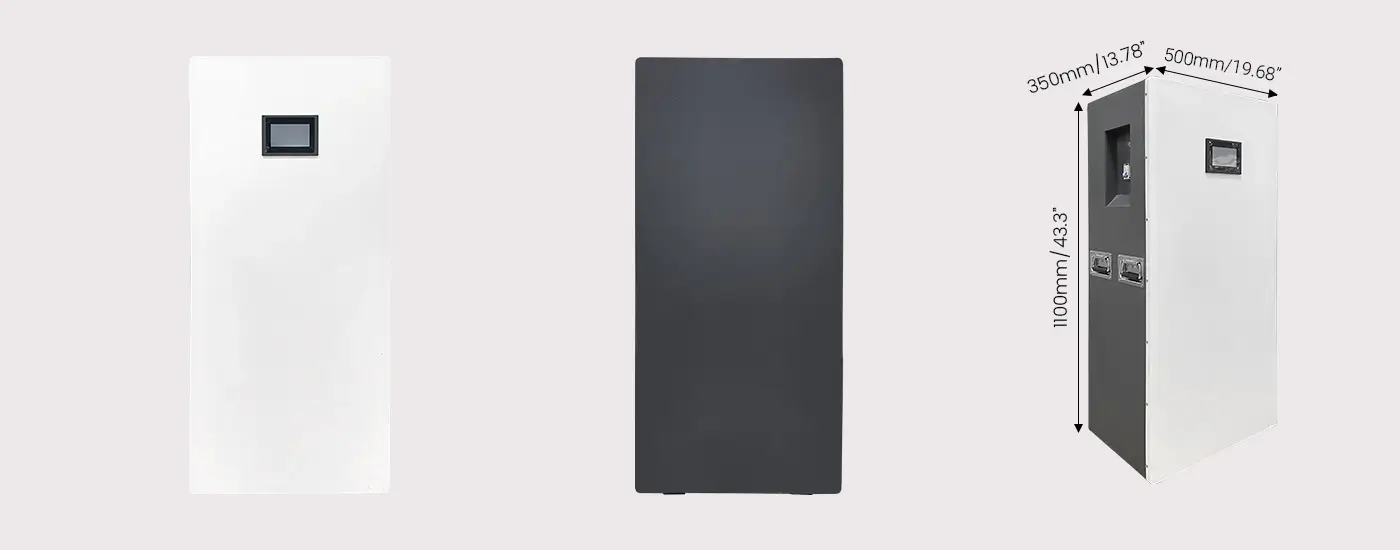

Dimension(L×W×H): 500×350×1100mm
Installation method: Trolley/floor type
Weight: 180 kg
MOQ: ≥ 1pcs
CXJPowers is a top home battery storage supplier & ESS battery manufacturer, specializing in the R&D, production and sales of solar energy storage batteries, All-in-one LiFePO4 ESS(energy storage systems) and various LiFePO4 lithium battery packs, etc., providing customized lithium energy solutions.is a top OEM/ODM jump starter factory in China, providing customized 12V/24V car jump starters with various battery capacities to meet the needs of different customers.
LiFePO4 400Ah CX-HS007 is a 20kWh home energy storage battery (home backup battery). It built-in 51.2V 400Ah LiFePO4 Battery and intelligent BMS, is a device integrating photovoltaic power generation system and energy system. It is suitable for off-grid energy storage system and outputs AC power with stable frequency and constant voltage.
LiFePO4 ESS Battery Powers A Home 24/7
Flexible storage capacity up to 20kWh.
Long life, ＞6000 times cycles life.
Multi-protection battery balance.
Applied to photovoltaic systems.
No fuel required, uses clean energy.
Easily & clearly check battery status.
Plug and play, easy installation.
Peak/Valley power prices save cost.
When power is working, it provides single-phase AC power; when power is out, it can be used as a home backup power supply or UPS.

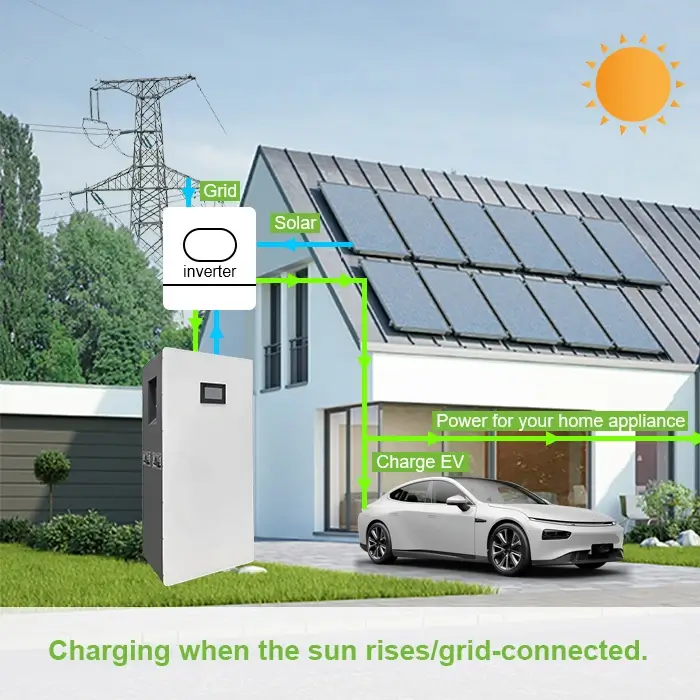

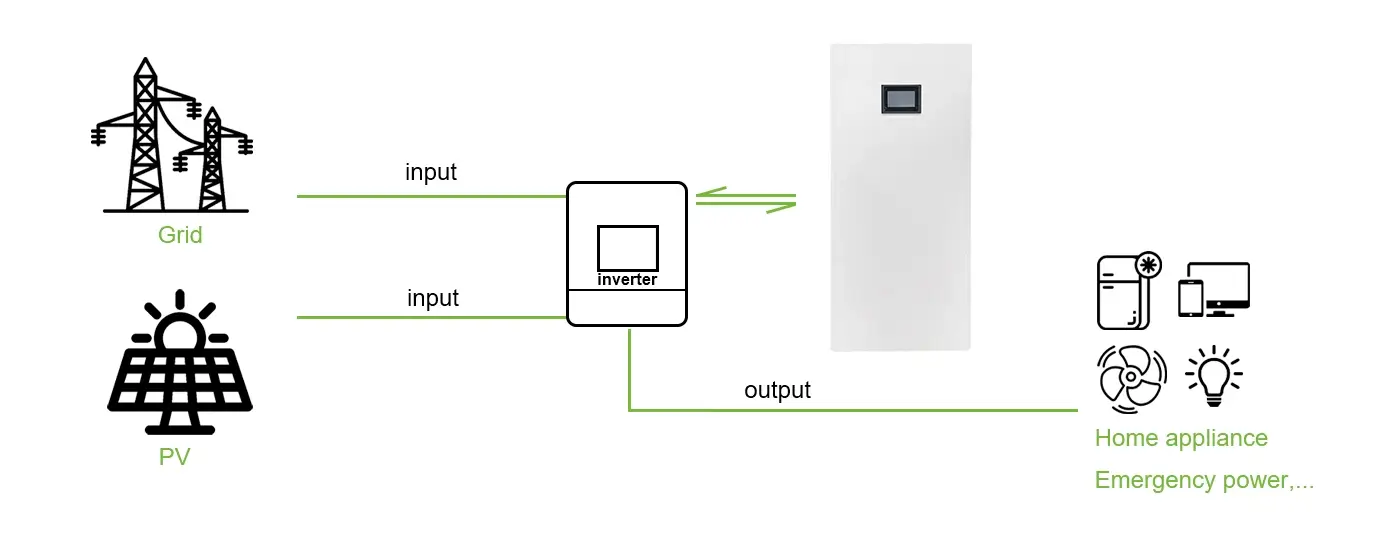

20kwh LiFePO4 ESS CX-HS007 can be charged by solar panels and AC mains. It can directly power the home (TV, computer, air conditioner, lighting, etc.) through photovoltaic power generation, reduce power consumption, and even fully meet the demand for self-use electricity. During off-peak electricity prices, the city electricity is charged and stored in the LiFePO4 ESS battery, and during peak electricity prices, it supplies power to the home, reducing electricity costs.

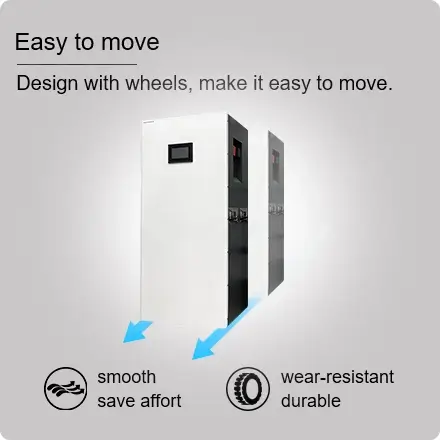

Design with wheels, make it easy to move.

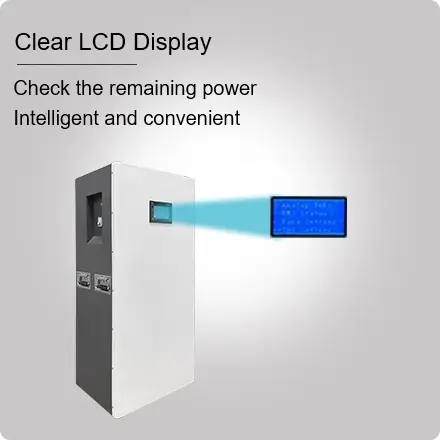

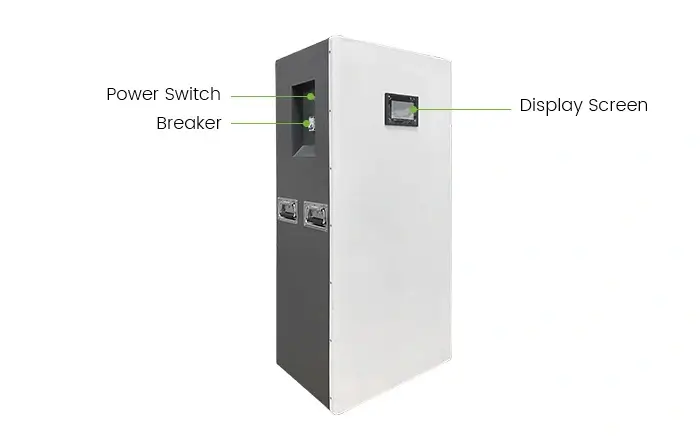

Check the remaining power easily, intelligent and convenient.
Provides 6 protections, more stablity and safety.
| Item Name | 20kWh LiFePO4 Battery 400Ah 51.2V ESS Battery | ||||
| Model | CX-HS007 (51.2V 400Ah) | Rated Energy | 20.48KWh | ||
| Battery Type | LiFePO4 cell | Max Continuous Charging Current | 200A | ||
| Cycle Life | >6000 times | Max Continuous Discharging Current | 200A | ||
| Voltage Range | DC 40~58.4V | Dimensions(LxWxH) | 500x350x1100mm | ||
| BMS Communication | CAN/RS485/RS232 | Weight | Approx. 180kg | ||

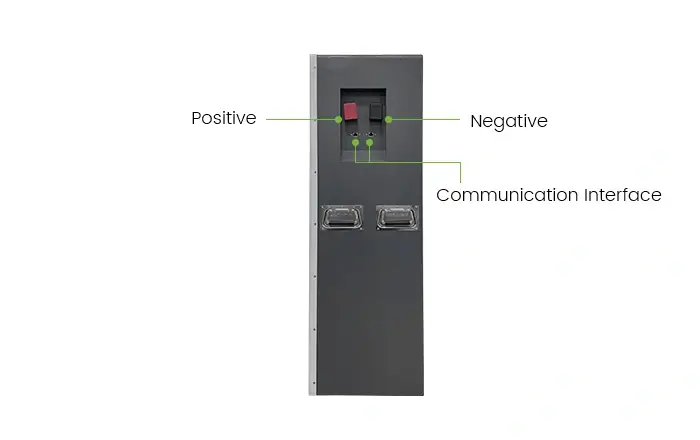

CAN/RS485/RS232 communication protocol lithium-ion battery or LiFePO4 battery is compatible with most inverters on the market.
|
20kWh LiFePO4 Battery 400Ah 51.2V ESS Battery |
|
|
Model |
CX-HS007 |
|
Battery Parameters |
|
|
Voltage |
51.2V |
|
Capacity |
400Ah (Standard) |
|
Life Cycle |
＞6000 cycles（80%DOD，25℃） |
|
Battery Working Voltage |
DC 40~58.4V |
|
BMS Communication |
CAN, RS485, RS232 |
|
Electrical Parameters |
|
|
Rated Energy |
20.48kWh |
|
Minimun Discharge Voltage |
44.0V |
|
Max Continuous Charging Current |
200A |
|
Max Continuous Discharging Current |
200A |
|
Maximum Charging Voltage |
56.8V |
|
Installation Mode |
Floor Style/Trolley |
|
Product Parameters |
|
|
Dimension (LxWxH) |
500×350×1100mm |
|
Net Weight |
180KG |
|
IP Grade |
IP21 |
|
Operating Temperature Range |
Charging：0~60℃ Discharging：-20~60℃ |
|
Cooling Mode |
Natural Cooling |
|
Operating Humidity Range |
0~95% (NO Condensation) |
|
Max Working altitude |
4000m (>3000m Need to Derate) |
|
Display Screen |
Optional |
|
DC Charging Port |
Wall-Through Fence Terminal |
|
Certification |
CE,RCM,UN383,Test report IEC62619 |
|
Optional Features |
|
|
Cloud Platform Management |
Support intelligent cloud platform/APP |
|
Remote Intelligent Management |
Support 4G communication |
Download Now
More CatalogsCXJPowers is a professional lithium battery manufacturer with ISO9001, ISO14001. All the products have CE certificate.
Sample order: 100% payment before shipment; Bulk order: 30% deposit before production, 70% balance before shipment.
CXJPowers LiFePO4 batteries require a separate inverter unit. The All in One combines both battery and inverter into one unit.
Express(DHL, FedEx, UPS), air dispatch, sea dispatch both are available, by your choice.
