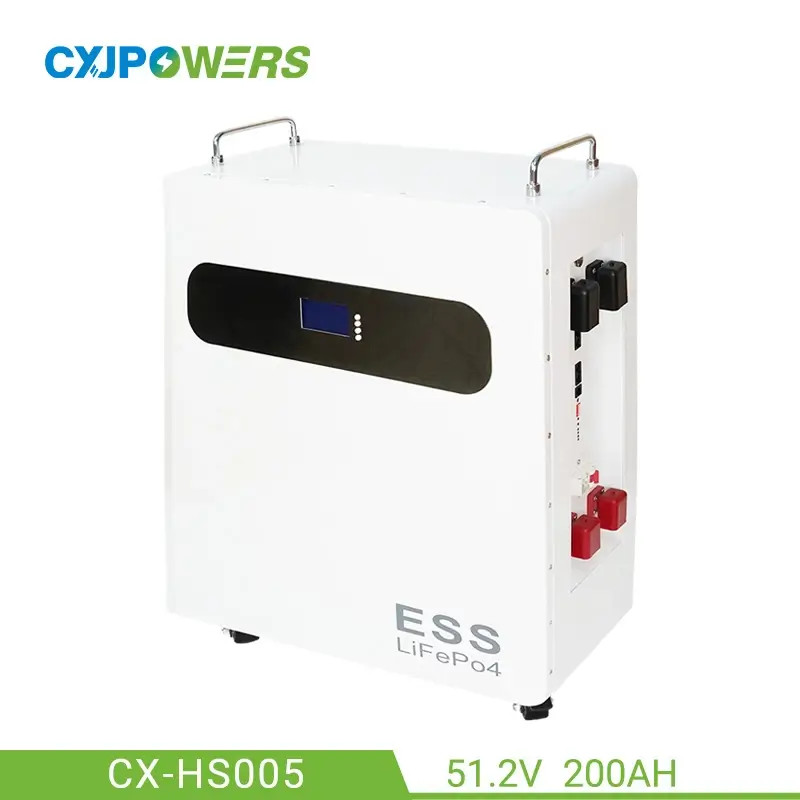

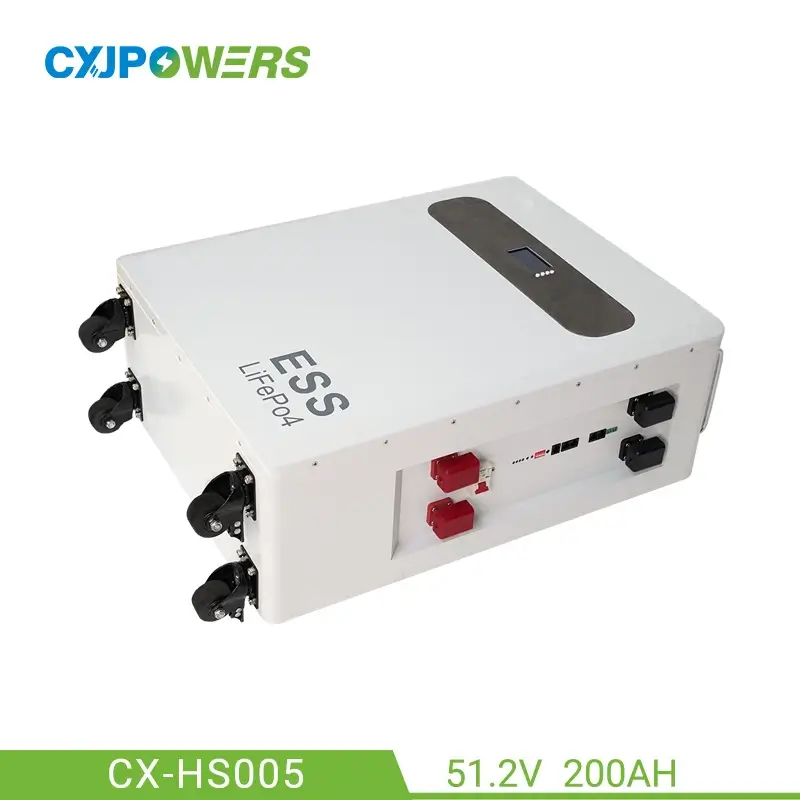

4 wheels at the bottom for portability. Smart BMS. Compatible with with most inverters & chargers. Accept OEM/ODM.

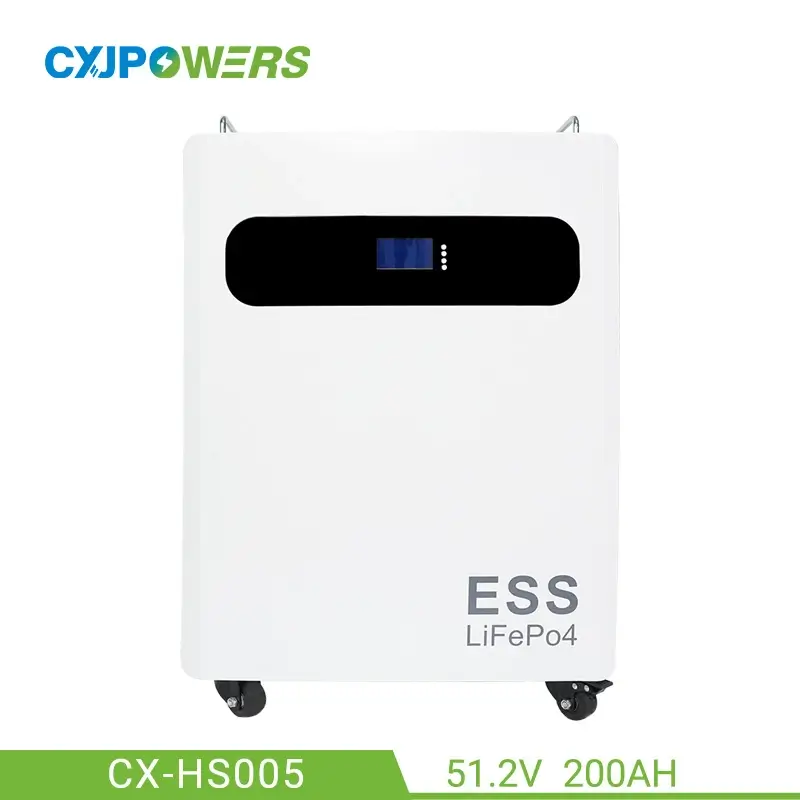

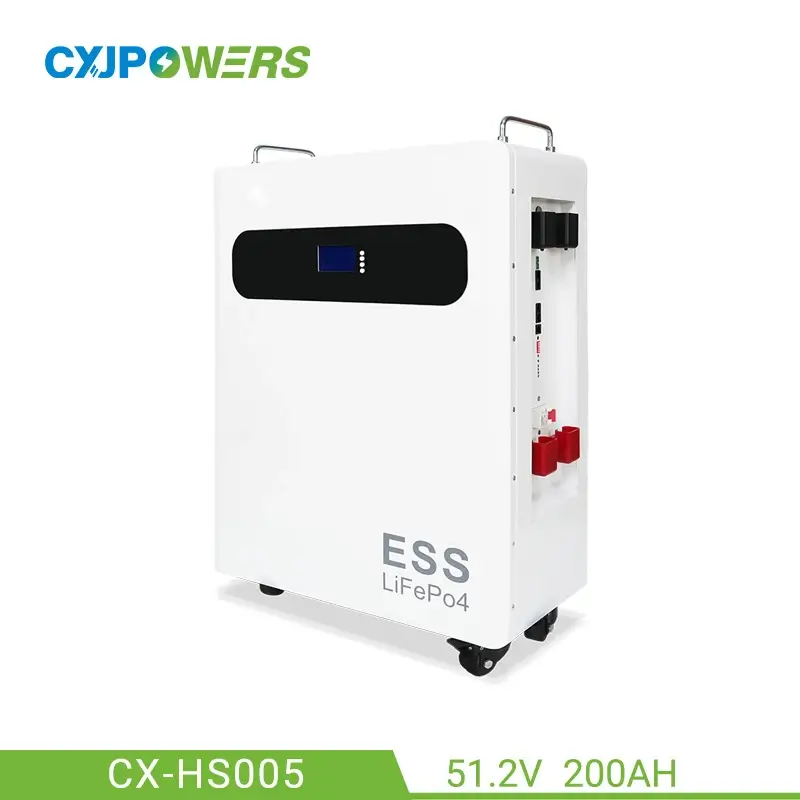

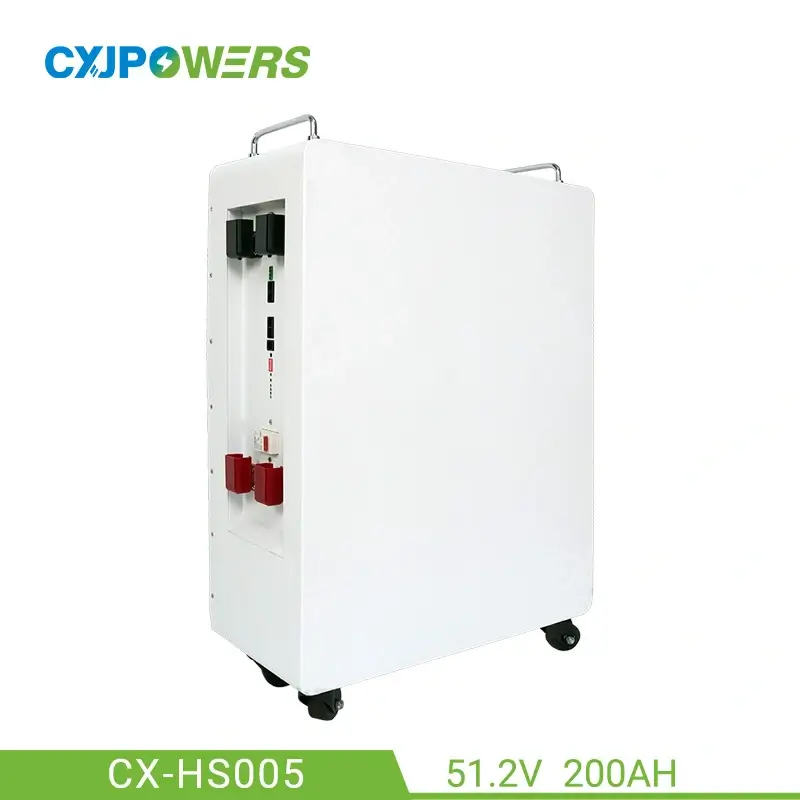

Model: CX-HS005
Rated energy: 10240 Wh
Rated voltage: 51.2V
Rated capacity: 200Ah
Battery type: LiFePO4 battery
Cycle life: > 6000 times
Voltage range: 40V~58.4V
BMS communication: CAN/RS485/RS232

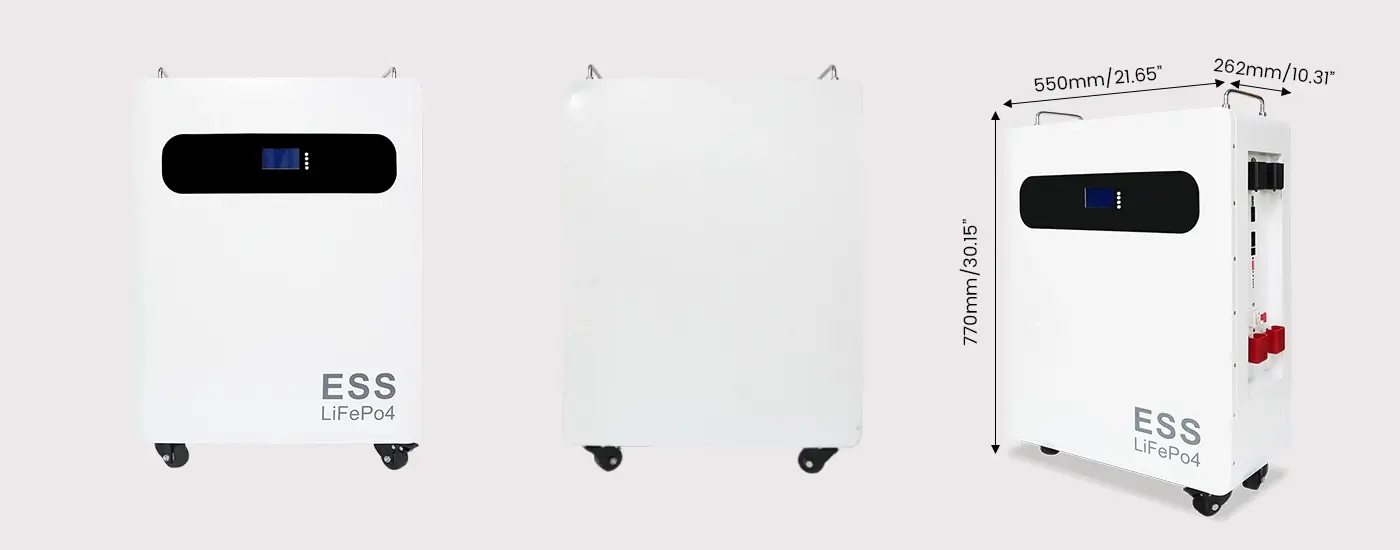

Dimension(L×W×H): 550×265×700mm
Installation method: Trolley/floor type
Weight: 90 kg
MOQ: ≥ 1pcs
CXJPowers is a top home battery storage supplier & ESS battery manufacturer, specializing in the R&D, production and sales of solar energy storage batteries, All-in-one LiFePO4 ESS(energy storage systems) and various LiFePO4 lithium battery packs, etc., providing customized lithium energy solutions.is a top OEM/ODM jump starter factory in China, providing customized 12V/24V car jump starters with various battery capacities to meet the needs of different customers.

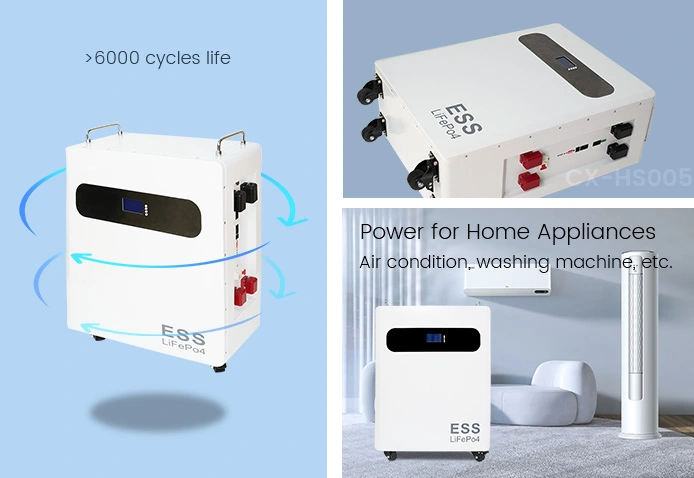

200Ah LiFePO4 CX-HS005 is a 10kWh home energy storage battery (home backup battery). It built-in 51.2V 200Ah LiFePO4 Battery and intelligent BMS, is a device integrating photovoltaic power generation system and energy system. It is suitable for off-grid energy storage system and outputs AC power with stable frequency and constant voltage.
LiFePO4 ESS Battery Powers A Home 24/7
Flexible storage capacity up to 10kWh.
Long life, ＞6000 times cycles life.
Multi-protection battery balance.
Applied to photovoltaic systems.
No fuel required, uses clean energy.
Easily & clearly check battery status.
Plug and play, easy installation.
Peak/Valley power prices save cost.
When power is working, it provides single-phase AC power; when power is out, it can be used as a home backup power supply or UPS.

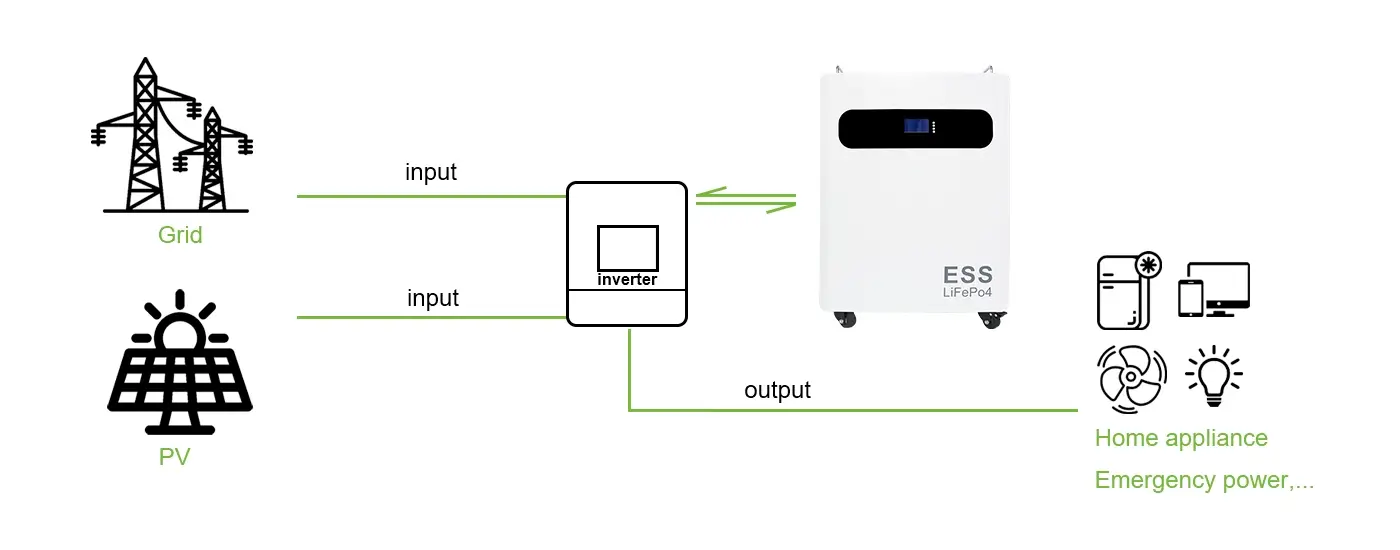

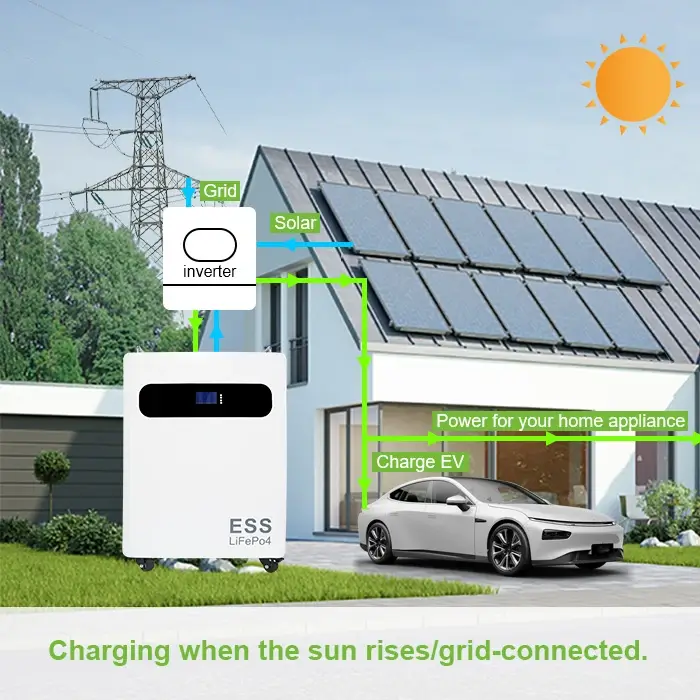

LiFePO4 10kwh battery ESS CX-HS005 can be charged by solar panels and AC mains. It can directly power the home (TV, computer, air conditioner, lighting, etc.) through photovoltaic power generation, reduce power consumption, and even fully meet the demand for self-use electricity. During off-peak electricity prices, the city electricity is charged and stored in the LiFePO4 ESS battery, and during peak electricity prices, it supplies power to the home, reducing electricity costs.

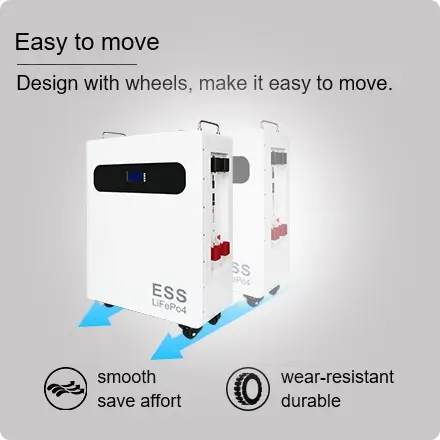

Design with wheels, make it easy to move.

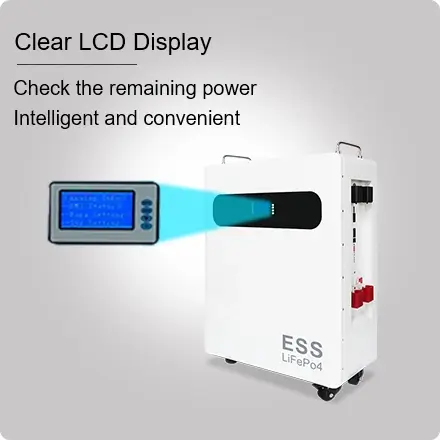

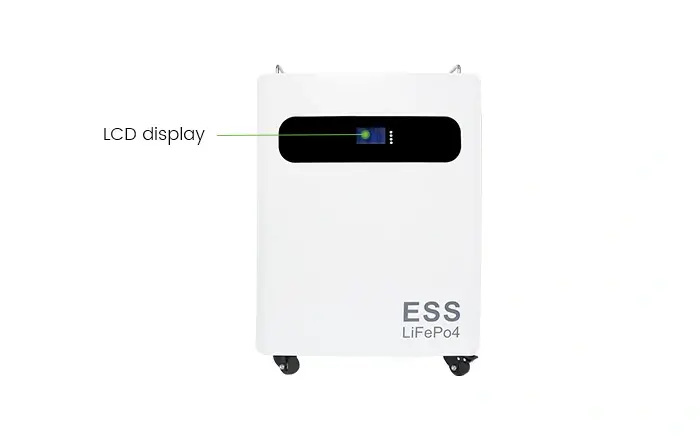

Check the remaining power easily, intelligent and convenient.
Provides 6 protections, more stablity and safety.
| Item Name | 51.2V 200Ah LiFePO4 10kWh Home Battery | ||||
| Model | CX-HS005 (51.2V 200Ah) | Rated Energy | 10240Wh | ||
| Battery Type | LiFePO4 cell | Max Continuous Charging Current | 200A | ||
| Cycle Life | >6000 times | Max Continuous Discharging Current | 200A | ||
| Voltage Range | DC 40~58.4V | Dimensions(LxWxH) | 550x265x700mm | ||
| BMS Communication | CAN/RS485/RS232 | Weight | Approx. 90kg | ||

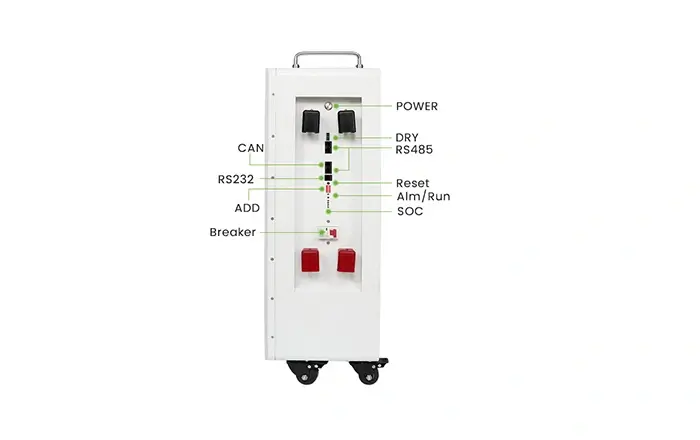

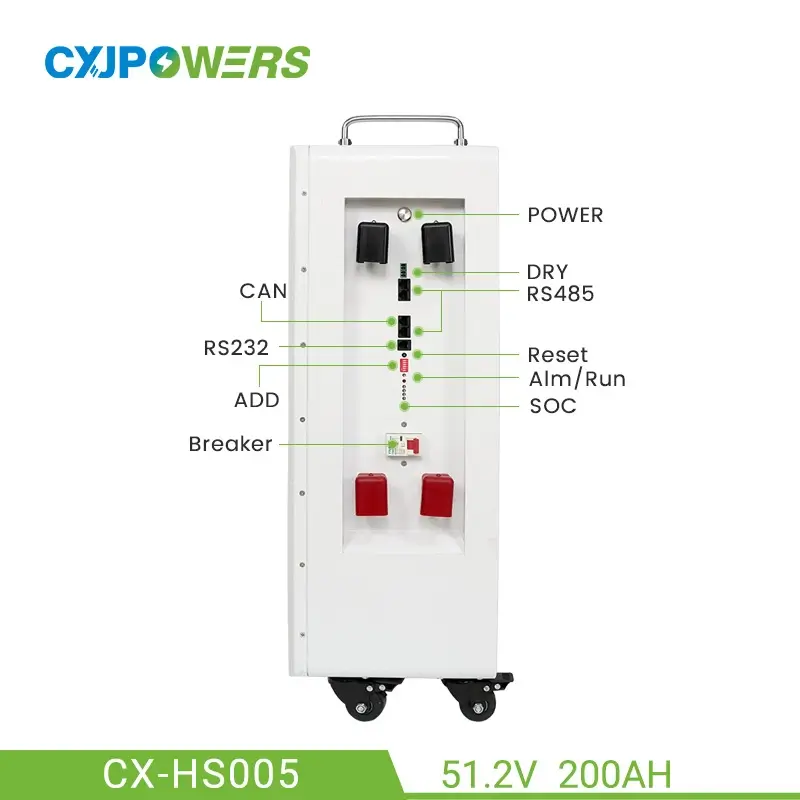

CAN/RS485/RS232 communication protocol lithium-ion battery or LiFePO4 battery is compatible with most inverters on the market.
|
51.2V 200Ah LiFePO4 10kWh Home Battery |
|
|
Model |
CX-HS005 |
|
Battery Parameters |
|
|
Voltage |
51.2V |
|
Capacity |
200Ah (Standard) |
|
Life Cycle |
＞6000 cycles（80%DOD，25℃） |
|
Battery Working Voltage |
DC 40~58.4V |
|
BMS Communication |
CAN, RS485, RS232 |
|
Electrical Parameters |
|
|
Rated Energy |
10kWh |
|
Minimun Discharge Voltage |
44.0V |
|
Max Continuous Charging Current |
200A |
|
Max Continuous Discharging Current |
200A |
|
Maximum Charging Voltage |
56.8V |
|
Installation Mode |
Floor Style/Trolley |
|
Product Parameters |
|
|
Dimension (LxWxH) |
550×265×700mm |
|
Net Weight |
90KG |
|
IP Grade |
IP21 |
|
Operating Temperature Range |
Charging：0~60℃ Discharging：-20~60℃ |
|
Cooling Mode |
Natural Cooling |
|
Operating Humidity Range |
0~95% (NO Condensation) |
|
Max Working altitude |
4000m (>3000m Need to Derate) |
|
Display Screen |
Optional |
|
DC Charging Port |
Wall-Through Fence Terminal |
|
Certification |
CE,RCM,UN383,Test report IEC62619 |
|
Optional Features |
|
|
Cloud Platform Management |
Support intelligent cloud platform/APP |
|
Remote Intelligent Management |
Support 4G communication |
