All-in-One Home solar Battery System, Ultra-thin & Silent design, Safe for Indoor.

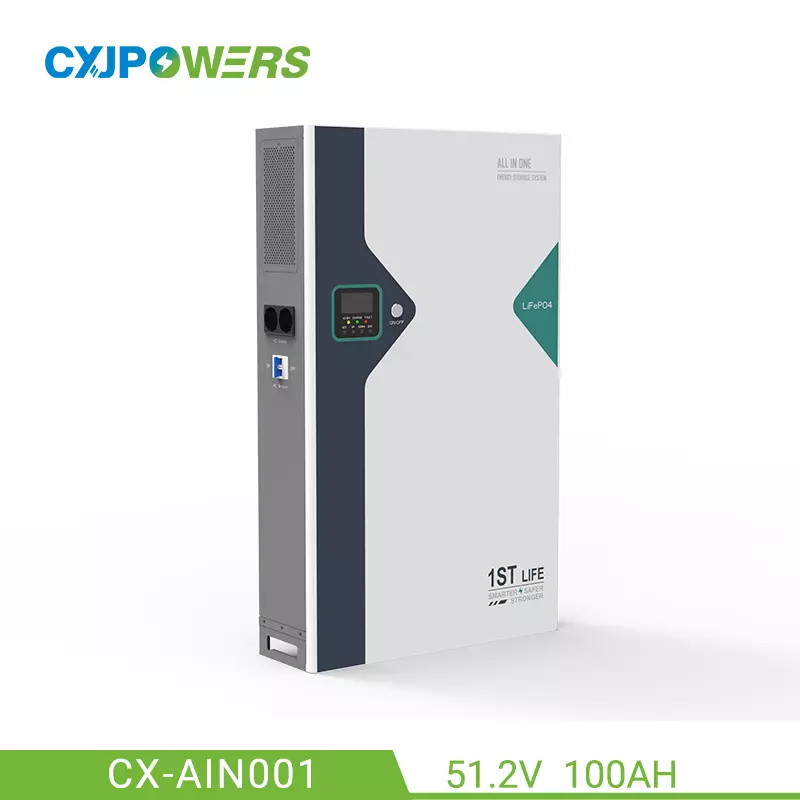

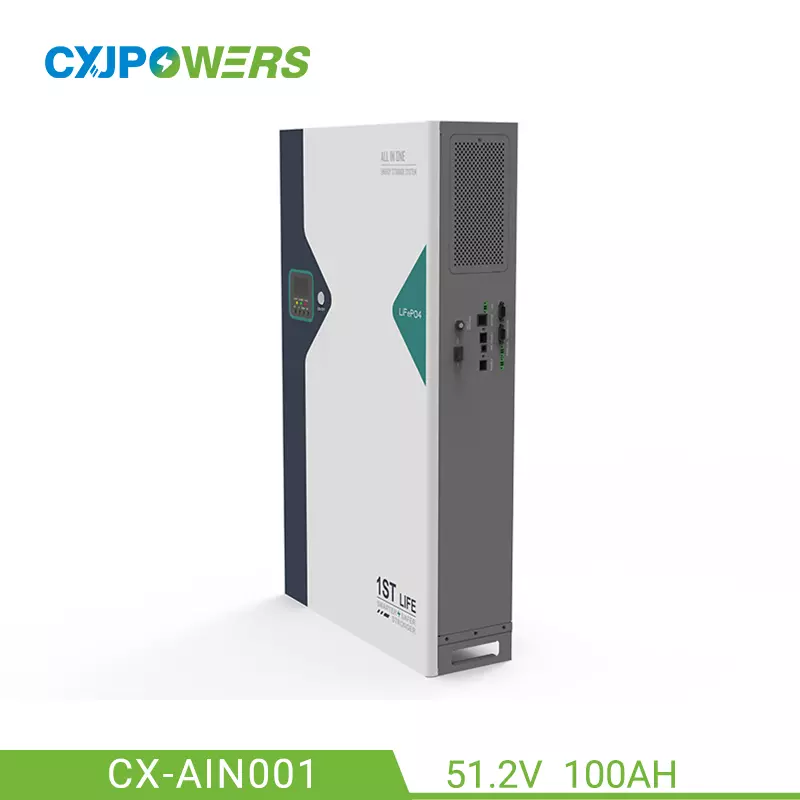

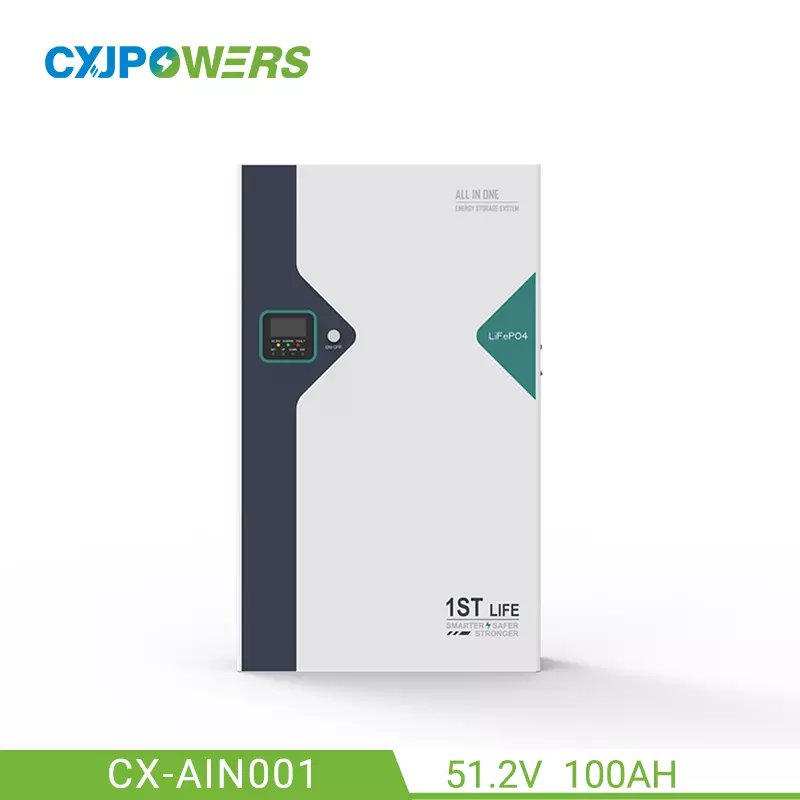

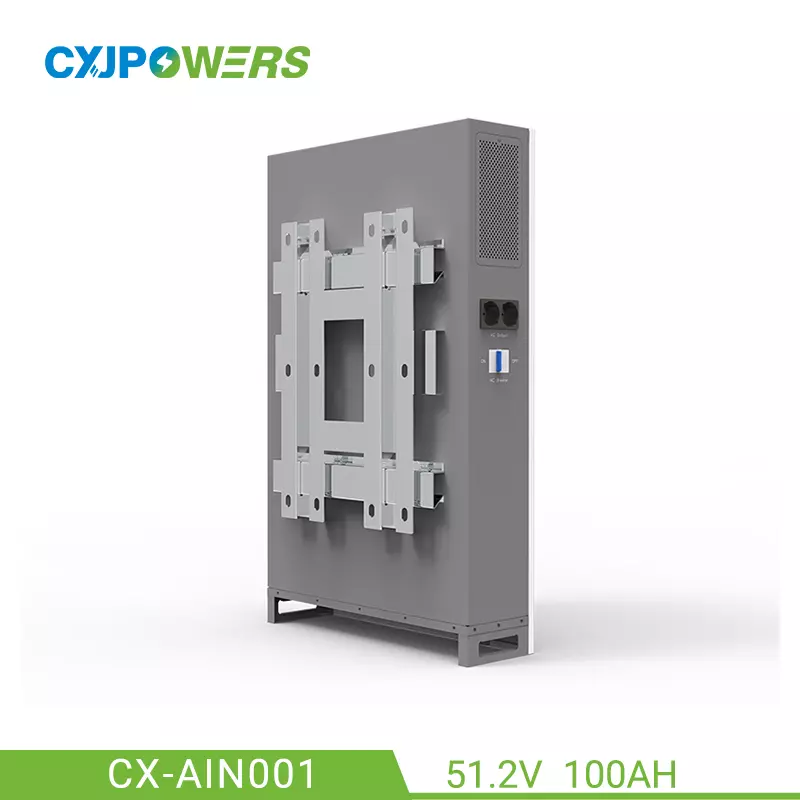

Model: CX-AIN001
Rated energy: 5.12kWh
Rated voltage: 51.2V
Rated capacity: 100Ah
Battery type: LiFePO4 battery
Cycle life: > 6000 times
Voltage range: 44.8V~58.4V
BMS communication: RS485/232/CAN

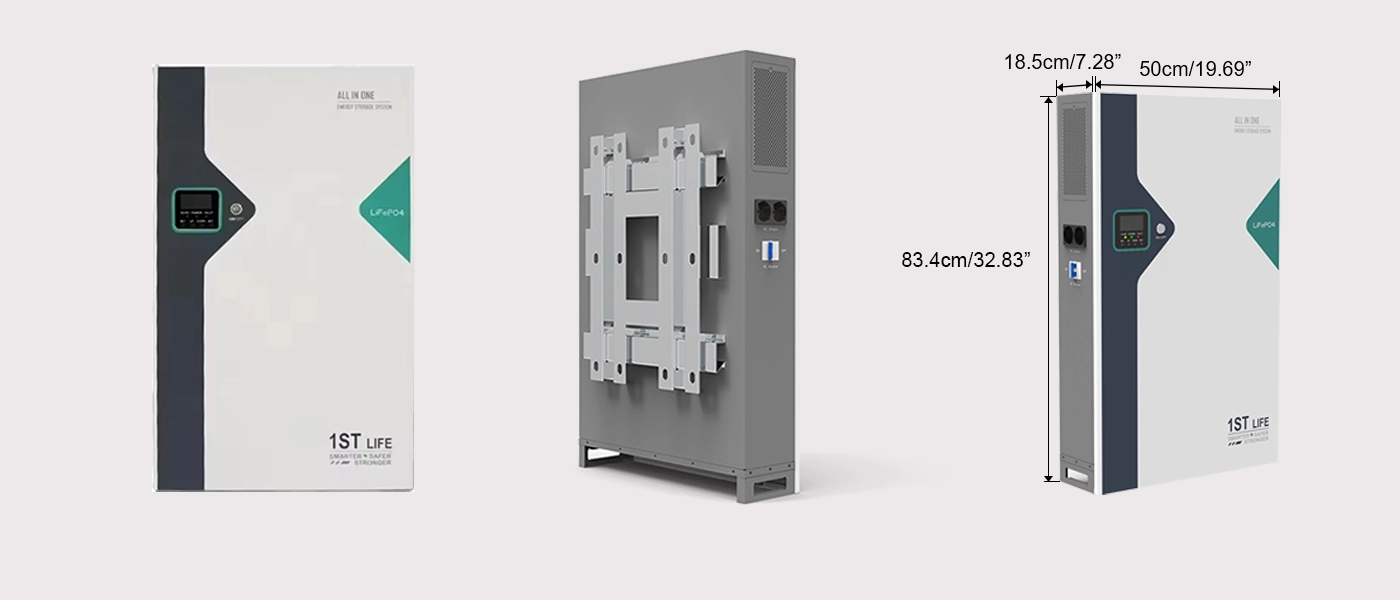

Dimension(L×W×H): 500x185x834mm
Type: Wall-mounted
Weight: 65 kg
MOQ: ≥ 1pcs
CXJPowers is a top home battery storage supplier & ESS battery manufacturer, specializing in the R&D, production and sales of solar energy storage batteries, All-in-one LiFePO4 ESS(energy storage systems) and various LiFePO4 lithium battery packs, etc., providing customized lithium energy solutions.is a top OEM/ODM jump starter factory in China, providing customized 12V/24V car jump starters with various battery capacities to meet the needs of different customers.

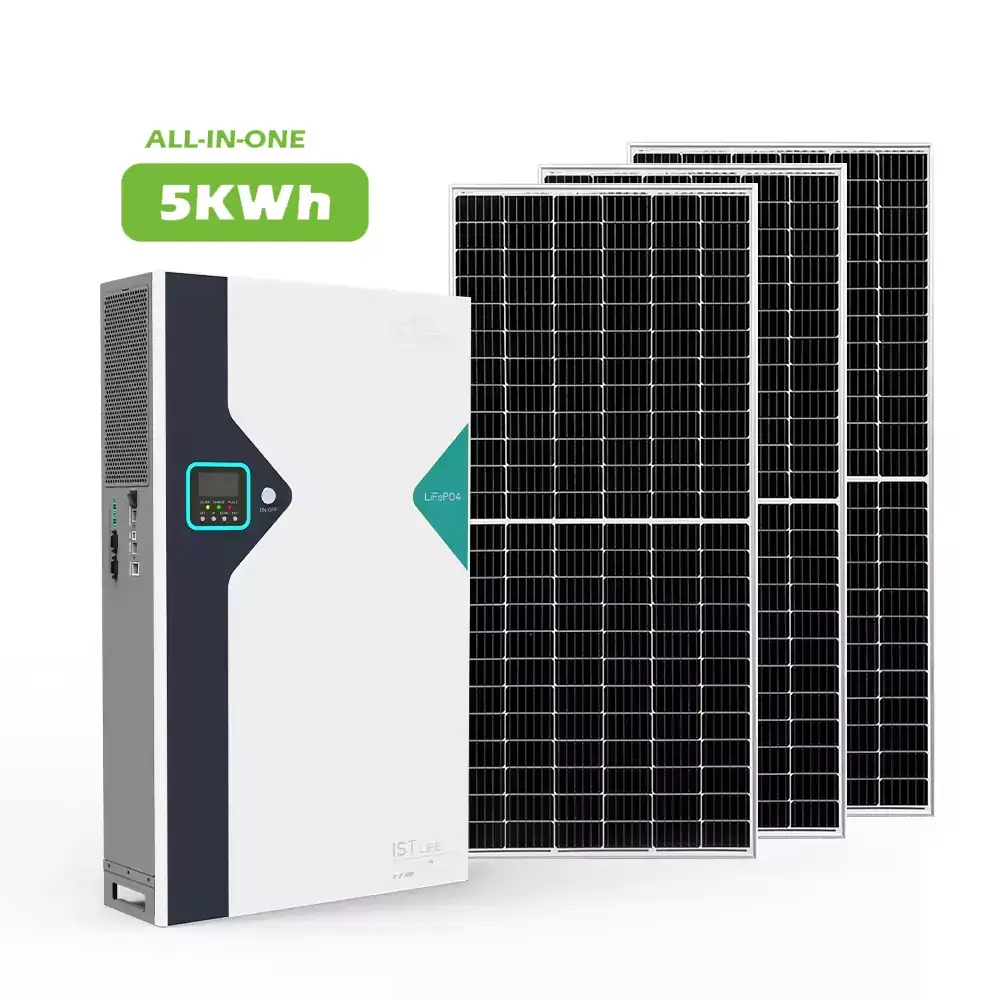

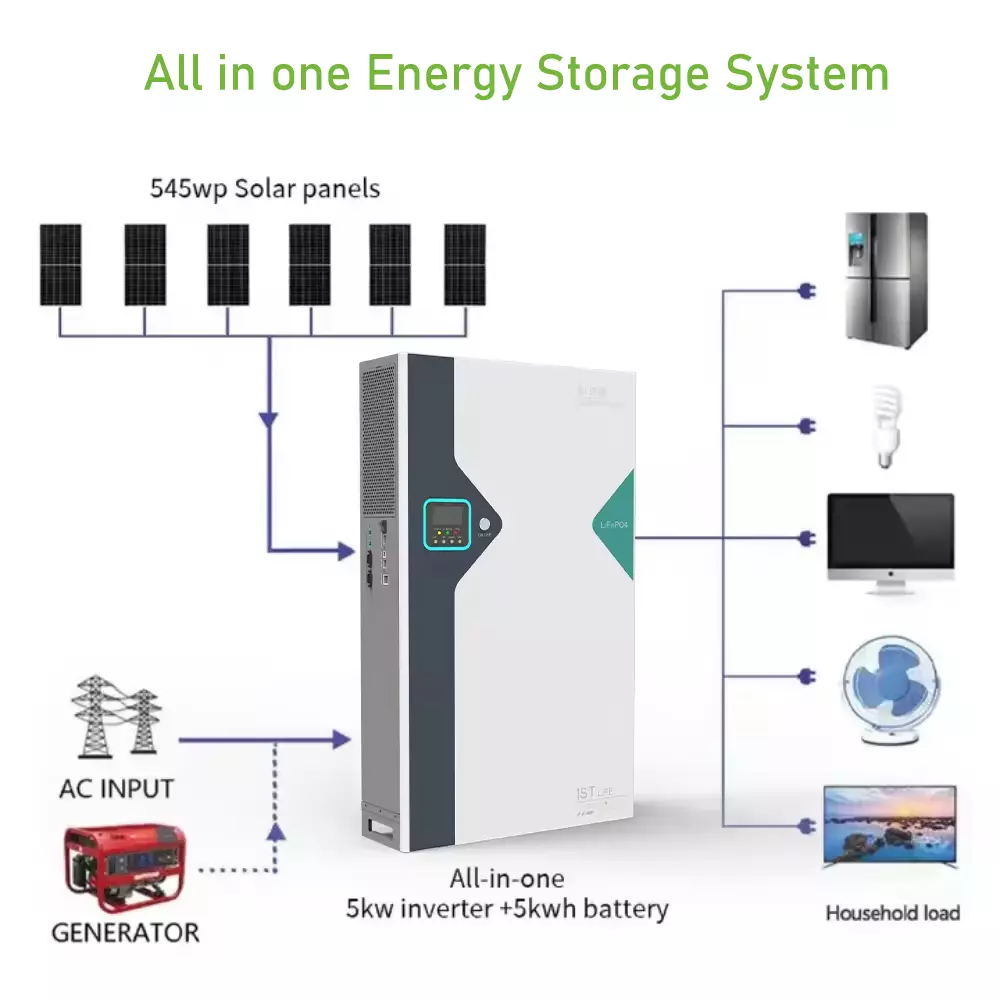

All-in-one ESS battery storage solar lithium battery CX-AIN001 is a 5kWh home energy storage battery power system (home backup battery). It built-in 51.2V 100Ah LiFePO4 Battery, inverter and intelligent BMS management system, is a device integrating photovoltaic power generation system and energy storage system. It is suitable for off-grid energy storage system and outputs AC power with stable frequency and constant voltage.
All-in-one ESS Battery Powers A Home 24/7
Flexible storage capacity up to 5kWh.
Long life, ＞6000 times cycles life.
Multi-protection battery balance.
Applied to photovoltaic systems.
No fuel required, uses clean energy.

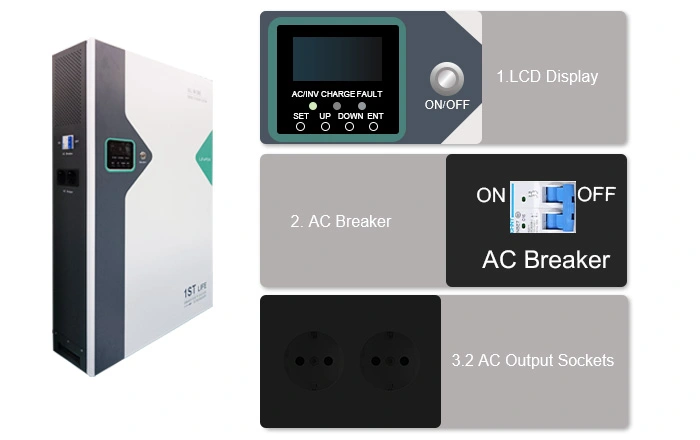

Easily & clearly check battery status.
Plug and play, easy installation.
Peak/Valley power prices save cost.
When power is working, it provides single-phase AC power; when power is out, it can be used as a home backup power supply or UPS.

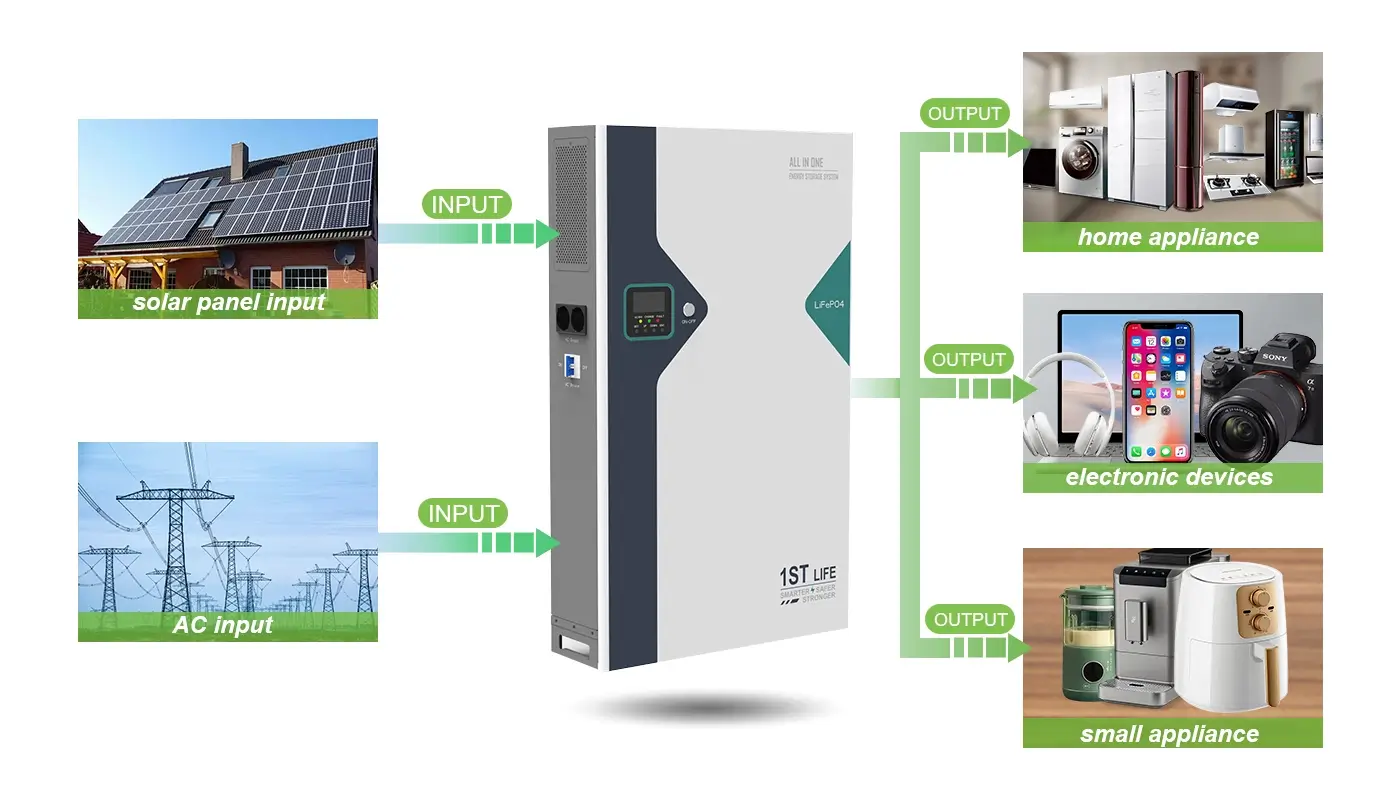

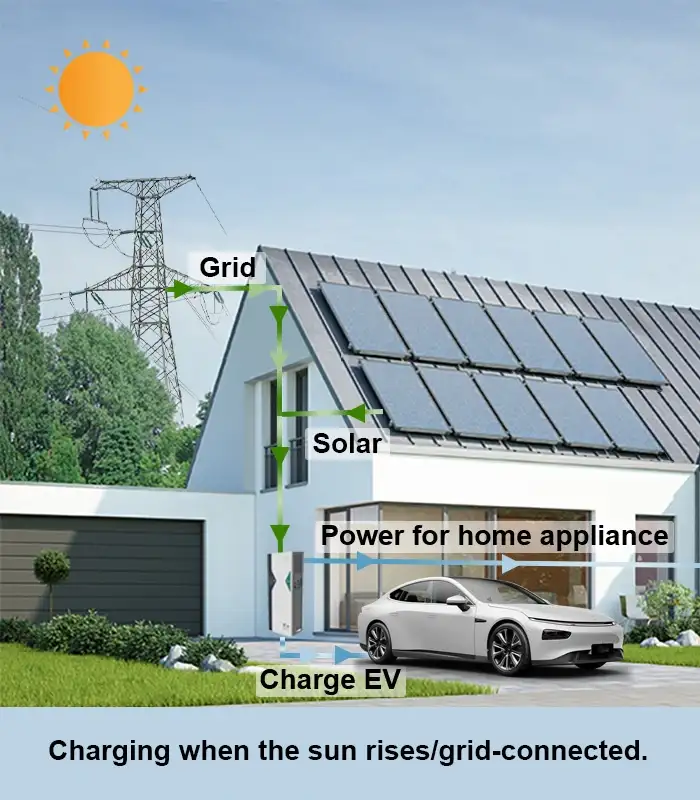

All-in-one LiFePO4 ESS CX-AlN001 can be charged by solar panels and AC mains. It can directly power the home (TV, computer, air conditioner, lighting, etc.) through photovoltaic power generation, reduce power consumption, and even fully meet the demand for self-use electricity. During off-peak electricity prices, the city electricity is charged and stored in the LiFePO4 ESS battery, and during peak electricity prices, it supplies power to the home, reducing electricity costs.

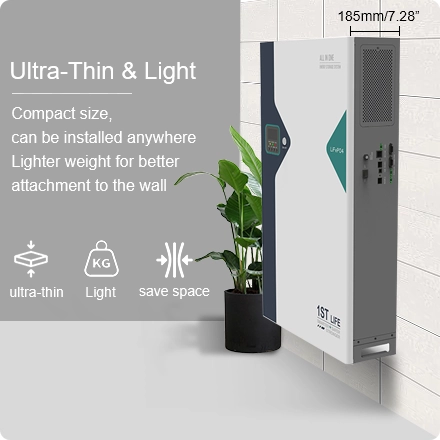

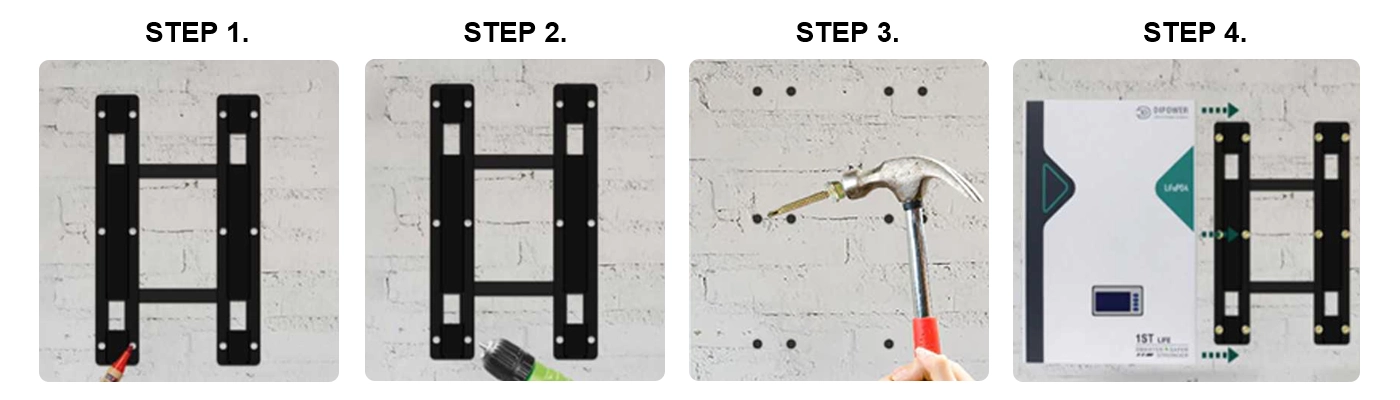

Compact size and light, easier to install
Almost silent working state, perfect user experience
Provides 6 protections, more stablity and safety.
| Item Name | 5kWh All in one Power Wall ESS Battery Storage System with Inverter | ||||
| Model | CX-AIN001(51.2V 100Ah) | Inverter | 5KW(Pure sine wave) | ||
| Energy | 5.2kWh | MPPT Working Voltage | 60~115Vdc | ||
| Battery | LiFePO4 cell | AC Output Voltage | 220VAC, 50Hz/60Hz | ||
| Cycle Life | >6000 times | Dimensions(LxWxH) | 500x185x834mm | ||
| Voltage Range | 44.8~58.4V | Weight | Approx. 65kg | ||
|
5kWh All-In-One Home Energy Storage System |
|
|
Model |
CX-AIN001 |
|
Battery Parameters |
|
|
Rated Energy Capacity |
5kWh |
|
Battery Type |
Lithium iron phosphate(LiFePO4) |
|
Life Cycle |
＞6000 cycles（80%DOD，25℃） |
|
Battery Working Voltage |
44.8~58.4V |
|
Layers |
All-in-one |
|
PV Parameters |
|
|
Charging Current |
100A |
|
Discharging Current |
100A |
|
PV Input Power |
5.12KW |
|
MPPT Voltage Range |
120V-450Vdc |
|
PV Voltage Range |
120V-450Vdc |
|
Installation Method |
Wall-mounted |
|
System Parameters |
|
|
Dimension (LxWxH) |
500×185×834mm |
|
Net Weight |
65KG |
|
Gross Weight |
70KG |
|
PV Input Current |
50A |
|
Operating Temperature Range |
Charging：0~45℃ Discharging：-30~55℃ |
|
Maximum Charging Current |
60A |
|
AC Input Voltage |
220V/230Vdc |
|
Conversion Time (inversion) |
10ms |
|
AC Output Power |
5KW |
|
AC Output Voltage |
220Vac |
|
AC Output Frequency |
50/60Hz |
|

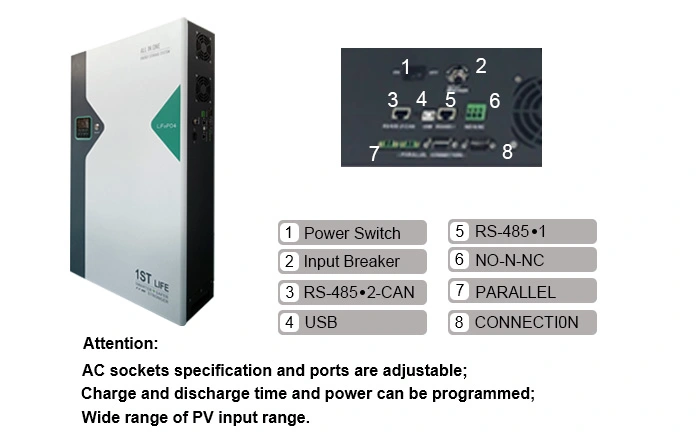

Communication port |
USB/RS485/WIFI/Bluetooth(optional) |
|
IP Grade |
IP21(Indoor) |
|
Cooling Method |
Convection and fan cooling |
|
Product Life |
10 years |
|
Certification |
CE,RCM,UN383,Test report IEC62619 |
|
Optional Features |
|
|
Cloud Platform Management |
Support intelligent cloud platform/APP |
|
Remote Intelligent Management |
Support 4G communication |
Download Now
More CatalogsCXJPowers is a professional lithium battery manufacturer with ISO9001, ISO14001. All the products have CE certificate.
Sample order: 100% payment before shipment; Bulk order: 30% deposit before production, 70% balance before shipment.
Whereas other CXJPowers batteries require a separate inverter unit, the All in One combines both battery and inverter into one unit.
