Standard size batteries per layer, free combination of 10kWh, 15kWh, 20kWh, 30kWh.

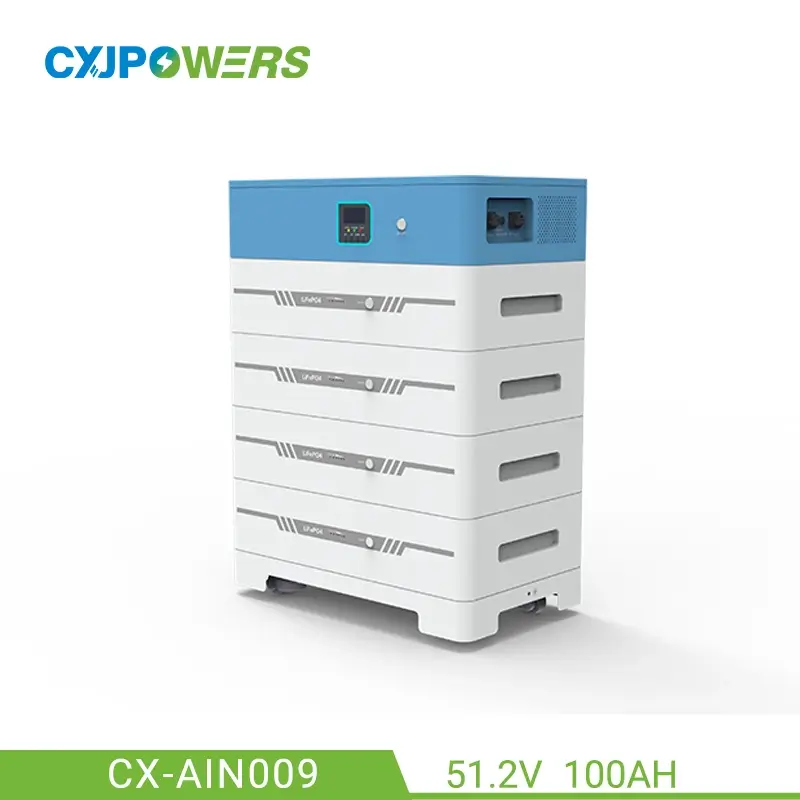

Model: CX-AIN009
Rated energy: 5kWh/10kWh/20kWh/30kWh
Rated voltage: 51.2V
Rated capacity: 100Ah
Battery type: LiFePO4 battery

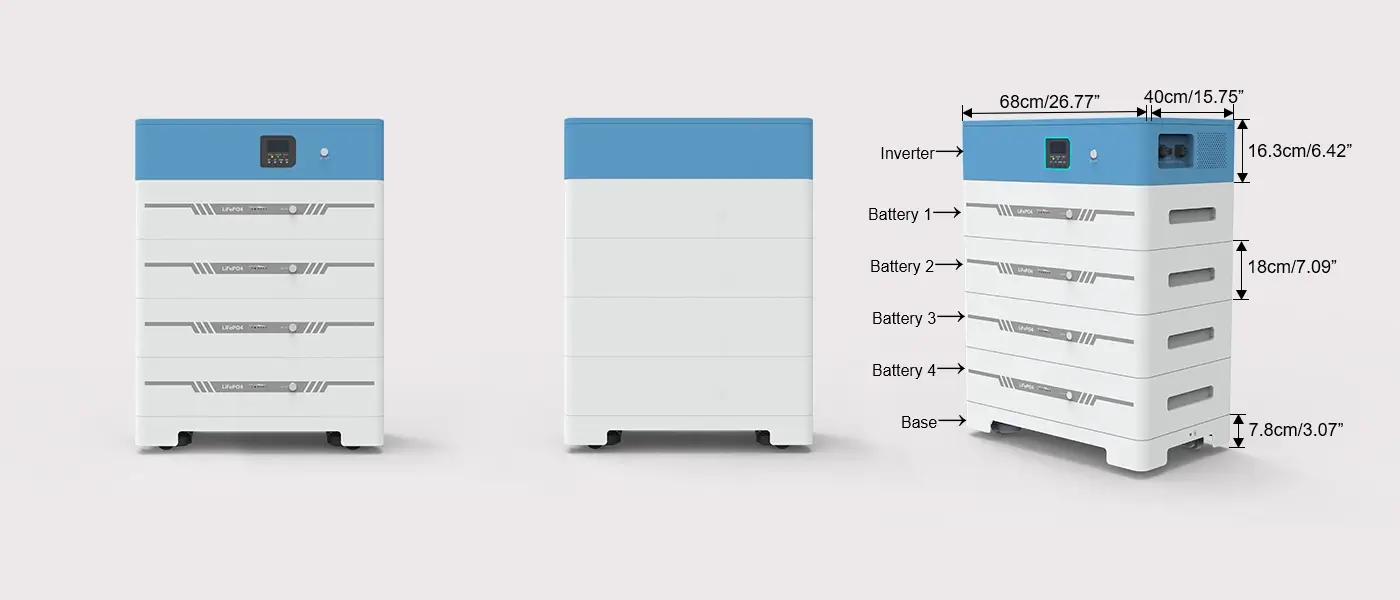

Battery size: 680×180×400mm/module
Weight: 14.9 kg/module

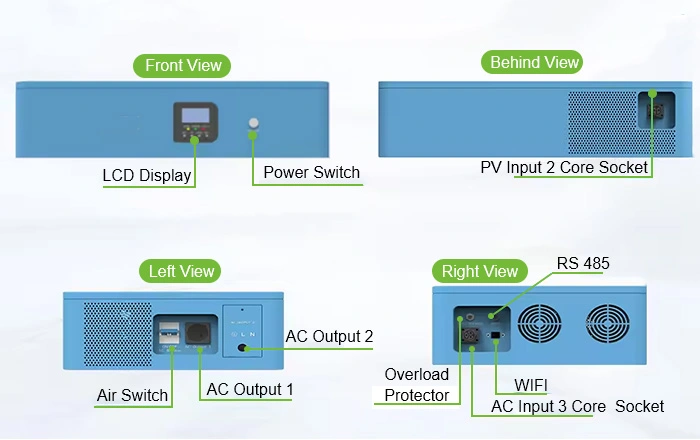

Inverter: 5kW 48V Pure Sine Wave
Inverter size: 680×163×400mm
Inverter weight: 17.9 kg
Base size: 680×78×400mm
Base weight: 7.6 kg
MOQ: ≥ 1pcs
CXJPowers is a top home battery storage supplier & ESS battery manufacturer, specializing in the R&D, production and sales of solar energy storage batteries, All-in-one LiFePO4 ESS(energy storage systems) and various LiFePO4 lithium battery packs, etc., providing customized lithium energy solutions.is a top OEM/ODM jump starter factory in China, providing customized 12V/24V car jump starters with various battery capacities to meet the needs of different customers.

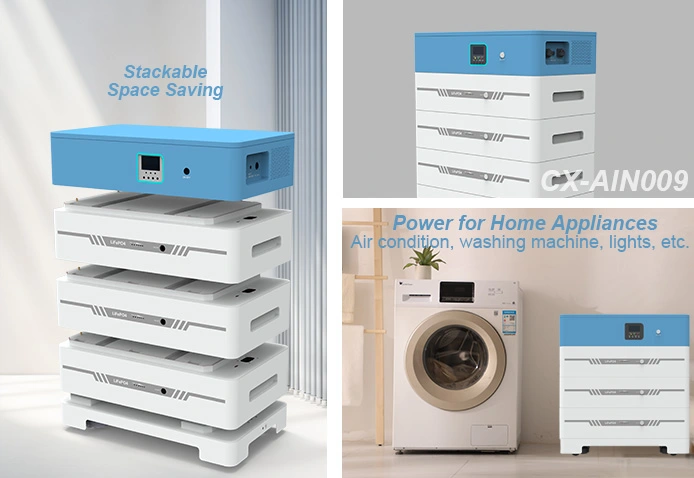

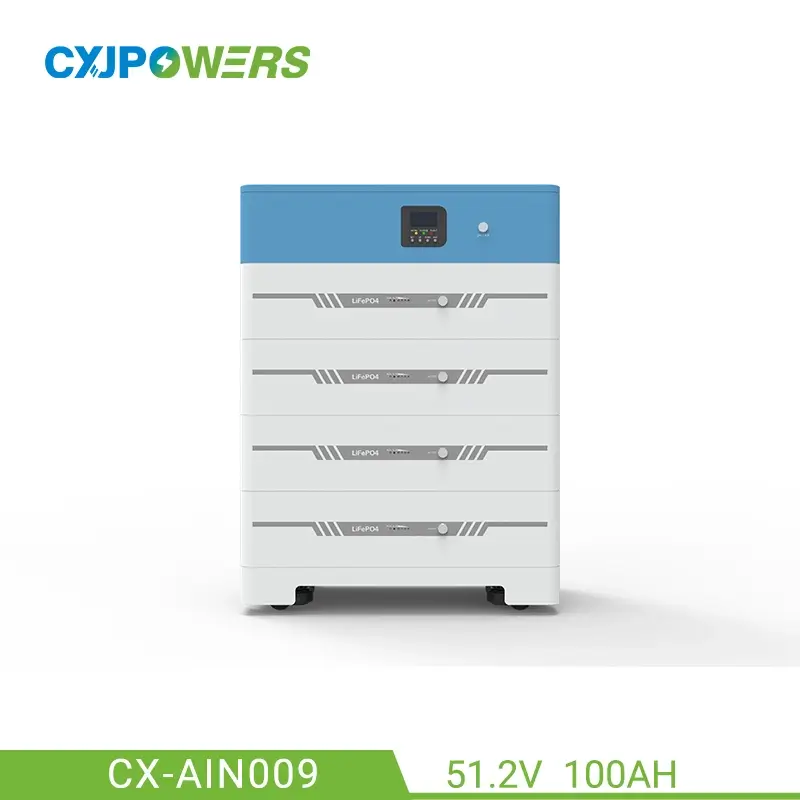

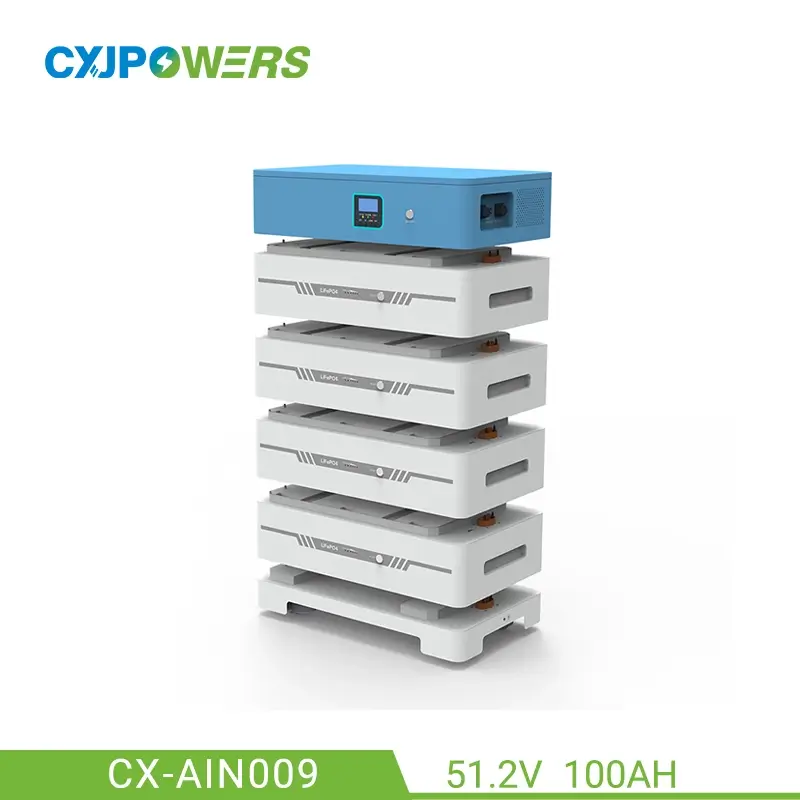

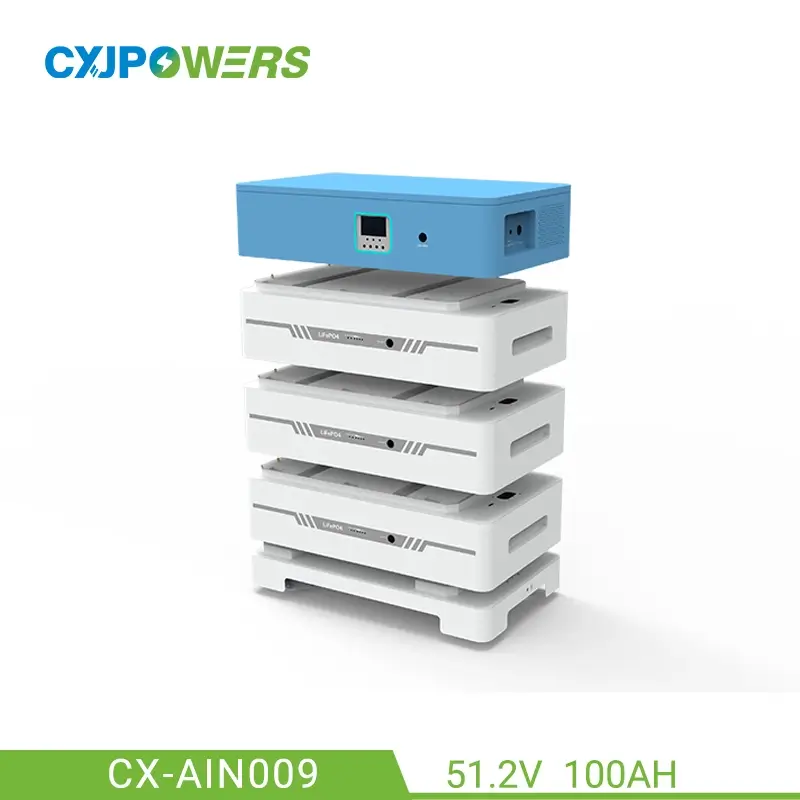

All in one home inverter battery storage sloar lithium CX-AIN009 is a stackable home inverter battery power system (home backup battery), whose capacity can up to 30kWh. It built-in 51.2V 100Ah LiFePO4 Battery, inverter and intelligent BMS management system, is a device integrating photovoltaic power generation system and energy storage system. It is suitable for off-grid energy storage system and outputs AC power with stable frequency and constant voltage.

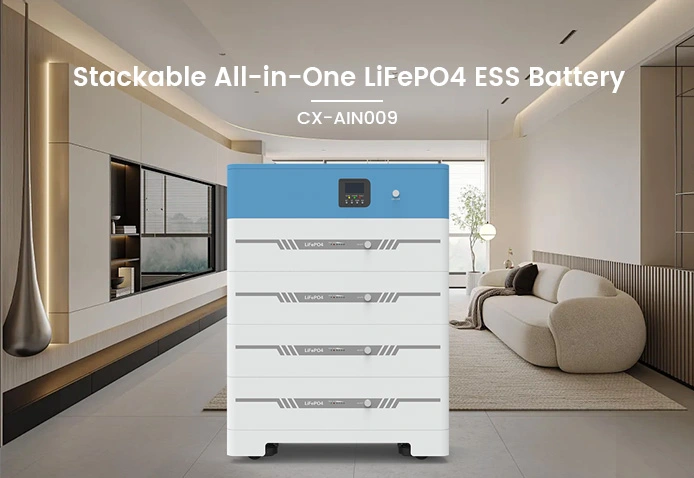

All-in-one ESS Battery Powers A Home 24/7
Flexible storage capacity up to 30kWh.
Long life, ＞6000 times cycles life.
Multi-protection battery balance.
Applied to photovoltaic systems.
No fuel required, uses clean energy.

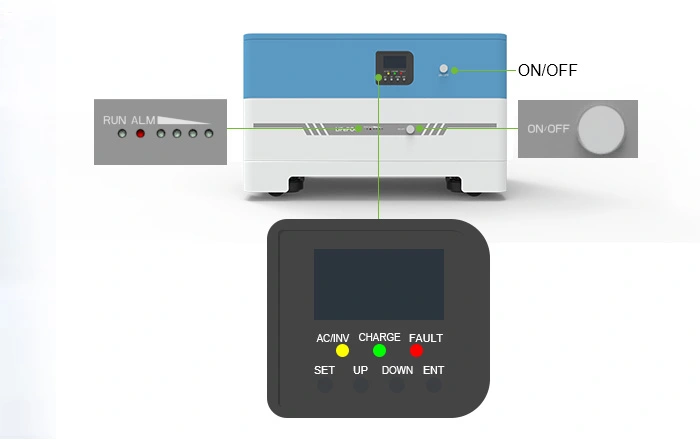

Easily & clearly check battery status.

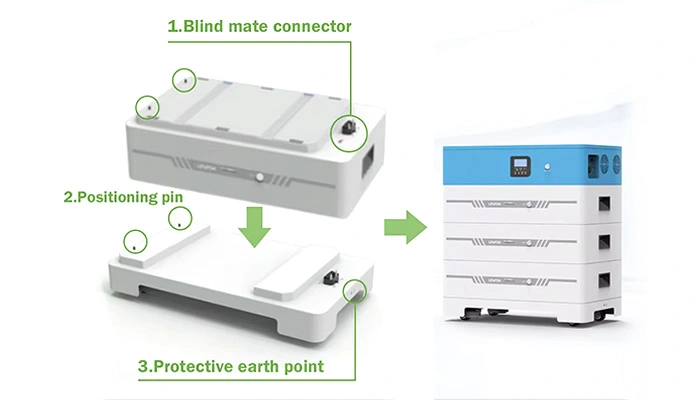

Plug and play, easy installation.
Peak/Valley power prices save cost.
When power is working, it provides single-phase AC power; when power is out, it can be used as a home backup power supply or UPS.

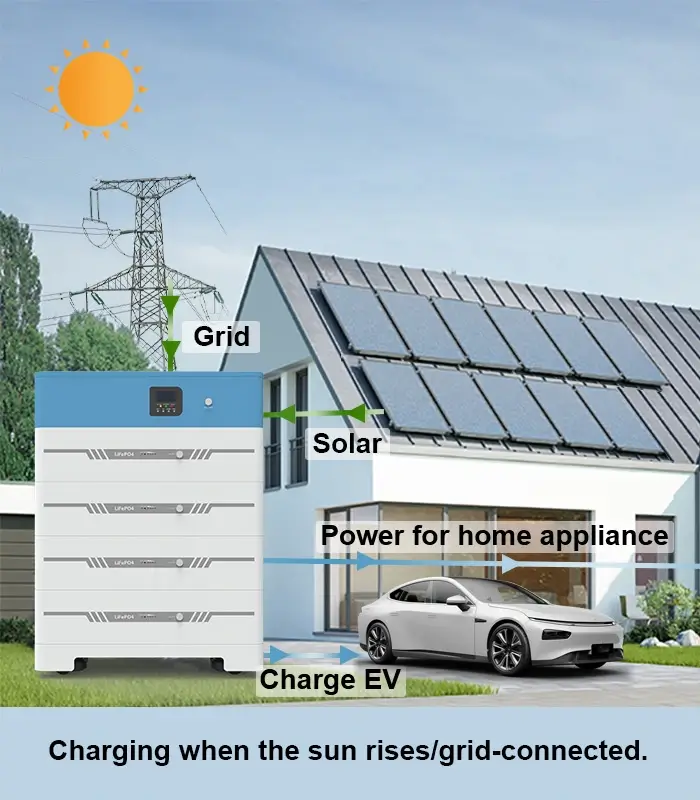

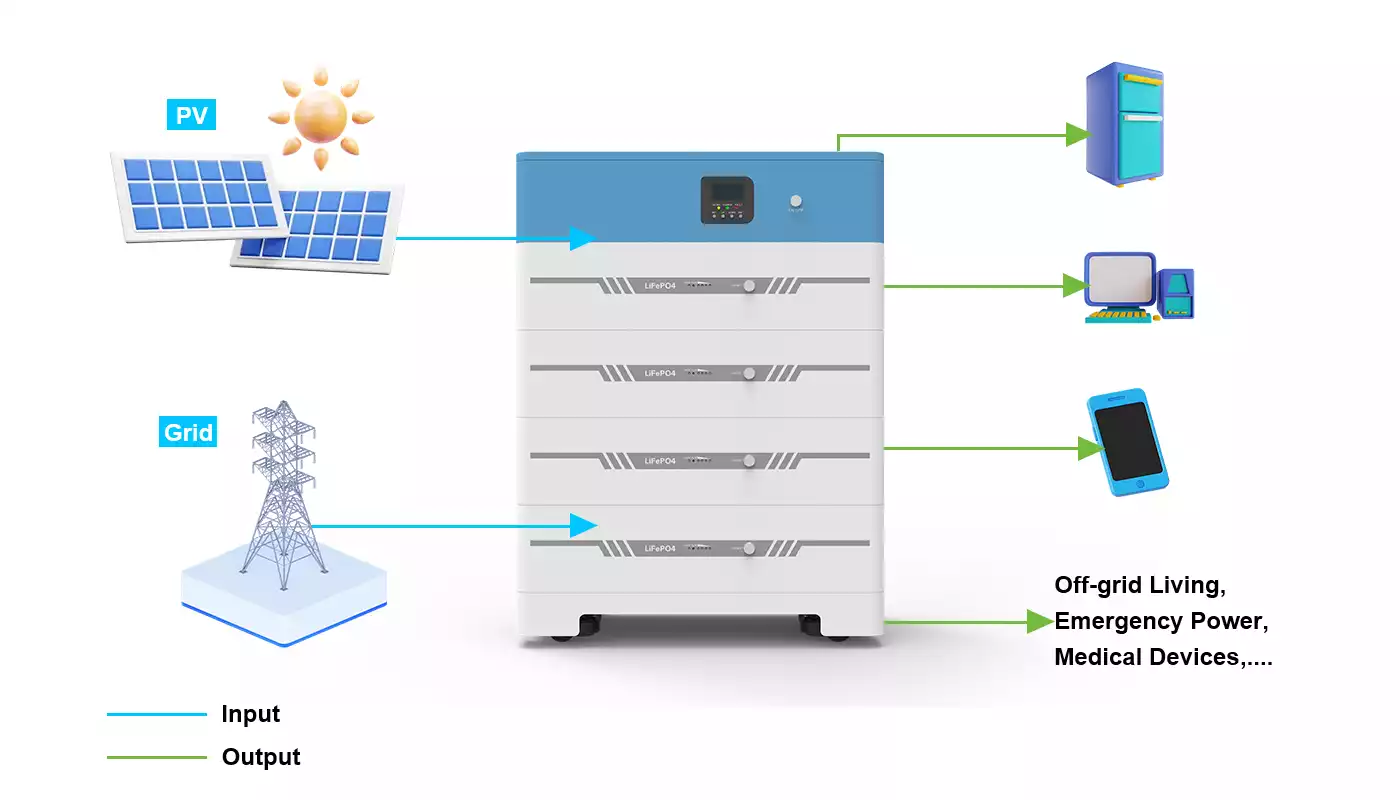

All in one home inverter battery system CX-AlN009 can be charged by solar panels and AC mains. It can directly power the home (TV, computer, air conditioner, lighting, etc.) through photovoltaic power generation, reduce power consumption, and even fully meet the demand for self-use electricity. During off-peak electricity prices, the city electricity is charged and stored in the LiFePO4 ESS battery, and during peak electricity prices, it supplies power to the home, reducing electricity costs.
Designed with wheels，can be used anywhere
Almost silent working state, perfect user experience
Provides 6 protections, more stablity and safety.
| Item Name | All In One Stackable Home Inverter Battery | ||||
| Model | CX-AIN009 (51.2V 100Ah) | Inverter | 5.5KW(Pure sine wave) | ||
| Energy | 5.2kWh | MPPT Working Voltage | 120VDC-450VDC | ||
| Battery | LiFePO4 cell | AC Output Voltage | 220/230VAC, 50Hz/60Hz | ||
| Cycle Life | >6000 times | Dimensions(LxWxH) | 680x400x180mm (each layer battery) | ||
| Voltage Range | 44.8~58.4V | Weight | Approx. 80kg (each layer battery) | ||
|
All In One Stackable Home Inverter Battery |
|
|
Model |
CX-AIN009 |
|
Battery Parameters |
|
|
Rated Energy Capacity |
5kWh/10kWh/15kWh/20kWh |
|
Battery Type |
Lithium iron phosphate(LiFePO4) |
|
Life Cycle |
＞6000 cycles（80%DOD，25℃） |
|
Battery Working Voltage |
44.8~58.4V |
|
Layers |
1 Layer/2 Layer/3 Layer/4 Layer |
|
PV Parameters |
|
|
Charging Current |
50A |
|
Discharging Current |
100A |
|
PV Input Power |
5.12KW |
|
MPPT Voltage Range |
120V-450Vdc |
|
PV Voltage Range |
120V-450Vdc |
|
Installation Method |
Floor/Trolley |
|
System Parameters |
|
|
Dimension (LxWxH) |
680×400×430mm/592mm/754mm/916mm |
|
Net Weight |
63kg (inverter and base no included) |
|
Gross Weight |
65KG (inverter and base no included) |
|
PV Input Current |
50A |
|
Operating Temperature Range |
Charging：0~45℃ Discharging：-30~55℃ |
|
Maximum Charging Current |
60A |
|
AC Input Voltage |
220V/230Vdc |
|
Conversion time (inversion) |
10ms |
|
AC Output Power |
5KW |
|
AC Output Voltage |
220Vac |
|
AC Output Frequency |
50/60Hz |
|
Communication port |
USB/RS485/WIFI/Bluetooth (optional) |
|
IP Grade |
IP21(Indoor) |
|
Cooling Method |
Natural cooling |
|
Product Life |
10 years |
|
Certification |
CE,RCM,UN383,Test report IEC62619 |
|
Optional Features |
|
|
Cloud Platform Management |
Support intelligent cloud platform/APP |
|
Remote Intelligent Management |
Support 4G communication |
Download Now
More CatalogsCXJPowers is a professional lithium battery manufacturer with ISO9001, ISO14001. All the home inverter battery have CE certificate.
Sample order: 100% payment before shipment; Bulk order: 30% deposit before production, 70% balance before shipment.
Any business that needs to stabilize power supply, reduce operating costs, reduce carbon emissions, improve production efficiency or meet emergency needs can benefit from energy storage systems, such as Hospitality, Education, Healthcare, etc.
Express(DHL, FedEx, UPS), air dispatch, sea dispatch both are available, by your choice.
