Composed of 7S1P, suitable for DC load devices with working current ≤120A.

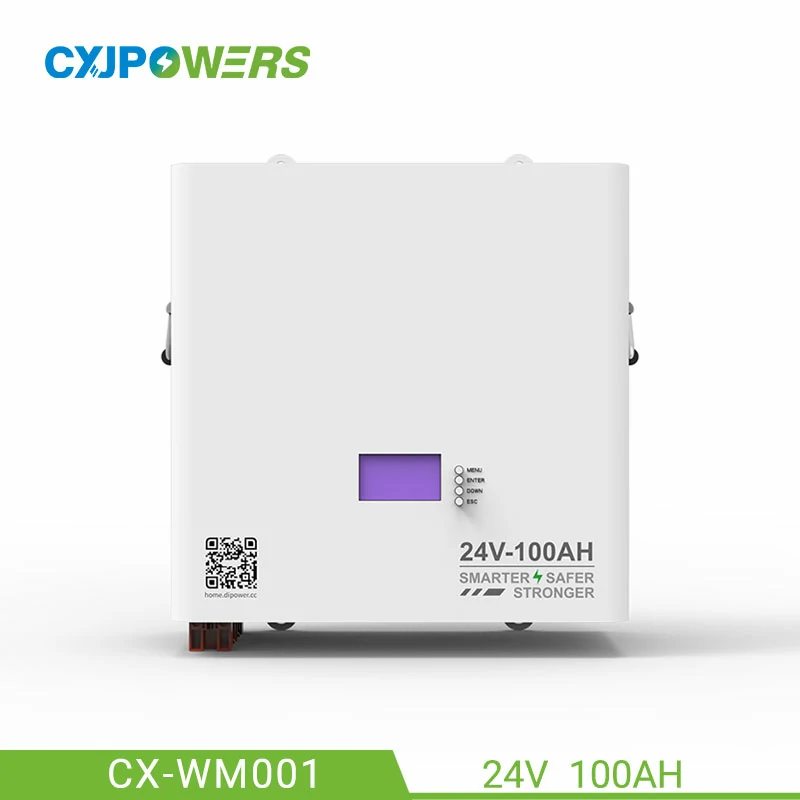

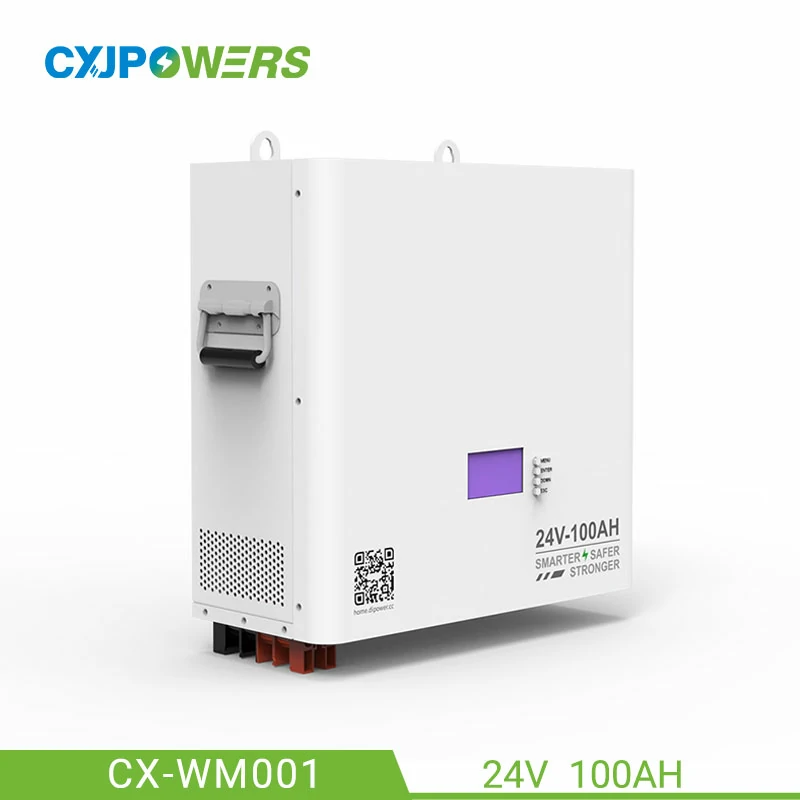

Model: CX-WM001
Rated energy: 2.4 kWh
Rated voltage: 24V
Rated capacity: 100Ah
Battery type: Lithium ion battery
Cycle life: > 6000 times
Voltage range: 21V～29.2V
BMS communication: RS485/RS232/CAN

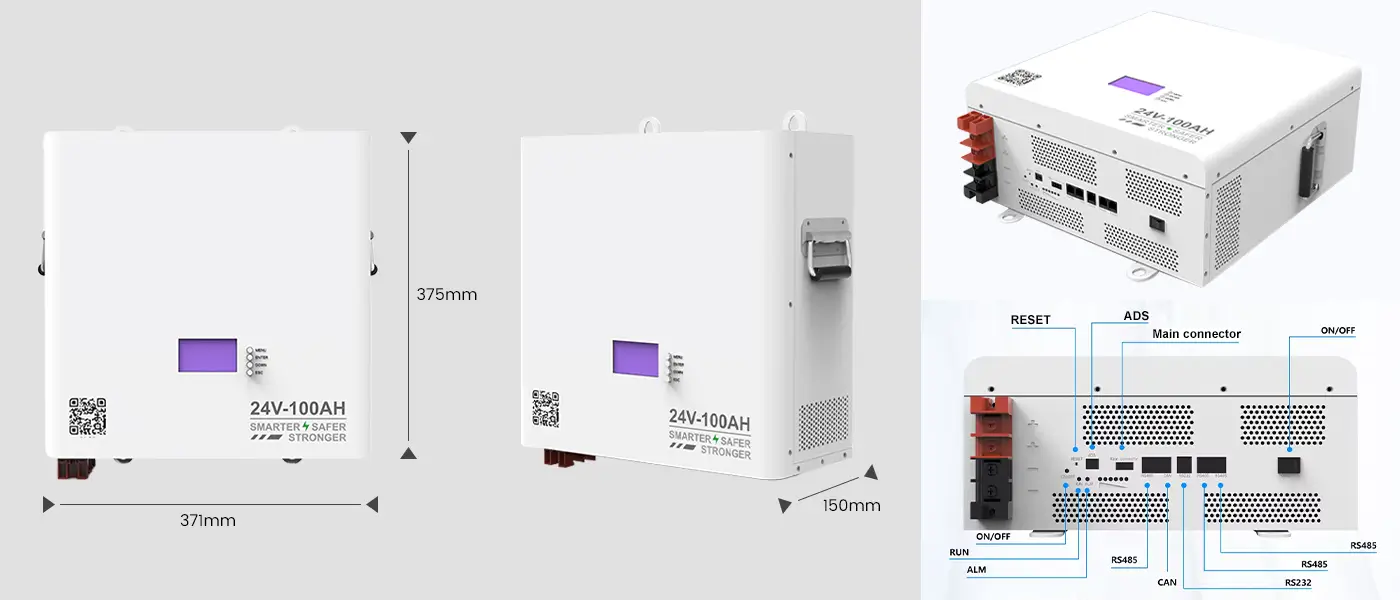

Dimension(L×W×H): 371×375×150mm
Installation method: Wall Mounted
Weight: 26 kg
MOQ: ≥ 1pcs

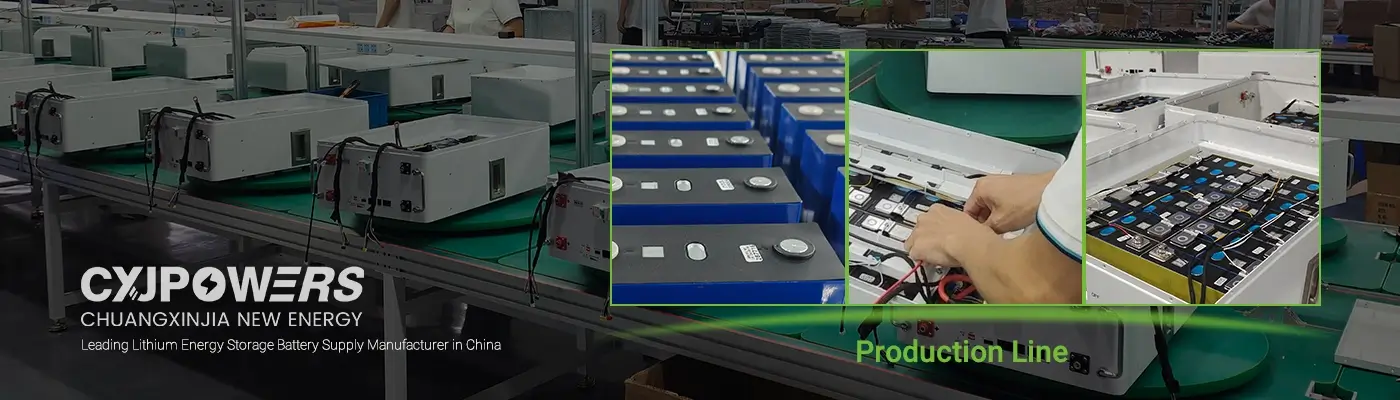

CXJPowers is a top home battery storage supplier and ESS battery manufacturer, specializing in the research and development, production and sales of solar energy storage batteries (rack-mounted, wall-mounted, stacked, etc.), integrated LiFePO4 ESS (energy storage system) and various LiFePO4 lithium battery packs, providing customized lithium energy solutions.

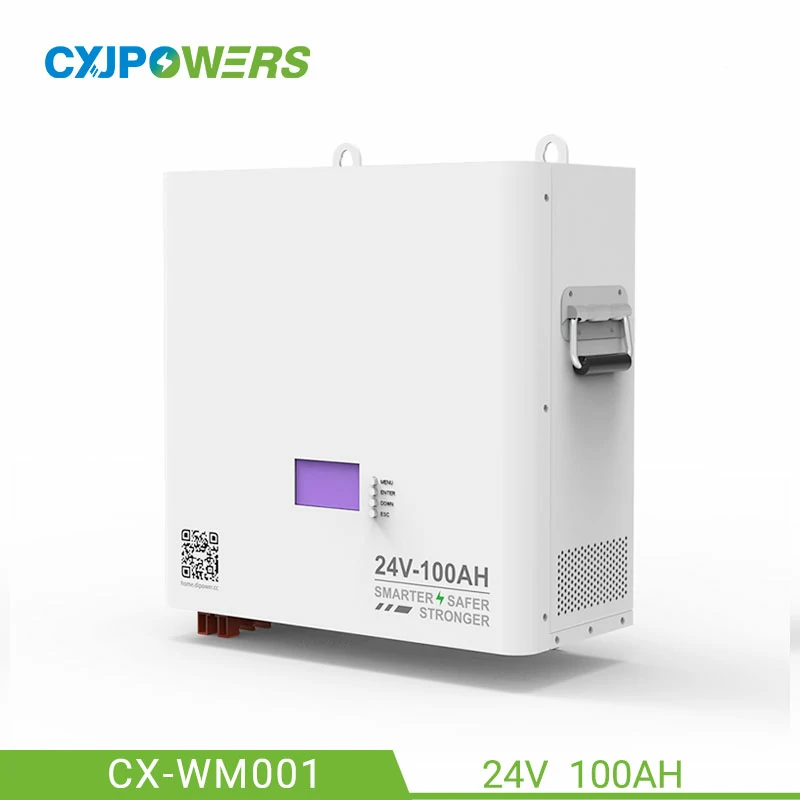

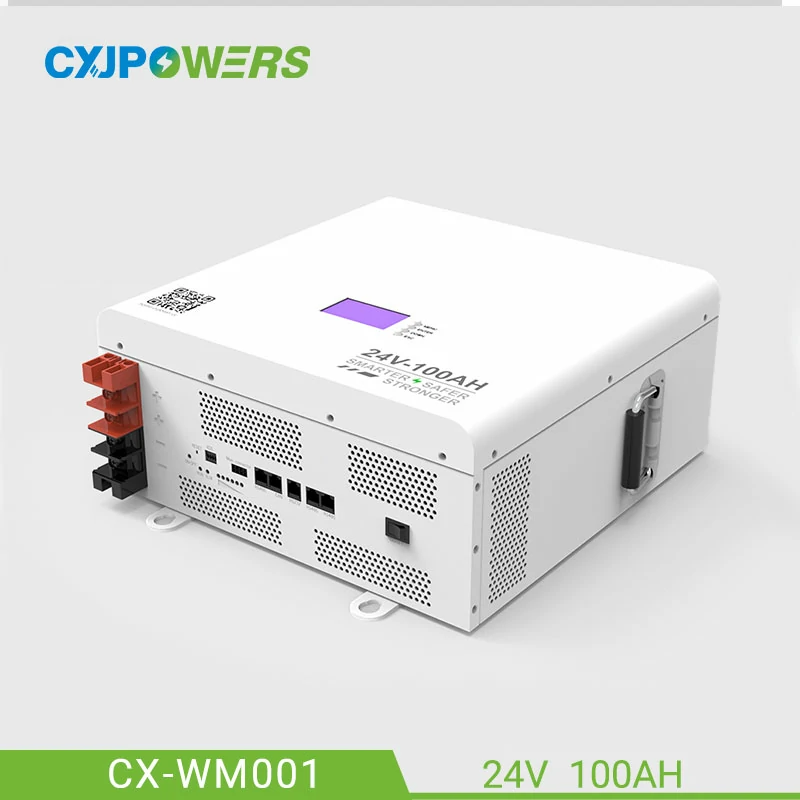

This 24V100Ah wall mount battery is designed for home photovoltaic systems with high energy density and long life. Built-in 24V 100Ah lithium iron phosphate battery. 24V stable voltage, suitable for household energy storage needs. 100Ah capacity, can store and provide reliable power support. It should be noted that this battery is for energy storage purposes only and does not include an inverter. To utilize the stored energy, a separate inverter must be connected to the battery system.
It can replace any GEL, Lead acid, AGM solar batteries.
CXJPowers New Energy · Empowers Better Life
Flexible storage capacity up to 2.4kWh.
Intergrated smart BMS withself-balance for each serial of cell.
The safest Lifepo4 Battery,no fire and no explosions.
Applied to photovoltaic systems.
Ultra-thin thickness, light weight.
Wall-mounted installation, takes up no space.
Extra long service life.
Peak/Valley power prices save cost.

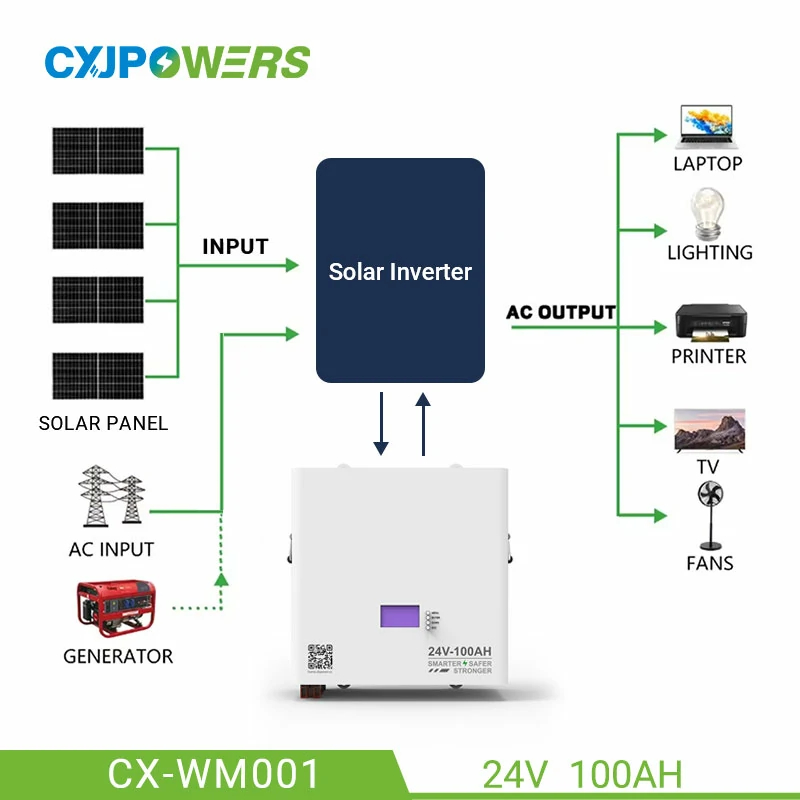

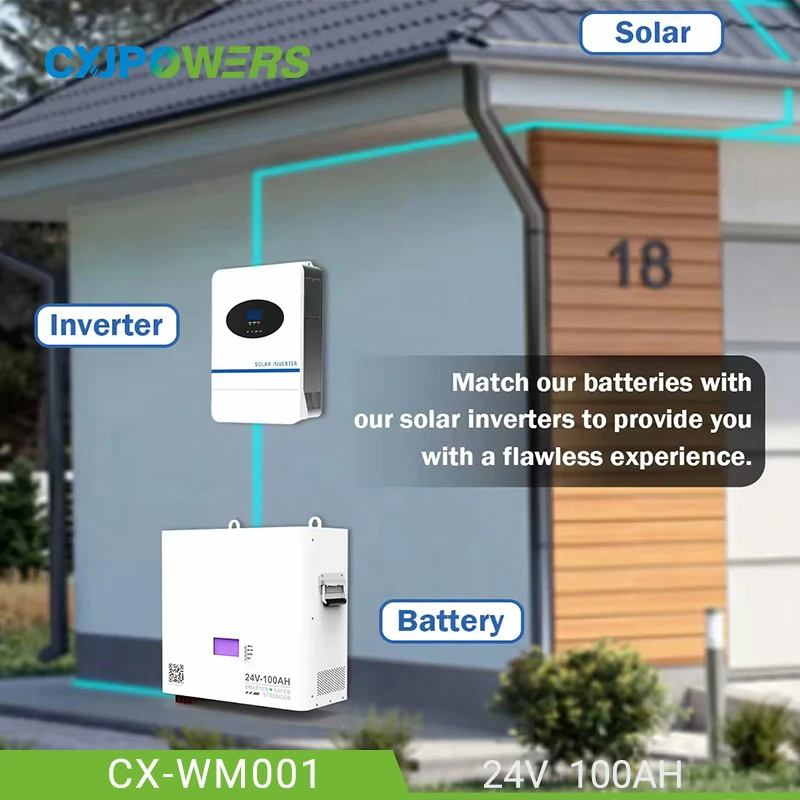

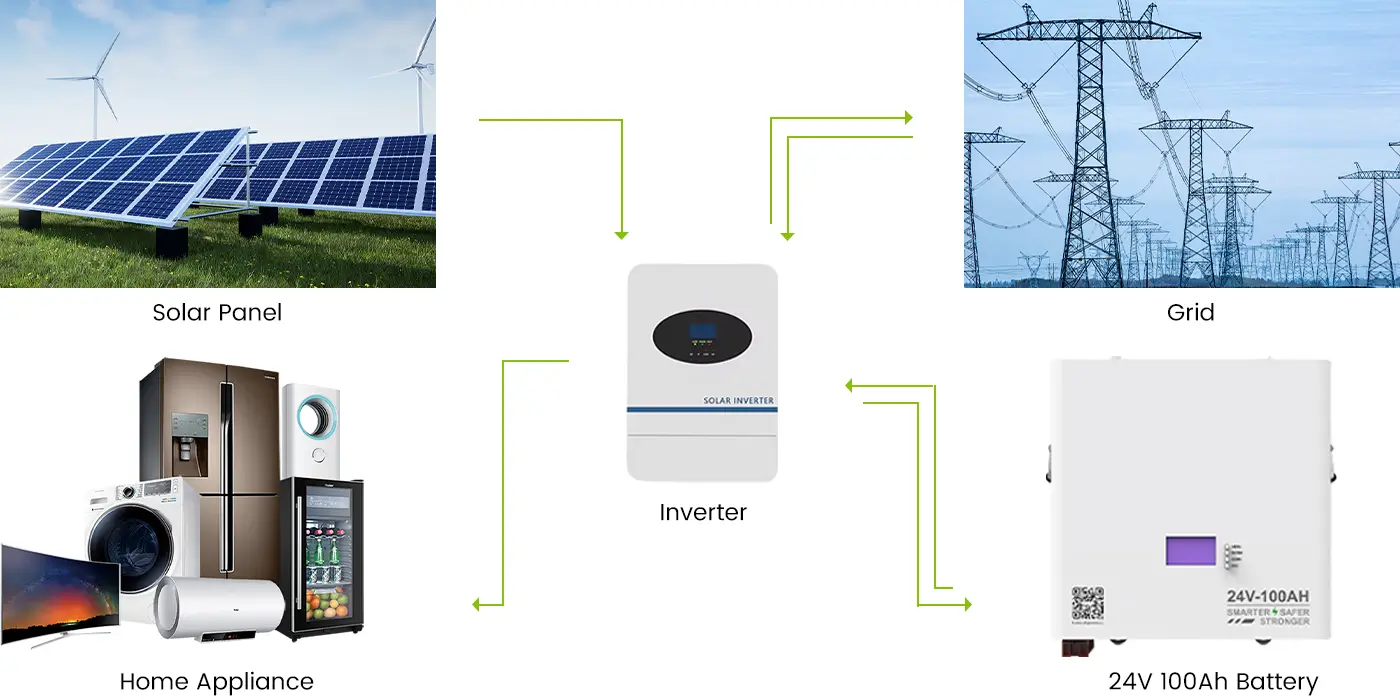

Wall-mounted batteries need to be used with solar panels and inverters. You need to connect the solar panels to the inverter, and the inverter to the storage battery.

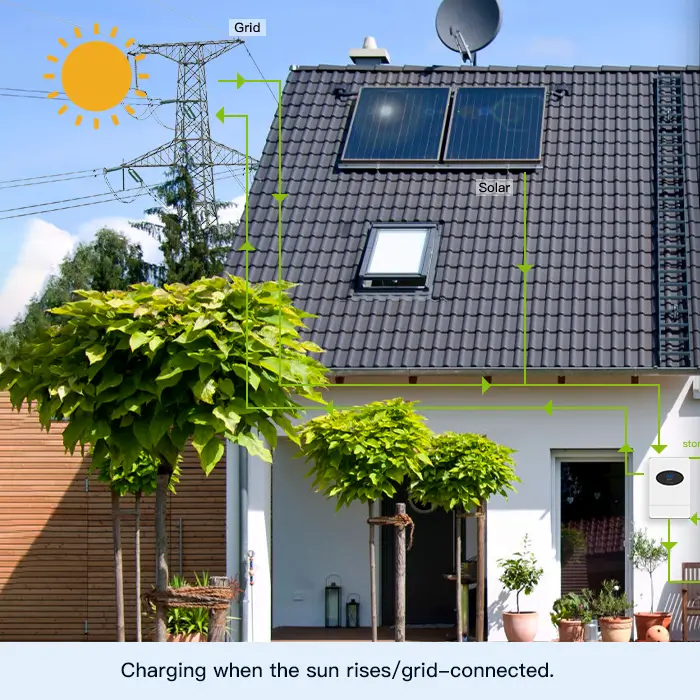

A home energy storage system ensures stable household voltage and protection from unexpected power outages. With sufficient reserves, excess power can be fed back to the grid, generating additional income for the family.
As an energy storage battery, after connecting to the inverter, it can be used as the most powerful backup energy source in your home. It can power electrical appliances, off-grid living, emergency medical treatment, emergency power etc.

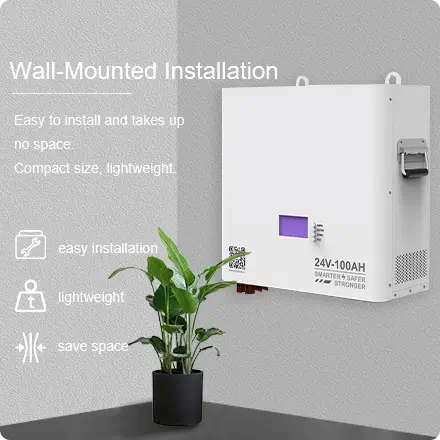

Easy to install and takes up no space.
Equipped with LCD display, the power level can be clearly seen.
Provides 6 protections, more stablity and safety.
| Item Name |
24V 100Ah LiFePO4 Home Battery Powerwall
|
||||
| Model | CX-WM001 | Capacity | 100Ah | ||
| Energy | 2.4kWh | BMS Communication | RS485, RS232, CAN, Ethernet | ||
| Battery | LiFePO4 cell | AC Output Voltage | 220/230VAC, 50Hz/60Hz | ||
| Cycle Life | >6000 times | Dimensions(LxWxH) | 371x375x150mm | ||
| Voltage Range | DC21~29.2V | Weight | 26kg | ||

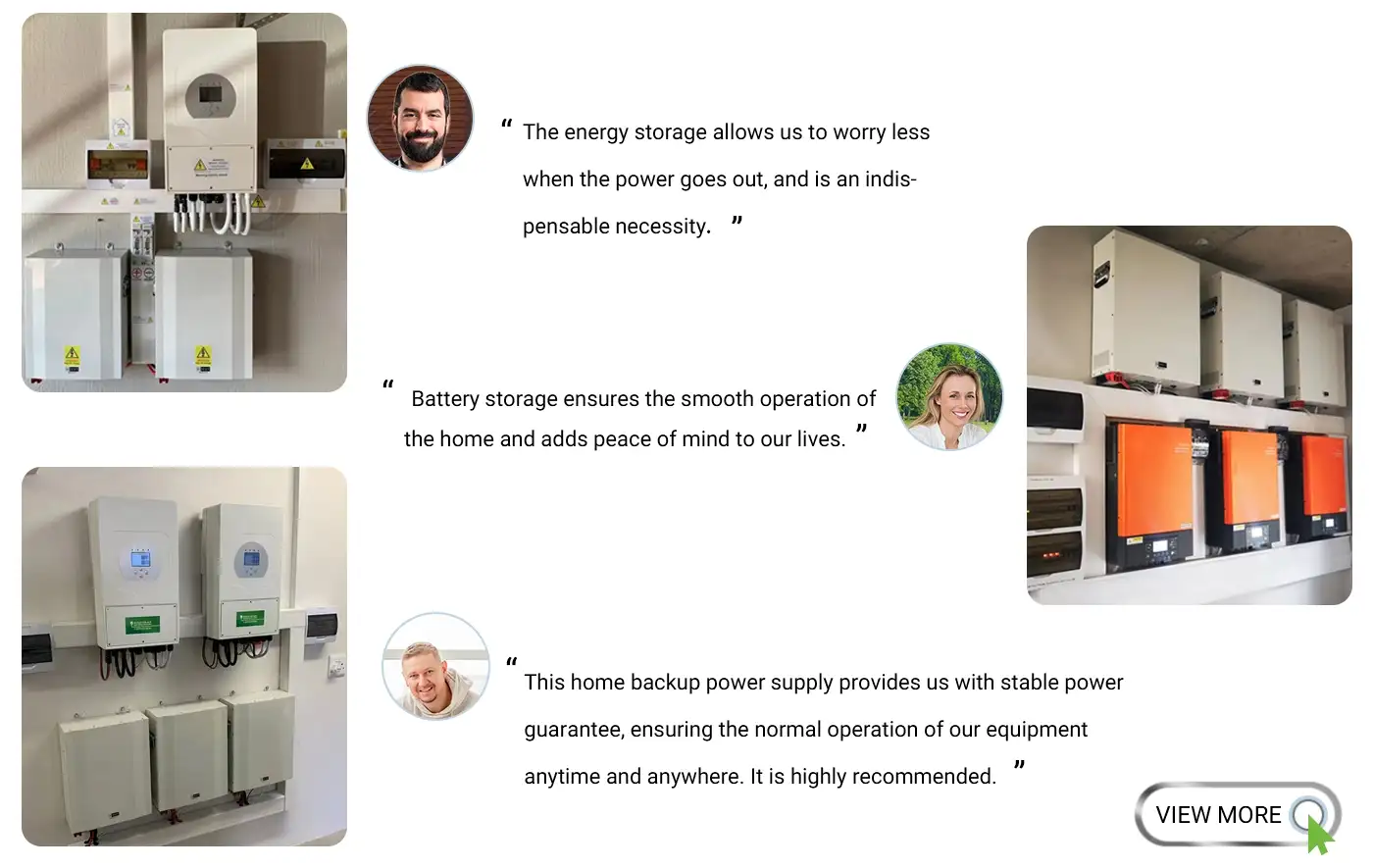

The home solar battery storage allows us to worry less when the power goes out, and is an indispensable necessity.
This home powerwall supply provides us with stable power guarantee, it is highly recommended.
Battery storage ensures the smooth operation of the home and adds peace of mind to our lives.
| Model | CX-WM001 | CX-WM002 |
| Basic parameters | ||
| Rated capacity | 100Ah | 200Ah |
| Cycle | ＞6000 cycles | |
| Voltage range | DC21~29.2V | |
| BMS communication | RS485, RS232, CAN, Ethernet | |
| Electrical parameter | ||
| Rated energy | 2400Wh | 4800Wh |
| Minimum discharge voltage | 20.3V | |
| Max continuous charging current | 100A | 200A |
| Max continuous discharging | 100A | 200A |
| Max charging voltage | 29.2V | |
| Installation mode | Wall-mounted | |
| Product Parameters | ||
| Dimension(L×D×H) | 371×375×150mm | 460×440×200mm |
| Packing size(L×D×H) | 490×465×245mm | 648×469×245mm |
| Net weight | 26kg | 42kg |
| Gross weight | 30kg | 54kg |
CXJPowers wall mounted battery requires an additional separate inverter unit, while All in One combines the battery and inverter into one unit.
Sample order: 100% payment before shipment; Bulk order: 30% deposit before production, 70% balance before shipment.
CXJPowers is a professional lithium battery manufacturer with ISO9001, ISO14001. All the products have CE certificate.
