CXJPowers · Reliable Energy Storage Battery Supply Manufacturer in China
Efficient off-grid system, clean and environmentally friendly energy storage method.

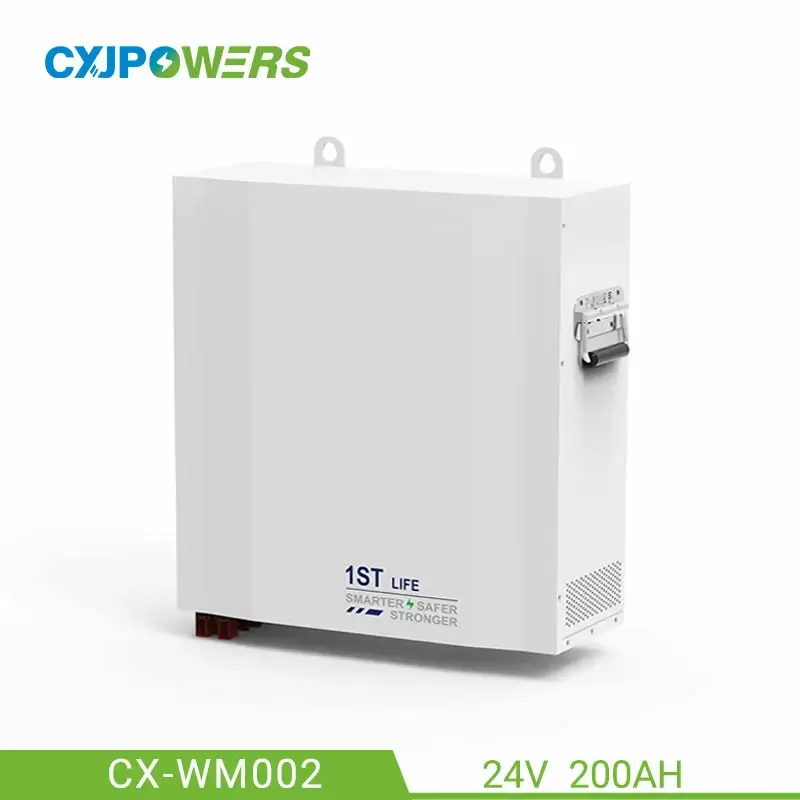

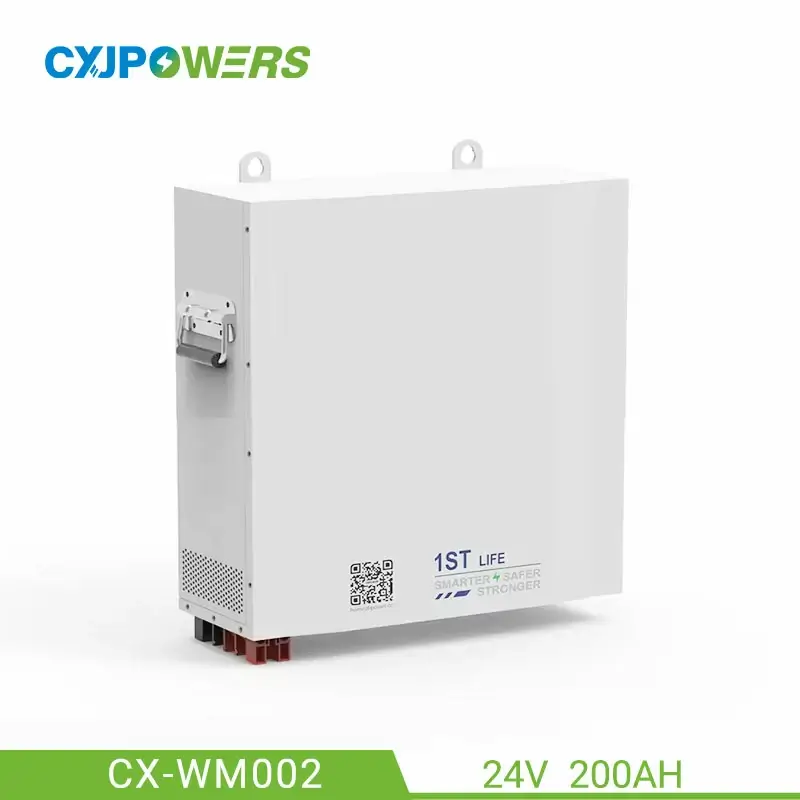

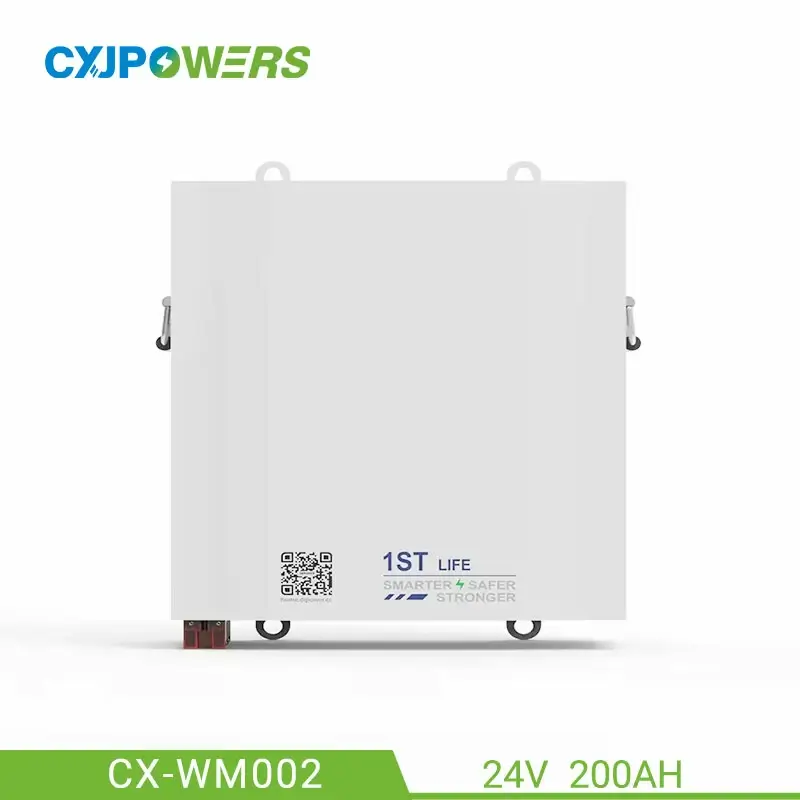

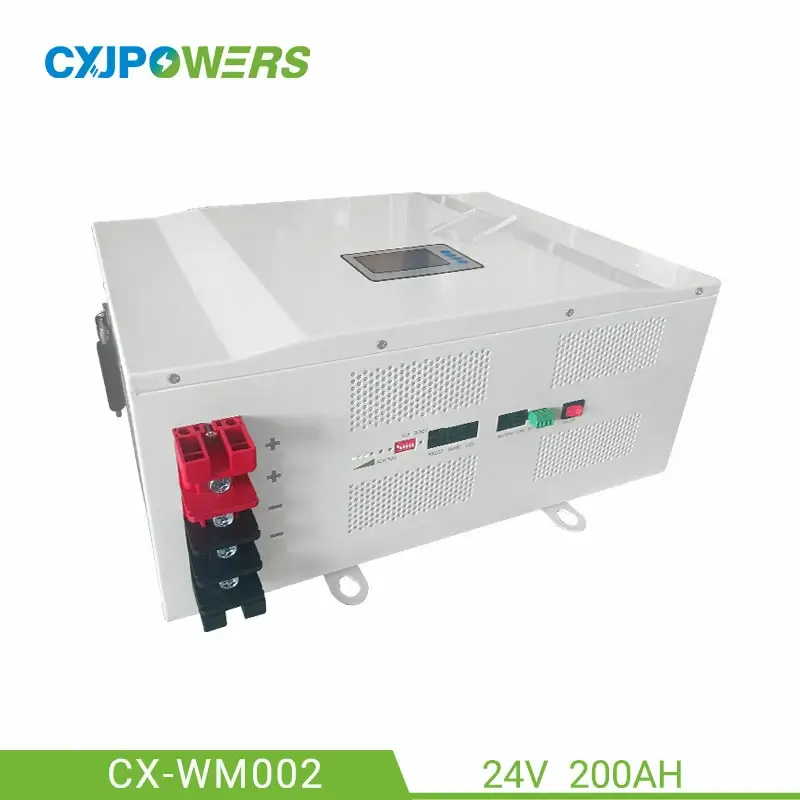

Model: CX-WM002
Rated energy: 4800Wh
Rated voltage: 24V
Rated capacity: 200Ah
Battery type: Lithium ion battery
Cycle life: > 6000 times
Voltage range: 21V～29.2V
BMS communication: RS485/RS232/CAN

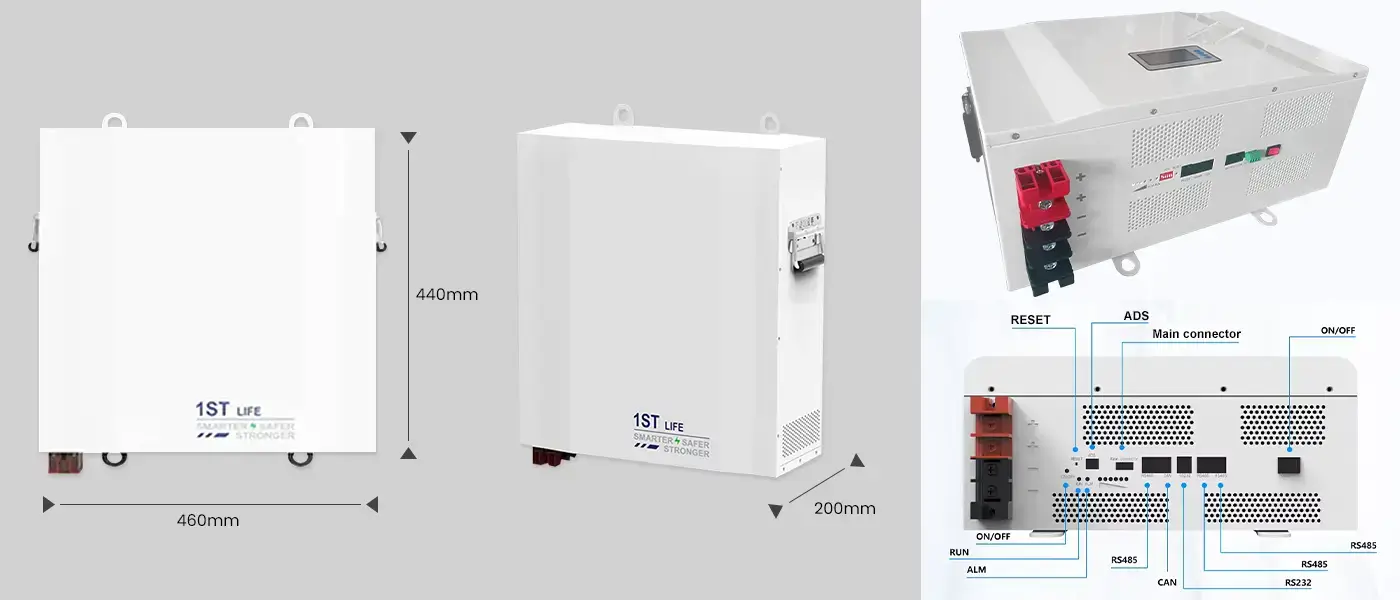

Dimension(L×W×H): 460×440×200mm
Installation method: Wall Mounted
Weight: 42 kg
MOQ: ≥ 1pcs
CXJPowers is a top home battery storage supplier and ESS battery manufacturer, specializing in the research and development, production and sales of solar energy storage batteries (rack-mounted, wall-mounted, stacked, etc.), integrated LiFePO4 ESS (energy storage system) and various LiFePO4 lithium battery packs, providing customized lithium energy solutions.

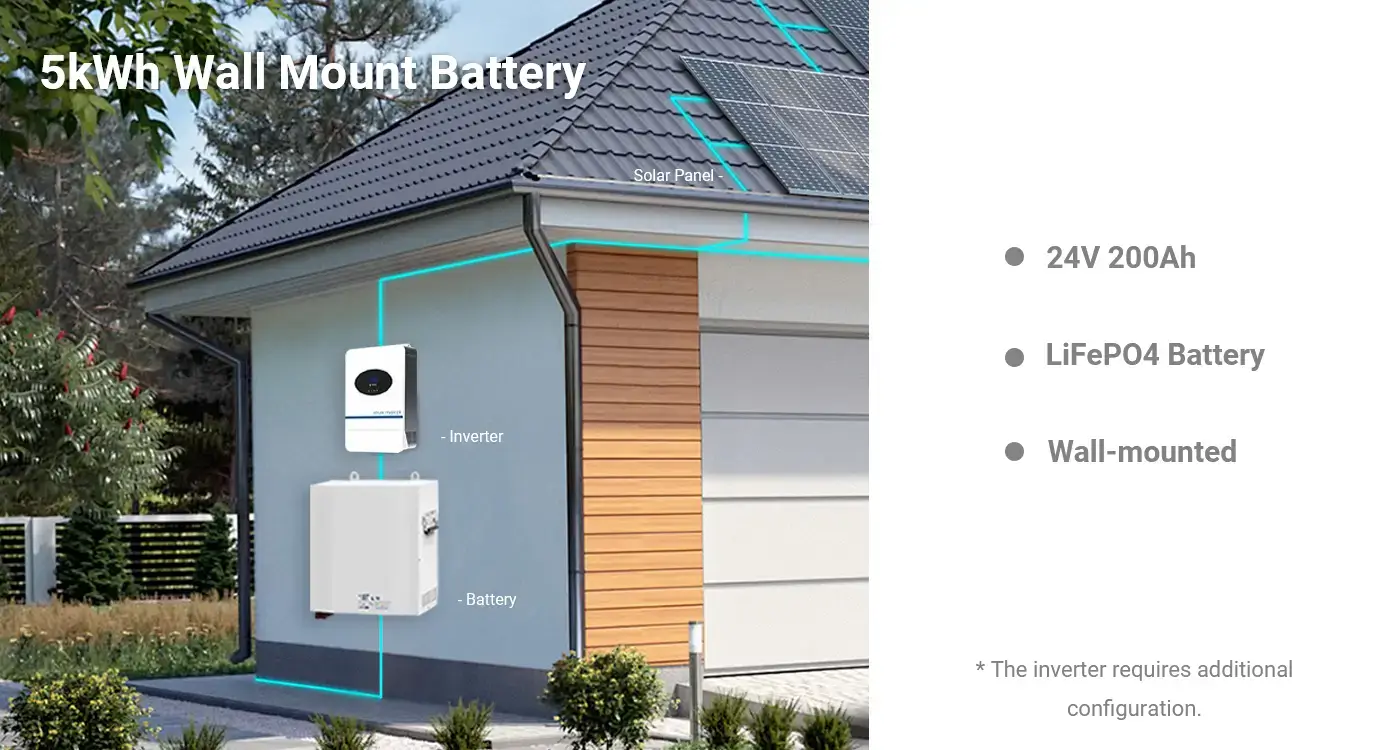

The 5kwh home battery (wall mount battery) is tailored for home photovoltaic systems, boasting exceptional energy density and longevity. Featuring an integrated 24V 200Ah lithium iron phosphate battery, it delivers a stable 24V voltage, making it well-suited for household energy storage requirements. With a substantial 200Ah capacity, this battery can store and provide reliable power support when needed. Note that this battery is for energy storage applications only and does not come with an inverter. To utilize the stored energy, the user must connect a separate inverter to the battery system.
CXJPowers New Energy · Empowers Better Life
Storage capacity up to 5kWh.
Intergrated smart BMS withself-balance for each serial of cell.
The safest Lifepo4 Battery,no fire and no explosions.
Applied to photovoltaic systems.
Ultra-thin thickness, light weight.
Wall-mounted installation, takes up no space.
Extra long service life.
Peak/Valley power prices save cost.

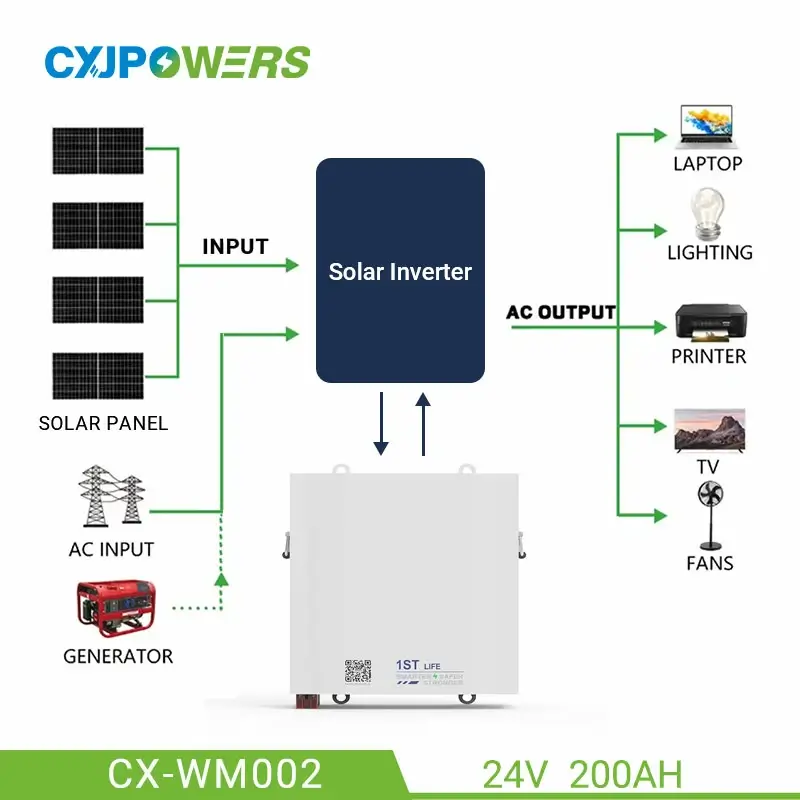

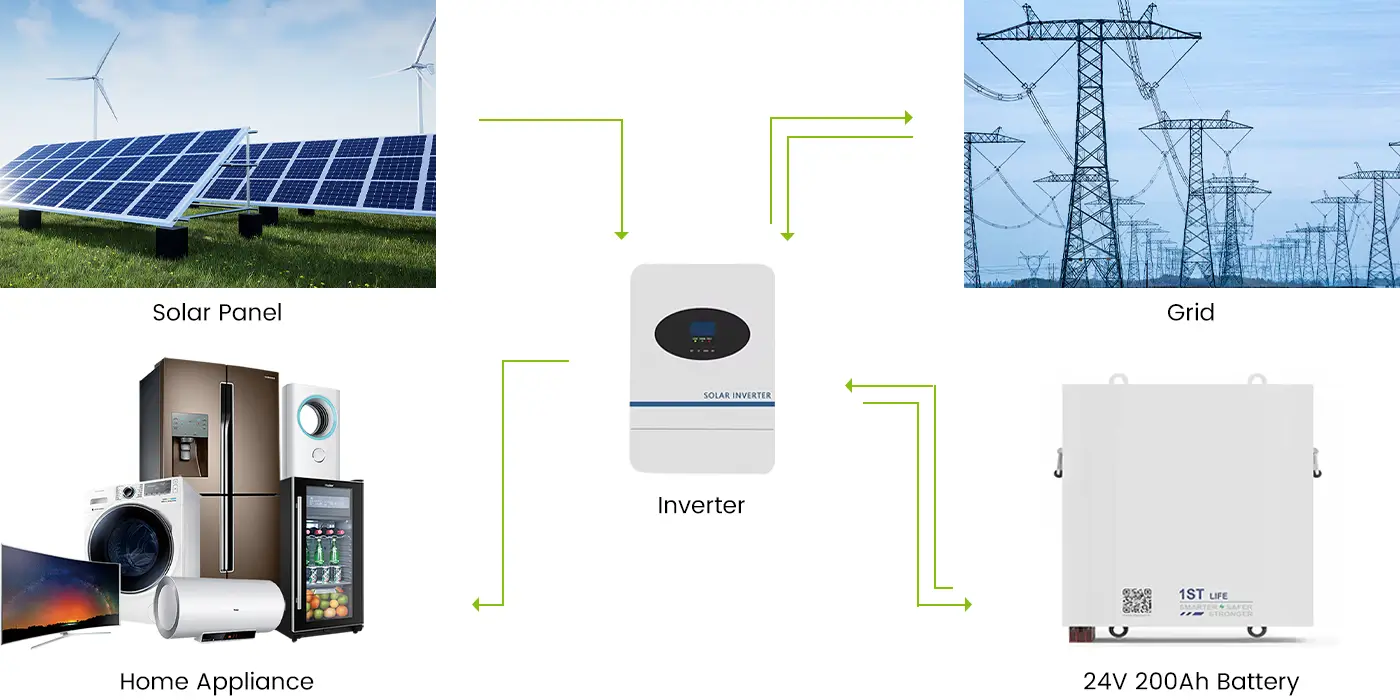

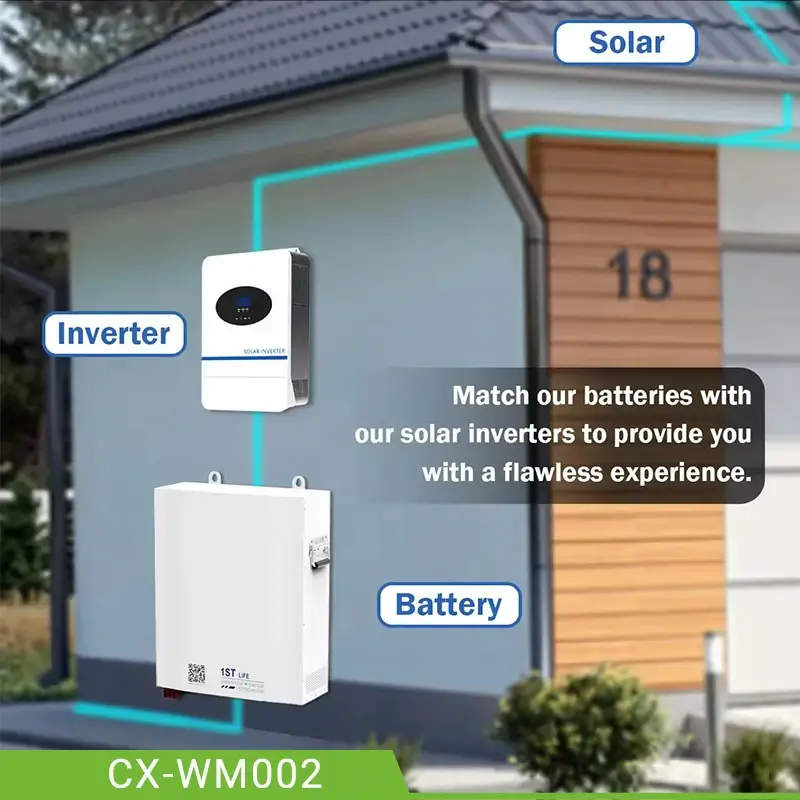

Wall-mounted batteries need to be used with solar panels and inverters. You need to connect the solar panels to the inverter, and the inverter to the storage battery.
A home energy storage system ensures stable household voltage and protection from unexpected power outages. With sufficient reserves, excess power can be fed back to the grid, generating additional income for the family.
As an energy storage battery, after connecting to the inverter, it can be used as the most powerful backup energy source in your home. It can power electrical appliances, off-grid living, emergency medical treatment, emergency power etc.

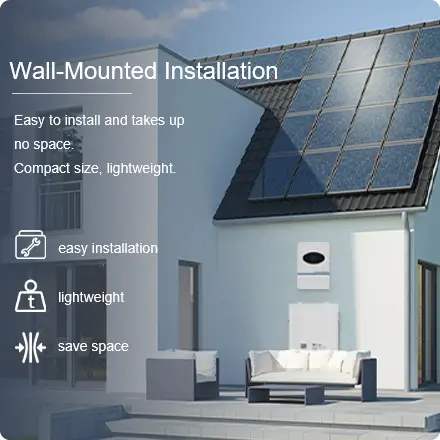

Easy to install and takes up no space.
Equipped with LCD display, the power level can be clearly seen.
Provides 6 protections, more stablity and safety.
| Item Name |
24V 200Ah LiFePO4 Home Battery Powerwall
|
||||
| Model | CX-WM002 | Capacity | 200Ah | ||
| Energy | 4.8kWh | BMS Communication | RS485, RS232, CAN, Ethernet | ||
| Battery | LiFePO4 cell | AC Output Voltage | 220/230VAC, 50Hz/60Hz | ||
| Cycle Life | >6000 times | Dimensions(LxWxH) | 460x440x200mm | ||
| Voltage Range | DC21~29.2V | Weight | 42kg | ||
CAN/RS485/RS232 communication protocol lithium-ion battery or LiFePO4 battery is compatible with most inverters on the market.
| Model | CX-WM001 | CX-WM002 |
| Basic parameters | ||
| Rated capacity | 100Ah | 200Ah |
| Cycle | ＞6000 cycles | |
| Voltage range | DC21~29.2V | |
| BMS communication | RS485, RS232, CAN, Ethernet | |
| Electrical parameter | ||
| Rated energy | 2400Wh | 4800Wh |
| Minimum discharge voltage | 20.3V | |
| Max continuous charging current | 100A | 200A |
| Max continuous discharging | 100A | 200A |
| Max charging voltage | 29.2V | |
| Installation mode | Wall-mounted | |
| Product Parameters | ||
| Dimension(L×D×H) | 371×375×150mm | 460×440×200mm |
| Packing size(L×D×H) | 490×465×245mm | 648×469×245mm |
| Net weight | 26kg | 42kg |
| Gross weight | 30kg | 54kg |
CXJPowers wall mounted battery requires an additional separate inverter unit, while All in One combines the battery and inverter into one unit.
Sample order: 100% payment before shipment; Bulk order: 30% deposit before production, 70% balance before shipment.
CXJPowers is a professional lithium battery manufacturer with ISO9001, ISO14001. All the products have CE certificate.
