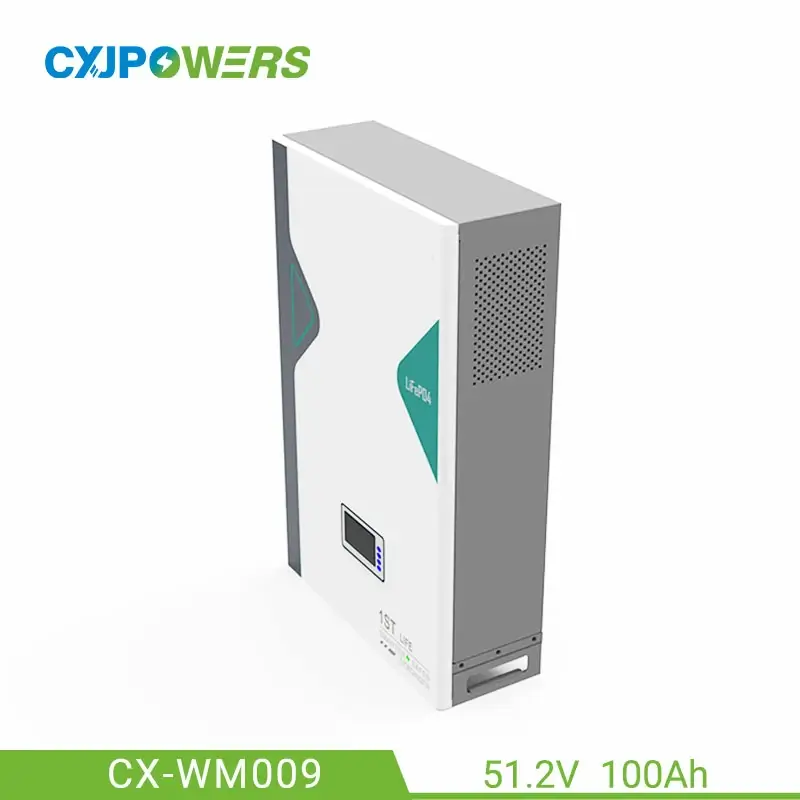

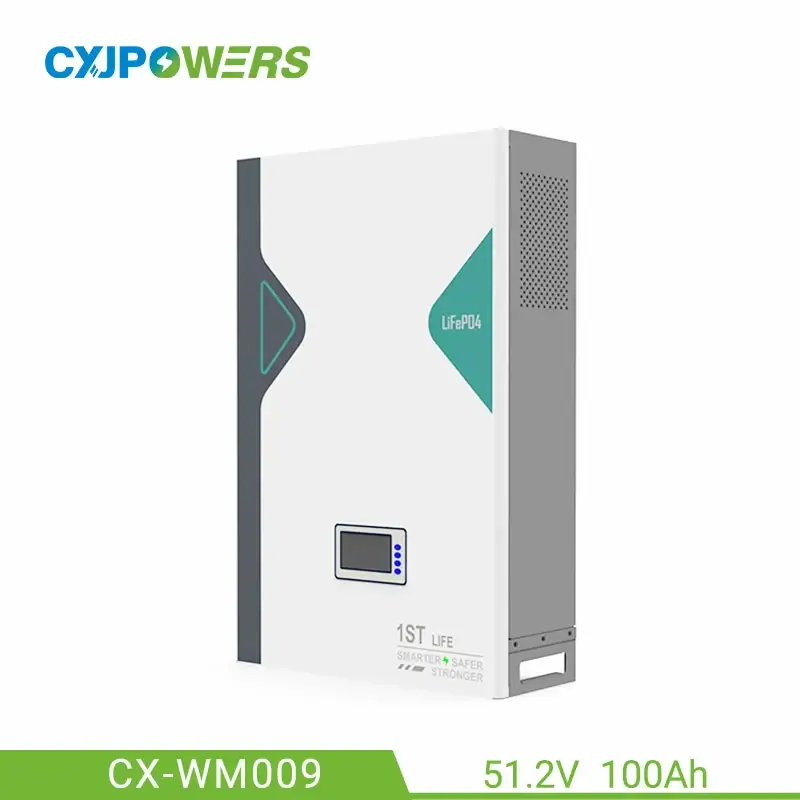

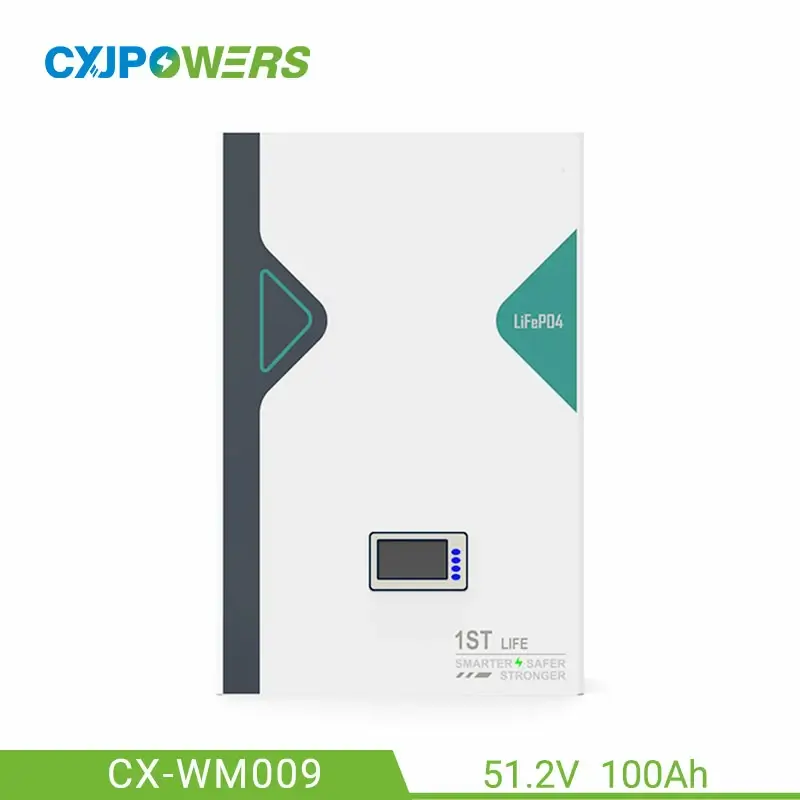

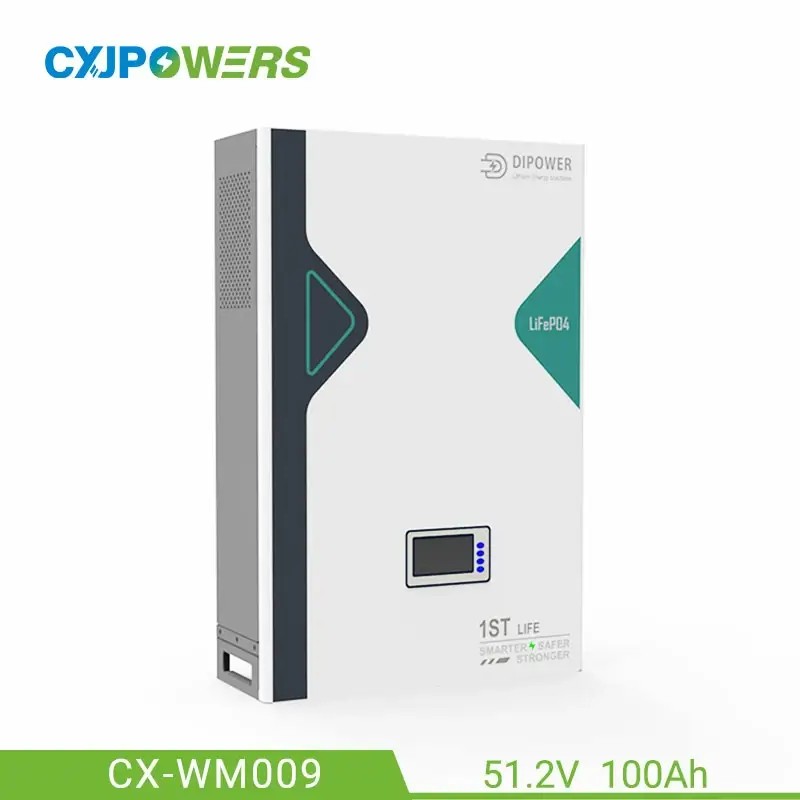

An intelligent energy storage power supply product using lithium iron phosphate battery system.
Model: CX-WM009
Rated energy: 5.12kWh
Rated voltage: 51.2V
Rated capacity: 100Ah
Battery type: LiFePO4 battery
Cycle life: > 6000 times
Voltage range: 39V~54.2V

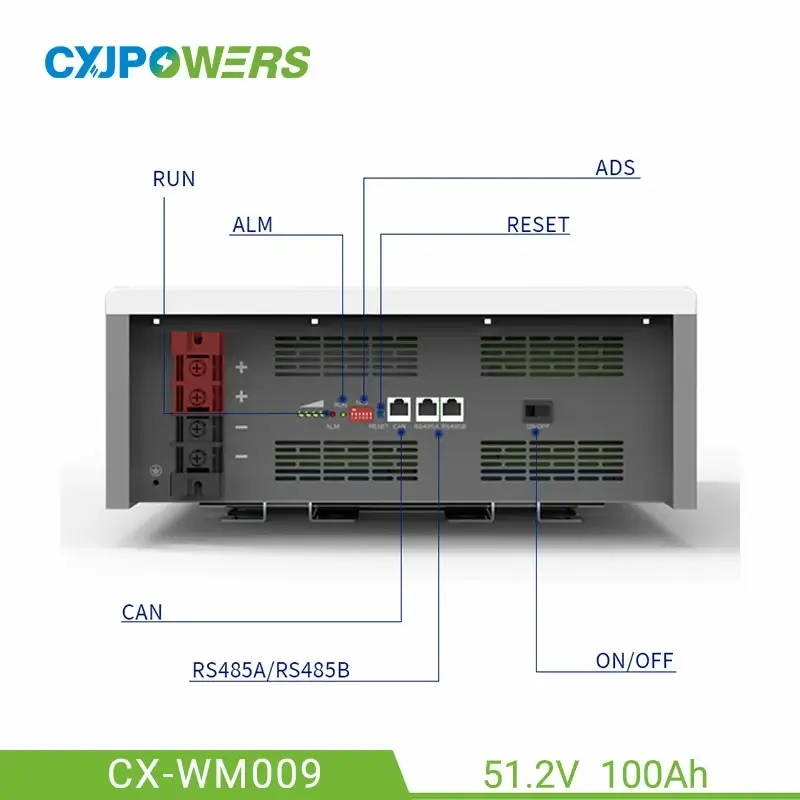

BMS communication: RS485/RS232/CAN
Dimension(L×W×H): 610×400×170mm
Installation method: Wall Mounted
Weight: 45 kg
MOQ: ≥ 1pcs
CXJPowers is a top home battery storage supplier and ESS battery manufacturer, specializing in the research and development, production and sales of solar energy storage batteries (rack-mounted, wall-mounted, stacked, etc.), integrated LiFePO4 ESS (energy storage system) and various LiFePO4 lithium battery packs, providing customized lithium energy solutions.

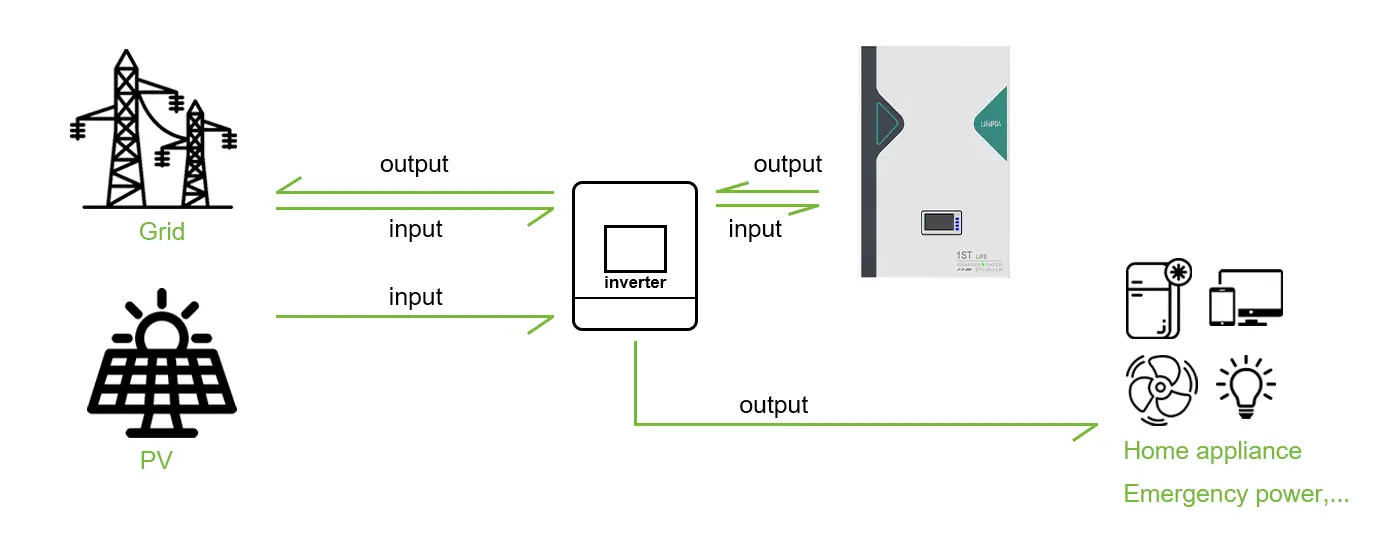

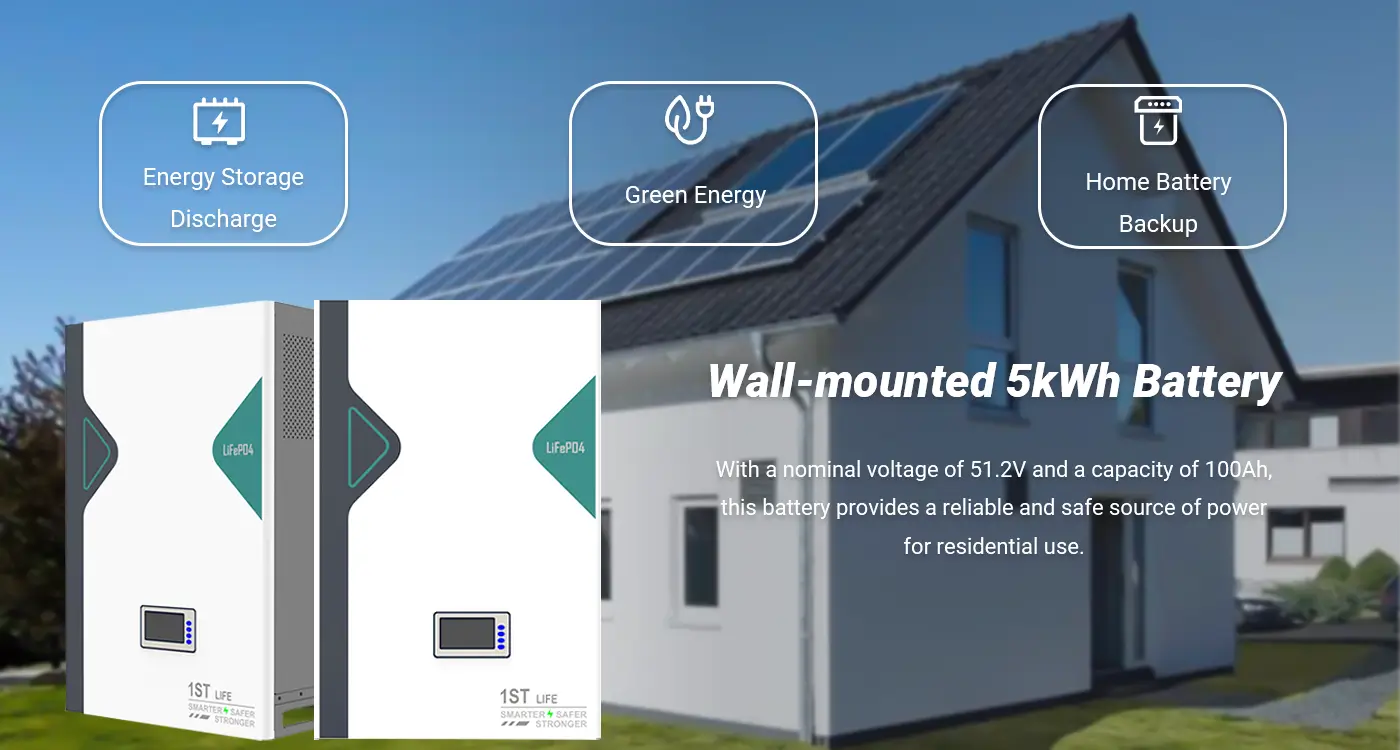

This 51.2V wall mounted battery is designed for home photovoltaic systems and has a built-in 100Ah LiFePO4 battery. It has a long service life and is flexible and easy to install. Please note that it needs to be used with an inverter.
The home solar battery storage allows us to worry less when the power goes out, and is an indispensable necessity.
This home powerwall supply provides us with stable power guarantee, it is highly recommended.
Battery storage ensures the smooth operation of the home and adds peace of mind to our lives.
Model | CX-WM009 | |
Basic parameters | ||
Rated capacity | 100Ah | |
Cycle | >6000 cycles | |
Voltage range | DC39V~54.2V | |
BMS communication | RS485, RS232, CAN, Ethernet | |
Electrical parameter | ||
Rated energy | 5120Wh | |
Minimum discharge voltage | 37.7V | |
Max continuous charging current | 100A | |
Max continuous discharging | 100A | |
Max charging voltage | 54.2V | |
Installation mode | Wall-mounted | |
Product Parameters | ||
Dimension(L×D×H) | 610×400×170mm | |
Net weight | 45kg |

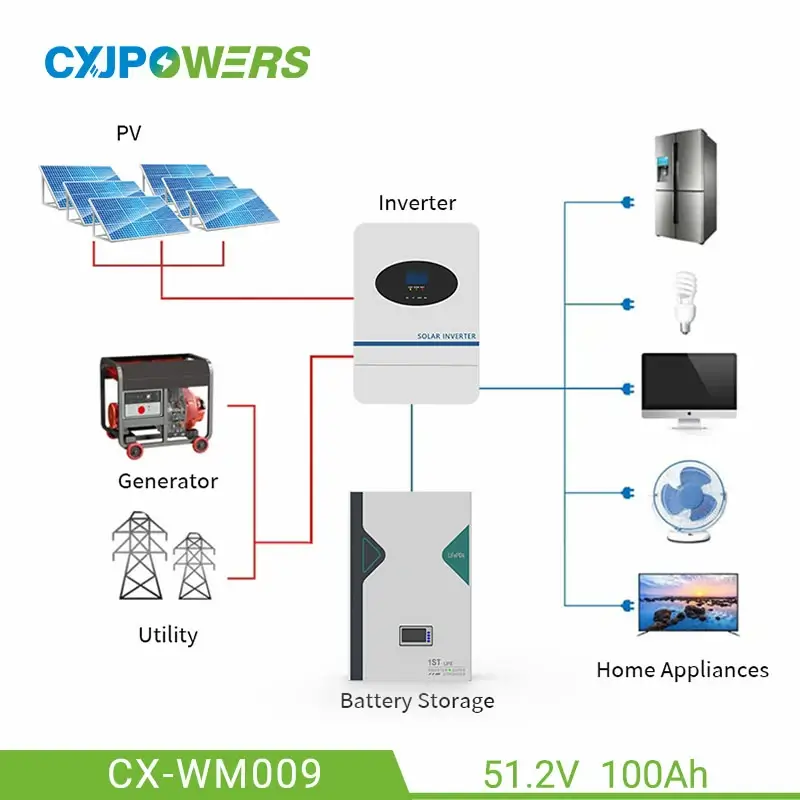

CXJPowers wall mounted battery requires an additional separate inverter unit, while All in One combines the battery and inverter into one unit.
Sample order: 100% payment before shipment; Bulk order: 30% deposit before production, 70% balance before shipment.
CXJPowers is a professional lithium battery manufacturer with ISO9001, ISO14001. All the products have CE certificate.
