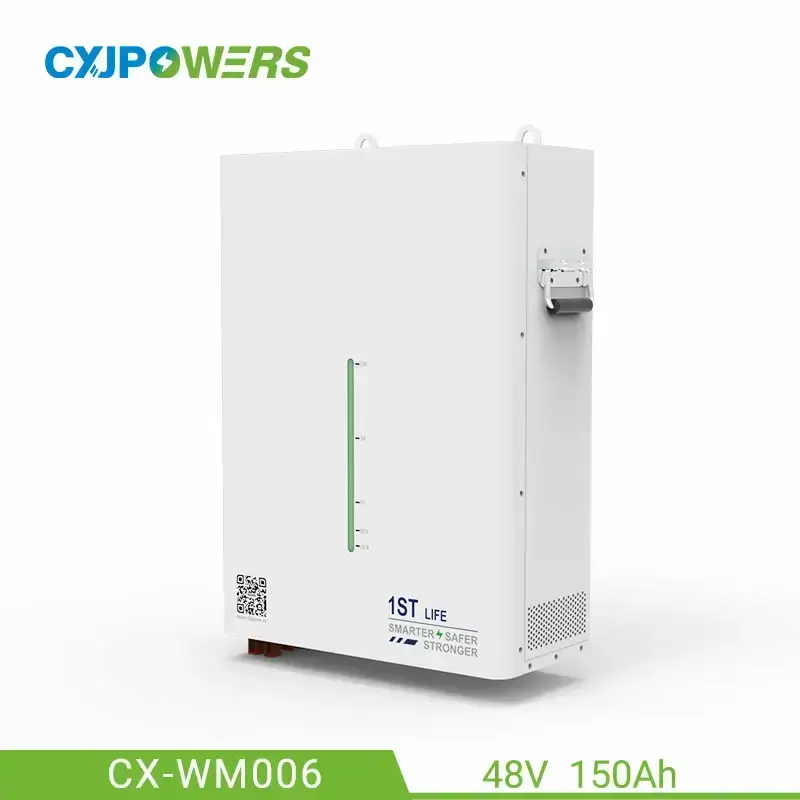

Solid handles at both sides for carrying and moving; Easy wall-mounted installation.
Model: CX-WM006
Rated energy: 5760Wh
Rated voltage: 48V
Rated capacity: 150Ah
Battery type: LiFePO4 battery
Cycle life: > 6000 times
Voltage range: 39V～54.2V
BMS communication: RS485/RS232/CAN
Dimension(L×W×H): 520×375×165mm
Installation method: Wall Mounted
Weight: 60 kg
MOQ: ≥ 1pcs
CXJPowers is a top home battery storage supplier and ESS battery manufacturer, specializing in the research and development, production and sales of solar energy storage batteries (rack-mounted, wall-mounted, stacked, etc.), integrated LiFePO4 ESS (energy storage system) and various LiFePO4 lithium battery packs, providing customized lithium energy solutions.

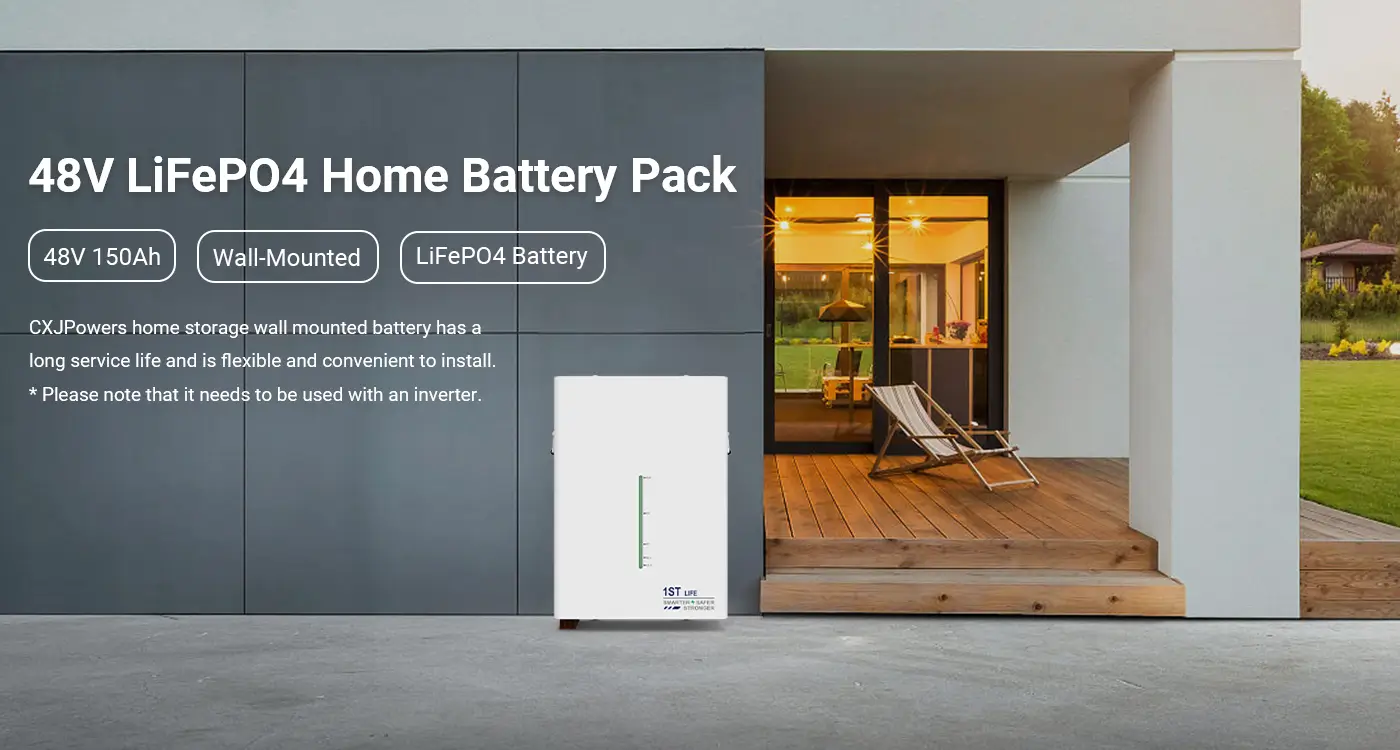

This 48V LiFePO4 home battery (wall mounted battery) is designed for home photovoltaic systems and has a built-in 150Ah lithium iron phosphate battery. It has a long service life and is flexible and easy to install. Please note that it needs to be used with an inverter.
CXJPowers New Energy · Empowers Better Life
Storage capacity up to 5760Wh.
Intergrated smart BMS withself-balance for each serial of cell.
The safest Lifepo4 Battery,no fire and no explosions.
Applied to photovoltaic systems.
Ultra-thin thickness, light weight.
Wall-mounted installation, takes up no space.
Extra long service life.
Peak/Valley power prices save cost.

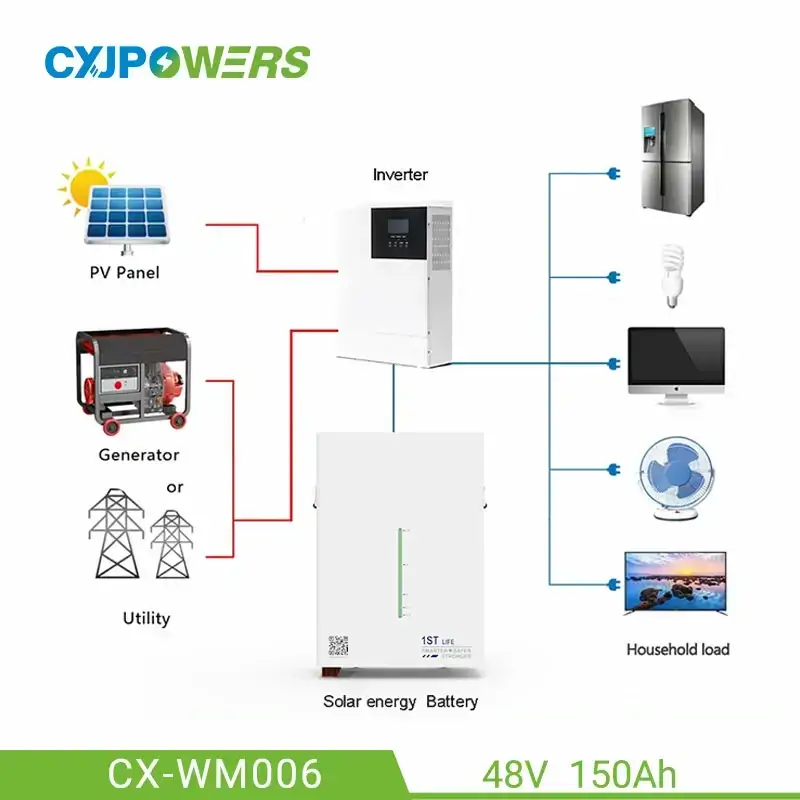

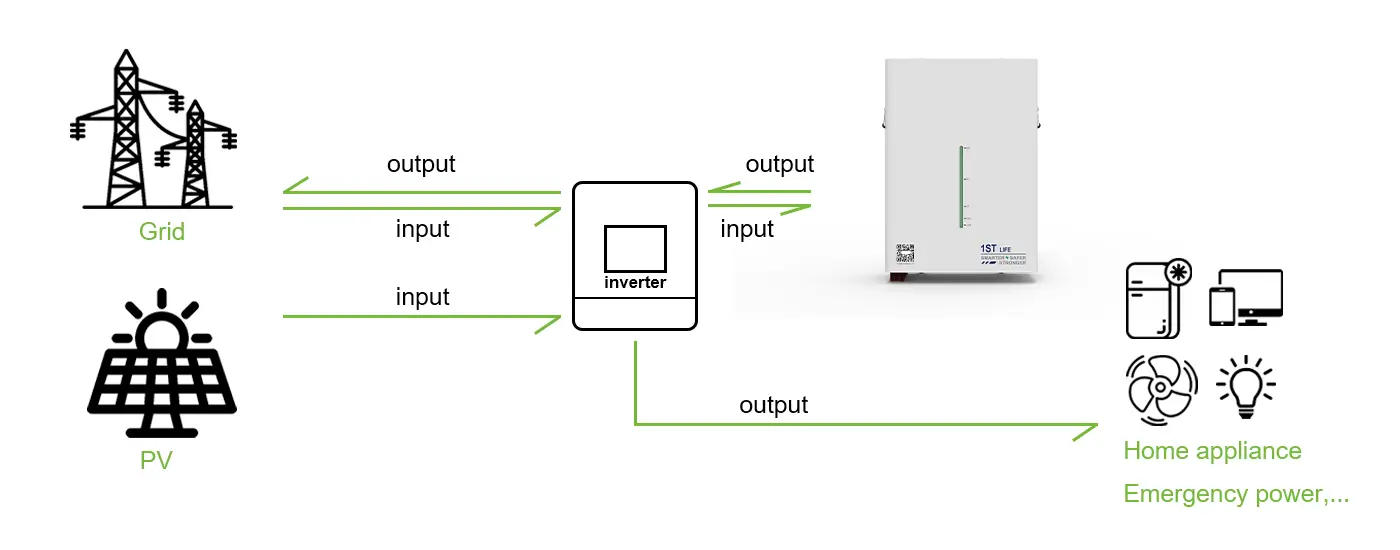

Wall-mounted batteries need to be used with solar panels and inverters. You need to connect the solar panels to the inverter, and the inverter to the storage battery.
A home energy storage system ensures stable household voltage and protection from unexpected power outages. With sufficient reserves, excess power can be fed back to the grid, generating additional income for the family.

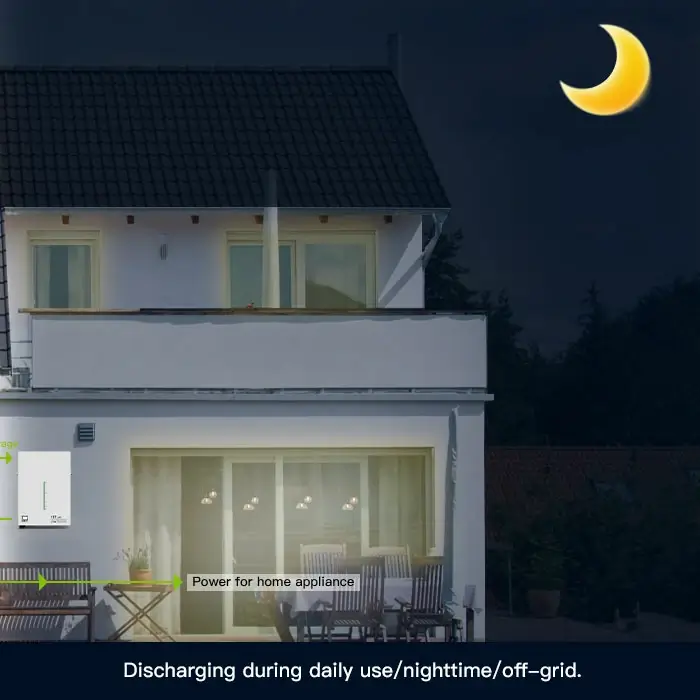

As an energy storage battery, after connecting to the inverter, it can be used as the most powerful backup energy source in your home. It can power electrical appliances, off-grid living, emergency medical treatment, emergency power etc.
| Item Name |
48V 150Ah LiFePO4 Home Battery Pack
|
||||
| Model | CX-WM006 | Capacity | 150Ah | ||
| Energy | 5.76kWh | BMS Communication | RS485, RS232, CAN, Ethernet | ||
| Battery | LiFePO4 cell | AC Output Voltage | 220/230VAC, 50Hz/60Hz | ||
| Cycle Life | >6000 times | Dimensions(LxWxH) | 520x375x165mm | ||
| Voltage Range | DC39V～54.2V | Weight | 60kg | ||
CAN/RS485/RS232 communication protocol lithium-ion battery or LiFePO4 battery is compatible with most inverters on the market.
| Model | CX-WM005 | CX-WM006 |
| Basic parameters | ||
| Rated capacity | 120Ah | 150Ah |
| Cycle | ＞6000 cycles | |
| Voltage range | DC39V～54.2V | |
| BMS communication | RS485, RS232, CAN, Ethernet | |
| Electrical parameter | ||
| Rated energy | 5760Wh | |
| Minimum discharge voltage | 37.7V | |
| Max continuous charging current | 120A | 150A |
| Max continuous discharging | 120A | 150A |
| Max charging voltage | 54.2V | |
| Installation mode | Wall-mounted | |
| Product Parameters | ||
| Dimension(L×D×H) | 471×150×375mm | 520×375×165mm |
| Net weight | 46kg | 60kg |
CXJPowers wall mounted battery requires an additional separate inverter unit, while All in One combines the battery and inverter into one unit.
Sample order: 100% payment before shipment; Bulk order: 30% deposit before production, 70% balance before shipment.
CXJPowers is a professional lithium battery manufacturer with ISO9001, ISO14001. All the products have CE certificate.
