Standard size batteries per layer, free combination of 10kWh, 15kWh, 20kWh, 30kWh.

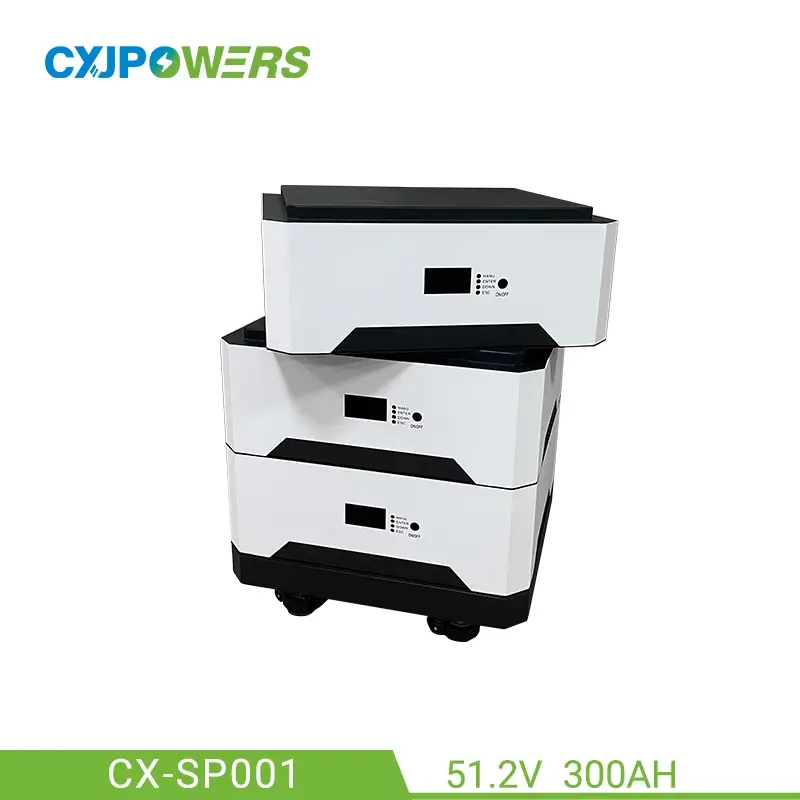

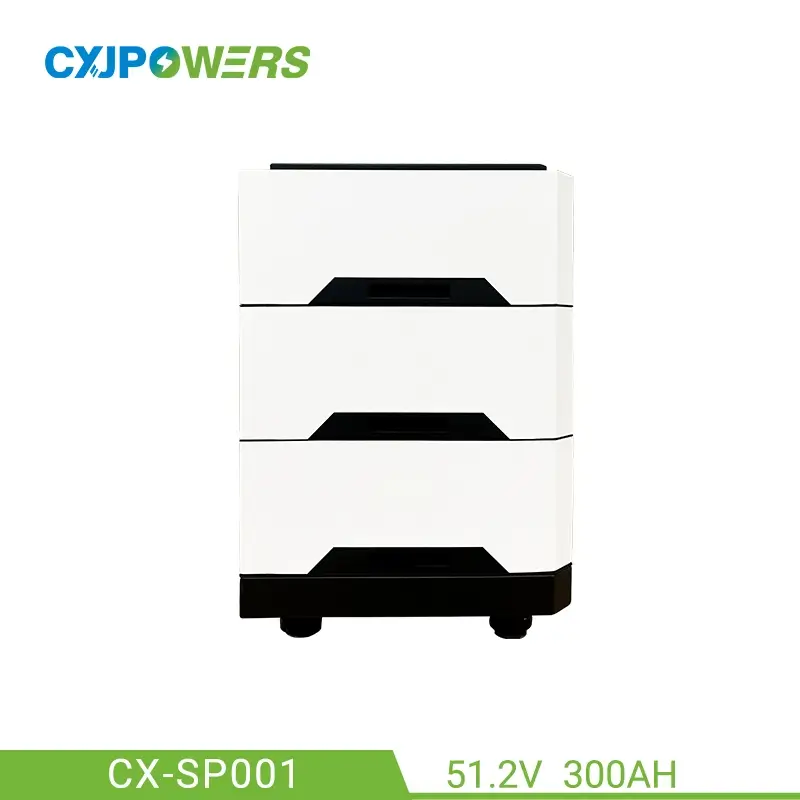

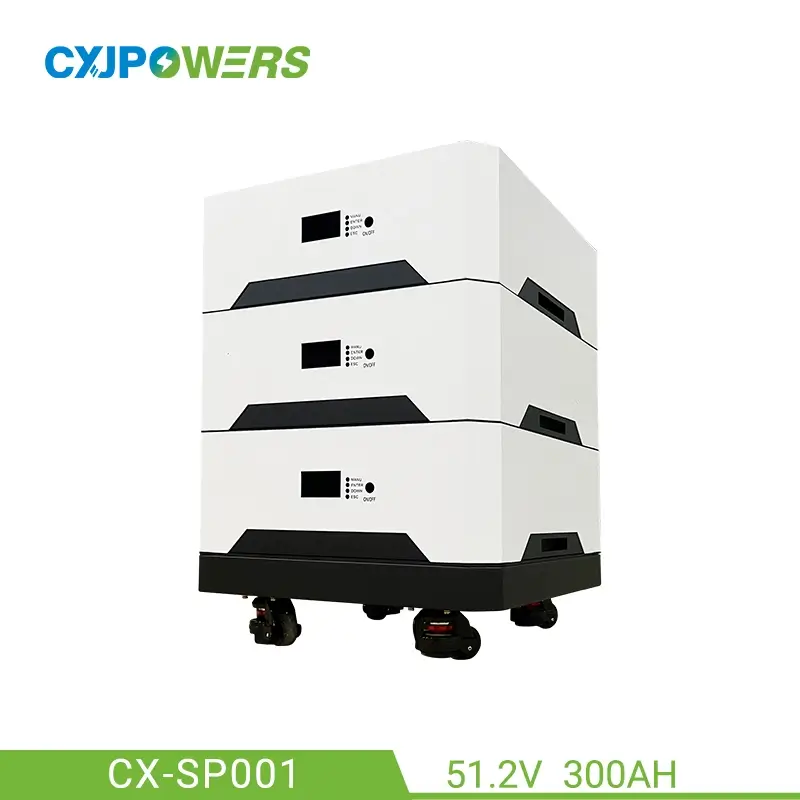

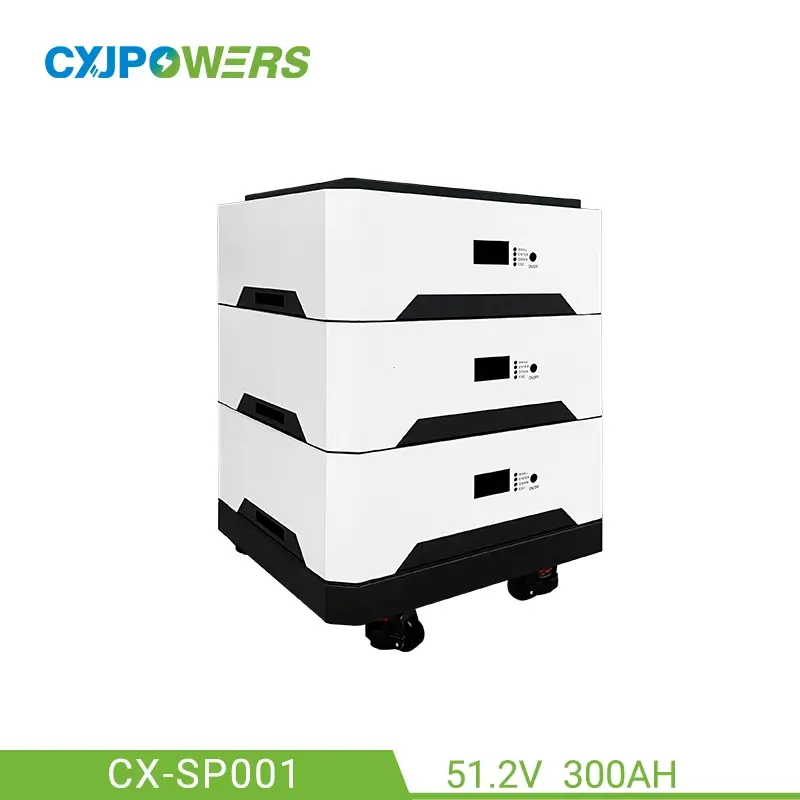

Model: CX-SP001
Rated power: 15.36 kWh
Rated voltage: 51.2V
Rated capacity: 300Ah
Battery type: LiFePO4 battery
Cycle life: > 6000 times
Voltage range: 40V～58.4V
BMS communication: CAN/RS485/RS32
Dimension(L×W×H): 540×575×840mm
Installation method: Trolley/floor type
Weight: 153 kg
MOQ: ≥ 1pcs
CXJPowers is a top home battery storage supplier & ESS battery manufacturer, specializing in the R&D, production and sales of solar energy storage batteries, All-in-one LiFePO4 ESS(energy storage systems) and various LiFePO4 lithium battery packs, etc., providing customized lithium energy solutions.is a top OEM/ODM jump starter factory in China, providing customized 12V/24V car jump starters with various battery capacities to meet the needs of different customers.

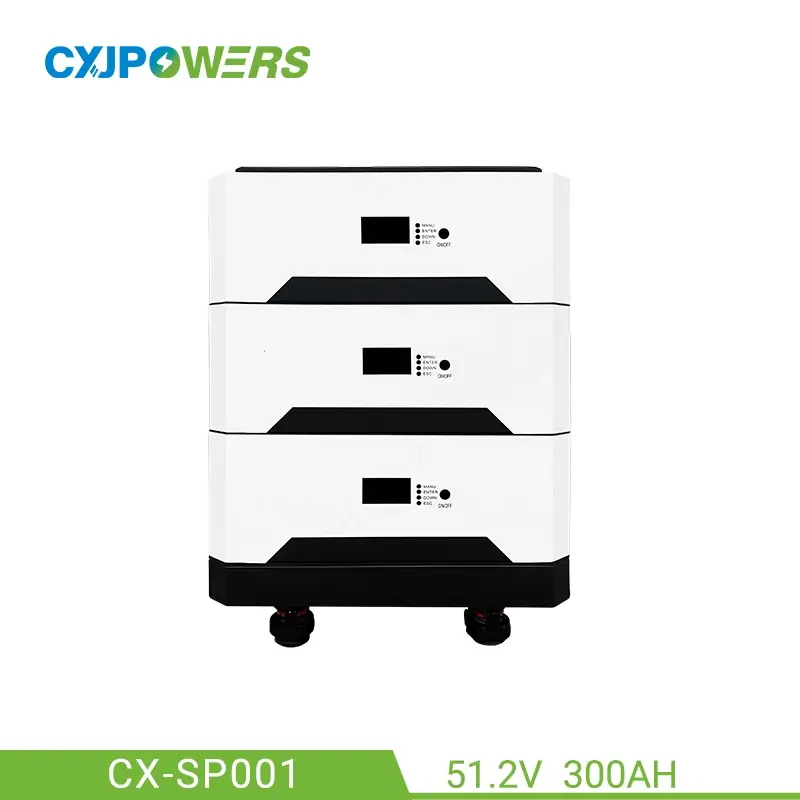

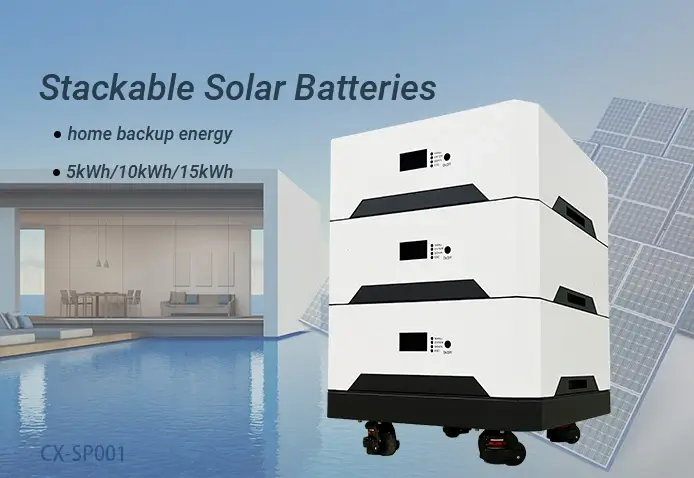

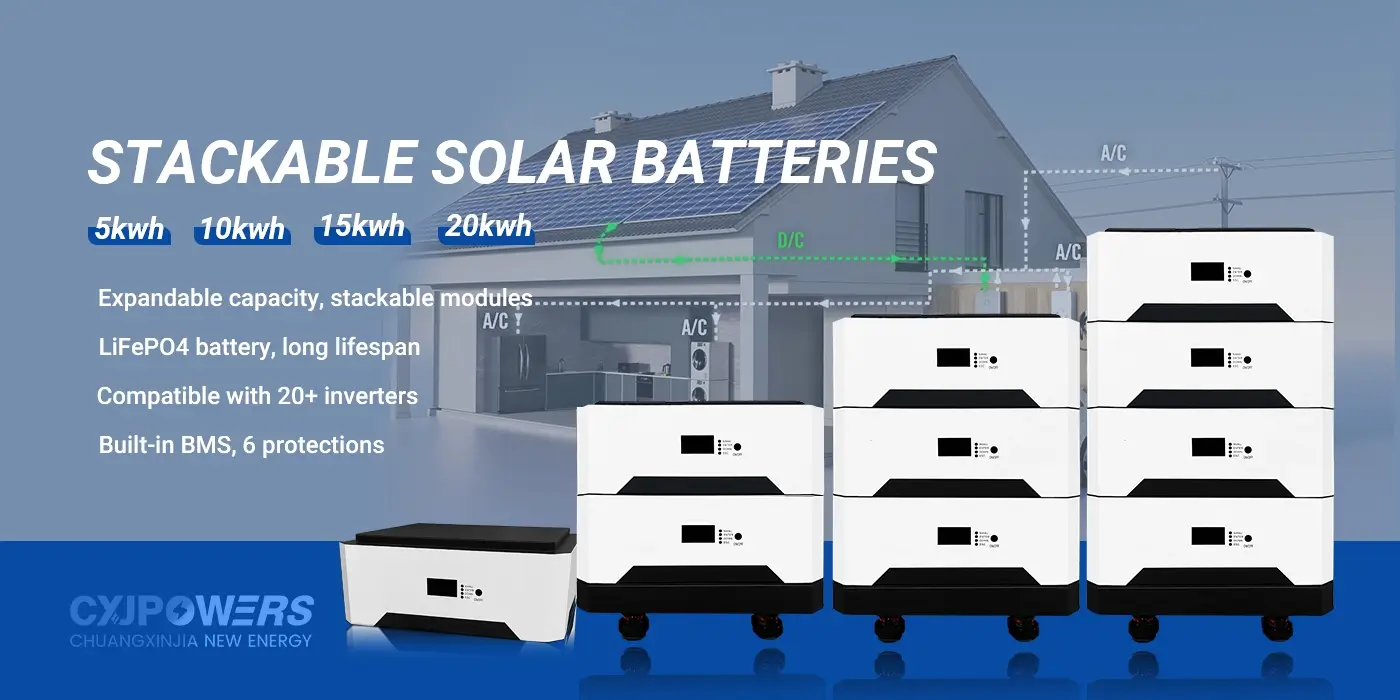

Stackable Solar Batteries CX-SP001 is a 15360Wh home energy storage battery (home backup battery). It has a built-in 51.2V 300Ah LiFePO4 battery and intelligent BMS, and is a device that integrates a photovoltaic power generation system and an energy system. The battery is highly stackable and can be easily stacked with other batteries to achieve efficient use of space. It is suitable for off-grid energy storage systems and outputs AC power with stable frequency and constant voltage.
LiFePO4 ESS Stackable Solar Batteries Powers A Home 24/7
Flexible storage capacity up to 20kWh.
Long life, ＞6000 times cycles life.
Multi-protection battery balance.
Applied to photovoltaic systems.
No fuel required, uses clean energy.

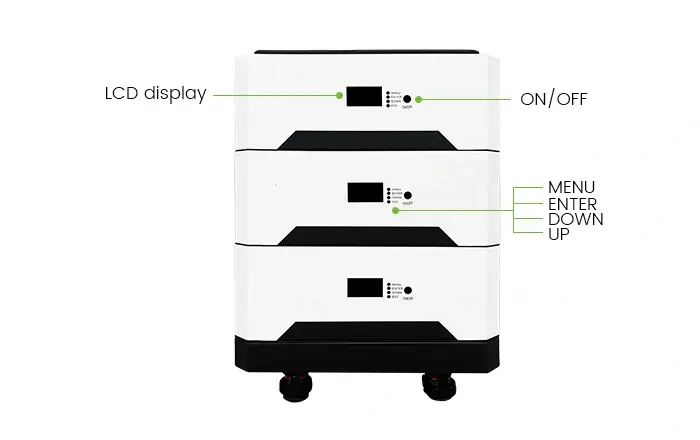

Easily & clearly check battery status.
Plug and play, easy installation.
Peak/Valley power prices save cost.

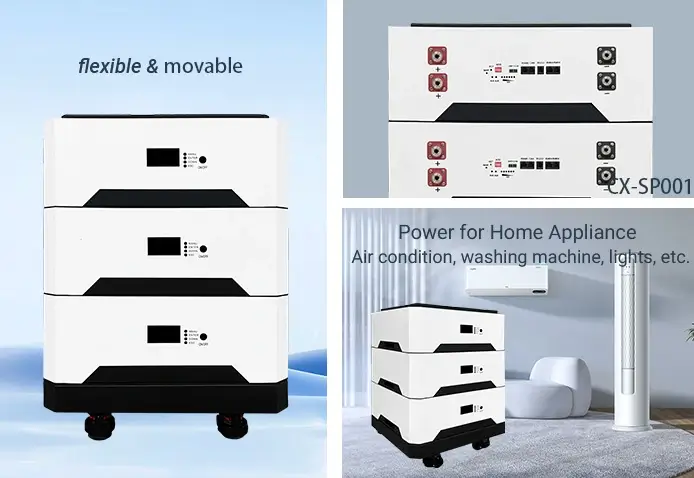

When power is working, it provides single-phase AC power; when power is out, it can be used as a home backup power supply or UPS.

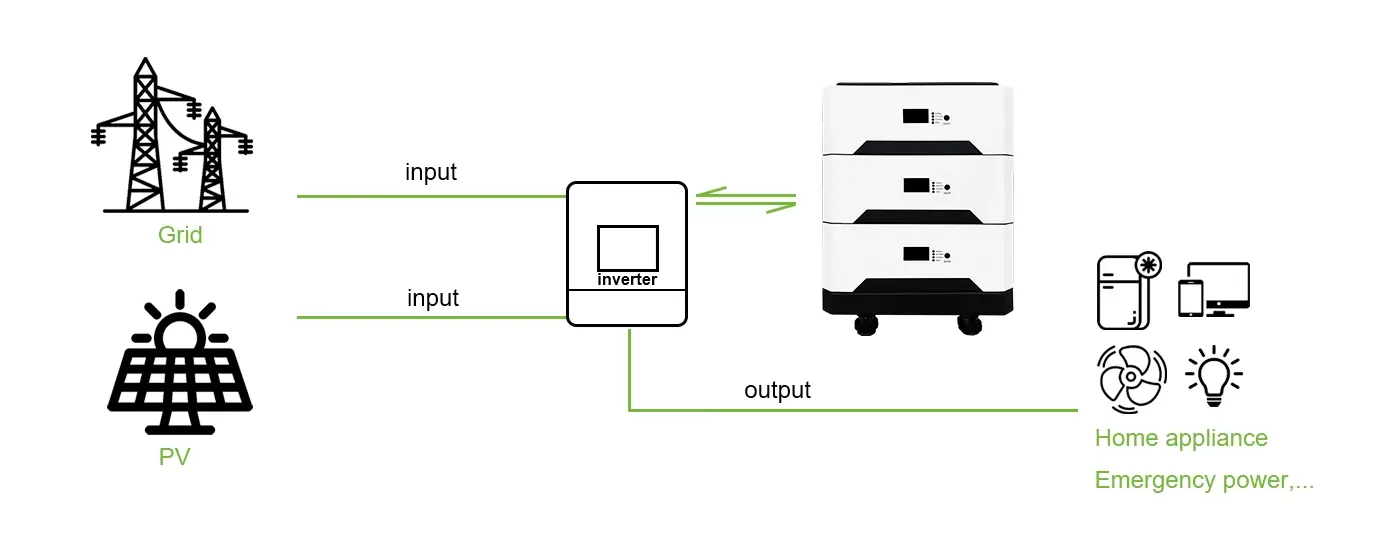

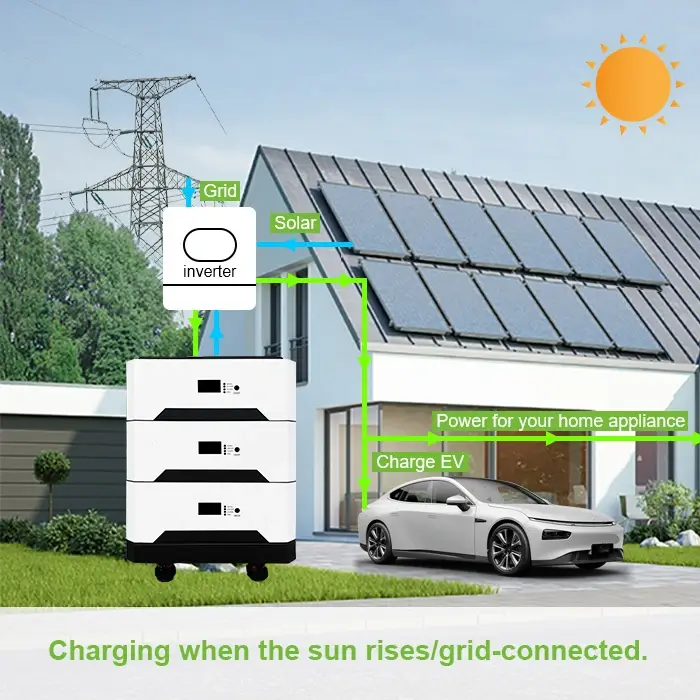

15kWh LiFePO4 stackable batteries ESS CX-SP001 can be charged by solar panels and AC mains. It can directly power the home (TV, computer, air conditioner, lighting, etc.) through photovoltaic power generation, reduce power consumption, and even fully meet the demand for self-use electricity. During off-peak electricity prices, the city electricity is charged and stored in the LiFePO4 ESS battery, and during peak electricity prices, it supplies power to the home, reducing electricity costs.

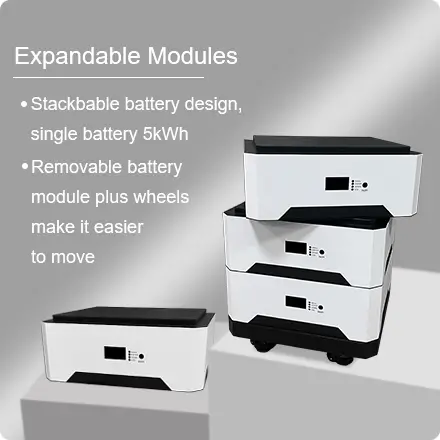

Stackable battery design, easy to move.

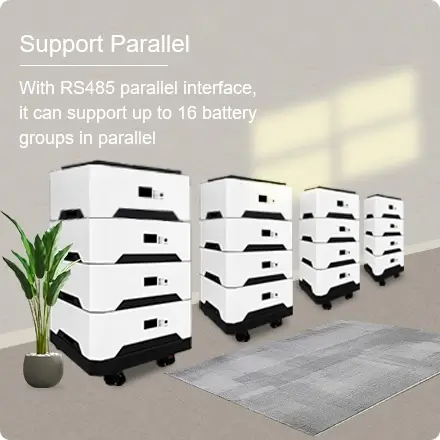

With RS485 interface, up to 16 battery groups in parallel.
Provides 6 protections, more stablity and safety.
| Item Name | 15kWh Lithium Storage Stackable Solar Batteries | ||||
| Model | CX-SP001 (51.2V 300Ah) | Rated Energy | 15360Wh | ||
| Battery Type | LiFePO4 cell | Max Continuous Charging Current | 100A | ||
| Cycle Life | >6000 times | Max Continuous Discharging Current | 100A | ||
| Voltage Range | DC 40~58.4V | Dimensions(LxWxH) | 540x575x840mm | ||
| BMS Communication | CAN/RS485/RS232 | Weight | Approx. 153kg | ||

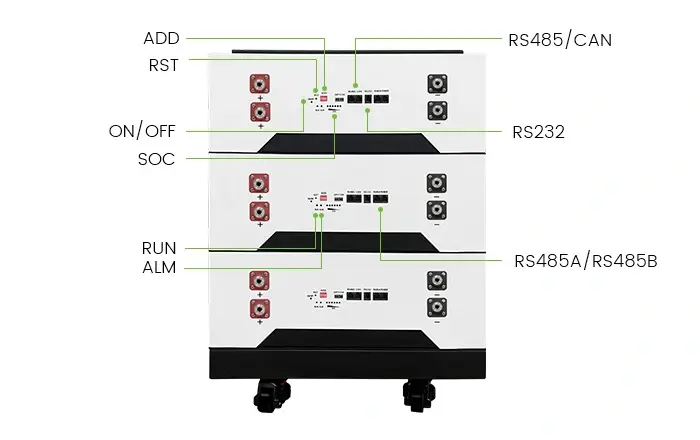

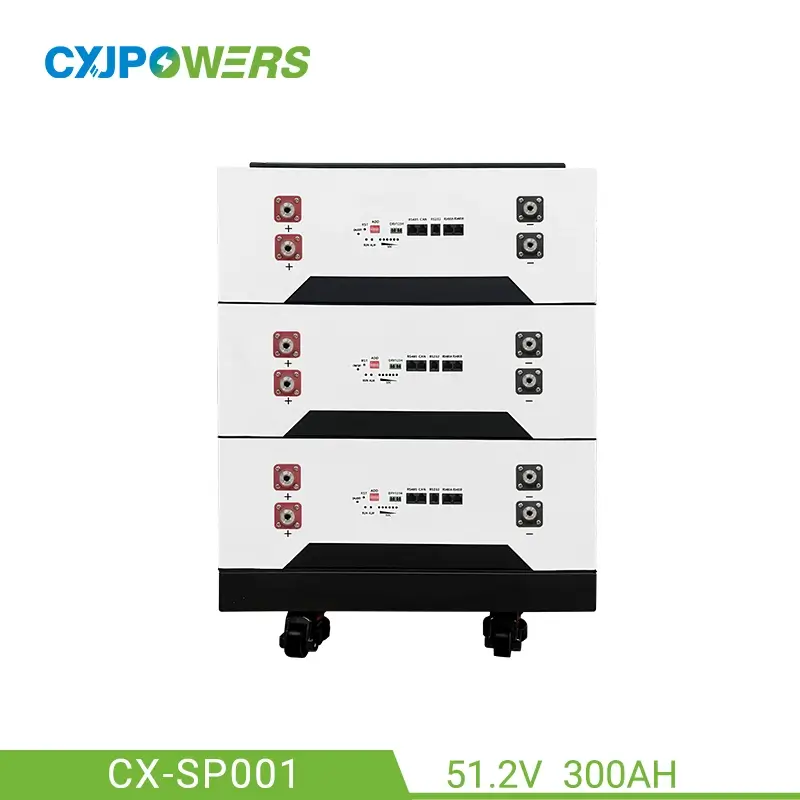

CAN/RS485/RS232 communication protocol lithium-ion battery or LiFePO4 battery is compatible with most inverters on the market.
The energy storage allows us to worry less when the power goes out, and is an indispensable necessity.
This home powerwall supply provides us with stable power guarantee, it is highly recommended.
Battery storage ensures the smooth operation of the home and adds peace of mind to our lives.
|
5kWh Lithium Storage Stackable Solar Batteries |
|
|
Model |
CX-SP001 |
|
Battery Parameters |
|
|
Voltage |
51.2V |
|
Capacity |
300Ah (Standard) |
|
Life Cycle |
＞6000 cycles（80%DOD，25℃） |
|
Battery Working Voltage |
DC 40~58.4V |
|
BMS Communication |
CAN, RS485, RS232 |
|
Electrical Parameters |
|
|
Rated Energy |
15360Wh |
|
Minimun Discharge Voltage |
44V |
|
Max Continuous Charging Current |
200A |
|
Max Continuous Discharging Current |
200A |
|
Maximum Charging Voltage |
56.8V |
|
Installation Mode |
Floor Style/Trolley |
|
Product Parameters |
|
|
Dimension (LxWxH) |
540×575×840mm |
|
Net Weight |
153KG |
|
IP Grade |
IP21 |
|
Operating Temperature Range |
Charging：0~60℃ Discharging：-20~60℃ |
|
Cooling Mode |
Natural Cooling |
|
Operating Humidity Range |
0~95% (NO Condensation) |
|
Max Working altitude |
4000m (>3000m Need to Derate) |
|
Display Screen |
Optional |
|
DC Charging Port |
Wall-Through Fence Terminal |
|
Certification |
CE,RCM,UN383,Test report IEC62619 |
|
Optional Features |
|
|
Cloud Platform Management |
Support intelligent cloud platform/APP |
|
Remote Intelligent Management |
Support 4G communication |
Download Now
More CatalogsYou can have flexible parallel series connections through multiple battery packs to meet different voltage and capacity requirements, and save space.
Sample order: 100% payment before shipment; Bulk order: 30% deposit before production, 70% balance before shipment.
CXJPower stackable solar batteries packs can be used individually or in parallel.
Considering the weight of the battery box and the convenience of use, we recommend stacking 4-6 groups.
