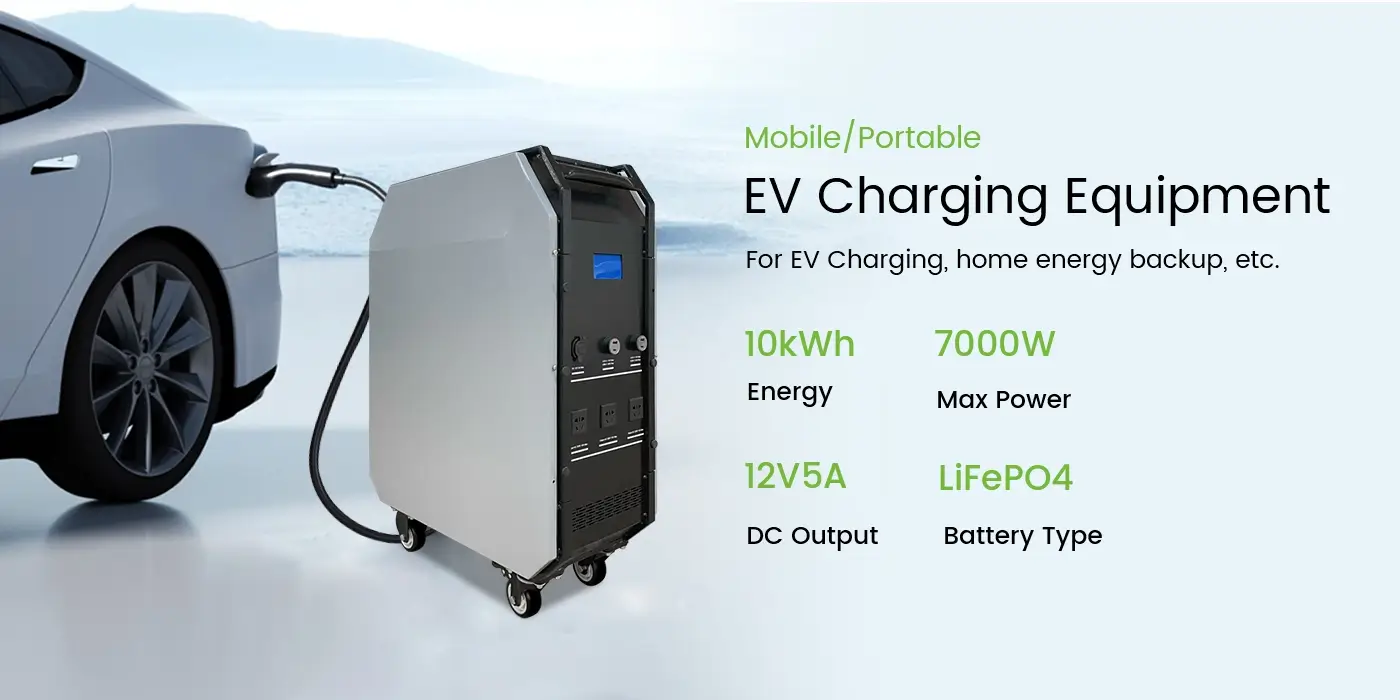

Mobile energy storage vehicle charging power supply is designed for EV to supplement power, and also for home use.

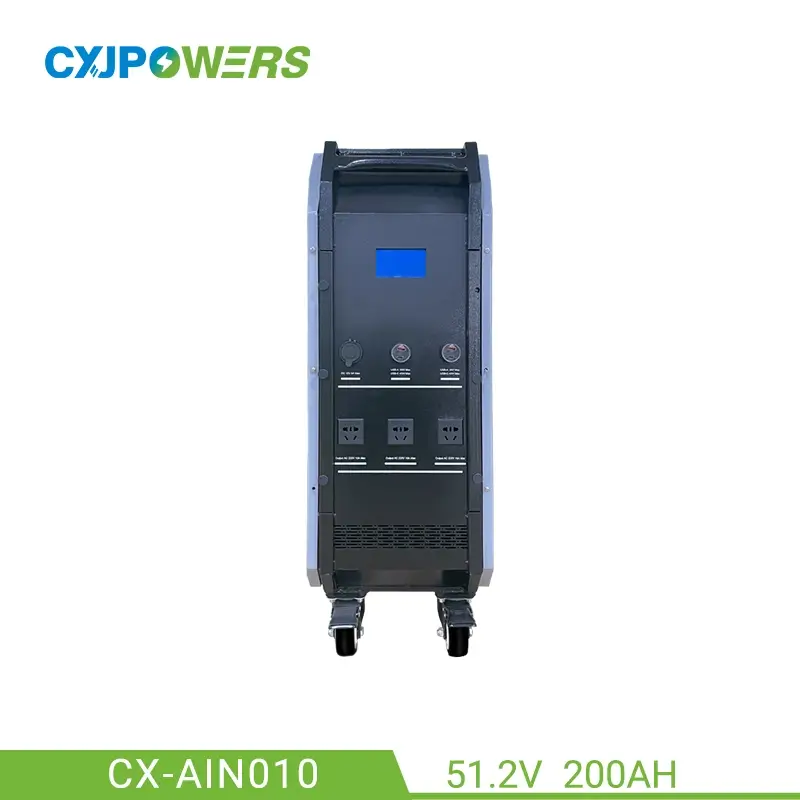

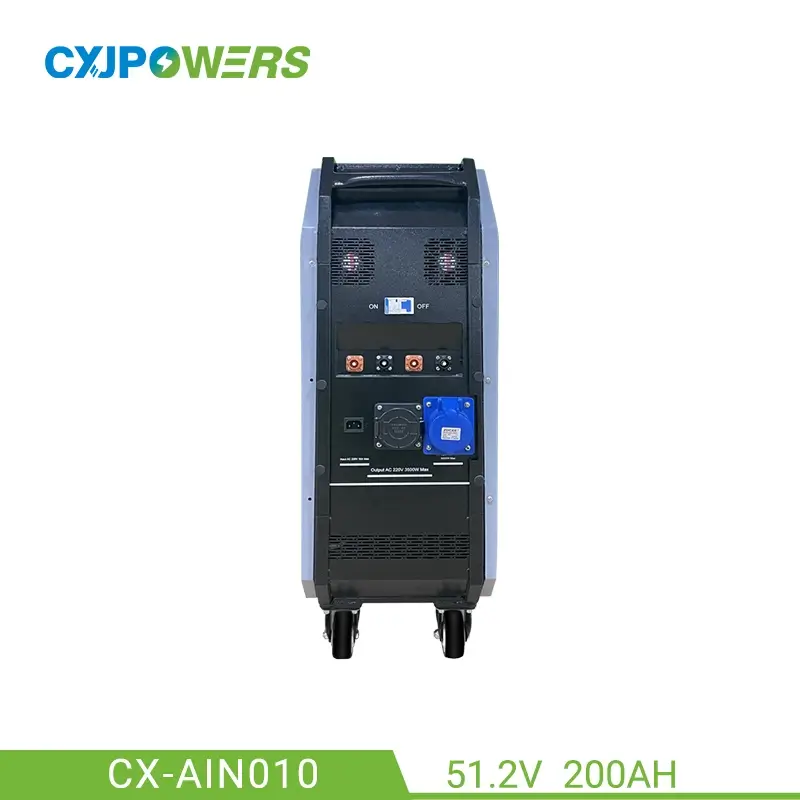

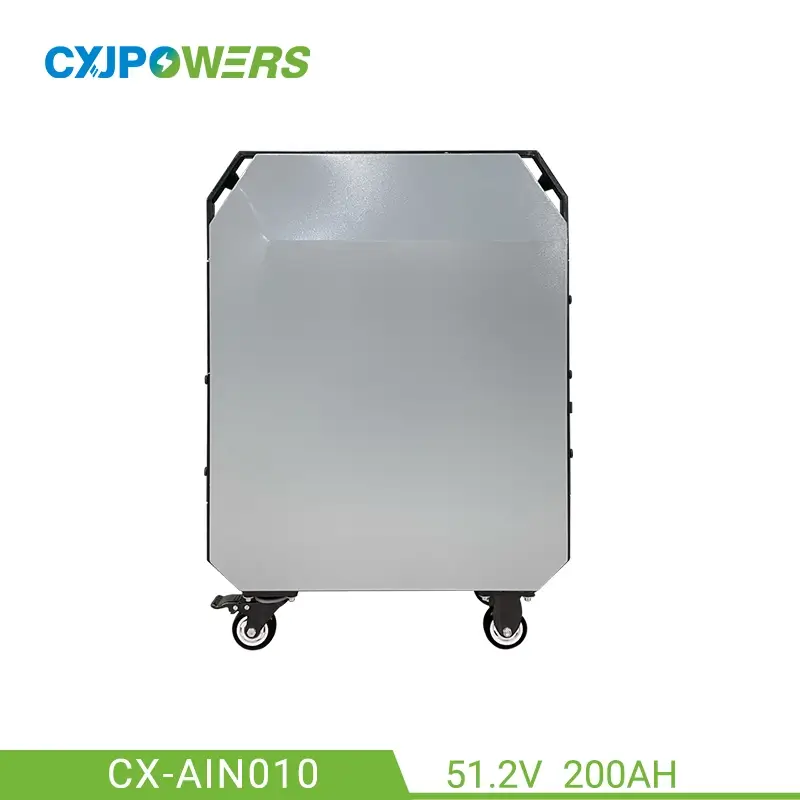

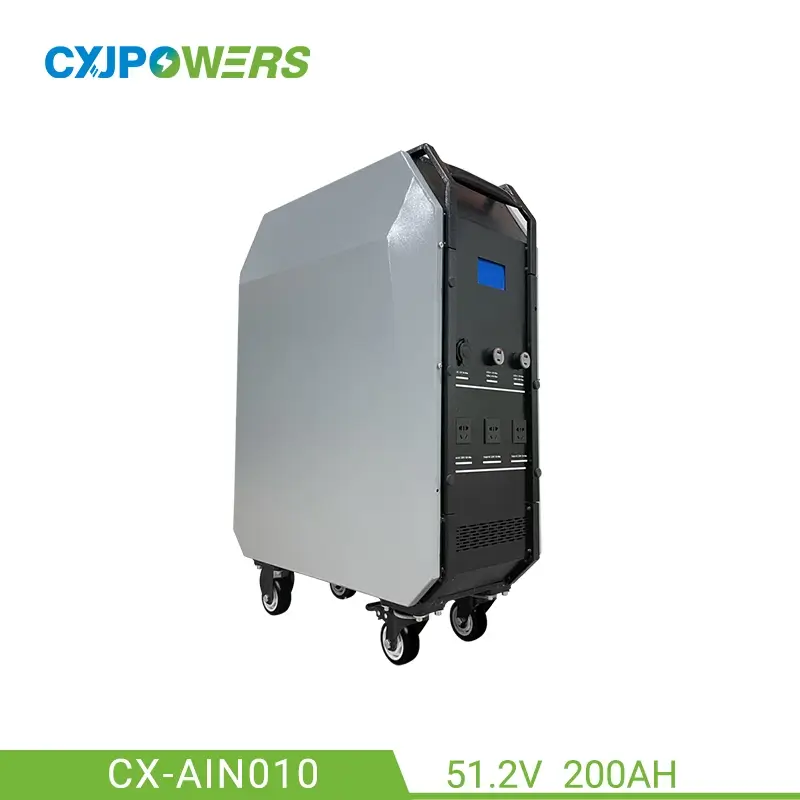

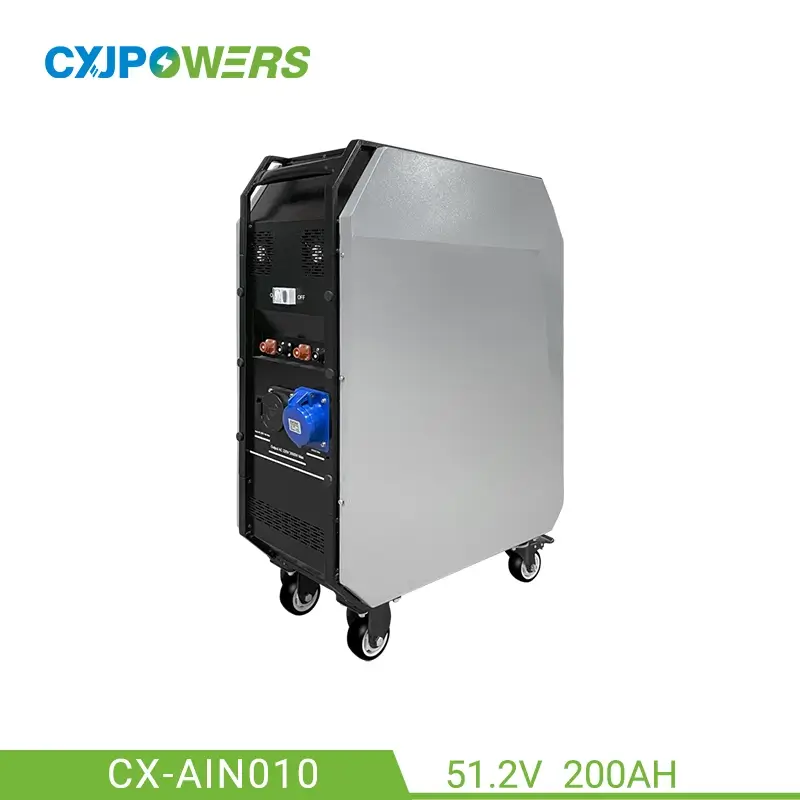

Model: CX-AIN010
Rated energy: 10 kWh
Rated voltage: 51.2V
Rated capacity: 200Ah
Battery type: LiFePO4 battery
Voltage range: 40V～58.4V
AC output: 7000W (220V/110V Pure Sine Wave)
DC output port: Type-C/USB/cigarette lighter

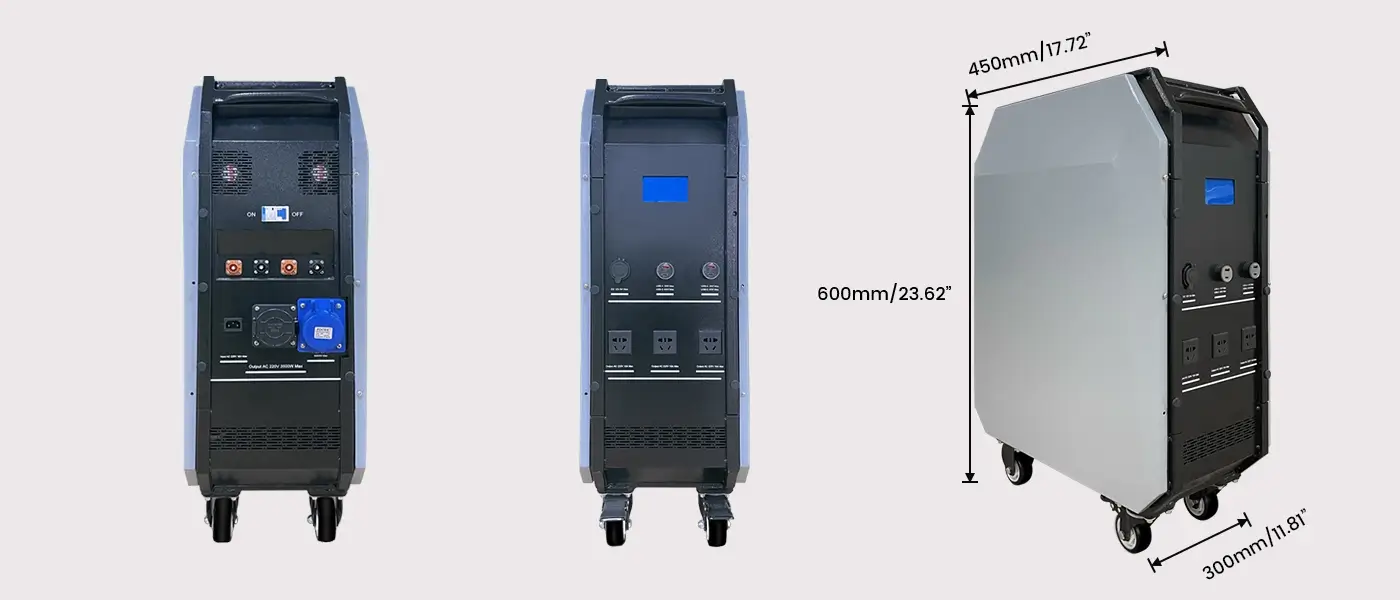

Dimension(L×W×H): 600×450×300mm
Type: Trolley style
Weight: Approx. 83 kg
MOQ: ≥ 1pcs
CXJPowers is a top home battery storage supplier & ESS battery manufacturer, specializing in the R&D, production and sales of solar energy storage batteries, All-in-one LiFePO4 ESS(energy storage systems) and various LiFePO4 lithium battery packs, etc., providing customized lithium energy solutions.is a top OEM/ODM jump starter factory in China, providing customized 12V/24V car jump starters with various battery capacities to meet the needs of different customers.

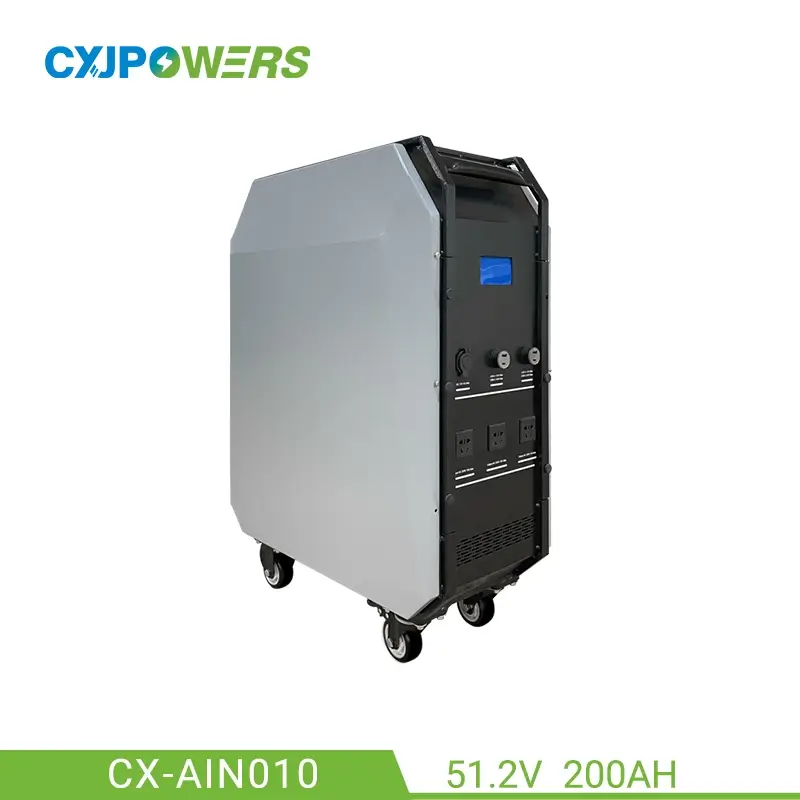

All in one EV battery home storage lithium battery CX-AIN010 is a 10kWh energy storage battery, which is designed for mobile charging of electric vehicles. It built-in 51.2V 200Ah LiFePO4 Battery, inverter and intelligent BMS. The small size and 83kg weight make it easy to put in the trunk of a car. The handle and wheels make it easy to move, making it suitable for solving emergency situations when the electric vehicle is low on power outdoors. It is also suitable for off-grid living and home energy backup.
All-in-one ESS Battery Powers A Home 24/7
Flexible storage, up to 10kWh.
Long life, ＞6000 times cycles life.
Multi-protection battery balance.
Applied to photovoltaic systems.
No fuel required, uses clean energy.
Easily & clearly check battery status.
Plug and play, easy installation.
Peak/Valley power prices save cost.
When power is working, it provides single-phase AC power; when power is out, it can be used as a home backup power supply or UPS.

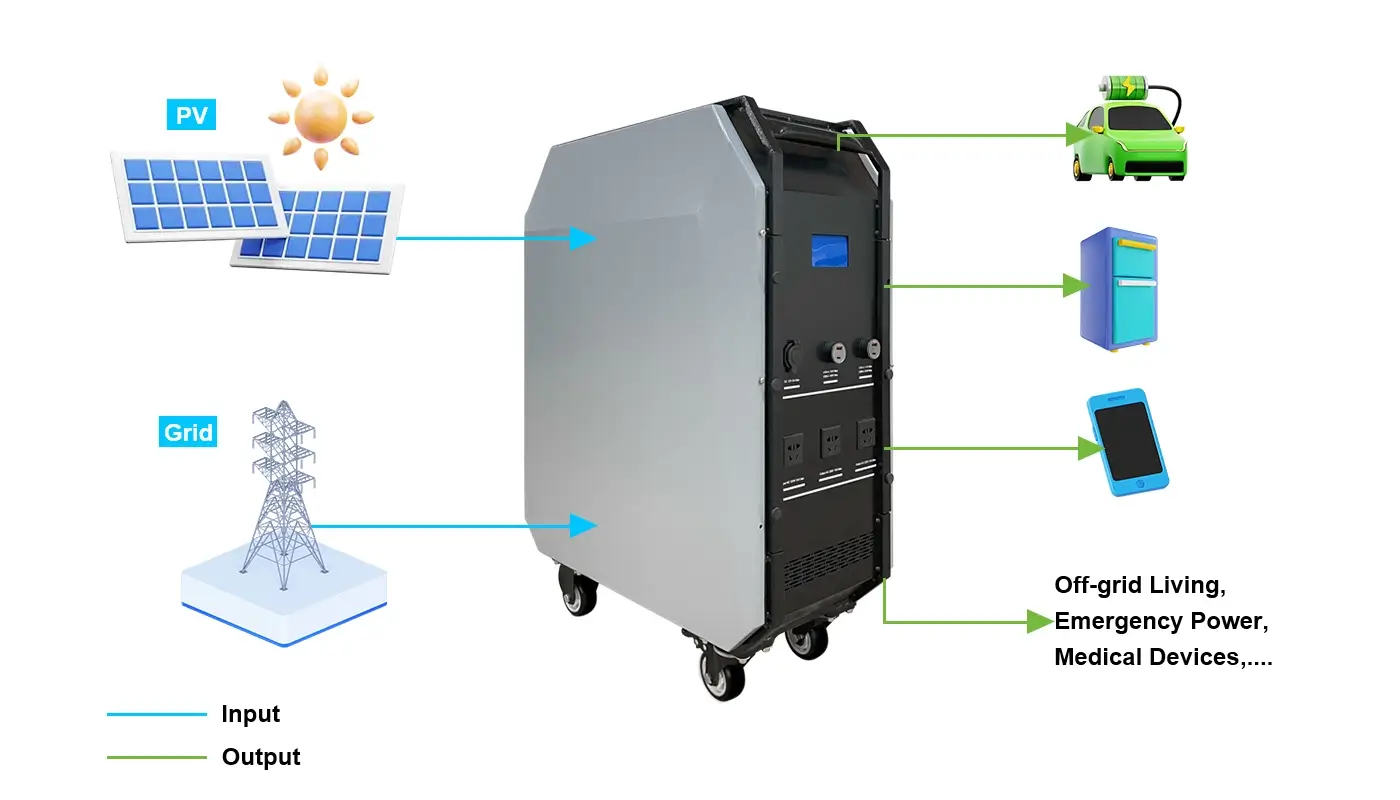

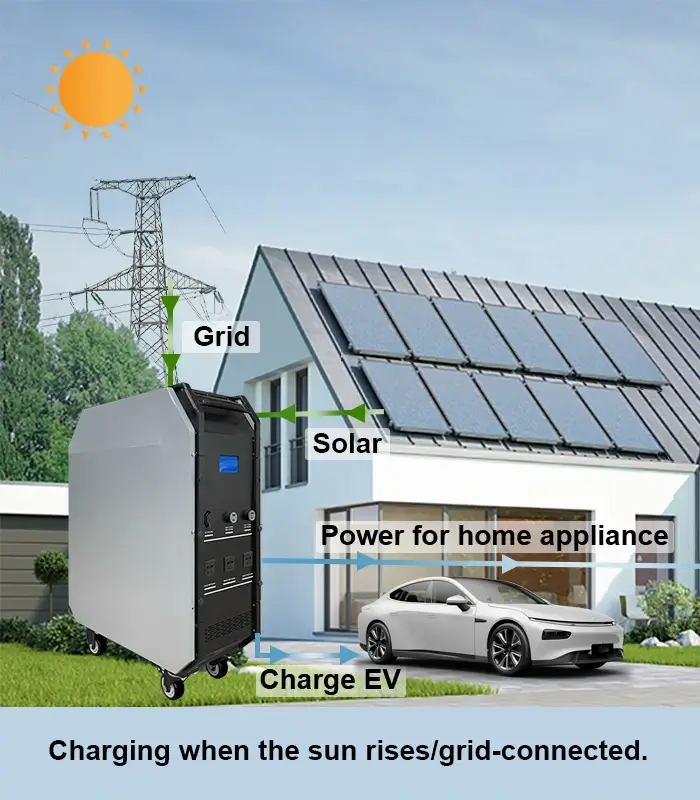

All in one ev battery home storage CX-AlN010 can be charged by solar panels and AC mains. It can directly power the home (TV, computer, air conditioner, lighting, etc.) through photovoltaic power generation, reduce power consumption, and even fully meet the demand for self-use electricity. During off-peak electricity prices, the city electricity is charged and stored in the LiFePO4 ESS battery, and during peak electricity prices, it supplies power to the home, reducing electricity costs.

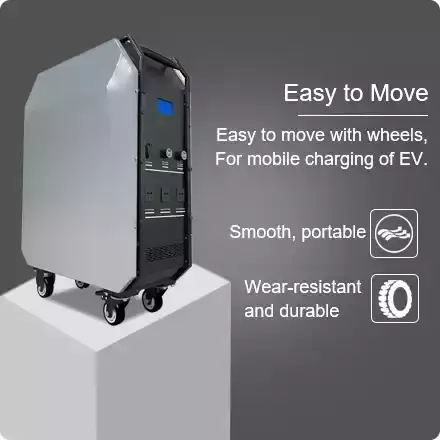

Designed with wheels，can be used anywhere
Almost silent working state, perfect user experience
Provides 6 protections, more stablity and safety.
| Item Name | 51.2V 200Ah EV Charing Home All-in-One ESS Battery Pack | ||||
| Model | CX-AIN010 (51.2V 200Ah) | Inverter | 7KW(Pure sine wave) | ||
| Energy | 10.24kWh | MPPT Working Voltage | 60VDC-120VDC | ||
| Battery | LiFePO4 cell | AC Output Voltage | 110V/220VAC, 50Hz/60Hz | ||
| Cycle Life | >6000 times | Dimensions(LxWxH) | 600x450x300mm | ||
| Voltage Range | 40~58.4V | Weight | Approx. 83kg | ||
The residential solar battery allows us to worry less when the power goes out, and is an indispensable necessity.
This home powerwall supply provides us with stable power guarantee, it is highly recommended.
Battery storage ensures the smooth operation of the home and adds peace of mind to our lives.
|
51.2V 200Ah EV Charing Home All-in-One ESS Battery Pack |
|
|
Model |
CX-AIN010 |
|
Battery Parameters |
|
|
Rated Energy Capacity |
10.24kWh |
|
Battery Type |
Lithium iron phosphate(LiFePO4) |
|
Life Cycle |
＞6000 cycles（80%DOD，25℃） |
|
Battery Working Voltage |
40~58.4V |
|
Layers |
All in one |
|
PV Parameters |
|
|
Charging Current |
100A |
|
Discharging Current |
100A |
|
MPPT Voltage Range |
60V-120Vdc |
|
Installation Method |
Floor/Trolley |
|
System Parameters |
|
|
Dimension (LxWxH) |
600x450x300mm |
|
Net Weight |
83kg |
|
Operating Temperature Range |
Charging：0~50℃ Discharging：-20~40℃ |
|
AC Input Voltage |
220Vdc |
|
AC Output Power |
7KW |
|
AC Output Voltage |
110V/220Vac |
|
AC Output Frequency |
50/60Hz |
|

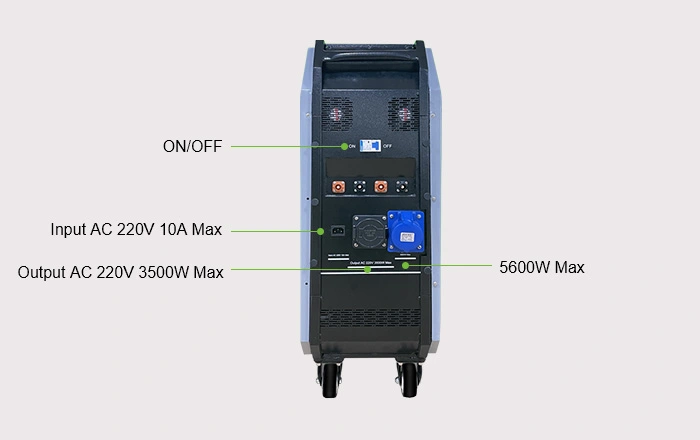

AC Output Port |
AC220V 50Hz 7000W*3 Car Charger: 220VAC 32A 7000W |
|
DC Output Port |
Type-c: PD65W*2 LED: 3W USB Type-A: 5V/2400mA*2 The Cigarette Lighter: 12V/5A |
|
IP Grade |
IP21(Indoor) |
|
Cooling Method |
Fan cooling |
|
Product Life |
10 years |
|
Certification |
CE,RCM,UN383,Test report IEC62619 |
|
Packaging List |
51.2V 200Ah All-in-one ESS Machine*1PCS Warranty Card*1PCS Manual*1PCS Charging Line*1PCS |
Download Now
More CatalogsWhereas other CXJPowers home solar battery storage require a separate inverter unit, the All in One combines both battery and inverter into one unit.
Sample order: 100% payment before shipment; Bulk order: 30% deposit before production, 70% balance before shipment.
CXJPowers is a professional lithium battery manufacturer with ISO9001, ISO14001. All the products have CE certificate.
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
