CXJPowers · Reliable Energy Storage Battery Supply Manufacturer in China
2kWh/4kWh/8kWh PV energy storage system, easy installation, safe & reliable, long service life.
Model: CX-BS001
Rated Voltage: 51.2V
Battery Capacity: 2048Wh
Battery Type: LiFePO4
Cycle Life: > 6000 times
Max Input Power: 800W*2
MPPT Voltage range: 18V-60V
Communication: WIFI
Dimension(L×W×H): 480x230x296mm
Max External Parallel: 3 Pcs
Weight: ≈23 kg
MOQ: ≥ 1pcs
CXJPowers is a top home battery storage supplier & ESS battery manufacturer, specializing in the R&D, production and sales of solar energy storage batteries, All-in-one LiFePO4 ESS(energy storage systems) and various LiFePO4 lithium battery packs, etc., providing customized lithium energy solutions.is a top OEM/ODM jump starter factory in China, providing customized 12V/24V car jump starters with various battery capacities to meet the needs of different customers.

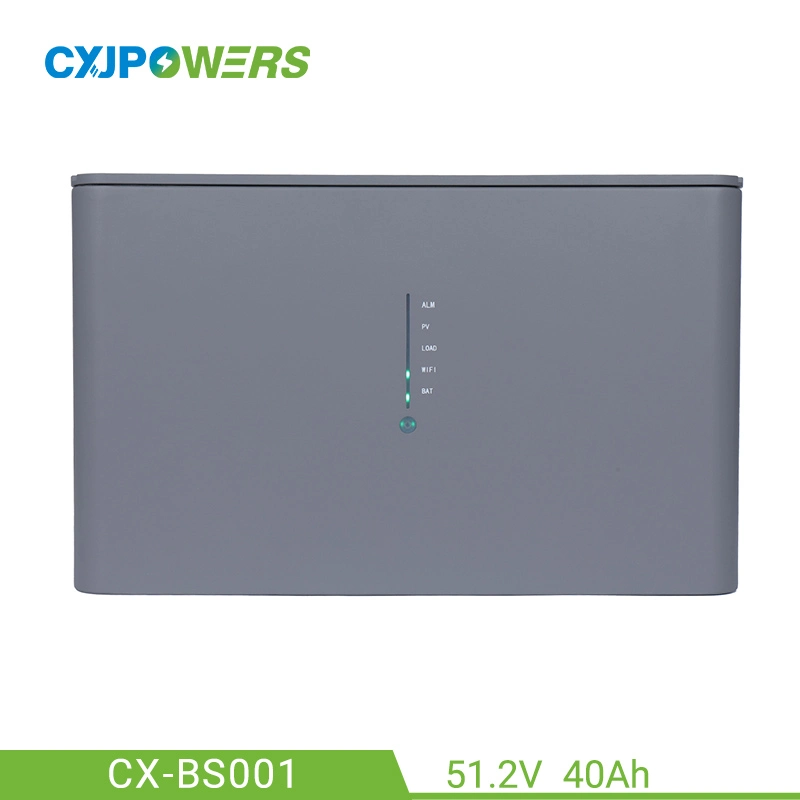

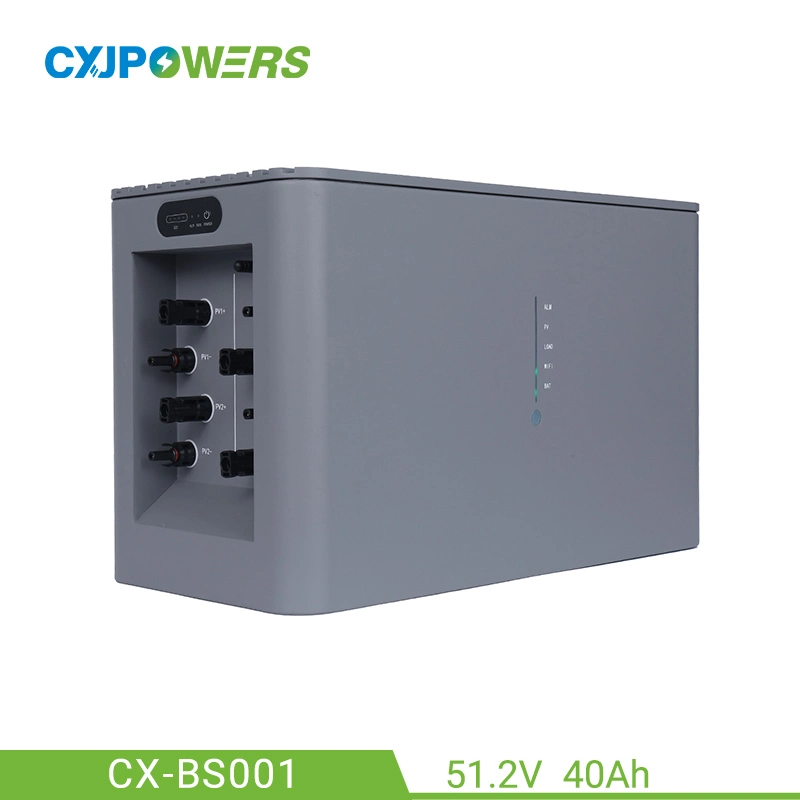

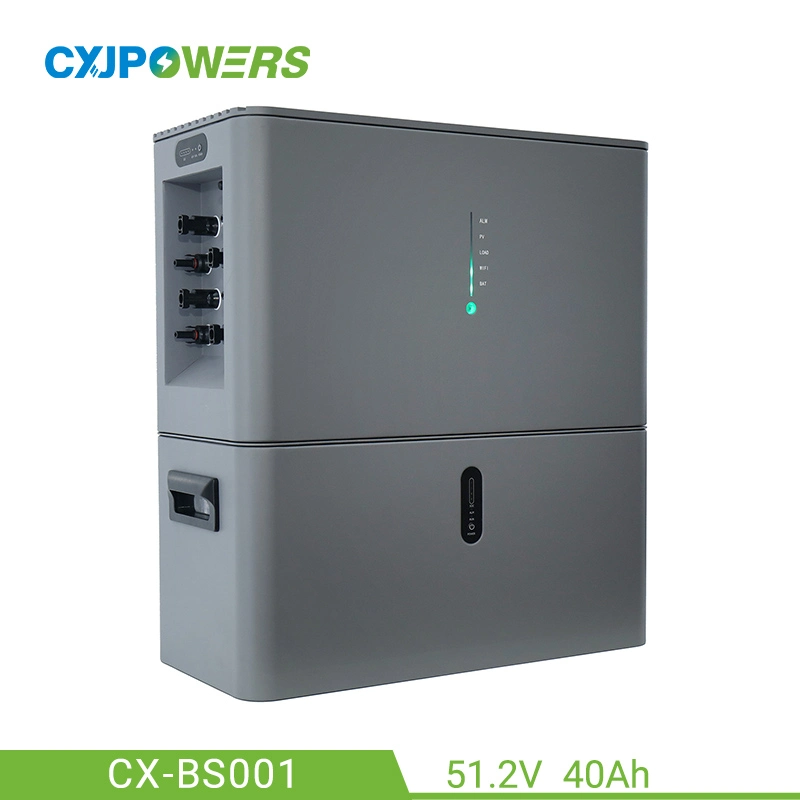

All-in-One PV Balcony Solar System LiFePO4 battery CX-BS001 is an integrated photovoltaic solution combining solar panels with micro-inverters and energy storage. The system features a Grade-A LiFePO4 battery unit with 51.2V/40Ah capacity, equipped with WiFi connectivity for remote monitoring via mobile app. Its modular expandable design allows capacity expansion up to 8kWh through additional battery packs. Suitable for diverse applications including off-grid scenarios and residential backup power solutions, this system provides flexible energy storage options for modern households.

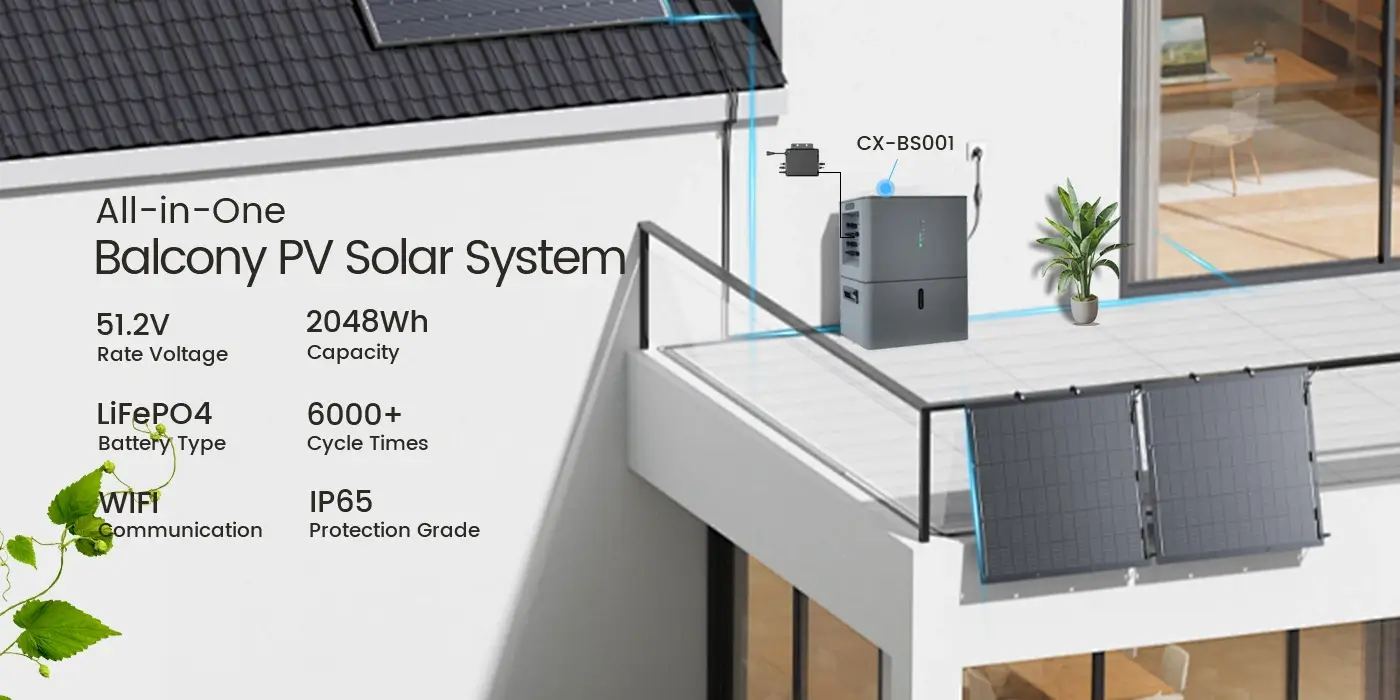

All-in-one PV Balcony Solar System Powers A Home 24/7
High capacity up to 2kWh.
Long life, ＞6000 times cycles life.

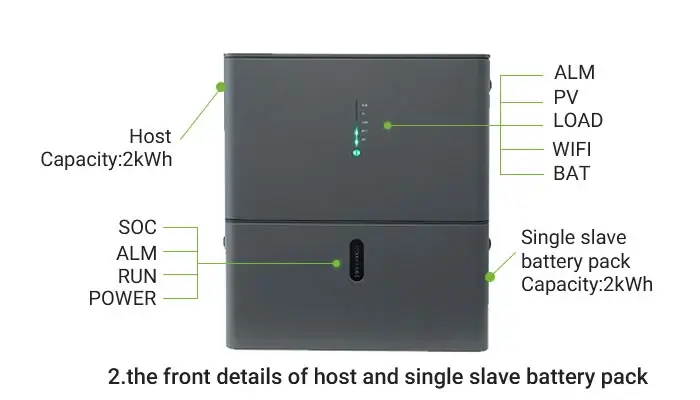

Up to 3 battery packs can be stacked
Applied to photovoltaic systems.
No fuel required, uses clean energy.
Communication via WlFl, intelligent management
Plug and play, easy installation.
Peak/Valley power prices save cost.
The photovoltaic energy storage CX-BS001 uses solar panels for charging, which is Eco-friendly, waterproof and dustproof, and can work in an environment of -20 ℃ -60 ℃.

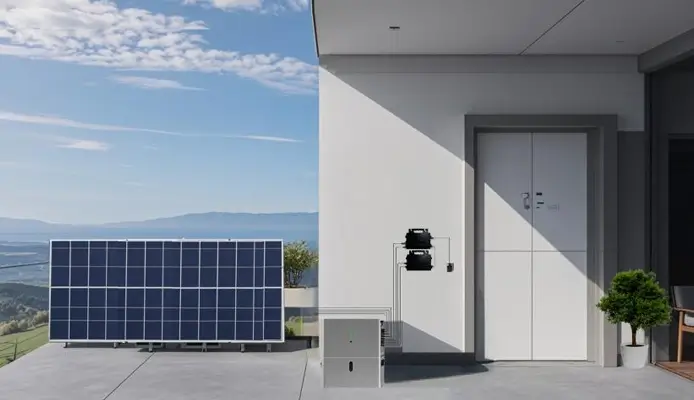

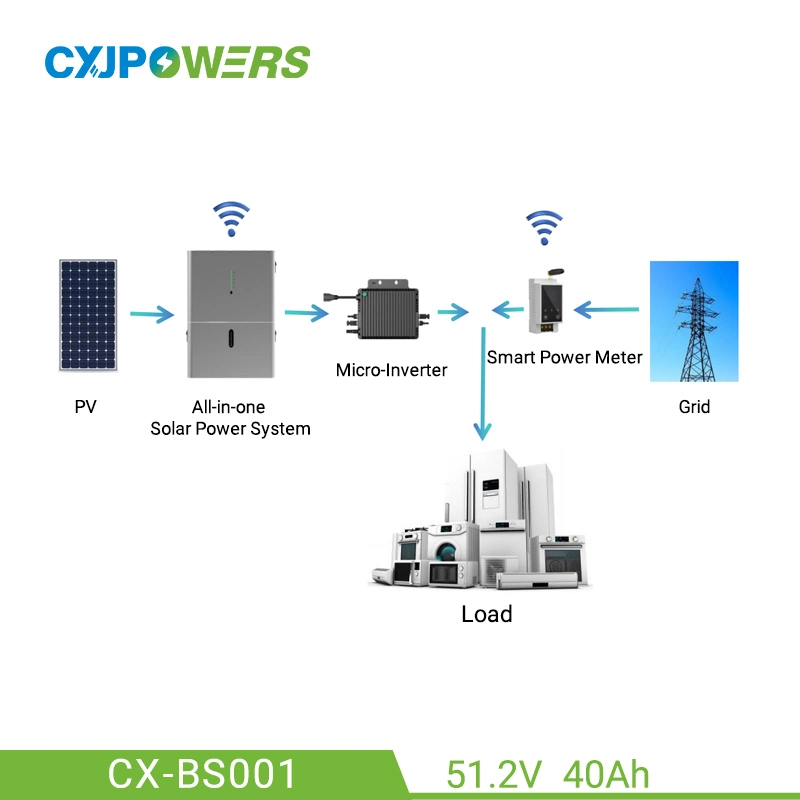

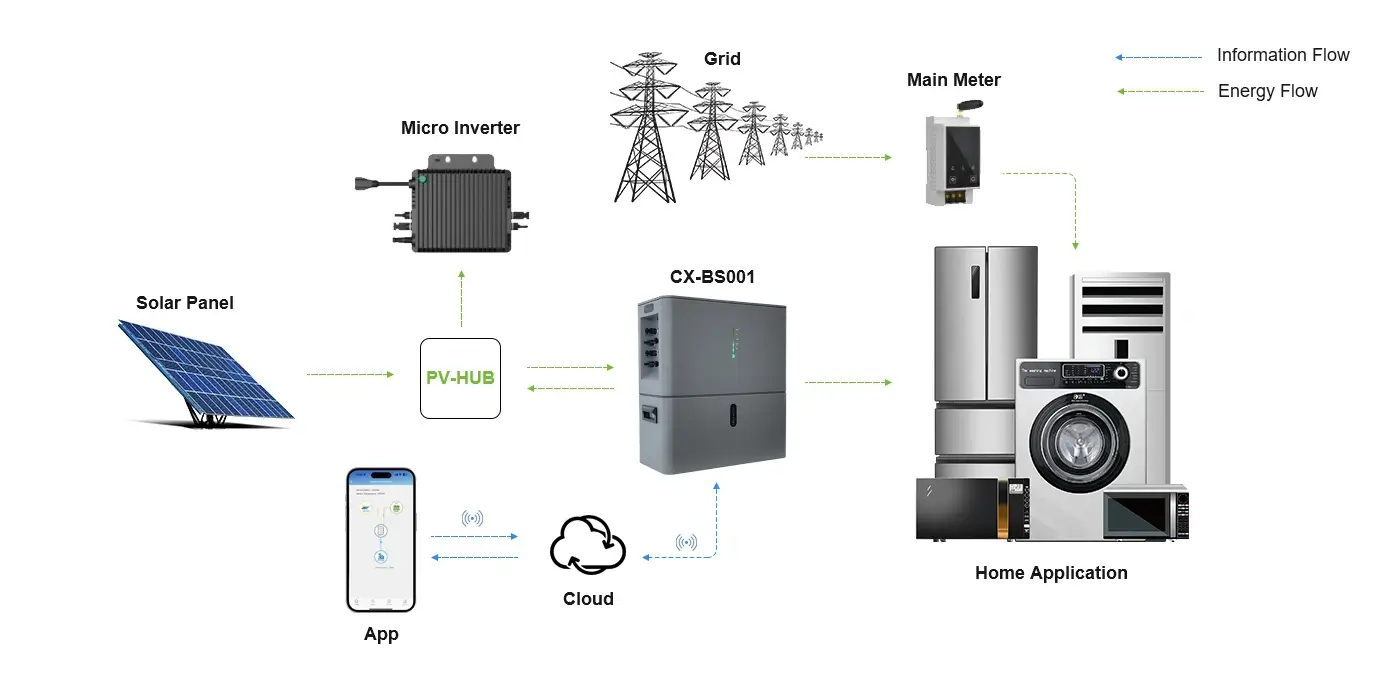

Integrated with solar panels and micro inverters, all-in-one PV balcony solar system CX-BS001 uses solar energy for charging, which can serve as energy source for household appliances during off grid, power outages, or peak electricity prices to maintain normal operation or reduce electricity costs.
The solar system for balcony CX-BS001 is a 51.2V 40Ah all-in-one PV balcony solar system. It suitable for off-grid living, backup energy, and so on.

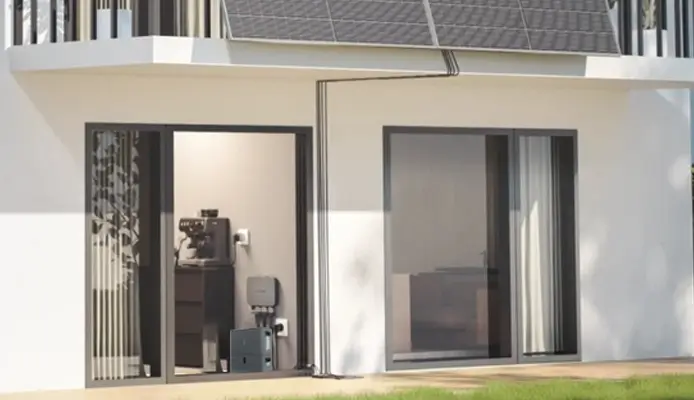

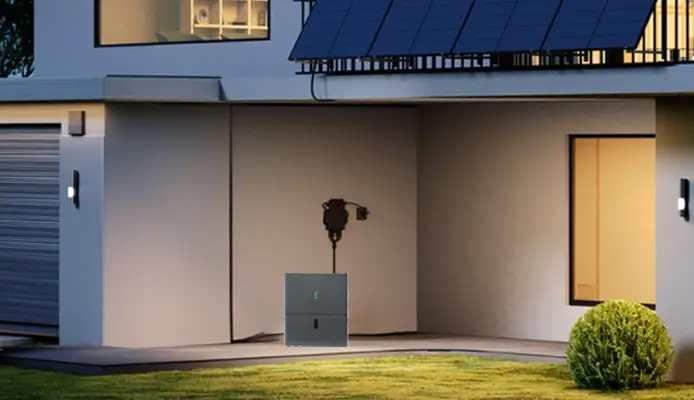

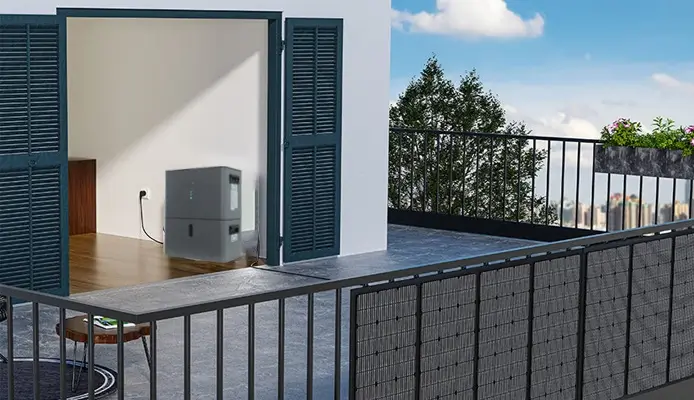

Balcony PV Energy Storage System
Backup Energy
Off-grid Living
Medical Devices
| Item Name | All-in-One Balcony Solar System 2048Wh PV Lithium ESS | ||||
| Model | CX-BS001(51.2V 40Ah) | MPPT Working Voltage | 18V~60V | ||
| Energy | 2048Wh | Communication | WIFI | ||
| Battery | LiFePO4 cell | Max External Parallel | 3PCS | ||
| Cycle Life | >6000 times | Dimensions(LxWxH) | 480x230x296mm | ||
| Max input power | 800w*2 | Weight | Approx.23kg | ||
|
All-in-One PV Balcony Solar System |
|
|
Model |
CX-BS001 |
|
Battery Parameters |
|
|
Battery Type |
LiFePO4 |
|
Rated Voltage |
51.2V (16S) |
|
Battery Capacity |
2048Wh |
|
Cycle Life |
＞6000 cycles（80%DOD，25℃） |
|
Discharge Depth |
90% |
|
Maximum Charging Current |
60A |
|
DC Input (PV Input) |
|
|
Maximum Input Power |
800W × 2Max |
|
Mppt Voltage Range |
18V-60V |
|
Start-up Voltage |
12V |
|
Operating Voltage Range |
12V-60V |
|
Input Conversion Efficiency |
98% Max |
|
Maximum Input Voltage |
60V |
|
Maximum Input Current per Channel |
25A |
|
Maximum Input Short-circuit Protection Current (Transient) per Channel |
90A |
|
Number of MPPT Tracking |
2 |
|
MPPT Tracking Efficiency |
99% |
|
DC Output (INV Output) |
|
|
Maximum Output Power |
800W × 2Max |
|
Output Conversion Efficiency |
98% Max |
|
Operating Voltage Range |
18V-55V |
|
Maximum Output Voltage |
55V |
|
Maximum Output Current per Channel |
28 |
|
Maximum Input Short-circuit Protection Current (Transient) per Channel |
90A |
|
General Parameters |
|
|

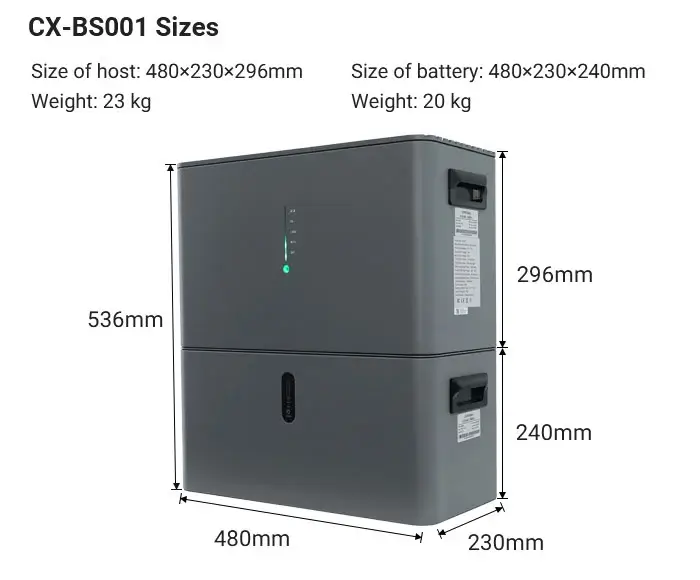

Product Dimensions |
480mm × 230mm ×296mm |
|
Net Weight |
≈23kg |
|
Maximum Number of External Parallel Slave Battery Packs |
3PCS |
|
Capacity of a Single Slave Battery Pack |
2048wh |
|
Dimensions of a Single Slave Battery Pack |
480mm × 230mm × 240mm |
|
Net Weight |
≈20kg |
|
Charging Operating Temperature |
0℃~55℃ |
|
Discharging Operating Temperature |
-20℃~60℃ |
|
Product Grade |
IP65 |
|
Communication Mode |
WIFI |
|
Heat Dissipation Mode |
Natrual Cooling |
|
Packaging Dimensions |
532mm × 282mm × 373mm |
The CX-BS001 balcony pv system requires certified technician installation for safety compliance. Its pre-wired design simplifies setup, and the WiFi-enabled battery allows app-based management after installation.
Sample order: 100% payment before shipment; Bulk order: 30% deposit before production, 70% balance before shipment.
This balcony solar system's LiFePO4 battery operates from -20°C to 60°C with built-in temperature control. For extreme climates, position it in shaded/insulated areas to optimize efficiency.
Express(DHL, FedEx, UPS), air dispatch, sea dispatch both are available, by your choice.
