HV LiFePO4 Battery Home Energy Storage Solution. Scalable, More Flexible, High Efficiency.

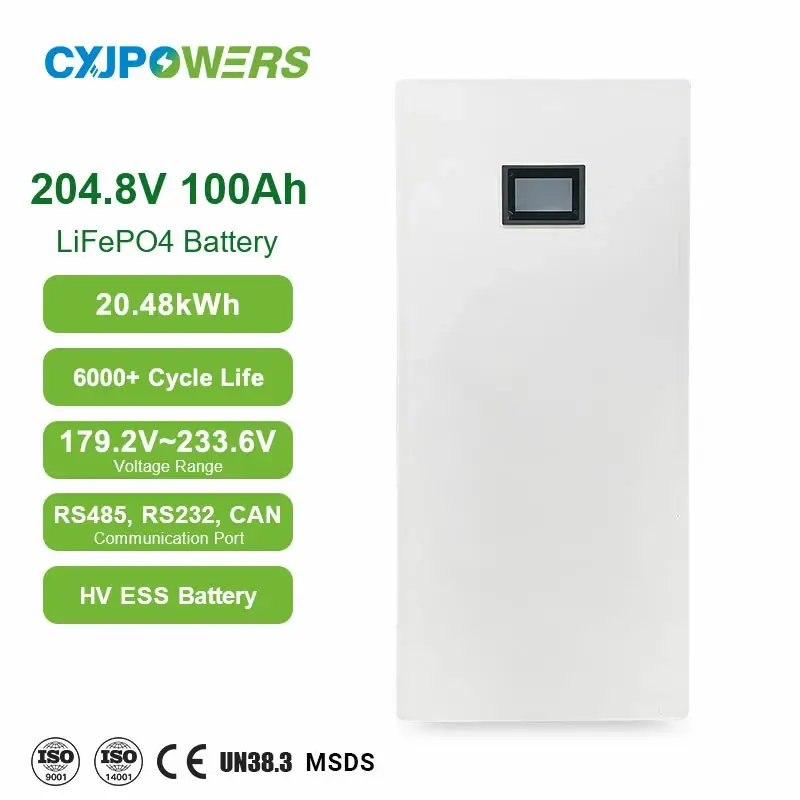

Model: CX-HV003
Rated energy: 20.48kWh
Rated voltage: 204.8V
Rated capacity: 100Ah
Battery type: LiFePO4 battery
Cycle life: > 6000 times
Voltage range: 160V~233.6V
BMS communication: CAN/RS485

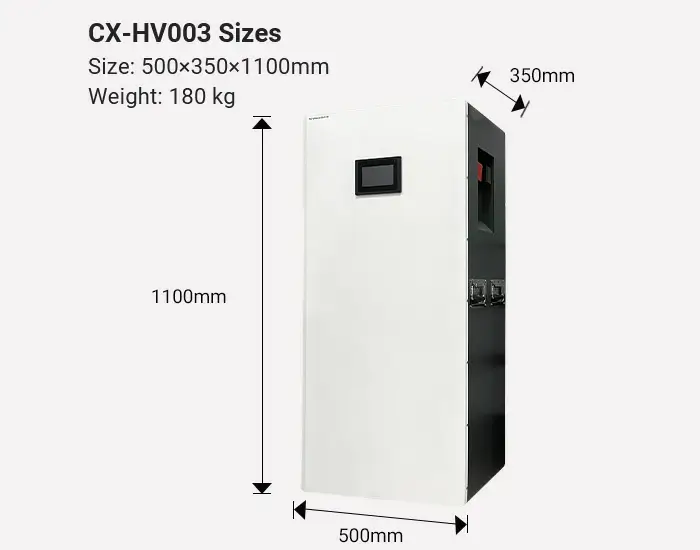

Dimension(L×W×H): 500×350×1100mm
Installation method: Floor mount
Weight: 180 kg
MOQ: ≥ 1pcs
CXJPowers is a top home battery storage supplier and ESS battery manufacturer, specializing in the research and development, production and sales of solar energy storage batteries (rack-mounted, wall-mounted, stacked, etc.), integrated LiFePO4 ESS (energy storage system) and various LiFePO4 lithium battery packs, providing customized lithium energy solutions.
CXJPowers high voltage battery is an advanced energy storage solution designed to meet the needs of commercial and residential users. The CX-HV003 with a rated energy capacity of 20.48 kWh and a rated voltage of 204.8V offers numerous advantages for efficient solar energy storage. LiFePO4 technology is highly efficient and safe, ensuring minimal energy loss during charge and discharge cycles and excellent thermal stability. And LiFePO4 batteries have a long service life, typically more than 10 years, which means fewer replacements and lower overall costs.
CXJPowers New Energy · Empowers Better Life
Stable voltage range is as high as 160~233.6V.
More efficient energy storage and delivery.
Each battery layer has an independent BMS.
Adopt safer LiFePO4 Battery.
Top configuration high pressure management system.
Extra long service life.
Modular design for easy installation and maintenance.
Cover all needs in commercial fields.
CXJPowers LiFePO4 high voltage solar battery 40.96kWh 204.8V. The appearance is similar to the wall-mounted battery, and adopts an overall integrated design. Equipped with intelligent BMS, it provides excellent flexibility and scalability for various applications.

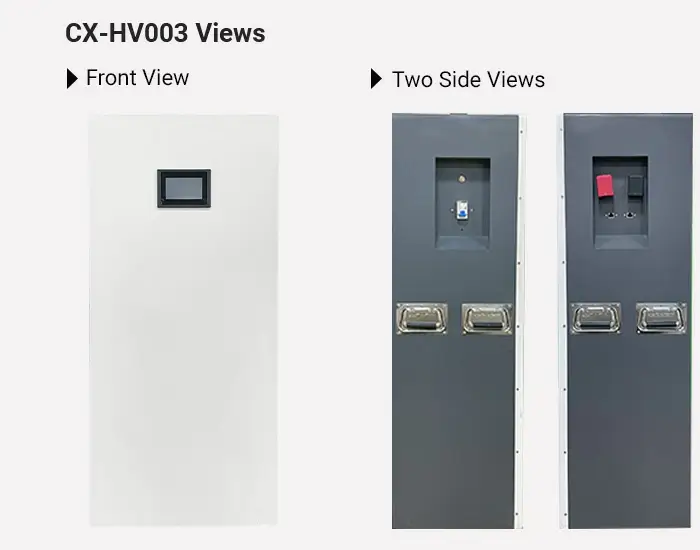

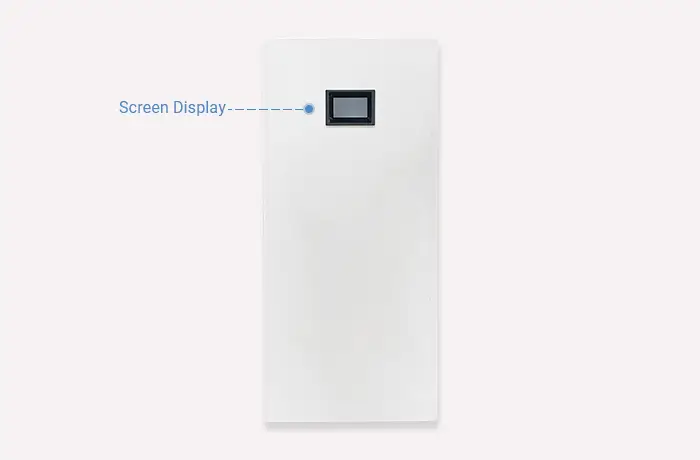

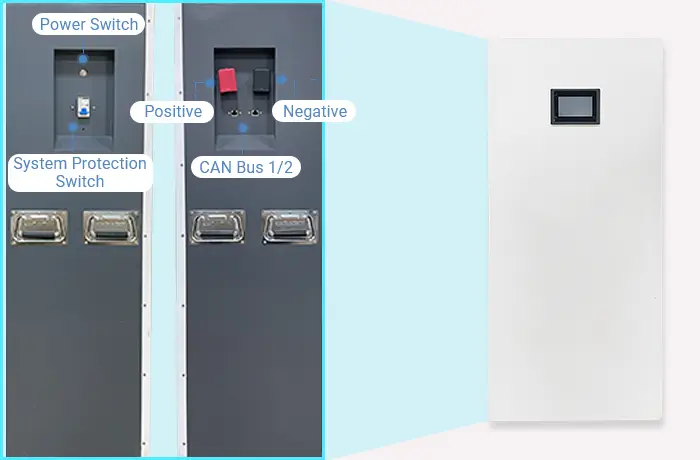

HV Solar Battery Front Detail
HV Solar Battery Side Detail
The LiFePo4 technology used in CXJPowers high voltage battery cells offers several advantages over traditional lead acid batteries. Such as higher energy density, longer cycle life and faster charging time. This makes the CXJPowers 204.8V 20.48kWh LiFePo4 lithium battery HV ESS an excellent choice for grid-tied solar storage applications as it can provide reliable and efficient power storage for many years to come.
High-voltage batteries are essential in a variety of applications. Including grid stabilization, renewable energy storage, and industrial equipment. They improve performance and efficiency, provide reliable backup power for solar systems, and offer powerful energy solutions for heavy machinery. Unleash the power of innovation with high-voltage technology!
Renewable Energy Storage: For storing solar and wind energy.
Backup Power Systems: Offering emergency power during outages for homes and businesses.
Grid Stabilization: Helping manage supply and demand fluctuations in the electrical grid.
| Item Name | High Voltage Solar Battery 204.8V 20.48kWh | ||||
| Model | CX-HV003 | Voltage Range | 160V~233.6V | ||
| Rated Energy | 20.48Wh | Battery Type | LiFePO4 Cell | ||
| Rated Voltage | 204.8V | Cycle Life | ＞6000 cycles | ||
| Rated Capacity | 100Ah | BMS Communication | CAN/RS485/RS232/Ethernet | ||
| Standard Charging/Discharging Current | ≤50A; ≤100A | Max Discharging Current | 100A | ||
| Dimensions(L×W×H) | 500mm×350mm×1100mm | Op. Temp. | Charging: 0~60℃ / Discharging: -20~60℃ | ||
| Weight | Approx. 180kg | Installation | Floor mount | ||
Get A Free Quotation & More Details. Contact Us Now!

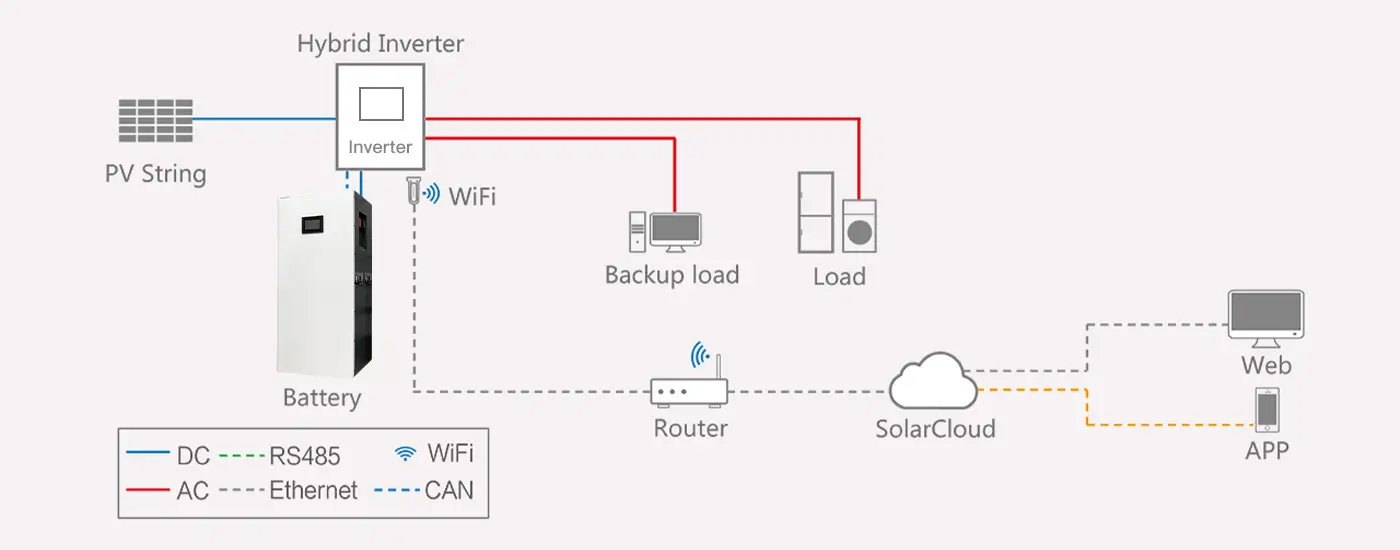

CAN/RS485/RS232 communication protocol lithium-ion battery or LiFePO4 battery is compatible with most inverters on the market.
| Model | CX-HV003 | |
| Basic parameters | ||
| Rated voltage | 204.8V | |
| Rated capacity | 100Ah | |
| Voltage range | 160V~233.6V | |
| Cycle | ＞6000 cycles | |
| BMS communication | RS485, RS232, CAN, Ethernet(Optional) | |
| Electrical parameter | ||
| Rated energy | 20.48kWh | |
| Standard charging current | ≤50A | |
| Standard discharging current | ≤100A | |
| Max operating current | 100A | |
| Operating temperature | Charging: 0~60℃ ; Discharging: -20~60℃ | |
| Installation mode | Floor mount | |
| Product Parameters | ||
| Dimension(L×D×H) | 500×350×1100mm | |
| Net weight | 180kg | |
CXJPowers wall mounted battery requires an additional separate inverter unit, while All in One combines the battery and inverter into one unit.
Sample order: 100% payment before shipment; Bulk order: 30% deposit before production, 70% balance before shipment.
CXJPowers is a professional lithium battery manufacturer with ISO9001, ISO14001. All the products have CE certificate.
