CXJPowers · Reliable Energy Storage Battery Supply Manufacturer in China
HV LiFePO4 Battery Home Energy Storage Solution. Scalable, More Flexible, High Efficiency.

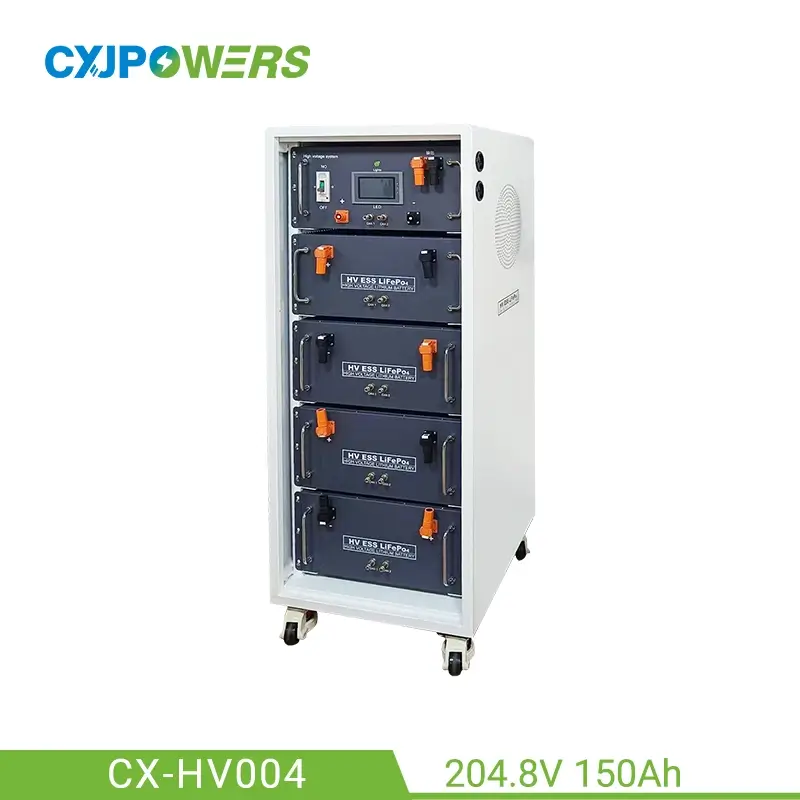

Model: CX-HV004
Rated energy: 30.72kWh
Rated voltage: 204.8V
Rated capacity: 150Ah
Battery type: LiFePO4 battery
Cycle life: > 6000 times
Voltage range: 179.2V~233.6V
BMS communication: CAN/RS485

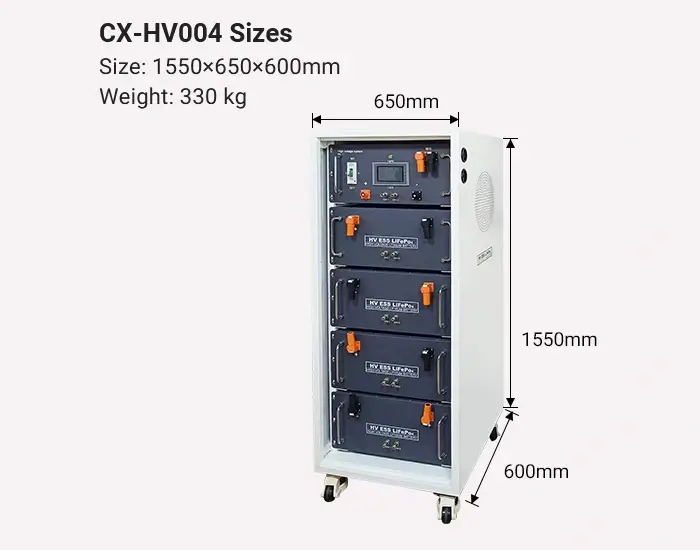

Dimension(L×W×H): 650×600×1500mm
Installation method: Floor mount
Weight: 330 kg
MOQ: ≥ 1pcs
CXJPowers is a top home battery storage supplier and ESS battery manufacturer, specializing in the research and development, production and sales of solar energy storage batteries (rack-mounted, wall-mounted, stacked, etc.), integrated LiFePO4 ESS (energy storage system) and various LiFePO4 lithium battery packs, providing customized lithium energy solutions.
CXJPowers high voltage battery is an advanced energy storage solution designed to meet the needs of commercial and residential users. This LiFePO4 (lithium iron phosphate) battery system has a rated energy capacity of 30.72 kWh and a rated voltage of 204.8V. Combining scalability, high efficiency and advanced communication capabilities, it is an ideal choice for efficient solar energy storage.
CXJPowers New Energy · Empowers Better Life
Stable voltage range is as high as 179.2~233.6V.
More efficient energy storage and delivery.
Each battery layer has an independent BMS.
Adopt safer LiFePO4 Battery.
Top configuration high pressure management system.
Extra long service life.
Modular design for easy installation and maintenance.
Cover all needs in commercial fields.

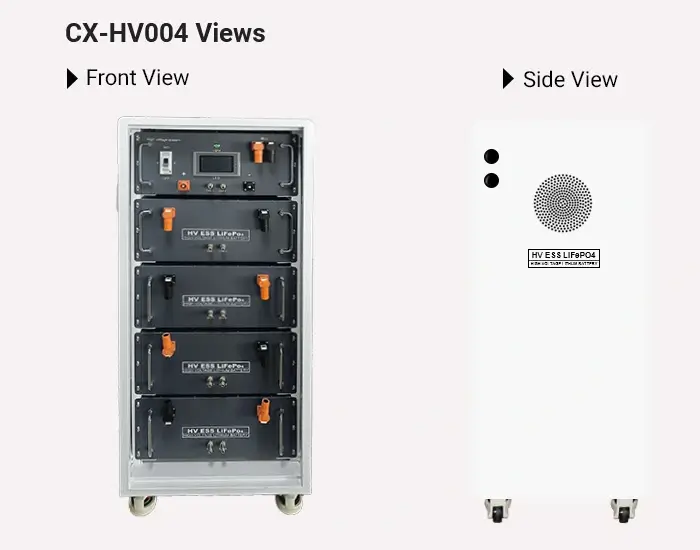

The CXJPowers 204.8V 30.72kWh LiFePO4 high voltage battery pack HV ESS is designed with a modular structure, allowing for straightforward installation and maintenance. This system includes four slave battery modules connected in series, a centralized high-voltage battery management system, and four separate master high-voltage combination boxes, each integrated with its own Battery Management System (BMS). This configuration provides excellent flexibility and scalability for various energy storage needs.
High Voltage Battery Management System
Battery Pack Module
The LiFePO4 technology employed in CXJPowers high voltage battery cells provides numerous benefits compared to conventional lead-acid batteries. These advantages include superior energy density, extended cycle life, and faster charging times. As a result, the CXJPowers 204.8V 40.96kWh LiFePO4 high voltage battery pack stands out as an ideal solution for grid-tied solar storage, offering long-lasting, reliable, and efficient power storage for years of consistent performance.
LiFePO4 high voltage battery are essential in a variety of applications. Including grid stabilization, renewable energy storage, and industrial equipment. They improve performance and efficiency, provide reliable backup power for ESS solar battery, and offer powerful energy solutions for heavy machinery. Unleash the power of innovation with high-voltage technology!
Data Center: Ensure continuous and stable power supply
Backup Power Systems: Offering emergency power during outages for homes and businesses.
Communication Base Station: Powering base stations, convenient and cost-saving.
| Item Name | LiFePO4 High Voltage Battery 204.8V 150Ah | ||||
| Model | CX-HV004 | Voltage Range | 179.2V~233.6V | ||
| Rated Energy | 30.72Wh | Battery Type | LiFePO4 Cell | ||
| Rated Voltage | 204.8V | Cycle Life | ＞6000 cycles | ||
| Rated Capacity | 200Ah | BMS Communication | CAN/RS485/RS232/Ethernet | ||
| Standard Charging/Discharging Current | ≤100A | Max Discharging Current | 200A | ||
| Dimensions(L×W×H) | 1550mm×650mm×600mm | Op. Temp. | Charging: 0~60℃ / Discharging: -20~60℃ | ||
| Weight | Approx. 330kg | Installation | Stacking | ||
Get A Free Quotation & More Details. Contact Us Now!
CAN/RS485/RS232 communication protocol lithium-ion battery or LiFePO4 battery is compatible with most inverters on the market.
| Model | CX-HV004 | |
| Basic parameters | ||
| Rated voltage | 204.8V | |
| Rated capacity | 150Ah | |
| Voltage range | 179.2V~233.6V | |
| Cycle | ＞6000 cycles | |
| BMS communication | RS485, RS232, CAN, Ethernet(Optional) | |
| Electrical parameter | ||
| Rated energy | 30.72kWh | |
| Standard charging current | ≤100A | |
| Standard discharging current | ≤100A | |
| Max operating current | 200A | |
| Operating temperature | Charging: 0~60℃ ; Discharging: -20~60℃ | |
| Installation mode | Stacking | |
| Product Parameters | ||
| Dimension(L×D×H) | 1550×650×600mm | |
| Net weight | 330kg | |
Yes, the CXJPowers lifepo4 high voltage battery is designed with advanced safety features, including overcharge protection, temperature regulation, and short-circuit prevention, ensuring safe operation during use.
Sample order: 100% payment before shipment; Bulk order: 30% deposit before production, 70% balance before shipment.
Yes, the modular design of the CXJPowers lifepo4 high voltage battery allows for easy scalability. Additional modules can be added to increase the overall capacity according to your energy storage needs.
You can leave message to contact us on our website or send e-mail to info@cxjpowers.com. Our professional salesperson will help and guide you to place an order.
