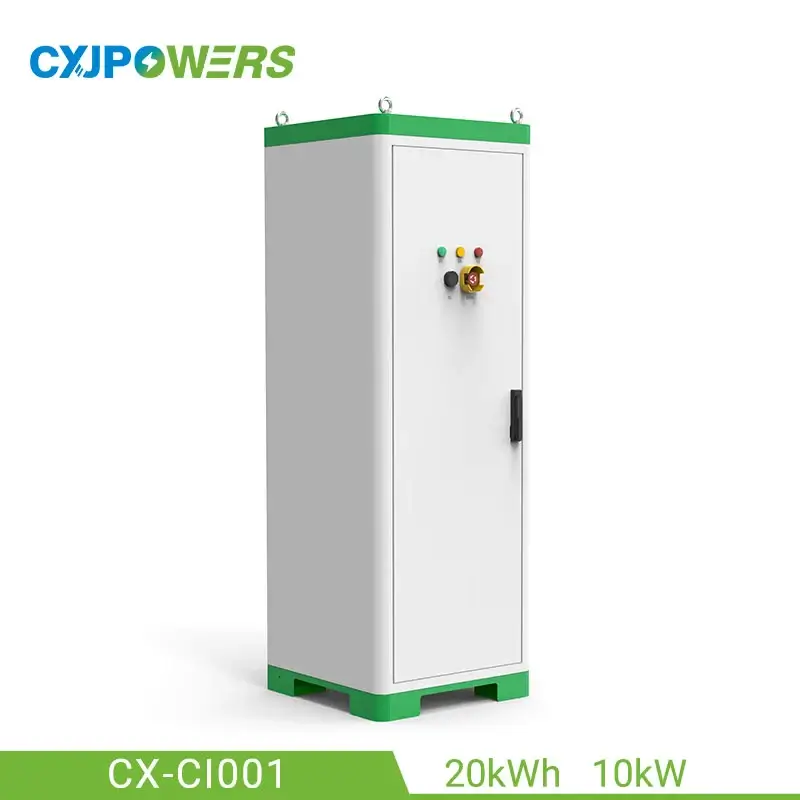

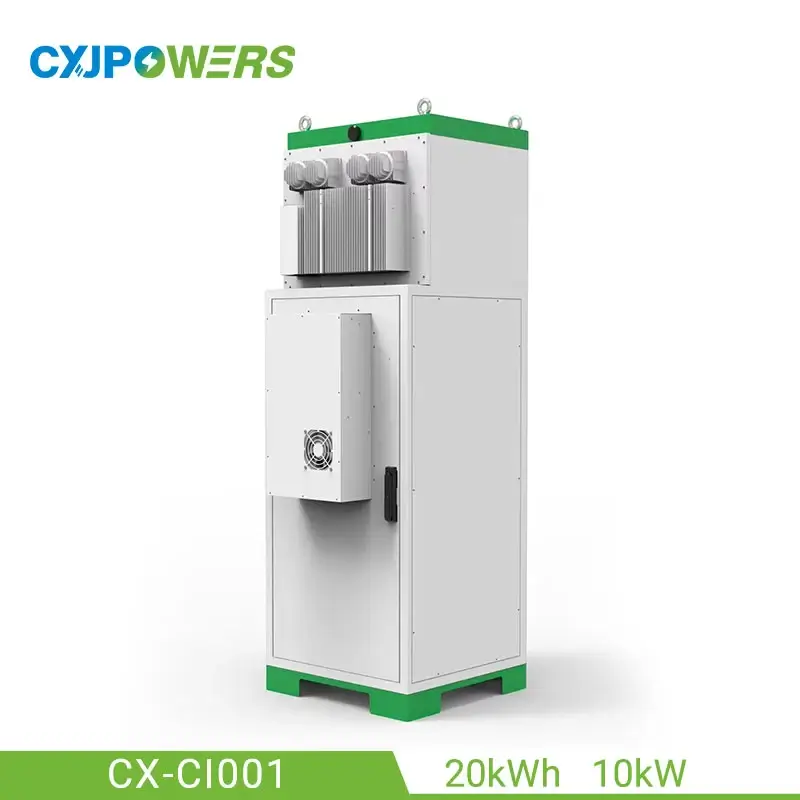

20kWh/40kWh Outdoor Hybrid Lithium ESS Battery Cabinet
20kWh/40kWh Outdoor Hybrid Lithium ESS Battery Cabinet
20kWh/40kWh Outdoor Hybrid Lithium ESS Battery Cabinet
20kWh/40kWh Outdoor Hybrid Lithium ESS Battery Cabinet
20kWh/40kWh Outdoor Hybrid Lithium ESS Battery Cabinet
20kWh/40kWh Outdoor Hybrid Lithium ESS Battery Cabinet
20kWh/40kWh Outdoor Hybrid Lithium ESS Battery Cabinet
20kWh/40kWh Outdoor Hybrid Lithium ESS Battery Cabinet
20kWh/40kWh Outdoor Hybrid Lithium ESS Battery Cabinet
20kWh/40kWh Outdoor Hybrid Lithium ESS Battery Cabinet
20kWh/40kWh Outdoor Hybrid Lithium ESS Battery Cabinet
20kWh/40kWh Outdoor Hybrid Lithium ESS Battery Cabinet

20kWh/40kWh Outdoor Hybrid Lithium ESS Battery Cabinet

Widely used in applications from home to large C&I energy storage systems, suitable for power demand regulation and peak shifting.

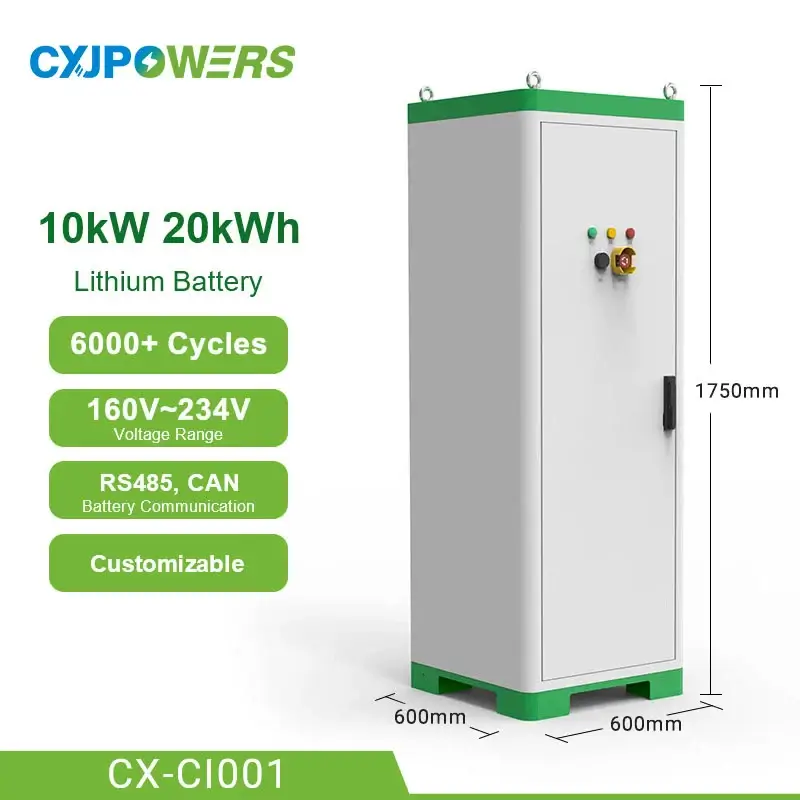

Product Spec

Model: CX-CI001

Rated energy: 20kWh

Rated voltage: 204.8V

Rated capacity: 104Ah

Battery type: LiFePO4 battery

Cycle life: > 6000 times(80%DOD)

Voltage range: 160V~234V

Rated grid frequency: 50/60 Hz

BMS communication: CAN/RS485

Dimension(L×W×H): 600×600×1750mm

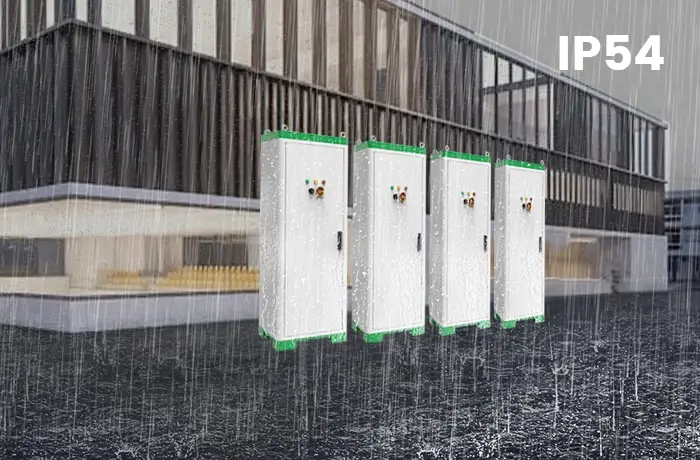

Protection grade: IP54

Weight: 330 kg

MOQ: ≥ 1pcs

20kWh/40kWh Outdoor Hybrid Lithium ESS Battery Cabinet
Product Description Technical Parameter Download

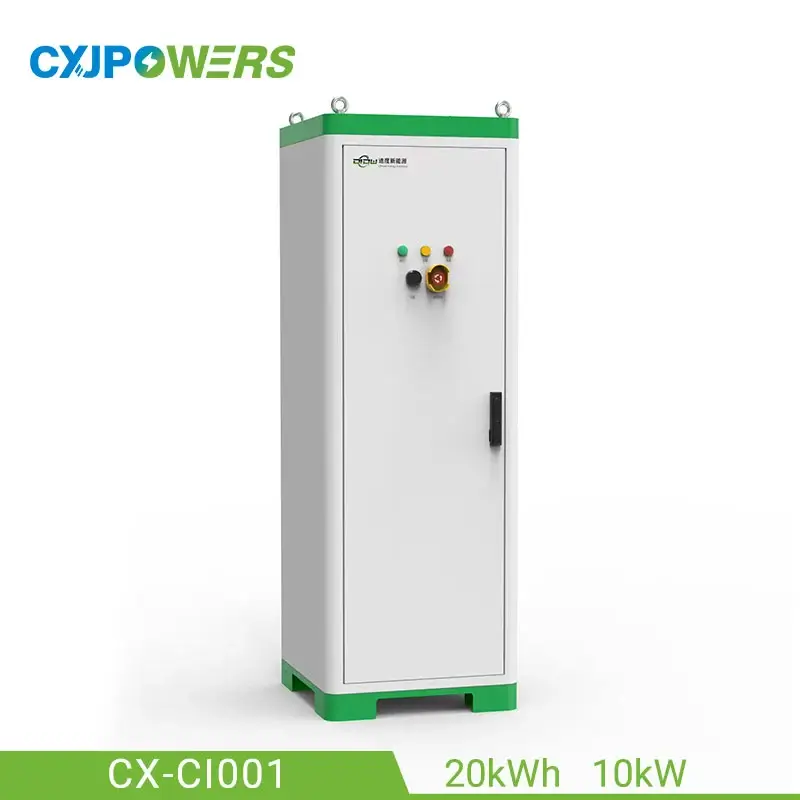

20kWh/40kWh Outdoor Hybrid Lithium Battery Cabinet

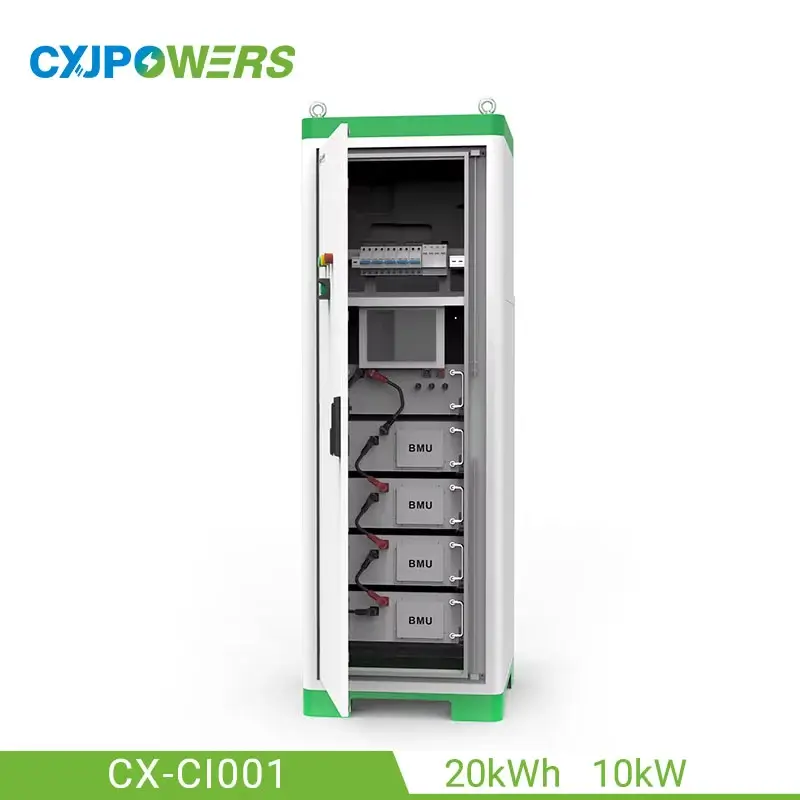

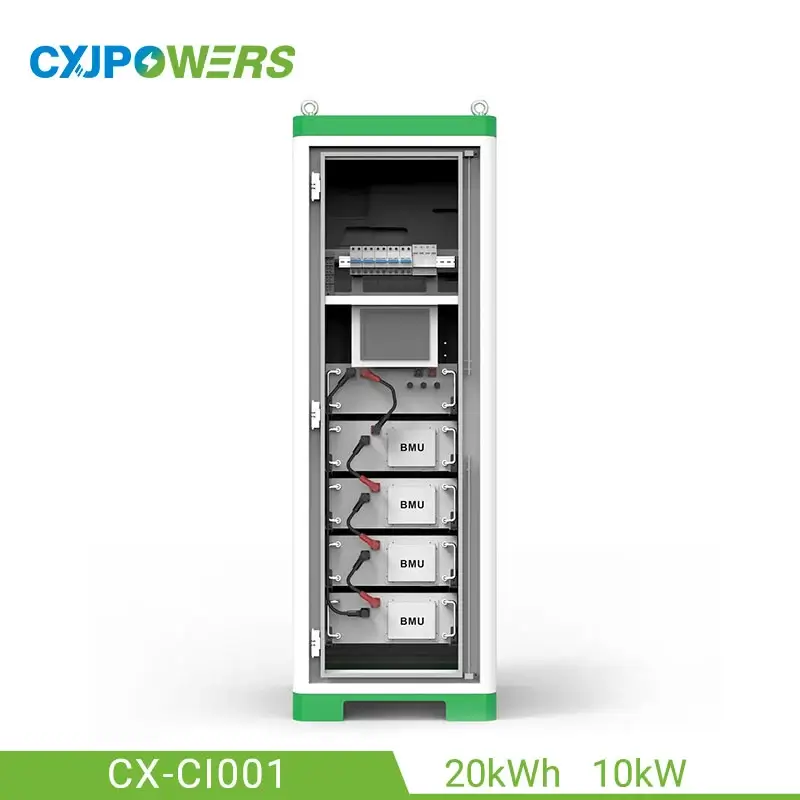

The outdoor cabinet BESS CX-CI001 is an all-in-one 20kWh lithium battery energy storage cabinet system developed for demand regulation, peak shaving, industrial and commercial energy storage, etc. It integrates 20kWh LiFePO4 batteries with BMS, high-voltage boxes, power distribution systems, PCS (power conversion systems), control systems, fire protection systems, temperature control systems, and EMS (energy management system) monitoring systems.

20kwh/40kwh Commercial and Industrial Energy Storage Outdoor Lithium Battery Cabinet Supplier

CX-CI001 Advantages

C&I Outdoor Lithium Battery Storage Cabinet System

All-in-one, intelligent and highly integrated design.

All-in-one machine

Smart and highly integrated design.

High capacity, up to 20kwh

High Capacity

Up to 20Kwh

Long cycle life, 8000+ cycles, Grade A LFP battery.

Long cycle life

8000+ cycles, Grade A LFP battery.

Working temperature: -30℃~55℃ (derating above 45℃).

Operating temperature

-30℃~55℃ (derating above 45℃).

Intelligent air cooling, -30℃ to 60℃ full power operation

Intelligent air cooling

-30℃ to 60℃ full power operation

Flexible capacity, expandable to MW-class systems.

Flexible capacity

Expanded to MW-class systems.

Modular design, easy to install and maintain.

Modular design

Easy to install and maintain.

Safe and reliable, real-time monitoring, and remote debugging.

Safe and reliable

Real-time monitoring and remote debugging.


CXJPowers Outdoor Cabinet ESS Solution

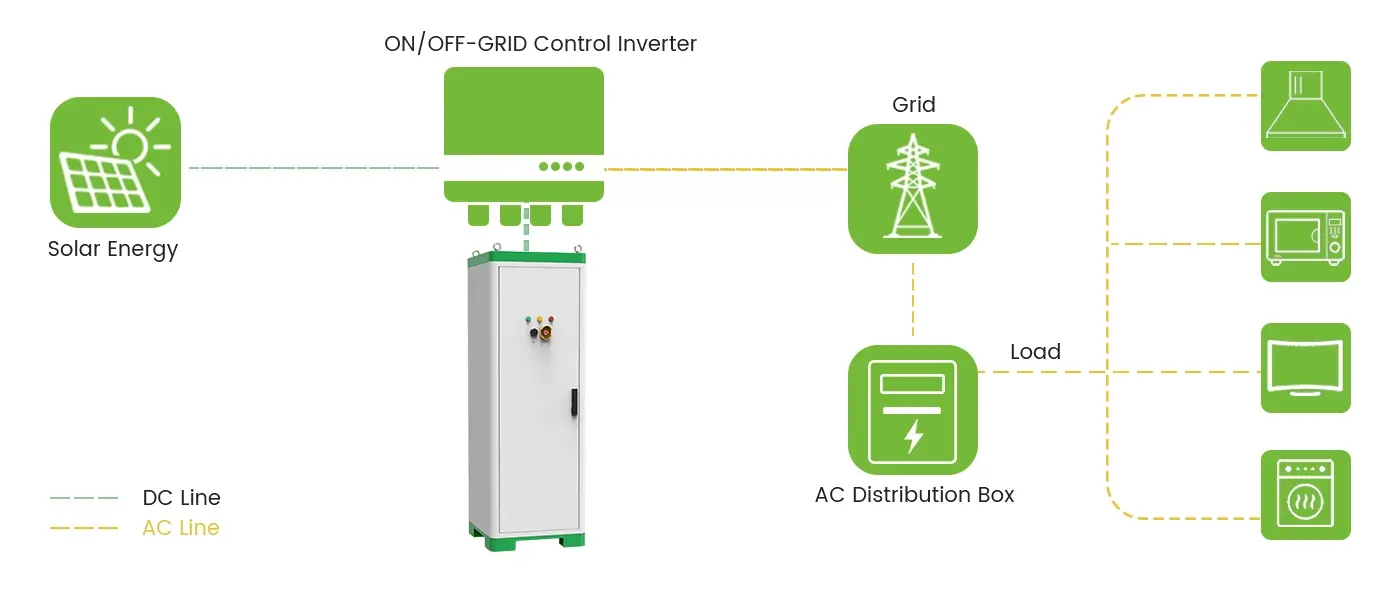

cx-ci002 working system, supports on-grid/off-grid

Support on-grid/off-grid

The CX-CI001 lithium battery energy storage cabinet can be customized for on-grid/off-grid operation mode, provides UPS functions, and can be flexibly expanded.

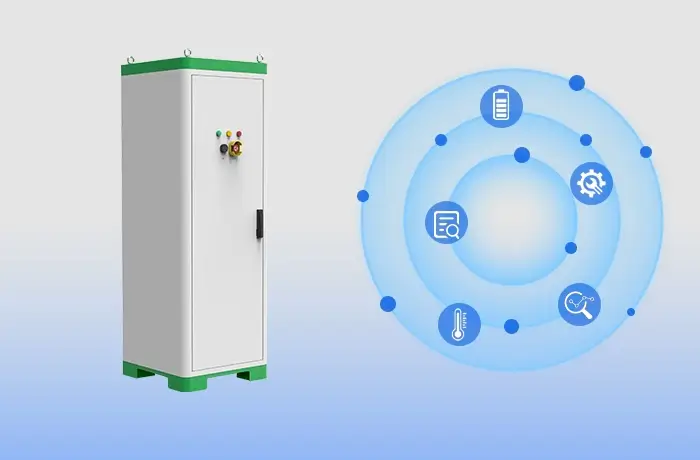

Efficient and intelligent

Functions such as intelligent control and cloud monitoring can work with EMS to achieve anti-backflow function and efficiently manage battery status.


Product Features


Reduce peaks and fill valleys to create profits

Key Benefits of Commercial and Industrial ESS

Peak shaving and time-sharing of industrial and commercial outdoor cabinet energy storage systems
cxjpowers Outdoor Cabinet ESS Photovoltaic Energy Storage System and Backup Power Supply

During the day, solar energy is converted into electrical energy and stored to meet electricity needs at night; it is charged and stored when electricity prices are low, and discharged when electricity prices are high, using the difference in peak and valley electricity prices to save electricity costs, optimize energy efficiency, and provide reliable backup power.

Peak shaving profit is the most critical benefit of bass


Product Specifications

Product Name 20kWh/40kWh Outdoor Hybrid Lithium Battery Cabinet
Model CX-CI001 Voltage range 179.2V- 230.4V
Rated energy 20 kWh Battery Type LiFePO4 Battery
Rated voltage 204.8 volts Cycle life 8000 cycles (0.5C, 5%~95%DOD)
Rated AC power 10 kW EMS Communication 4G/CAN/RS485
Protection Level IP54 Cooling method Air Cooling
Dimensions (length x width x height) 600mm×600mm×1750mm Open. Temperature -30℃~55℃(derating above 45℃)
weight About 400 kg Warranty 5 years

Get a free quote and more details. Contact us now!

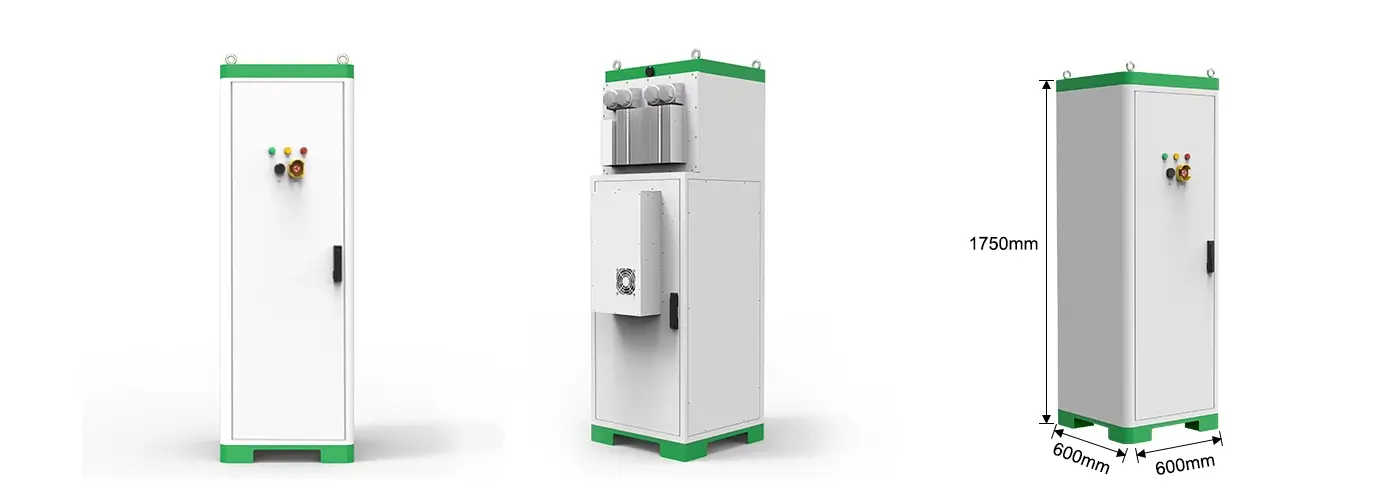

Size and details



Wide range of applications

Commercial and industrial battery storage cabinets are widely used in various fields such as power grid, industry, residential and transportation. These applications help enhance grid stability, improve energy efficiency, support renewable energy integration and provide backup power.

For solar panels

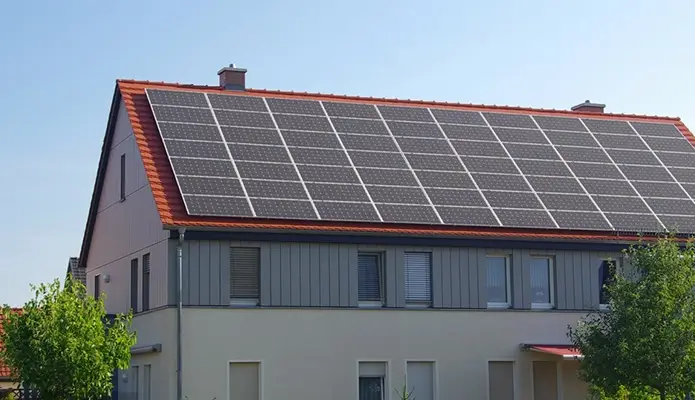

Solar panels

用于山区通信基站

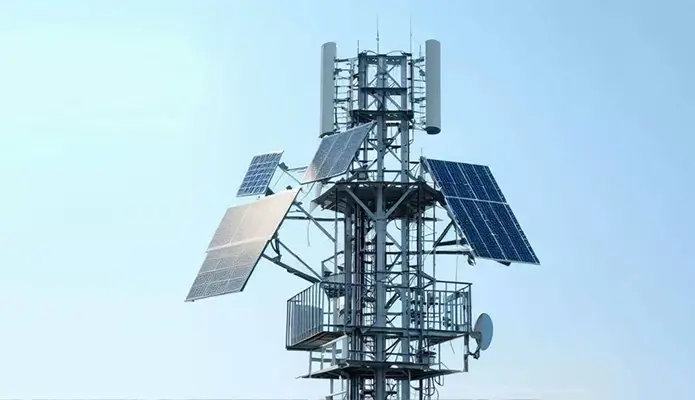

Mountain communication base station

backuppower

Backup power supply

用于家庭储能

Home Energy Storage

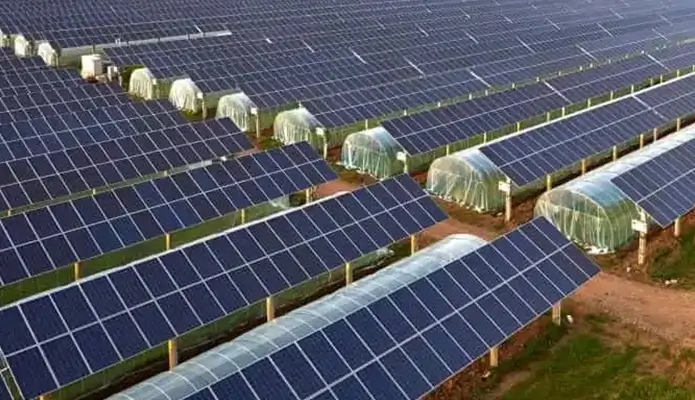

用于光伏农业温室软管

Photovoltaic agricultural greenhouse

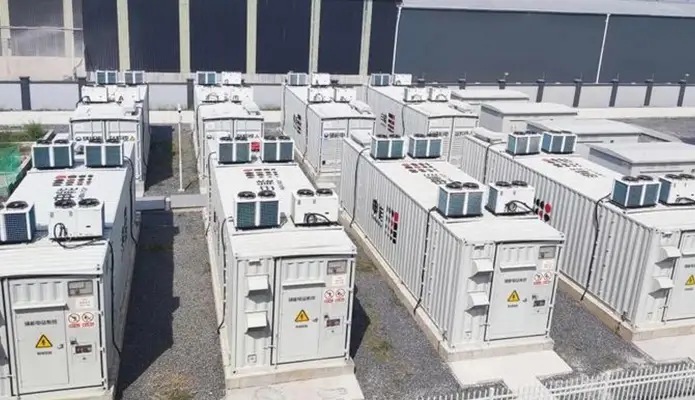

用于工业储能

Industrial Energy Storage


Customer Cases

Our C&l lithium battery energy storage cabinets have helped many customers optimize energy management, reduce costs, and improve operational efficiency. Through these success stories, you will learn how we provide customized energy storage solutions for different companies to promote sustainable development and power stability.

cxjpower cx-ci002客户案例,帮助合作伙伴降低成本


OEM/ODM C&I ESS Cabinet/Container

oem 或 odm c&i ess 柜 (集装箱)-1
oem 或 odm c&i ess 柜 (集装箱)-2

Why choose CXJPowers factory

为什么要选择cxjpower工厂



20kWh/40kWh Outdoor Hybrid Lithium Battery Cabinet

Model

CX-CI001

DC side parameters

Battery rated capacity

20KWh (Note: customizable)

Battery rated voltage

204.8V

Battery voltage range

179.2V - 230.4V

Battery Type

Lithium iron phosphate battery (LFP)

Battery capacity

104 Ah

Battery Life

8000 cycles 0.5C

Battery standard charge/discharge current

0.5C

Battery series and parallel connection method

64S1P

AC side parameters

Rated AC power

10 kW

Highest efficiency

98.2%

Rated AC voltage

230/400V

Grid voltage range

320-460V

Rated AC frequency

50/60 Hz

THDI Total harmonic distortion of current THDI

<3% (rated power)

Power Factor

-1 Lead -+1 Team

THDU Voltage total harmonic distortion THDU

<3% (linear load)

System Parameters

Energy cycle efficiency

≥92%

Protection Level

IP54

Corrosion protection grade

C3 is the default, C4/C5 is optional

Isolation methods

Non-isolated (transformer optional)

Relative humidity

0-95% (no condensation)

Ambient temperature

-30℃~55℃ (derating above 45℃)

Cooling method

Intelligent air cooling

high

<4000m (derating for over 2000m)

BMS Communication

CAN2.0b

EMS Communication

4G/CAN/RS485

Dimensions (W x D x H)

600mm×600mm×1750mm

weight

Approx. 400 kg

Annual decay rate

<3%

FAQs

How can industrial and commercial lithium battery energy storage cabinets (BESS) help companies reduce electricity costs?

C&I BESS cabinets reduce electricity costs by taking advantage of peak and valley price arbitrage, increasing renewable energy utilization, and participating in demand response programs.

What are the payment terms?

Sample order: 100% payment before shipment; Bulk order: 30% deposit before production, 70% balance before shipment.

How do industrial battery storage systems improve power supply reliability?

Industrial battery storage systems can be used as emergency backup power, stabilize microgrids, and improve grid quality, increasing power supply reliability.

How much does a commercial energy storage system cost to install?

The installation cost of a commercial energy storage system varies depending on factors such as system capacity, technical configuration, and installation location. The initial cost may be high, but long-term economic benefits can be achieved by saving electricity bills and improving power supply reliability.
