Advanced liquid cooling technology; Widely used in large C&I energy storage systems; Meets power demand regulation and peak shifting.
Model: CX-CI004
Rated energy: 5MWh
Rated voltage: 1331.2V
Battery type: LiFePO4 battery
Cell capacity: 314Ah
Cycle life: 8000 times(80%DOD)
Voltage range: 780V~936V
Rated grid frequency: 50/60Hz
Communication BMS: CAN2.0b
Communication EMS: RS485/4G/CAN
Cooling mode: Liqud cooling

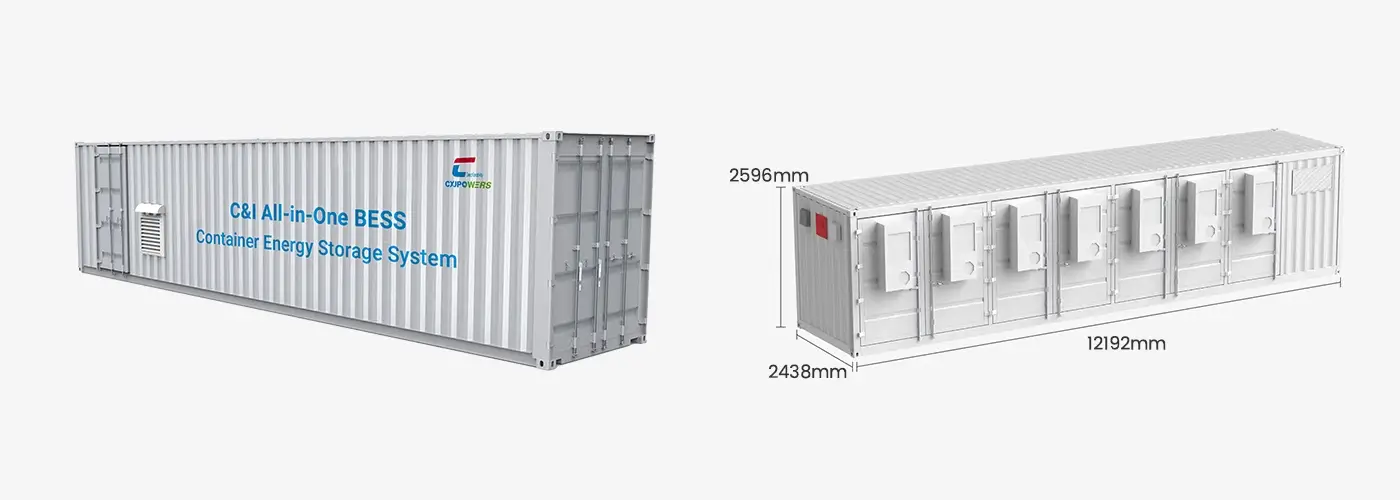

Size(W×D×H): 12192×2438×2591mm
Weight: 38000kg

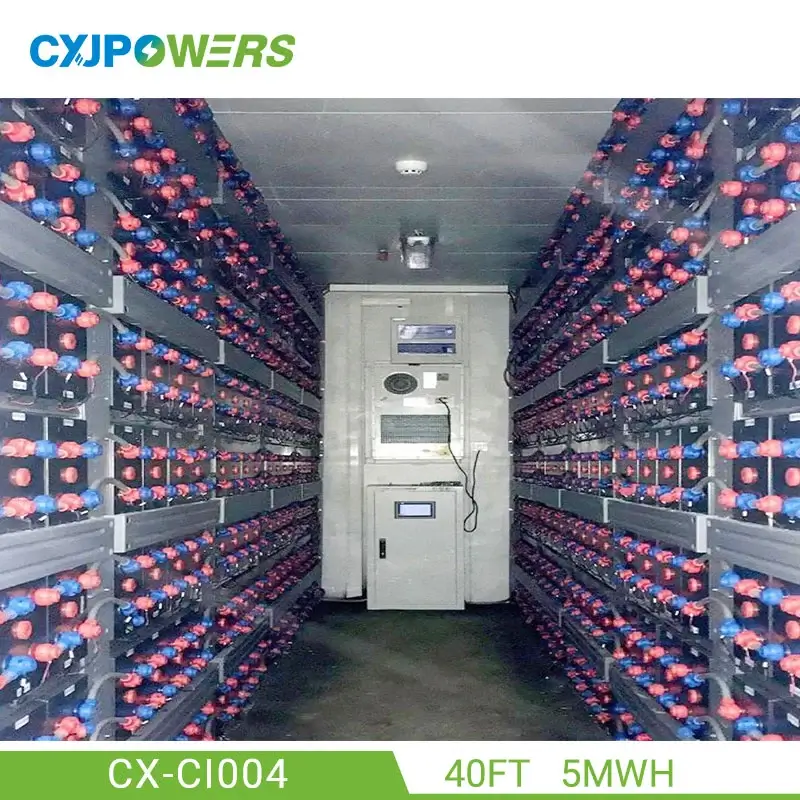

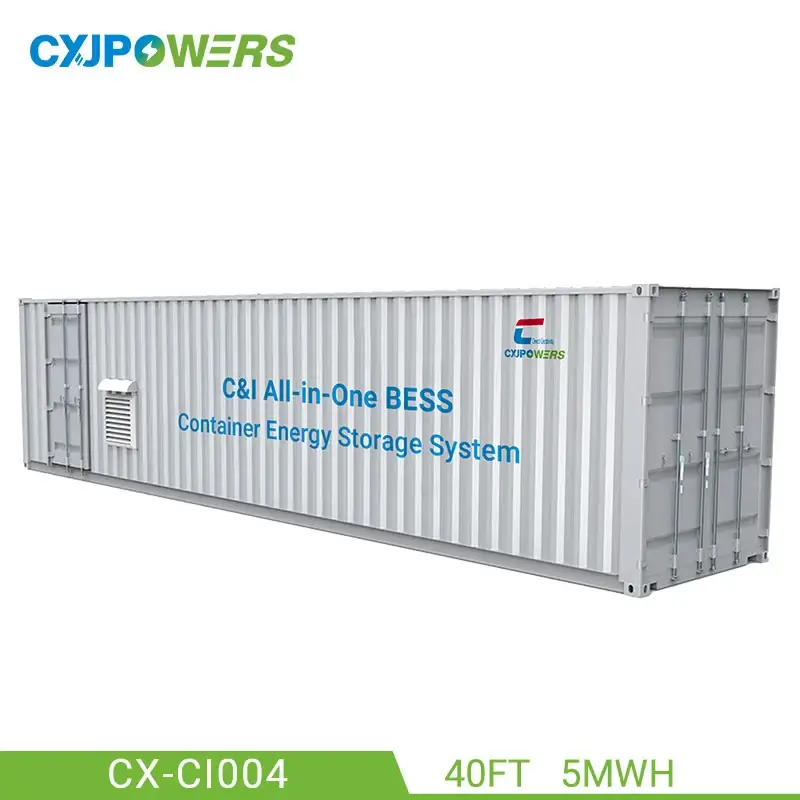

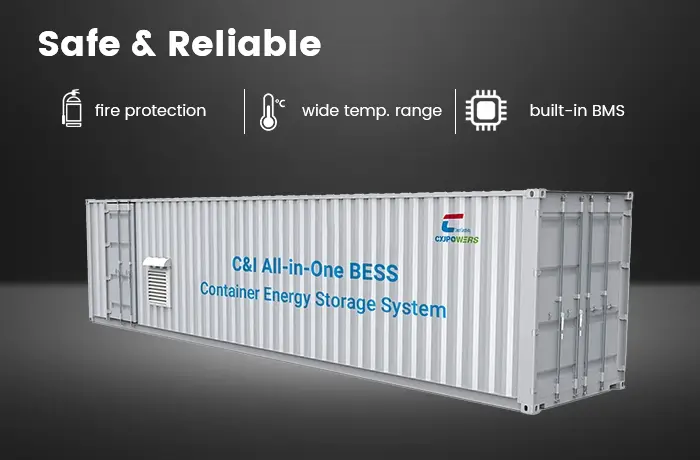

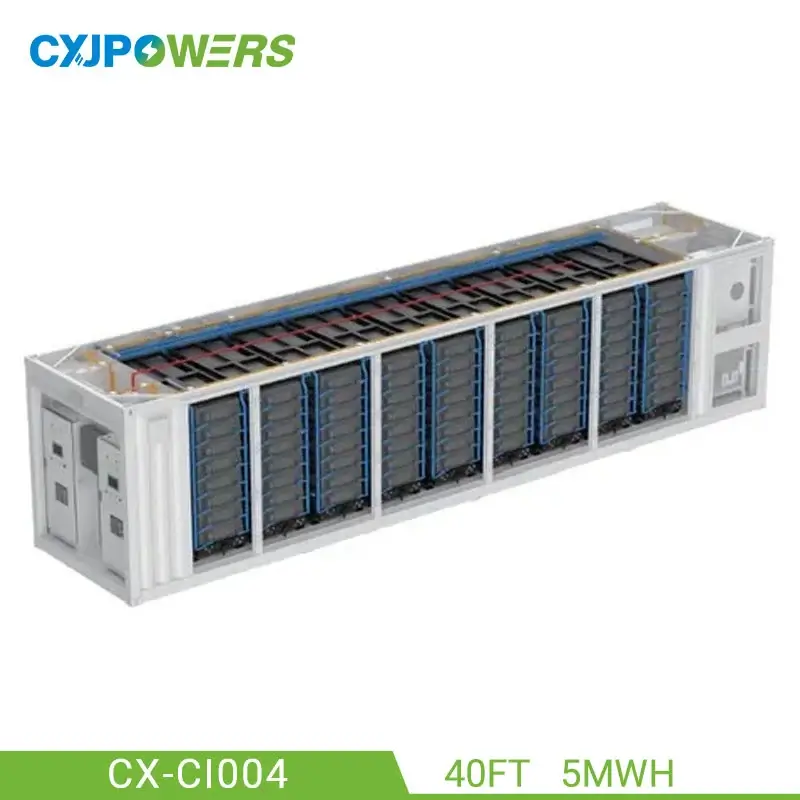

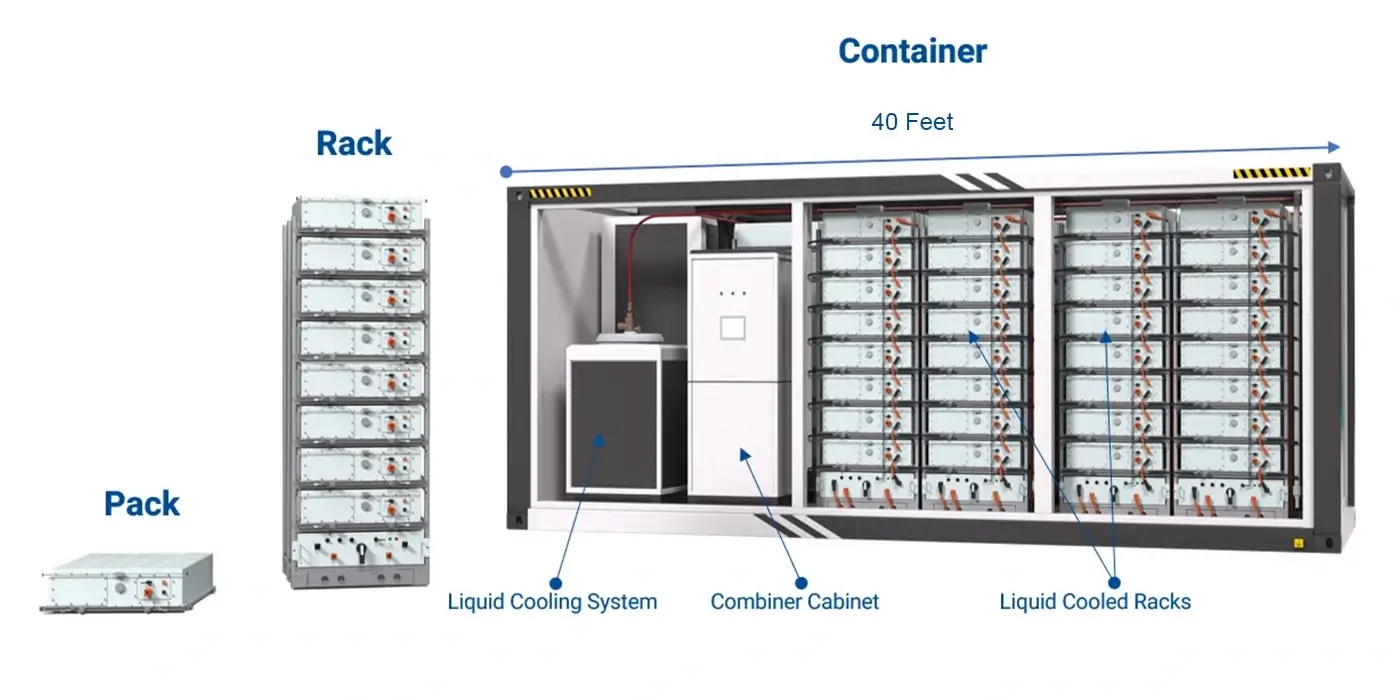

C&I energy storage 40Ft Cabinet BESS CX-CI004 is an all-in-one 5MWh lithium battery storage cabinet system specifically developed for demand regulation, peak shaving, industrial and commercial energy storage, etc. It integrates 5MWh LiFePO4 batteries with BMS, high-voltage box, power distribution system, PCS (Power Conversion System), control system, fire protection system, temperature control system, and EMS (Energy Management system) monitoring system.

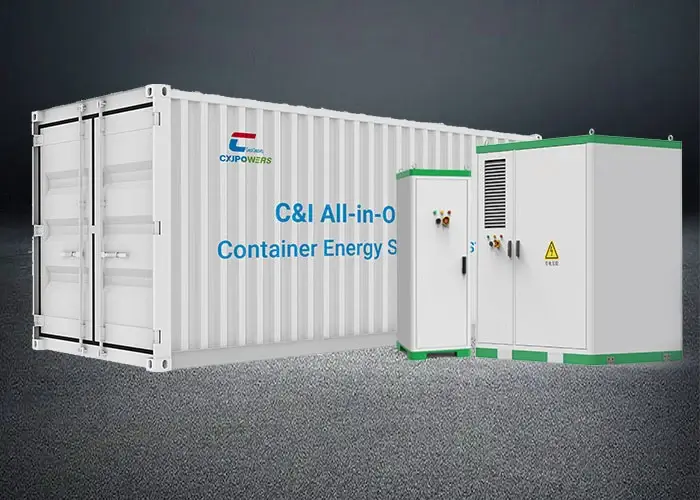

C&I Outdoor Microgrid Energy Storage Container
Smart and highly integrated design.
Up to 5MKwh
8000+ cycles, Grade A LFP cells.
-30℃~55℃ (derating above 45℃).
Operates at full power in -30℃ to 60℃
Expansion to MW-level system.
Easy to install and maintain.
Real-time monitoring, remote debug.
Supports On/Off Grid
CX-CI004 C&I energy storage 40Ft can be customized on-grid/off-grid operation mode, provides UPS function, and can be flexibly expanded.
Efficient & Intelligent
Intelligent control, cloud monitoring and other functions can be used with EMS to achieve anti-backflow function and efficiently manage battery status.
Outdoor structural design
Effectively prevent damage caused by vandalism, water, dust, etc.

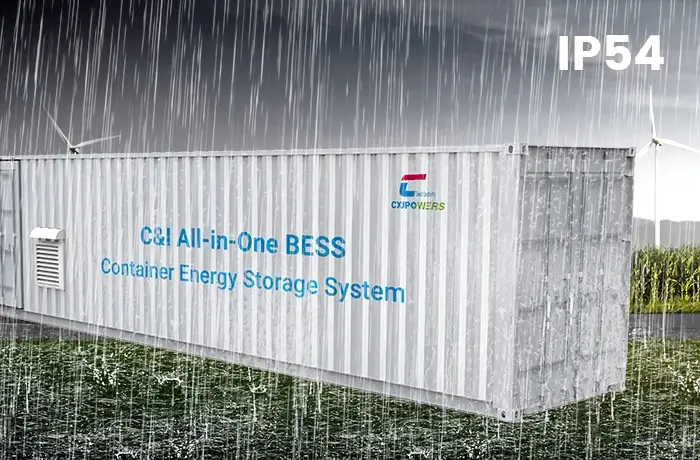

IP54 Protection Level
Waterproof and dustproof, no fear of outdoor environment, C3 Corrosion Protection Level

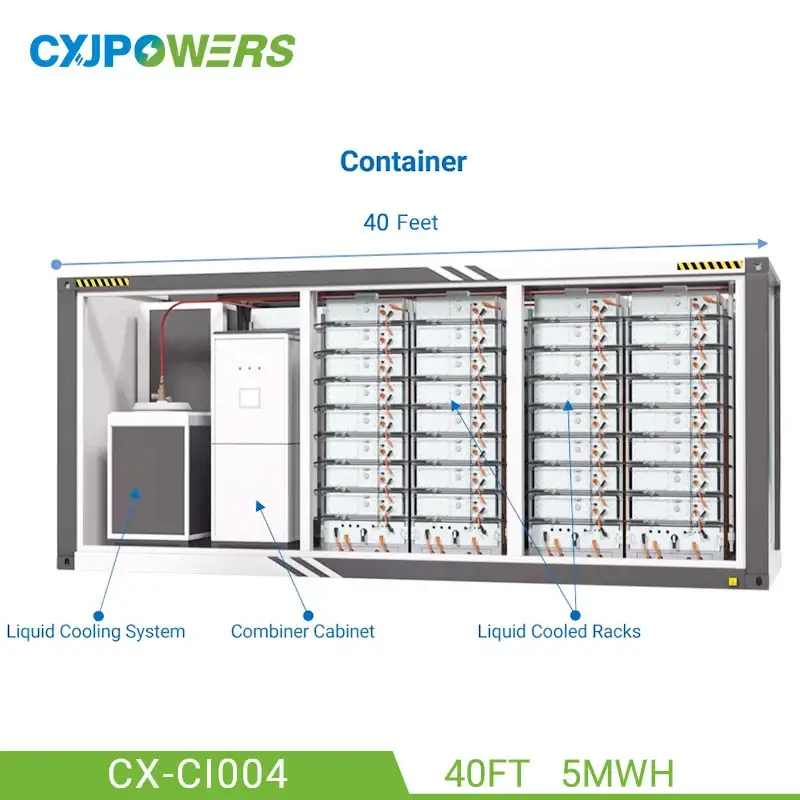

Intelligent Liquid Cooling System
Balances temperature, extends battery life and reduces power consumption.
4G/CAN/RS485 Communication
Multiple EMS communication modules are optional, convenient for computer, mobile phone, Internet monitoring and remote operation.
LED Touch Screen
Inverter grid-connected work priority, battery type and other information can be set through the LED screen.
Multiple Safety Protections
BMS, fire protection system, temperature control system, real-time monitoring system etc.
Main Benefit of Commercial & Industrial ESS

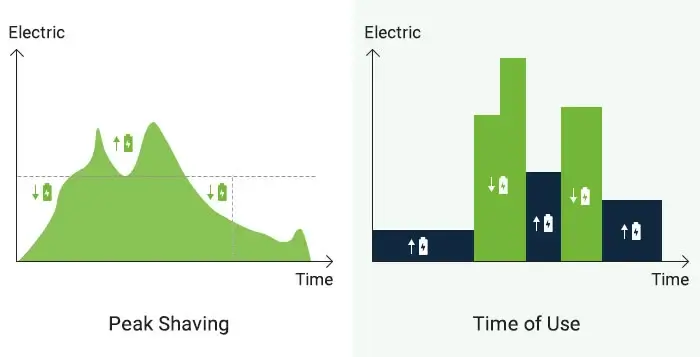

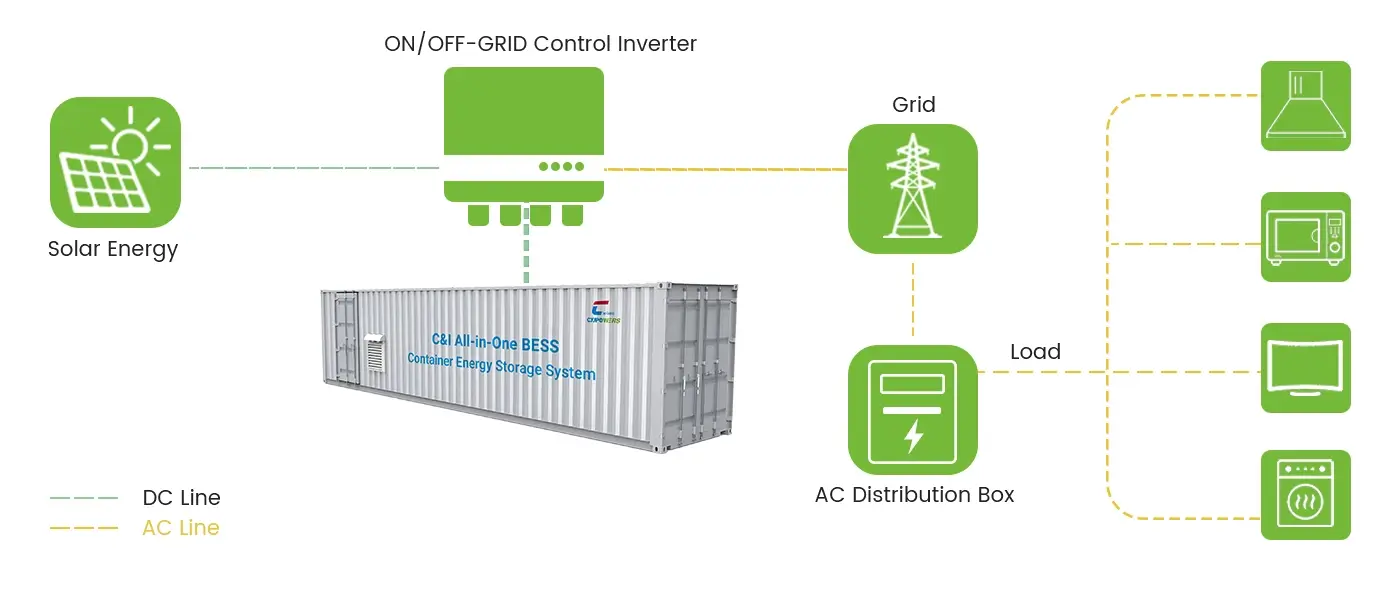

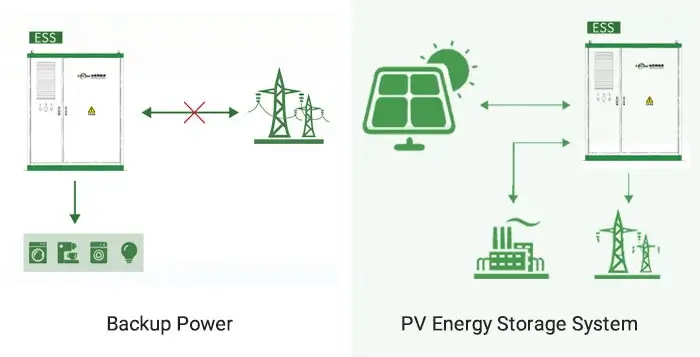

Solar energy during the day is converted into electrical energy for storage, which can meet your own electricity needs at night; it is charged and stored when the electricity price is low, and discharged when the electricity price is high. Peak-valley price difference saves electricity costs, optimizes energy efficiency, and provides reliable backup power.
| Item Name | C&I Energy Storage System BESS 40FT Container | ||||
| Model | CX-CI004 | Voltage Range | 1164.8V - 1497.6V | ||
| Rated Energy | 5MWh | Battery Type | LiFePO4 Cell | ||
| Rated Voltage | 1331.2V | Cycle Life | 8000 cycles(0.5C, 5%~95%DOD) | ||
| Rated AC Power | 105kW | EMS Communication | 4G/CAN/RS485 | ||
| Protection Level | IP54 | Cooling Method | Liquid Cooling | ||
| Dimensions(L×W×H) | 12192mm×2438mm×2591mm | Op. Temp. | -30℃~60℃(derating above 45℃) | ||
| Weight | Approx. 38,000kg | Warranty | 5 years | ||
Get A Free Quotation & More Details. Contact Us Now!

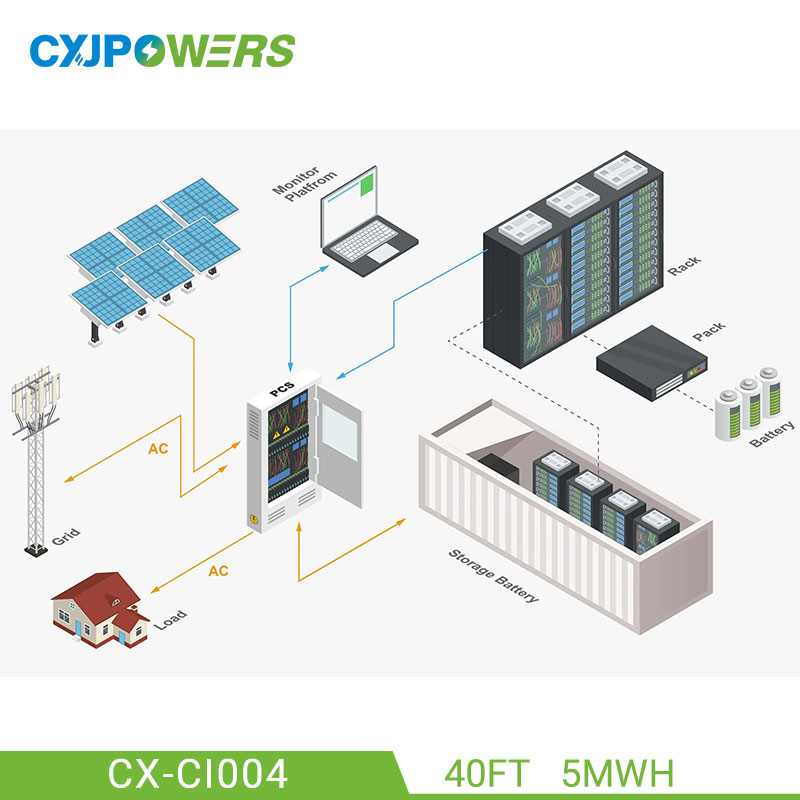

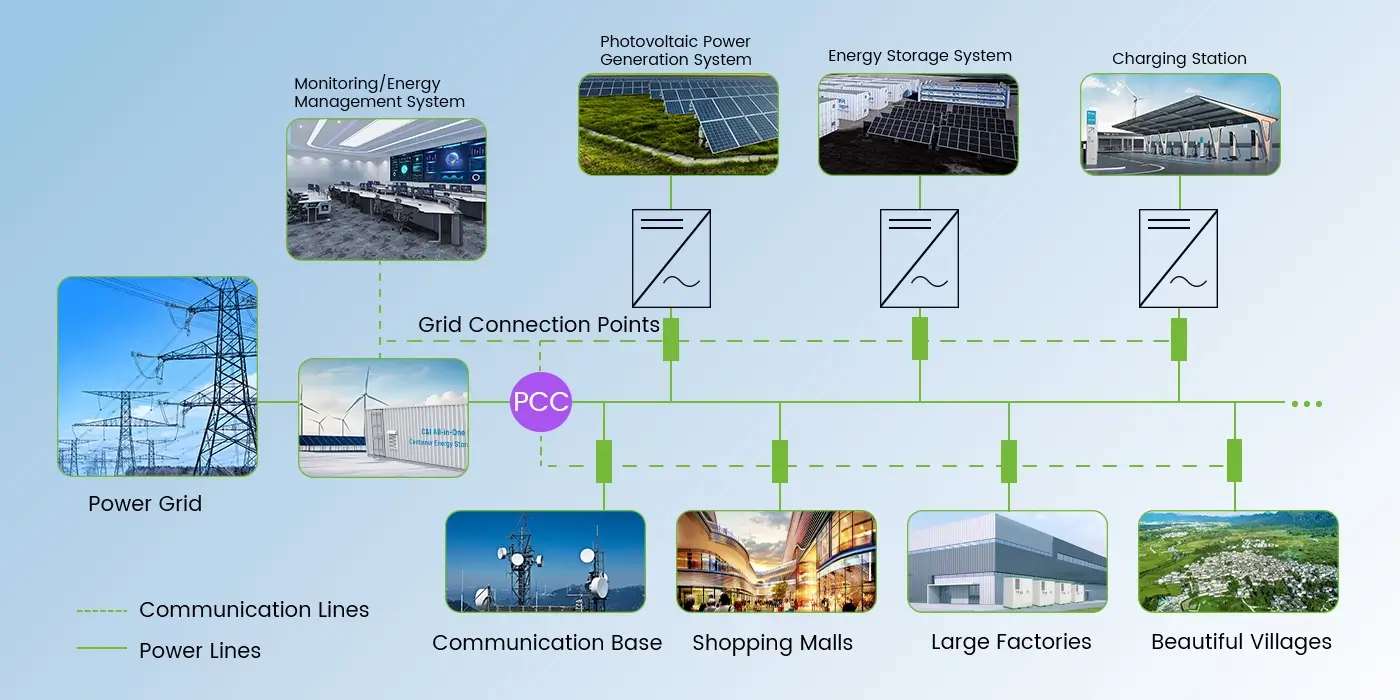

BESS battery energy storage container have a wide range of uses. They can release electricity to balance electricity consumption and earn profits when demand peaks or power is insufficient. They can form scale microgrids solution with distributed power sources, monitoring, and protection devices to provide stable power supply or backup power supply for shopping malls, factories, communication base stations, etc. to maintain normal use.

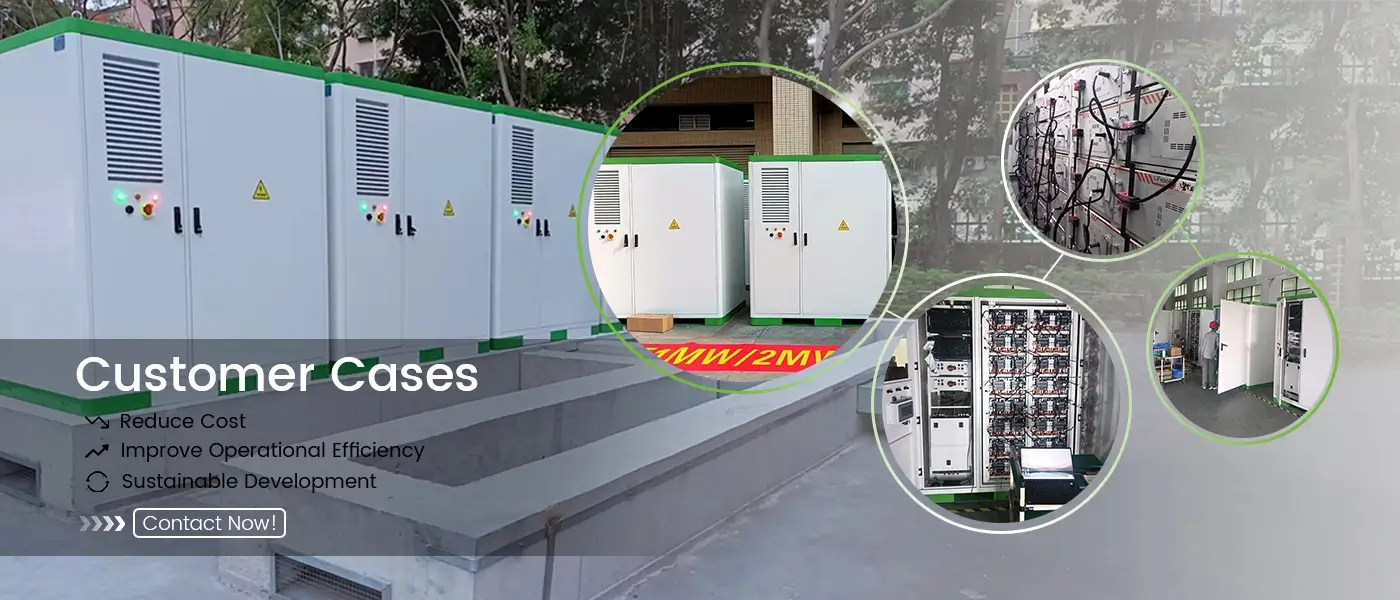

Our C&l lithium battery storage cabinets have helped many customers optimize energy management, reduce costs and improve operational efficiency. Through these successful cases, you will learn how we provide customized energy storage solutions for different companies to promote sustainable development and power stability.
|
C&I Energy Storage System BESS 40FT Container |
|
|
Model |
CX-CI004 |
|
DC Side Parameters |
|
|
Nominal Battery Capacity |
5MWh (Note: Customizable) |
|
Nominal Battery Voltage |
1331.2V |
|
Nominal Voltage Range |
780V - 936V |
|
Battery Type |
LiFePO4 battery (LFP) |
|
Cell Capacity |
314Ah |
|
Battery Lifespan |
8000 cycles (0.5C, 5%~95% DOD, 70% SOH) |
|
Battery Standard Charge/Discharge Current |
0.5C |
|
Battery Series-Parallel Connection Method |
12*1P52S8S |
|
Module Cooling Method |
Liquid Cooling |
|
System Parameters |
|
|
Dimemsions (W×D×H) |
12192×2438×2591mm |
|
Weight (Approx.) |
38,000 KG |
|
Protection Level |
IP54 |
|
Corrosion Protection Level |
C3 by default, C4/C5 optional |
|
Relative Humidity |
0~95%, no condensation |
|
Operating Temperature |
-20℃~60℃ (45℃ derating） |
|
Cooling Method |
Liquid Cooling |
|
Altitude |
<4000m (>2000m derating) |
|
BMS Communication |
CAN 2.0b |
|
EMS Communication |
4G/CAN/RS485 |
|
Warranty |
5 years |

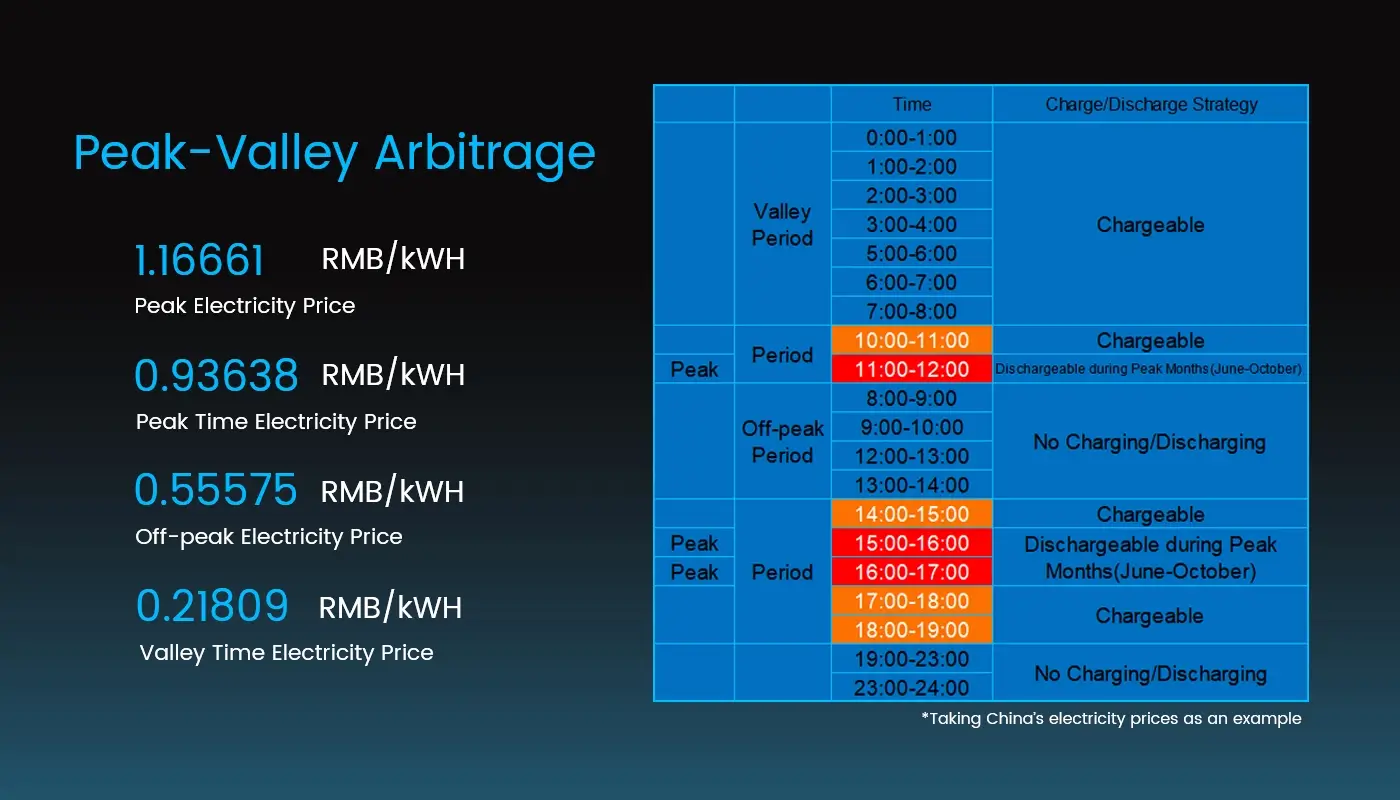

C&I BESS cabinet reduce electricity costs by leveraging peak-valley electricity price arbitrage, improving renewable energy utilization, and participating in demand response programs.
Sample order: 100% payment before shipment; Bulk order: 30% deposit before production, 70% balance before shipment.
Industrial battery storage systems enhance power supply reliability by serving as emergency backup power sources, stabilizing microgrids, and improving grid quality.
Installation costs of commercial energy storage systems vary based on factors like system capacity, technical configurations, and installation location. While initial costs may be high, long-term economic benefits are obtained through electricity cost savings and enhanced power supply reliability.
