CXJPowers · Reliable Energy Storage Battery Supply Manufacturer in China
HV LiFePO4 Battery Home Energy Storage Solution. Scalable, More Flexible, High Efficiency.

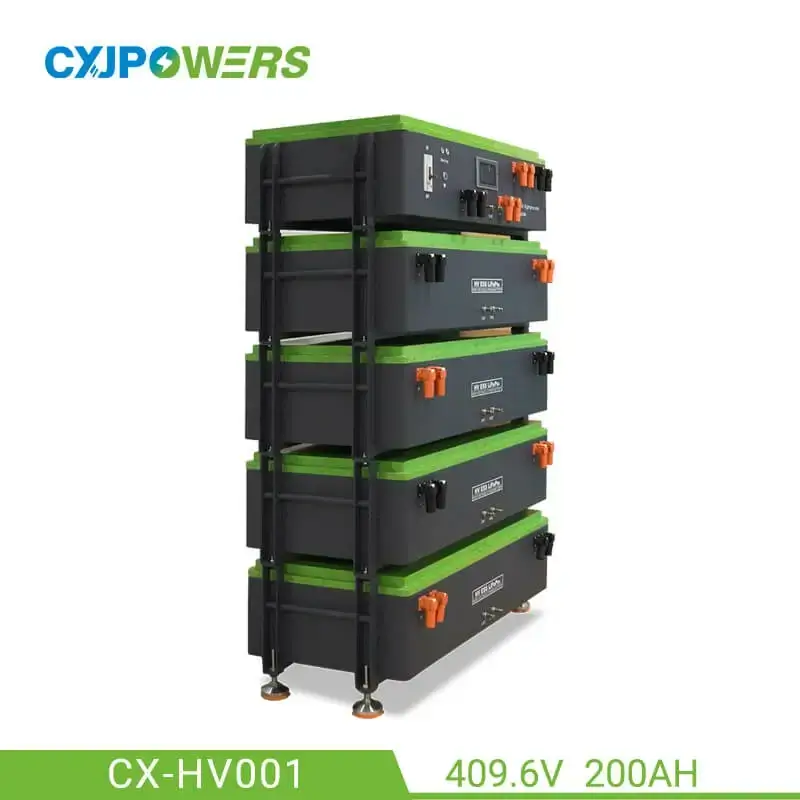

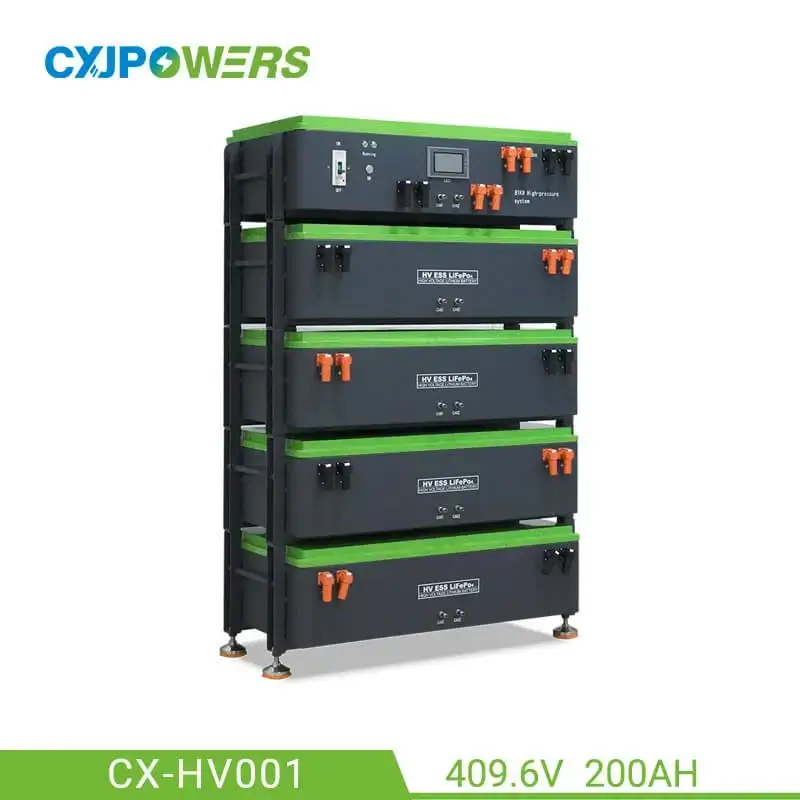

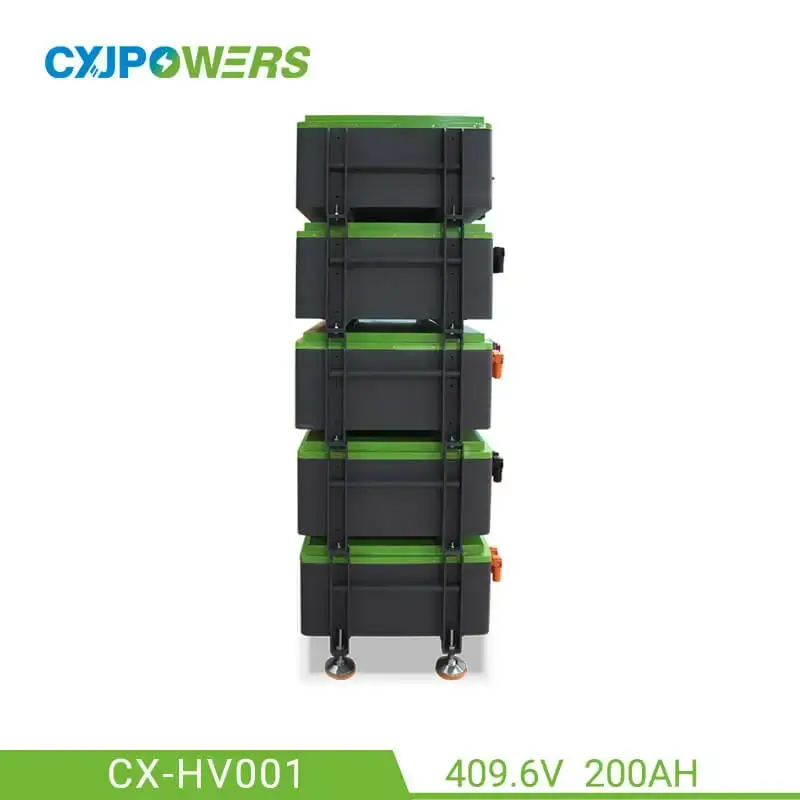

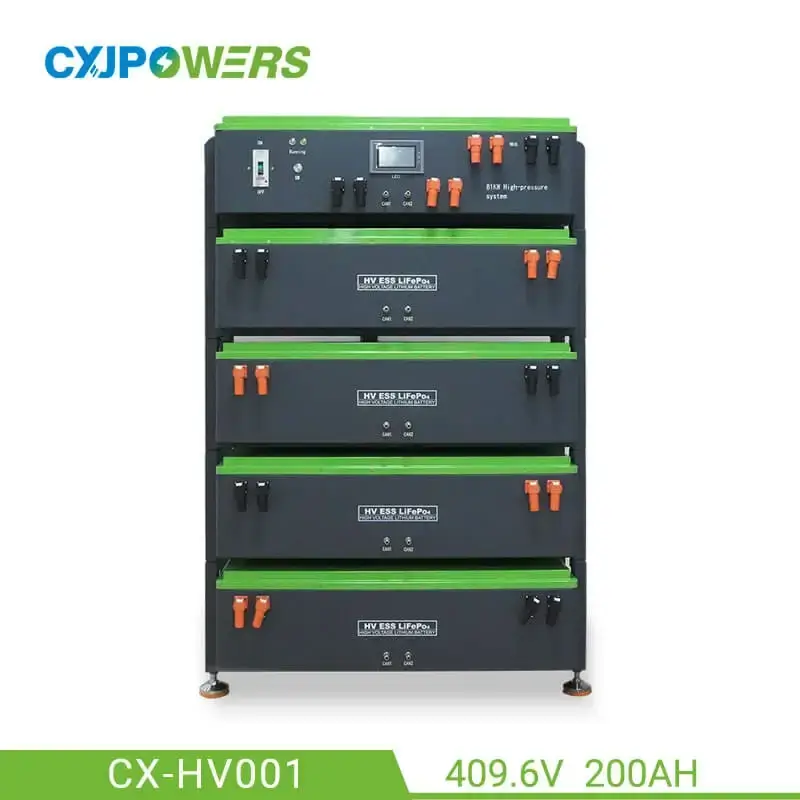

Model: CX-HV001
Rated energy: 81.92kWh
Rated voltage: 409.6V
Rated capacity: 200Ah
Battery type: LiFePO4 battery
Cycle life: > 6000 times
Voltage range: 320V～467.2V
BMS communication: CAN/RS485/RS232

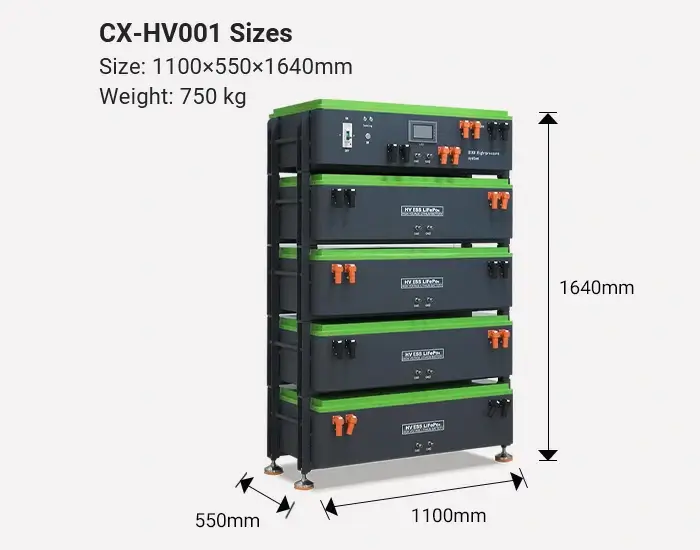

Dimension(L×W×H): 1100x550x1640mm
Installation method: Floor mount
Weight: 750 kg
MOQ: ≥ 1pcs
CXJPowers is a top home battery storage supplier and ESS battery manufacturer, specializing in the research and development, production and sales of solar energy storage batteries (rack-mounted, wall-mounted, stacked, etc.), integrated LiFePO4 ESS (energy storage system) and various LiFePO4 lithium battery packs, providing customized lithium energy solutions.
CXJPowers high voltage battery is an advanced energy storage solution designed to meet the needs of commercial and residential users. This LiFePO4 (lithium iron phosphate) battery system has a rated energy capacity of 81.92 kWh and a rated voltage of 409.6V. Combining scalability, high efficiency and advanced communication capabilities, it is an ideal choice for efficient solar energy storage.
CXJPowers New Energy · Empowers Better Life
Stable voltage range is as high as 320~467.2V.
More efficient energy storage and delivery.
Each battery layer has an independent BMS.
Adopt safer LiFePO4 Battery.
Top configuration high pressure management system.
Extra long service life.
Modular design for easy installation and maintenance.
Cover all needs in commercial fields.

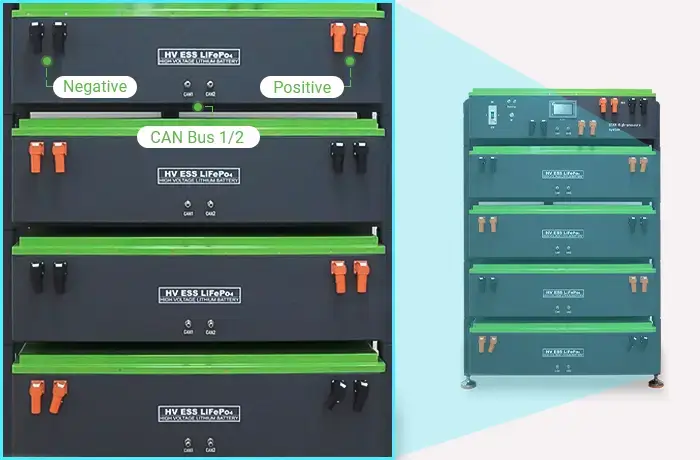

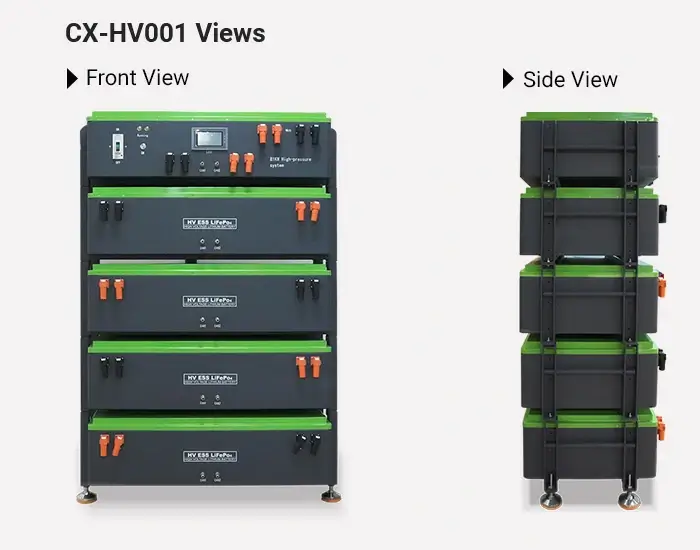

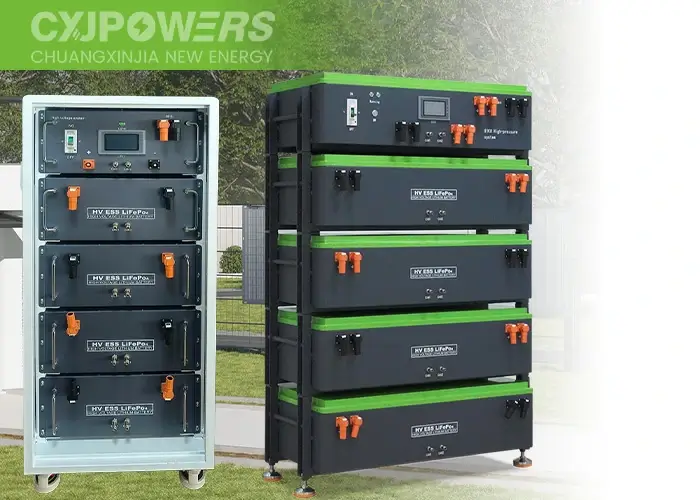

The CXJPowers 409.6V 81.92kWh LiFePO4 lithium battery HV ESS features a modular design for easy installation and maintenance. This battery system consists of four slave battery modules connected in series, a high-voltage battery management system, and four independent master high-voltage combination boxes equipped with battery management systems (BMS), offering high flexibility and scalability.

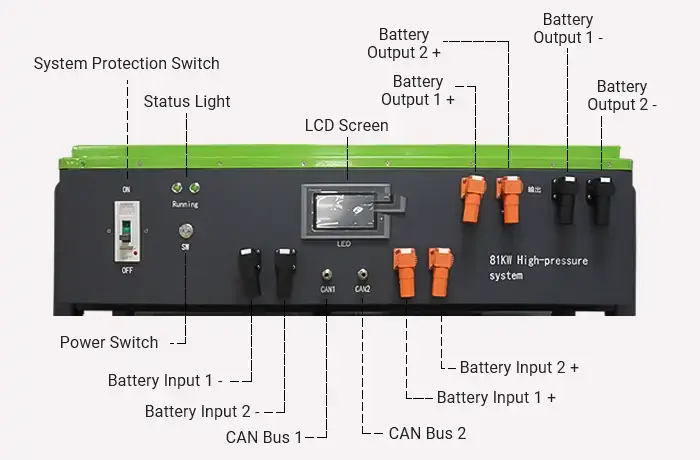

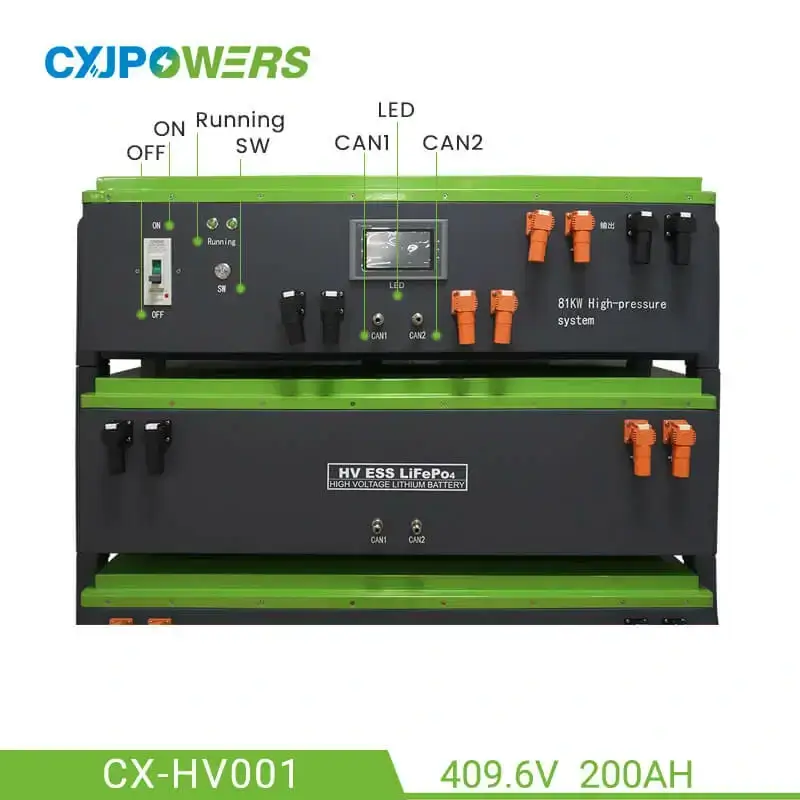

High Voltage Battery Management System
Battery Pack Module
The LiFePo4 technology used in CXJPowers high voltage battery cells offers several advantages over traditional lead acid batteries. Such as higher energy density, longer cycle life and faster charging time. This makes the CXJPowers 409.6V 81.92kWh LiFePo4 lithium battery HV ESS an excellent choice for grid-tied solar storage applications as it can provide reliable and efficient power storage for many years to come.
High-voltage batteries are essential in a variety of applications. Including grid stabilization, renewable energy storage, and industrial equipment. They improve performance and efficiency, provide reliable backup power for solar systems, and offer powerful energy solutions for heavy machinery. Unleash the power of innovation with high-voltage technology!
Renewable Energy Storage: For storing solar and wind energy.
Backup Power Systems: Offering emergency power during outages for homes and businesses.
Grid Stabilization: Helping manage supply and demand fluctuations in the electrical grid.
| Item Name | High Voltage Battery 409.6V 81.92kWh | ||||
| Model | CX-HV001 | Voltage Range | 320V~467.2V | ||
| Rated Energy | 81.92Wh | Battery Type | LiFePO4 Cell | ||
| Rated Voltage | 409.6V | Cycle Life | ＞6000 cycles | ||
| Rated Capacity | 200Ah | BMS Communication | CAN/RS485/RS232/Ethernet | ||
| Standard Charging/Discharging Current | ≤100A | Max Discharging Current | 200A | ||
| Dimensions(L×W×H) | 1100mm×550mm×1640mm | Op. Temp. | Charging: 0~60℃ / Discharging: -20~60℃ | ||
| Weight | Approx. 750kg | Installation | Stacking | ||
Get A Free Quotation & More Details. Contact Us Now!

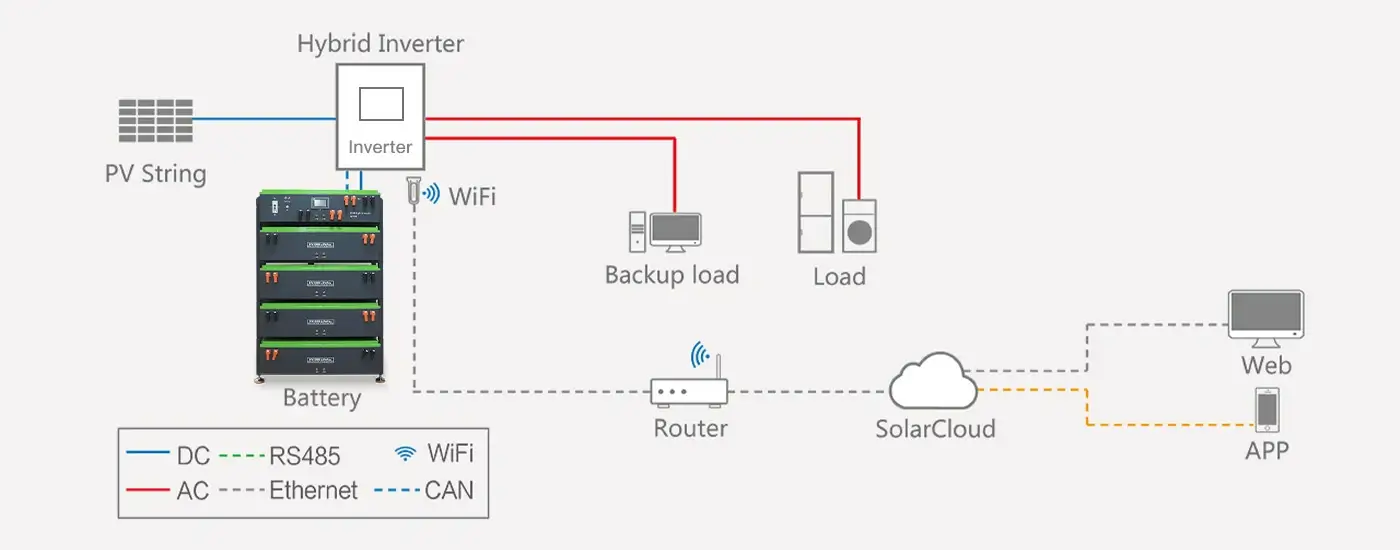

CAN/RS485/RS232 communication protocol lithium-ion battery or LiFePO4 battery is compatible with most inverters on the market.
CXJPowers wall mounted battery requires an additional separate inverter unit, while All in One combines the battery and inverter into one unit.
Sample order: 100% payment before shipment; Bulk order: 30% deposit before production, 70% balance before shipment.
CXJPowers is a professional lithium battery manufacturer with ISO9001, ISO14001. All the products have CE certificate.
You can leave message to contact us on our website or send e-mail to info@cxjpowers.com. Our professional salesperson will help and guide you to place an order.
