CXJPowers · Reliable Energy Storage Battery Supply Manufacturer in China
Advanced liquid cooling technology; Widely used in large C&I energy storage systems; Meets power demand regulation and peak shifting.
Model: CX-CI002
Rated energy: 215kWh
Rated voltage: 819.2V
Battery type: LiFePO4 battery
Cycle life: > 6000 times(80%DOD)
Voltage range: 768V ~ 921.6V
Rated AC power: 105kW
Rated AC frequency: 50/60Hz
BMS Communication: CAN2.0b
BMS communication: CAN/RS485

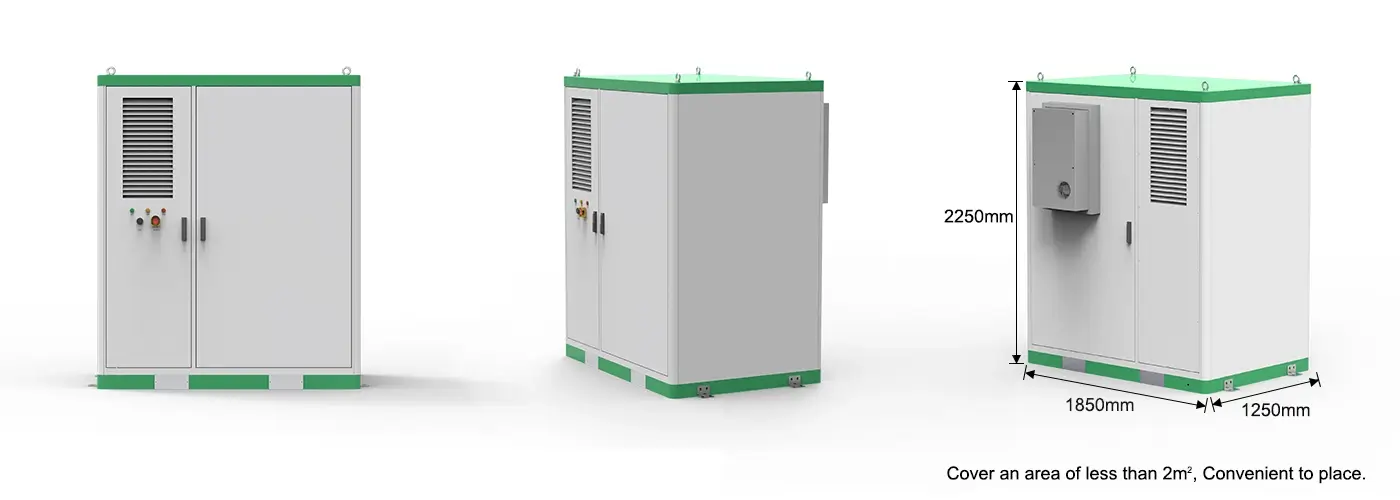

Dimension(L×W×H): 1850m×1250×2280mm
Protection grade: IP54
Weight: 3500 kg

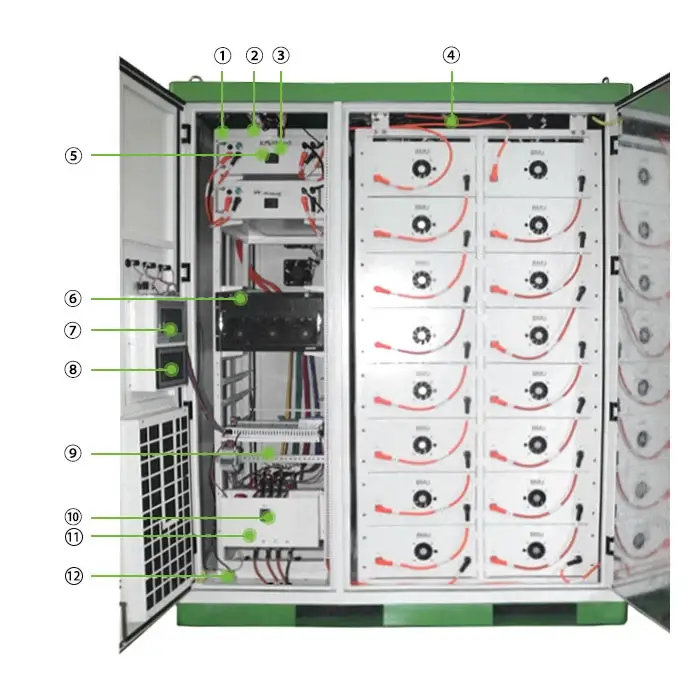

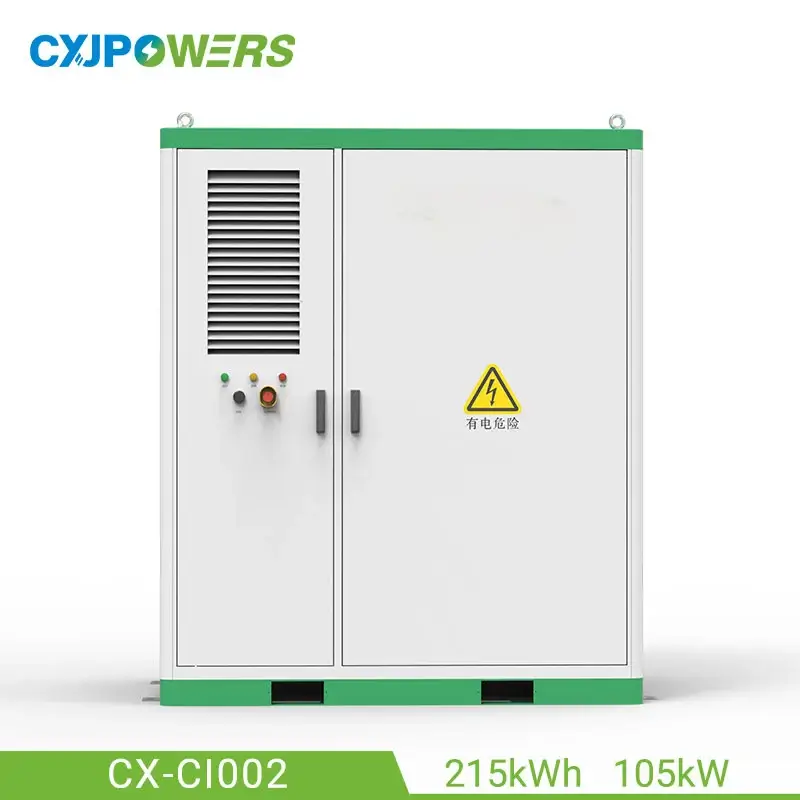

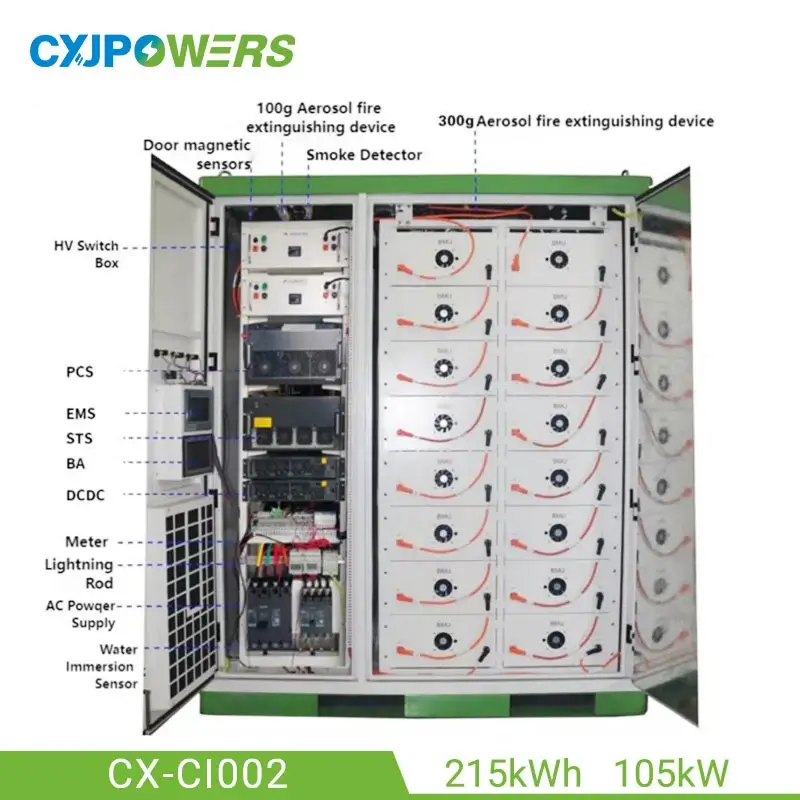

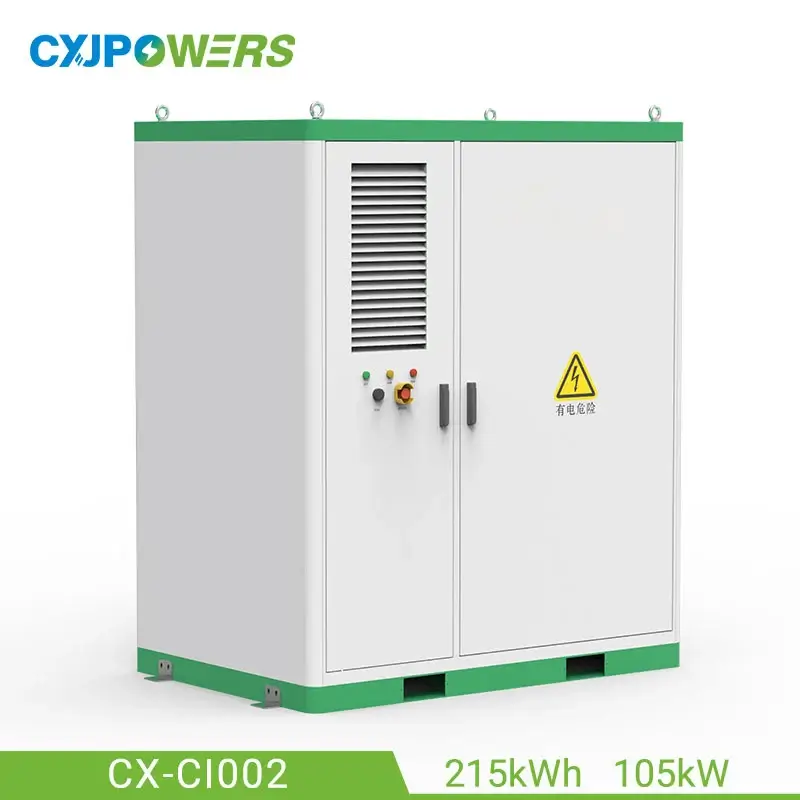

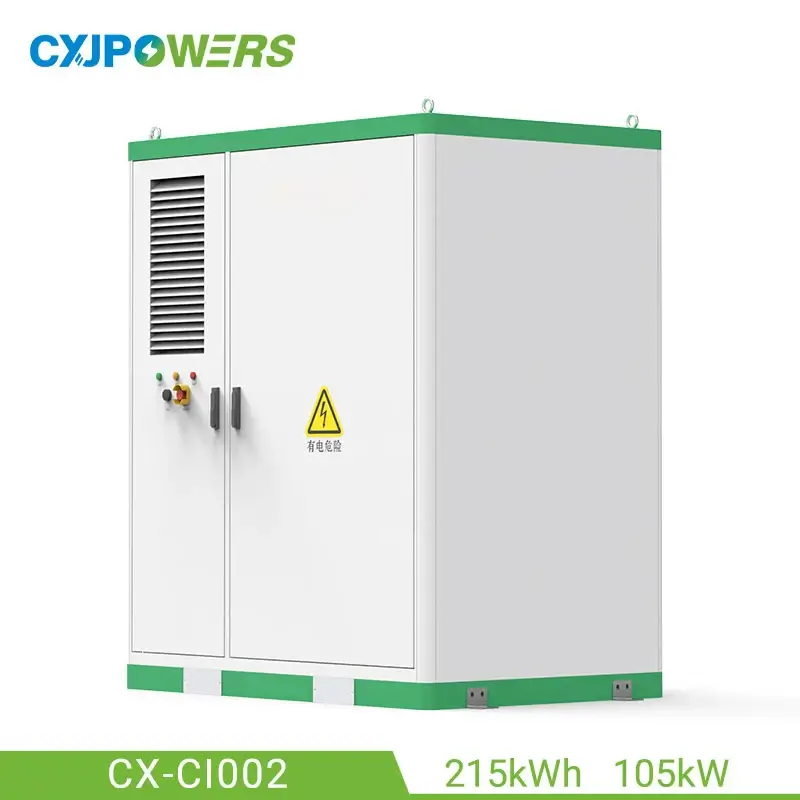

Outdoor Cabinet BESS CX-CI002 is an all-in-one 215kWh lithium battery storage cabinet system specifically developed for demand regulation, peak shaving, industrial and commercial energy storage, etc. It integrates 215kWh LiFePO4 batteries with BMS, high-voltage box, power distribution system, PCS (Power Conversion System), control system, fire protection system, temperature control system, and EMS (Energy Management system) monitoring system.
C&I Outdoor Lithium Battery Storage Cabinet System
Smart and highly integrated design.
Up to 215Kwh
8000+ cycles, Grade A LFP cells.
-30℃~55℃ (derating above 45℃).
Operates at full power in -30℃ to 60℃
Expansion to MW-level system.
Easy to install and maintain.
Real-time monitoring, remote debug.

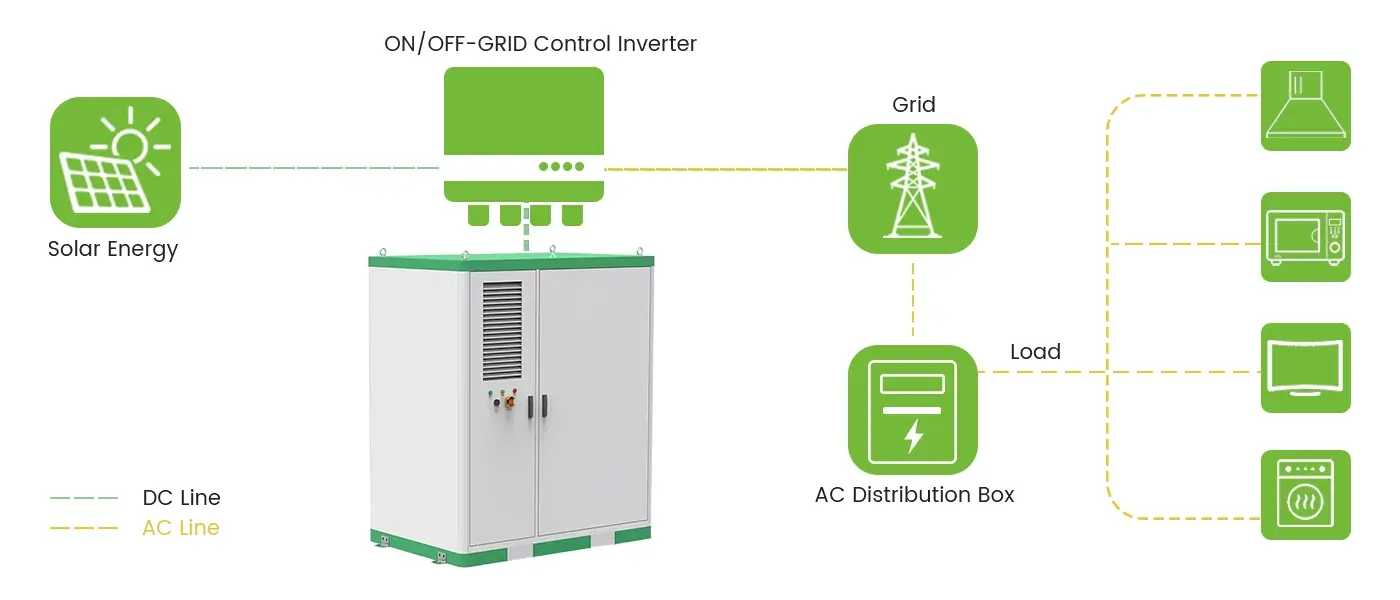

Supports On/Off Grid
CX-CI002 lithium battery storage cabinet can be customized on-grid/off-grid operation mode, provides UPS function, and can be flexibly expanded.

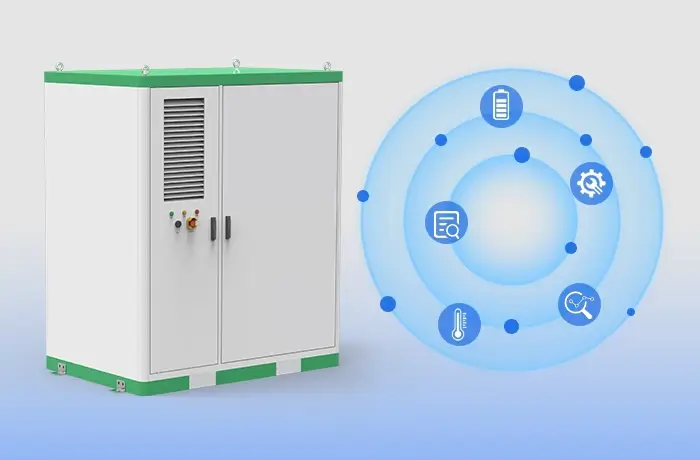

Efficient & Intelligent
Intelligent control, cloud monitoring and other functions can be used with EMS to achieve anti-backflow function and efficiently manage battery status.
Outdoor structural design
Effectively prevent damage caused by vandalism, water, dust, etc.

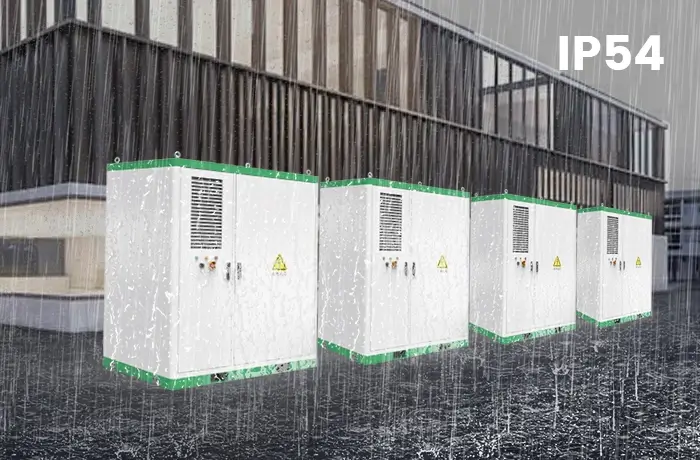

IP54 Protection Level
Waterproof and dustproof, no fear of outdoor environment.

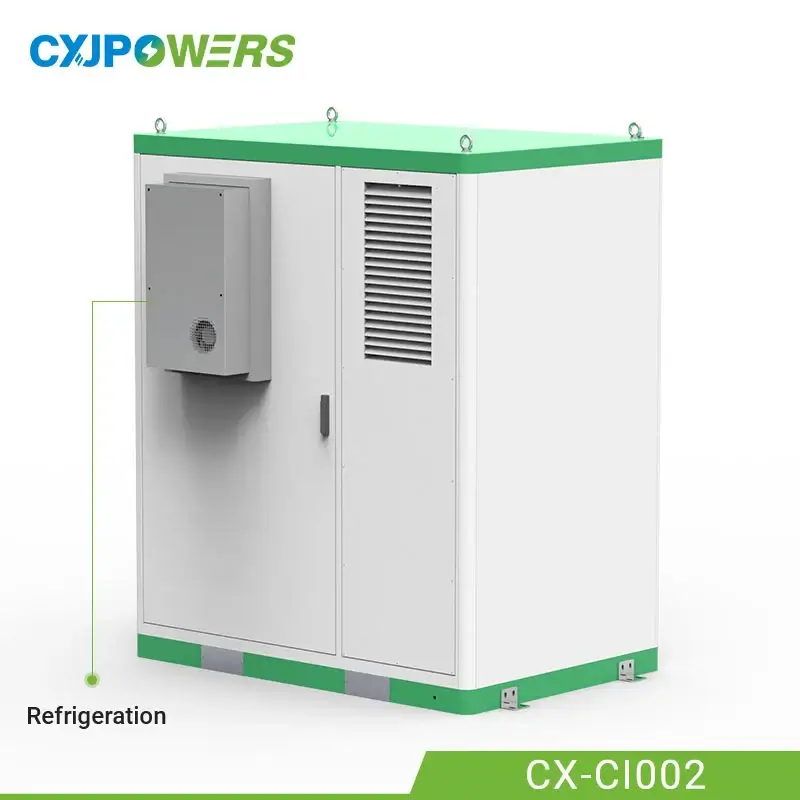

Intelligent Air Cooling System
Balances temperature, extends battery life and reduces power consumption.
4G/CAN/RS485 Communication
Multiple EMS communication modules are optional, convenient for computer, mobile phone, Internet monitoring and remote operation.
LED Touch Screen
Inverter grid-connected work priority, battery type and other information can be set through the LED screen.

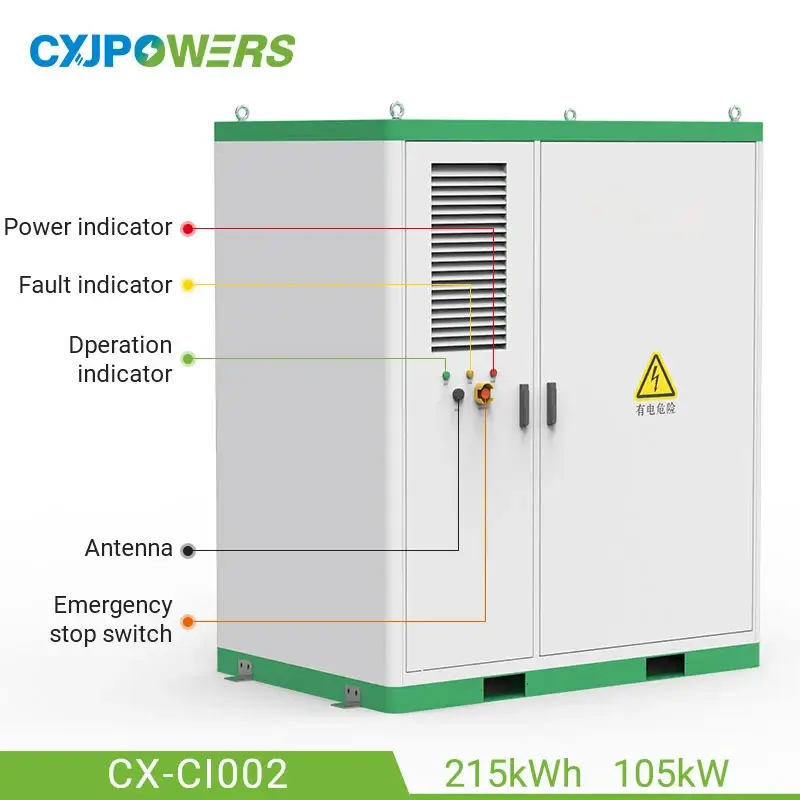

Multiple Safety Protections
BMS, fire protection system, temperature control system, real-time monitoring system etc.
Main Benefit of Commercial & Industrial ESS

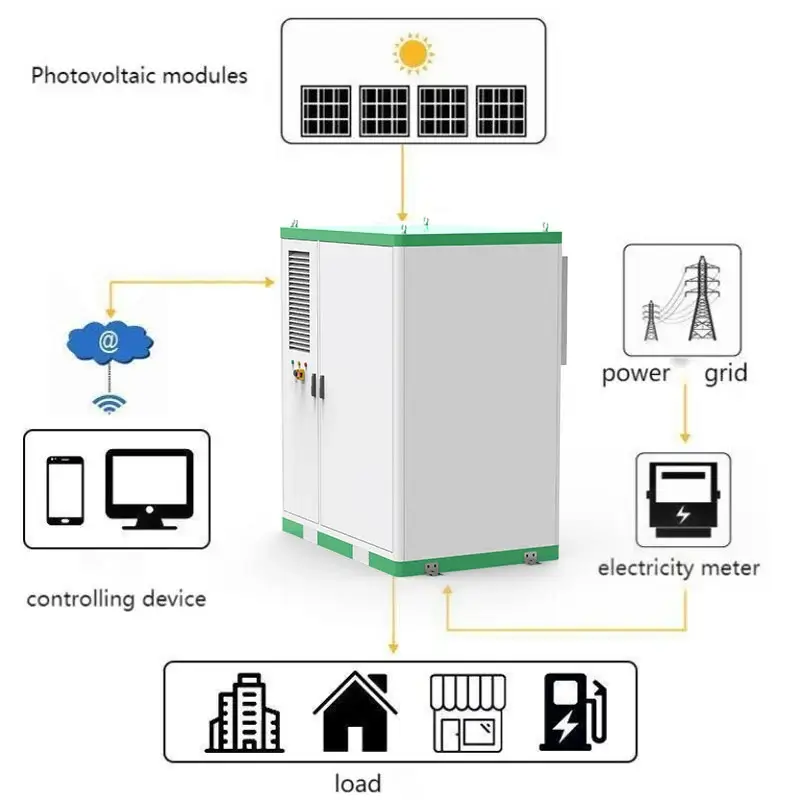

Solar energy during the day is converted into electrical energy for storage, which can meet your own electricity needs at night; it is charged and stored when the electricity price is low, and discharged when the electricity price is high. Peak-valley price difference saves electricity costs, optimizes energy efficiency, and provides reliable backup power.
| Item Name | String Type Outdoor ESS Lithium Battery Storage Cabinet | ||||
| Model | CX-CI002 | Voltage Range | 768V - 921.6V | ||
| Rated Energy | 215kWh | Battery Type | LiFePO4 Cell | ||
| Rated Voltage | 819.2V | Cycle Life | 8000 cycles(0.5C, 5%~95%DOD) | ||
| Rated AC Power | 105kW | EMS Communication | 4G/CAN/RS485 | ||
| Protection Level | IP54 | Cooling Method | Air Cooling | ||
| Dimensions(L×W×H) | 1850mm×1250mm×2280mm | Op. Temp. | -30℃~55℃(derating above 45℃) | ||
| Weight | Approx. 3500kg | Warranty | 5 years | ||
Get A Free Quotation & More Details. Contact Us Now!

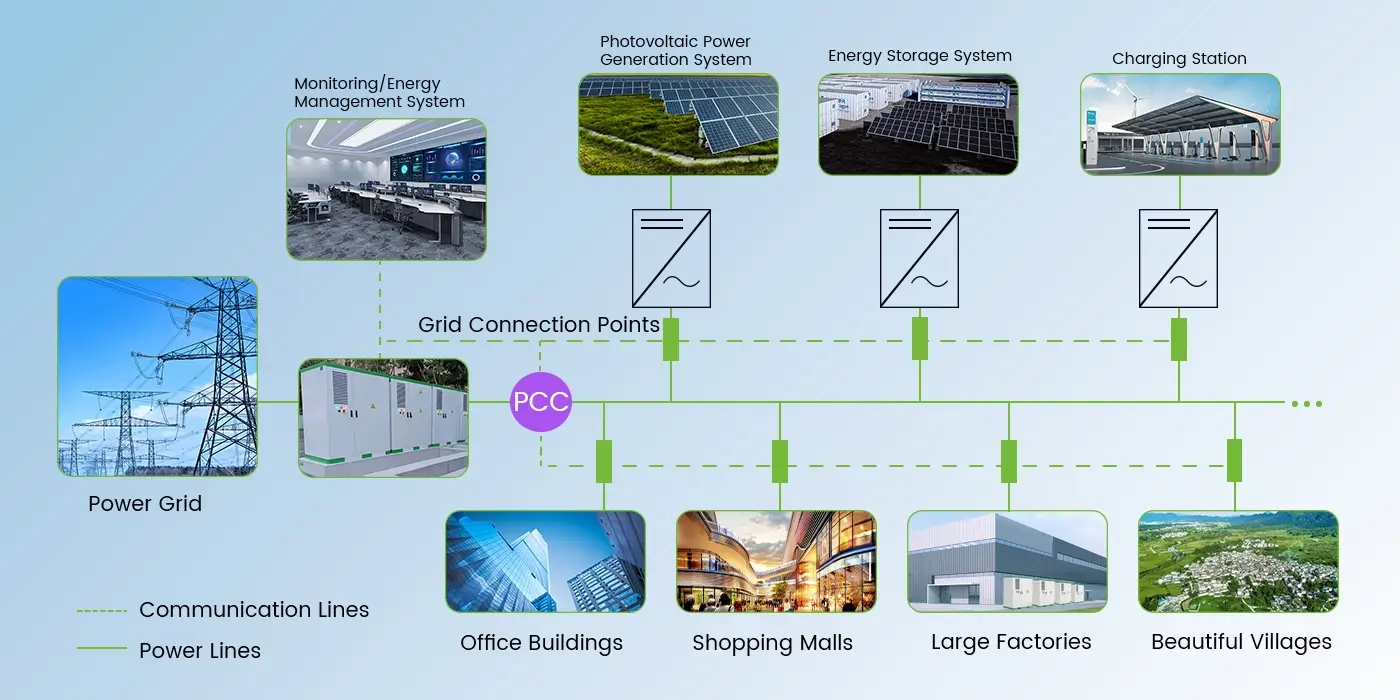

Commercial & Industrial Battery Storage Cabinet have a wide range of applications across various sectors, including the energy grid, industry, residential, and transportation. These applications help enhance grid stability, improve energy efficiency, support renewable energy integration, and provide backup power.
Our C&l lithium battery storage cabinets have helped many customers optimize energy management, reduce costs and improve operational efficiency. Through these successful cases, you will learn how we provide customized energy storage solutions for different companies to promote sustainable development and power stability.
|
String Type Outdoor ESS Lithium Battery Storage Cabinet |
|
|
Model |
CX-CI002 |
|
DC Side Parameters |
|
|
Battery Rated Capacity |
215KWh (Note: Customizable) |
|
Battery Rated Voltage |
819.2V |
|
Battery Voltage Range |
768V - 921.6V |
|
Battery Type |
LiFePO4 battery (LFP) |
|
Cell Capacity |
132Ah |
|
Battery Lifespan |
8000 cycles 0.5C |
|
Battery Standard Charge/Discharge Current |
0.5C |
|
Battery Series-Parallel Connection Method |
1P*8S*32S(2 Groups) |
|
AC Side Parameters |
|
|
Rated AC Power |
105KW |
|
Maximum Effciency |
98.2% |
|
Rated AC Voltage |
230/400V |
|
Power Grid Voltage Range |
320-460V |
|
Rated AC Frequency |
50/60Hz |
|
THDI Total Harmonic Distortion Rate of Current THDI |
<3% (rated power) |
|
Power Factor |
-1Ahead -+1 behind |
|
THDU Total Harmonic Distortion Rate of Voltage THDU |
<3% (linear load) |
|
System Parameters |
|
|
Energy Cycling Efficiency |
92% |
|
Protection Level |
IP54 |
|
Corrosion Protection Level |
C3 default, C4/C5 Optional |
|
Isolation Method |
Not isolated(optional transformer) |
|
Ralative Humidity |
0-95% (No condensation) |
|
Ambient Temperature |
-30℃~55℃ (45℃ Derating above) |
|
Cooling Method |
Intelligent air-cooled |
|
Altitude |
<4000m (over 2000m derated) |
|
BMS Communication |
CAN2.0b |
|
EMS Communication |
4G/CAN/RS485 |
|
Dimensions (W × D × H) |
1850mm × 1250mm × 2280mm |
|
Weight |
Approx. 3500kg |
|
Annual Decay Rate |
<3% |
Download Now
C&I BESS cabinet reduce electricity costs by leveraging peak-valley electricity price arbitrage, improving renewable energy utilization, and participating in demand response programs.
Sample order: 100% payment before shipment; Bulk order: 30% deposit before production, 70% balance before shipment.
Industrial battery storage systems enhance power supply reliability by serving as emergency backup power sources, stabilizing microgrids, and improving grid quality.
Installation costs of commercial energy storage systems vary based on factors like system capacity, technical configurations, and installation location. While initial costs may be high, long-term economic benefits are obtained through electricity cost savings and enhanced power supply reliability.
