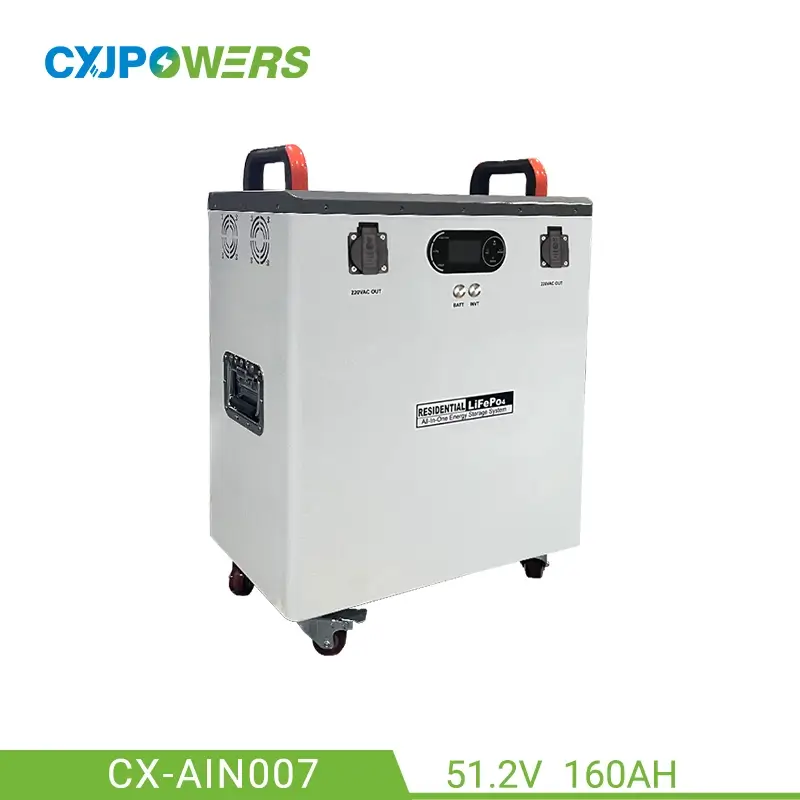

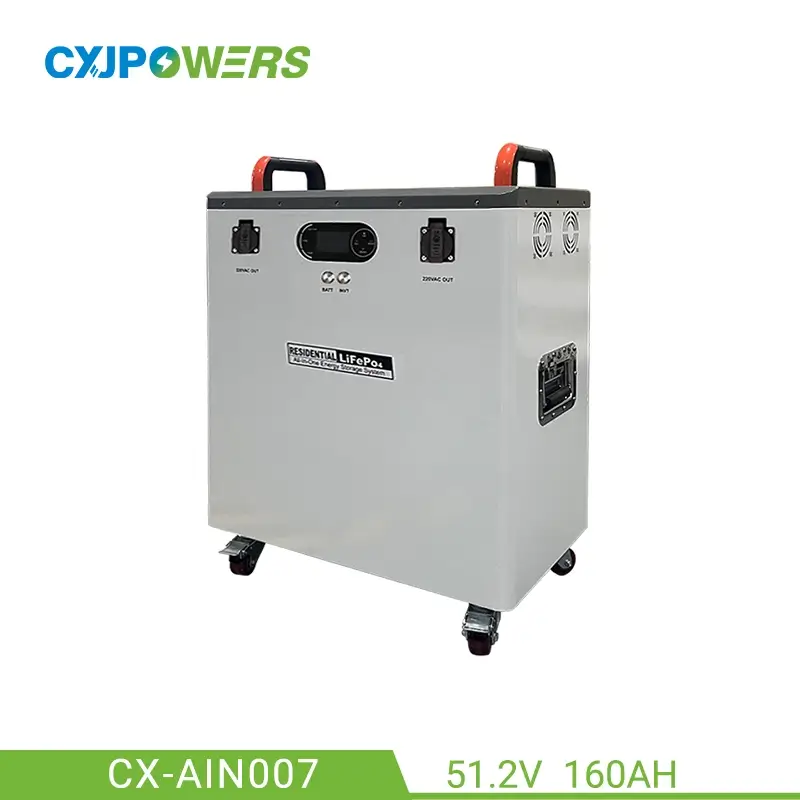

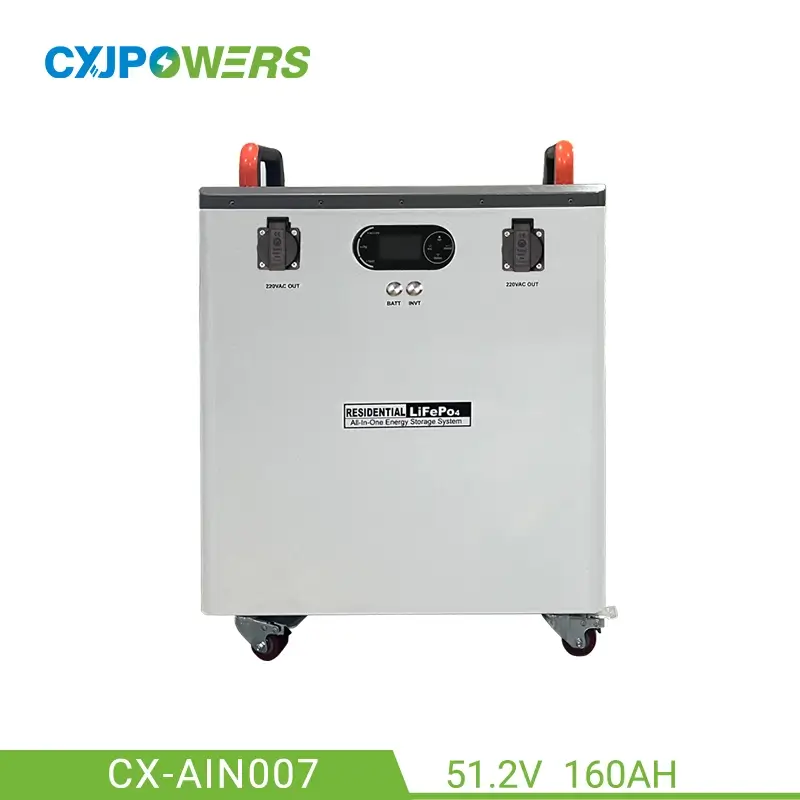

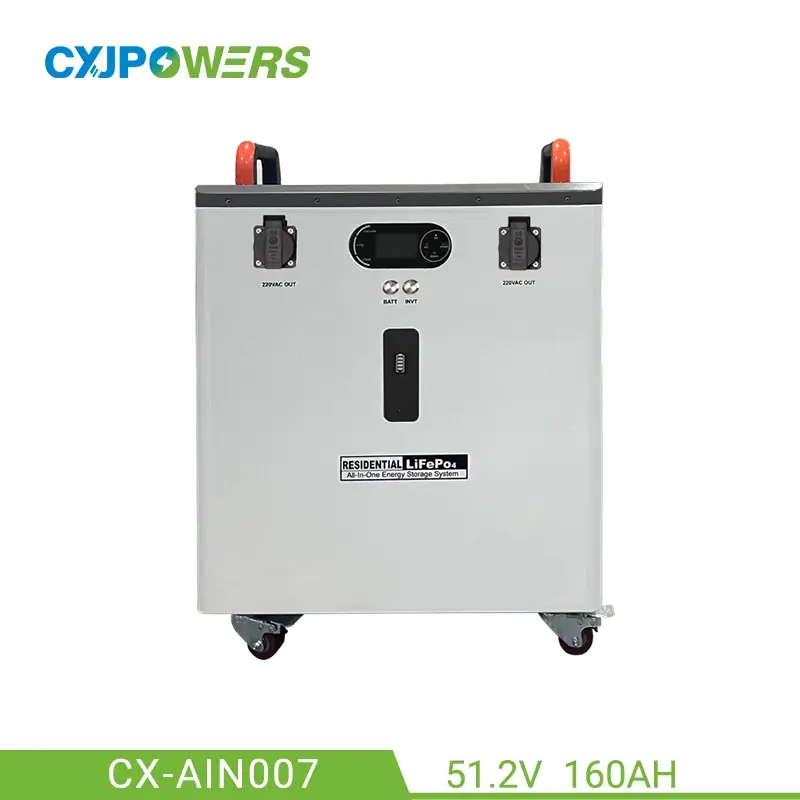

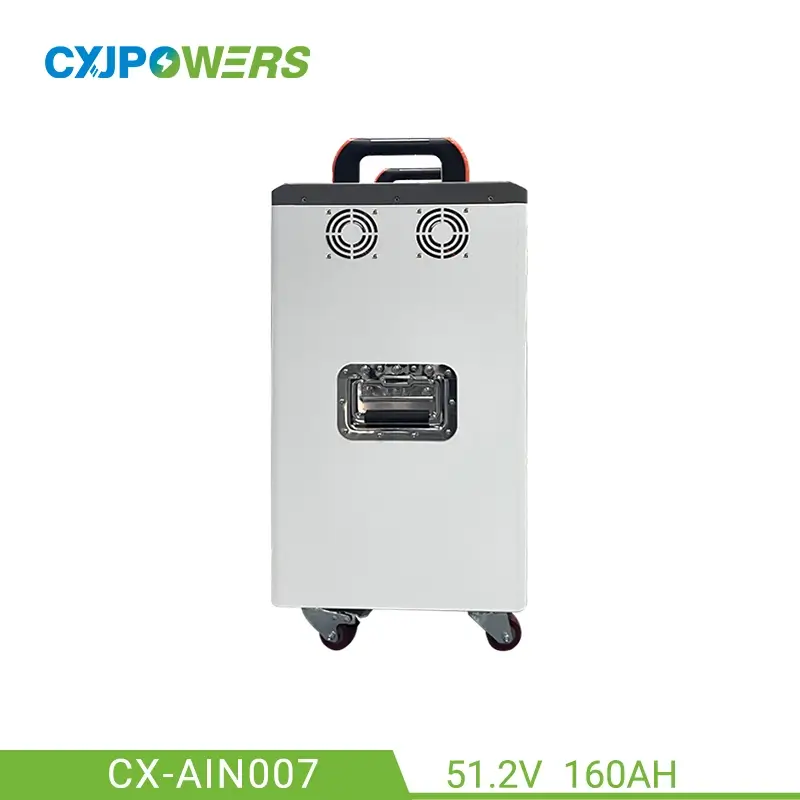

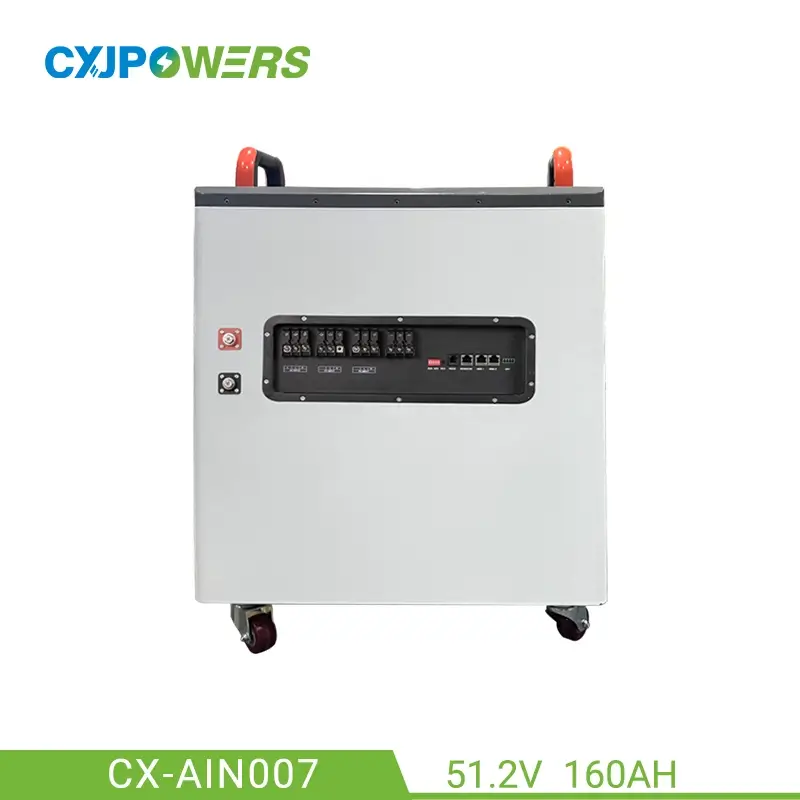

Integrated inverter & LiFePO4 battery, 4 Wheels trolley style.
Model: CX-AIN007
Rated energy: 8 kWh
Rated voltage: 51.2V
Rated capacity: 160Ah
Battery type: LiFePO4 battery
Voltage range: 40V～58.4V
Inverter: 8000W Pure Sine Wave
AC output: Terminal & Socket (27A max)

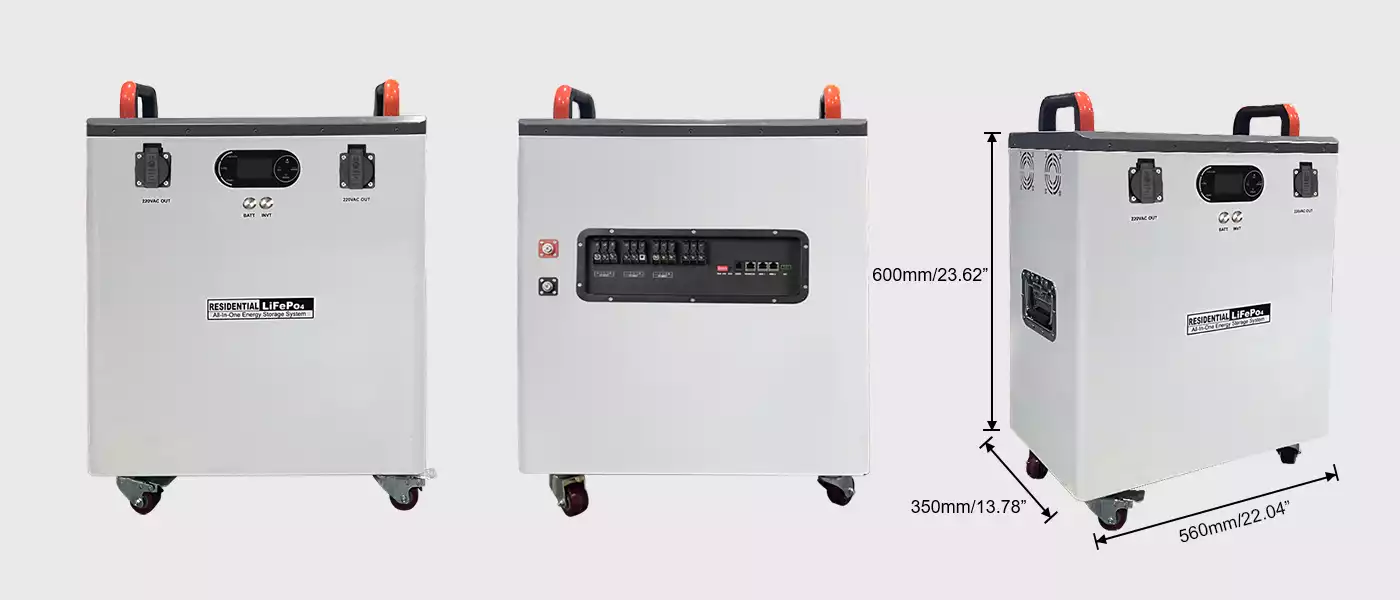

Dimension(L×W×H): 560×350×600mm
Type: Trolley style
Weight: 79 kg
MOQ: ≥ 1pcs
CXJPowers is a top home battery storage supplier & ESS battery manufacturer, specializing in the R&D, production and sales of solar energy storage batteries, All-in-one LiFePO4 ESS(energy storage systems) and various LiFePO4 lithium battery packs, etc., providing customized lithium energy solutions.is a top OEM/ODM jump starter factory in China, providing customized 12V/24V car jump starters with various battery capacities to meet the needs of different customers.
All in one home solar battery storage lithium battery CX-AIN007 is a 8kWh home battery storage power system (home backup battery). It built-in 51.2V 160Ah LiFePO4 Battery, inverter and intelligent BMS management system, is a device integrating photovoltaic power generation system and energy storage system. It is suitable for off-grid energy storage system and outputs AC power with stable frequency and constant voltage.
All-in-one ESS Battery Powers A Home 24/7
Flexible storage, up to 8kWh.
Long life, ＞6000 times cycles life.
Multi-protection battery balance.
Applied to photovoltaic systems.
No fuel required, uses clean energy.

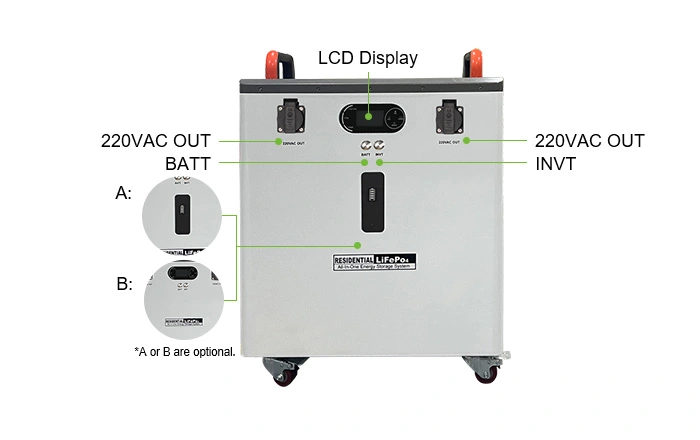

Easily & clearly check battery status.
Plug and play, easy installation.
Peak/Valley power prices save cost.
When power is working, it provides single-phase AC power; when power is out, it can be used as a home backup power supply or UPS.

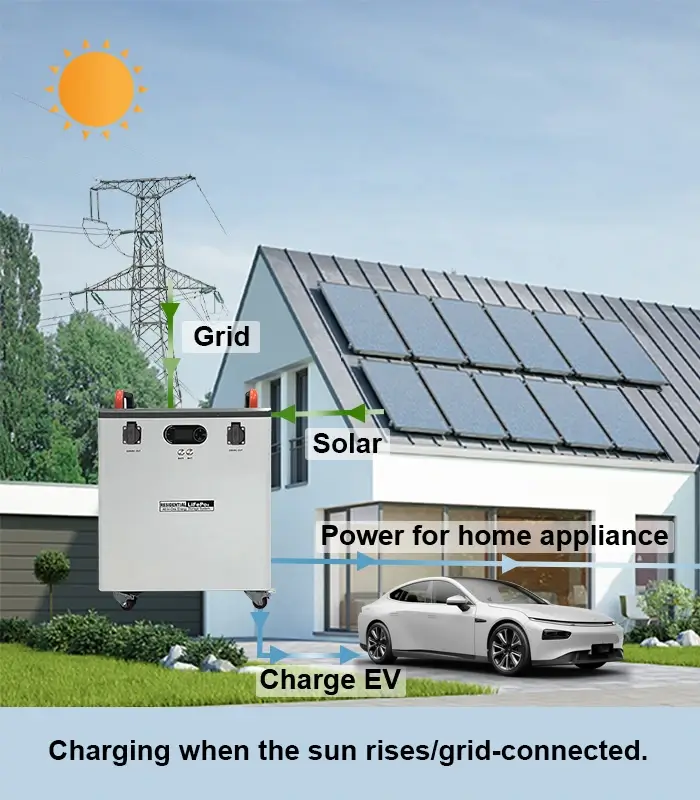

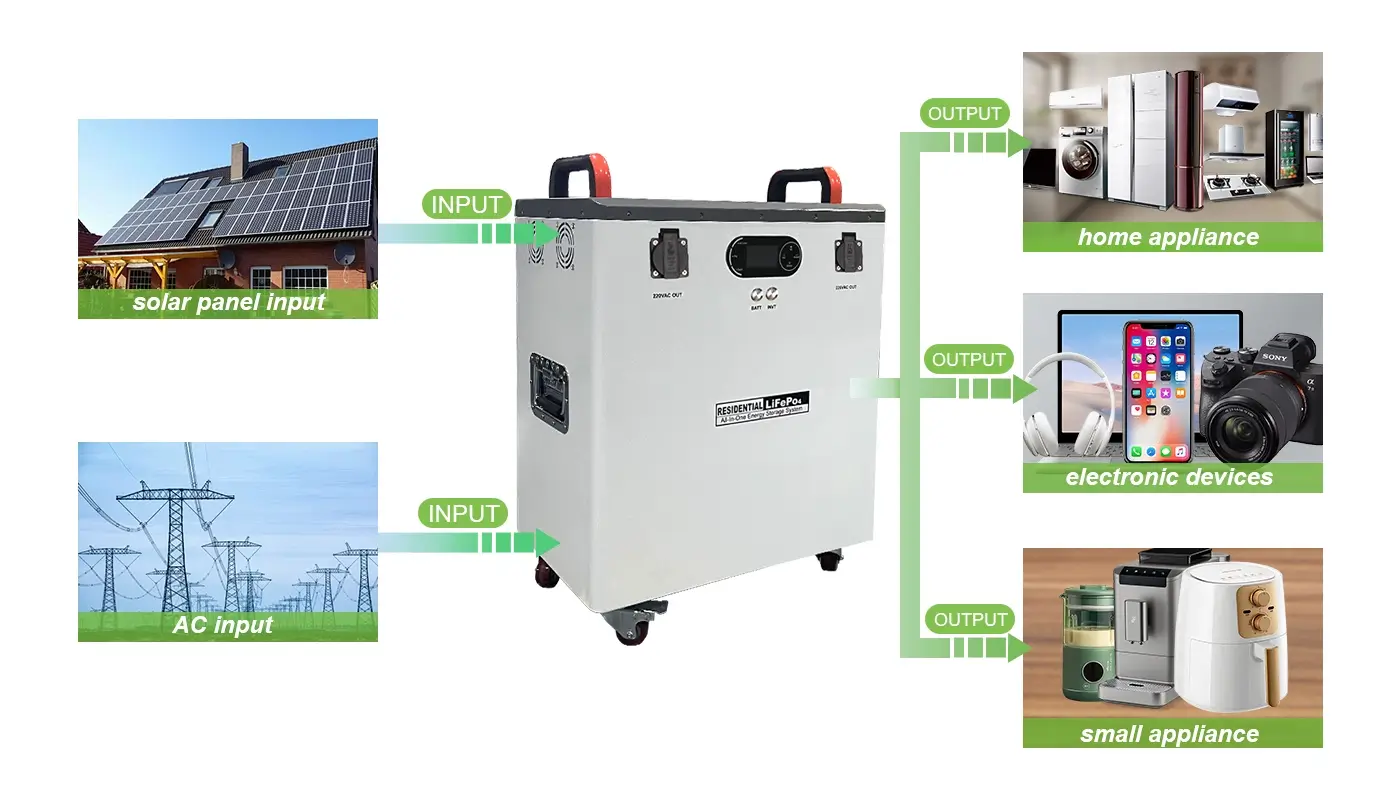

All in one home solar battery storage CX-AlN007 can be charged by solar panels and AC mains. It can directly power the home (TV, computer, air conditioner, lighting, etc.) through photovoltaic power generation, reduce power consumption, and even fully meet the demand for self-use electricity. During off-peak electricity prices, the city electricity is charged and stored in the LiFePO4 ESS battery, and during peak electricity prices, it supplies power to the home, reducing electricity costs.

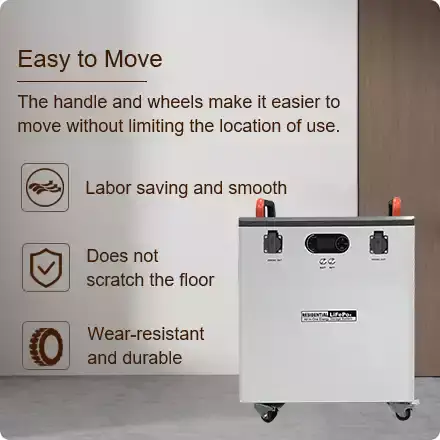

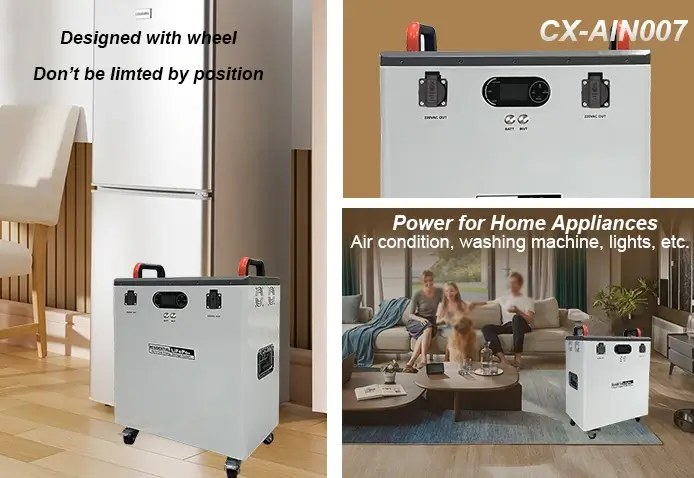

Designed with wheels，can be used anywhere
Almost silent working state, perfect user experience
Provides 6 protections, more stablity and safety.
| Item Name | 8kWh Home Solar Battery Storage System | ||||
| Model | CX-AIN007 (51.2V 160Ah) | Inverter | 8KW(Pure sine wave) | ||
| Energy | 8.19kWh | MPPT (Optional) Working Voltage | 60VDC-450VDC | ||
| Battery | LiFePO4 cell | AC Output Voltage | 220/230VAC, 50Hz/60Hz | ||
| Cycle Life | >6000 times | Dimensions(LxWxH) | 560x350x600mm | ||
| Voltage Range | 40~58.4V | Weight | Approx. 79kg | ||
The home solar battery storage allows us to worry less when the power goes out, and is an indispensable necessity.
This home powerwall supply provides us with stable power guarantee, it is highly recommended.
Battery storage ensures the smooth operation of the home and adds peace of mind to our lives.
|
8kWh Home Solar Battery Storage System |
|
|
Model |
CX-AIN007 |
|
Battery Parameters |
|
|
Rated Energy Capacity |
8.19kWh |
|
Battery Type |
Lithium iron phosphate(LiFePO4) |
|
Life Cycle |
＞6000 cycles（80%DOD，25℃） |
|
Battery Working Voltage |
44.8~58.4V |
|
Layers |
All in one |
|
PV Parameters |
|
|
Charging Current |
100A |
|
Discharging Current |
200A |
|
PV Input Power |
8KW |
|
MPPT Voltage Range |
60V-450Vdc |
|
PV Voltage Range |
170V-280Vdc |
|
Installation Method |
Floor/Trolley |
|
System Parameters |
|
|
Dimension (LxWxH) |
560x350x600mm |
|
Net Weight |
79kg |
|
PV Input Current |
27A |
|
Operating Temperature Range |
Charging：0~45℃ Discharging：-30~55℃ |
|
Maximum Charging Current |
120A |
|
AC Input Voltage |
220V/230Vdc |
|
AC Output Power |
5KW |
|
AC Output Voltage |
220Vac |
|
AC Output Frequency |
50/60Hz |
|
IP Grade |
IP21(Indoor) |
|
Cooling Method |
Fan cooling |
|
Product Life |
10 years |
|
Certification |
CE,RCM,UN383,Test report IEC62619 |
Download Now
More CatalogsWhereas other CXJPowers home solar battery storage require a separate inverter unit, the All in One combines both battery and inverter into one unit.
Sample order: 100% payment before shipment; Bulk order: 30% deposit before production, 70% balance before shipment.
CXJPowers is a professional lithium battery manufacturer with ISO9001, ISO14001. All the products have CE certificate.
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
